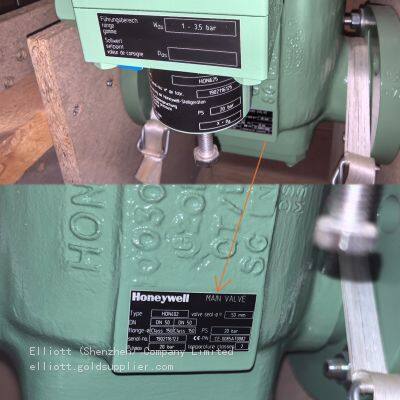

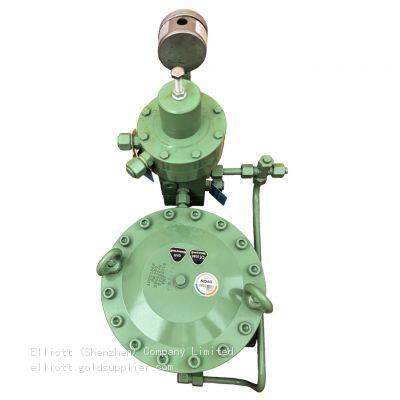

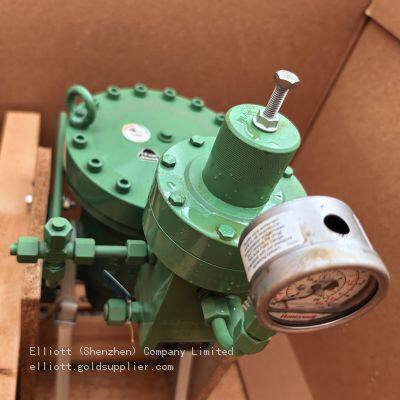

Honeywell HON402 With HON625 Pilot-operated Gas Pressure Regulator DN50 Flange Class150 for Power Plants and Industrial Stations

Features and Benefits:

• Large inlet pressure range

• With inline pilot HON 620 or pilot Series HON 630 (externally)

• HON630-1 (formerly HON 640), single stage type for inlet pressure variation <15 bar

• Also available with Safety Shut-off Valve (SSV)

• DN 25 (PN 16): actuator system K 1a, K 2a

• DN 50 thru DN 100 (inlet pipe sizes): K 10a, K 16, K 17 (thru Class 300); K10a, K 16, K 17 (thru Class 300)

• SSV setting range: Wdo 40 mbar to 40 bar; Wdu 5 mbar to 40 bar

• Fewer parts, easy to maintain, and quiet operation

• Noise reduction can be retrofitted

• Suitable for non-aggressive gases, other gases on enquiry

• CE registration according to PED

• Max. admissible pressure PS= 50 bar

• Max. inlet pressure pu max: up to 50 bar

• Outlet pressure range Wd: 20 mbar to 40 bar

• Minimum pressuredrop: 0.5bar, others on enquiry

• Class of lock-up pressure zone: SZ 2.5

• Flange connection (optional): Output DN = Input DN

• DN 25: DIN flange PN 16, PN 25, Class 150 according to ANSI 16.5; Output DN = 2 x Input DN

• DN 50 thru DN 100: DIN flange PN 16, PN 25, PN 40 and Flange Class 150 and Class 300 according to ANSI 16.5
