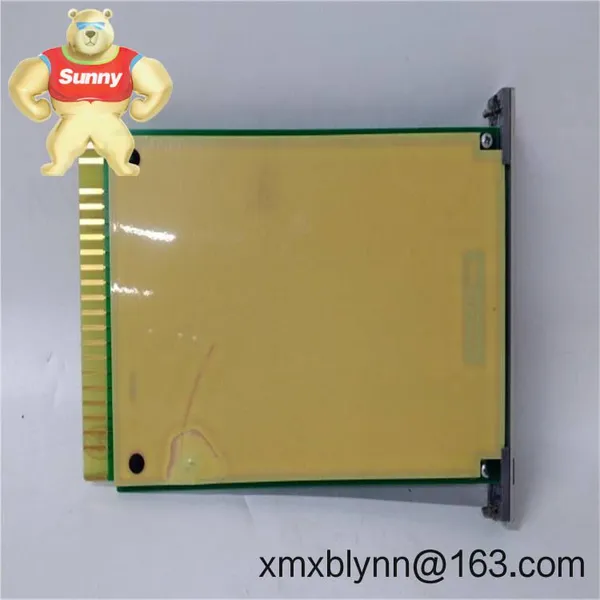

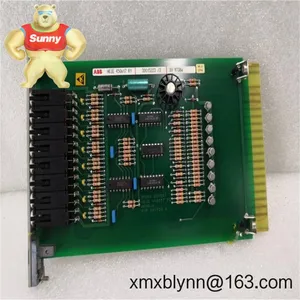

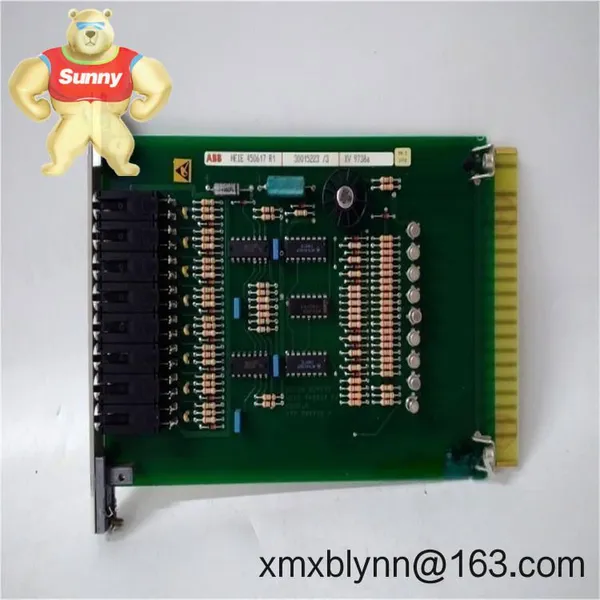

Help CenterSchneider Electric XV9738a HEIE450617R1 Analog Input Module for Precision Process Control
Related Products
-
Siemens YPK112A 3ASD573001A13: Your Reliable PROFINET Backbone for Modern Control SystemsUS$ 2560.00MOQ: 1 Blade -
ProSoft 5201-MNET-MCM-WEB – Modbus TCP to Modbus Serial Gateway With Embedded Web DiagnosticsUS$ 2560.00MOQ: 1 Blade
-
SIEMENS 6EP1334-3BA00 – SITOP Smart 24 V/10 A DIN‑rail Power Supply for Reliable Panel PowerUS$ 2560.00MOQ: 1 Blade
-
MESTO D201925 – Genuine Spare Part for Professional Pressure SprayersUS$ 2560.00MOQ: 1 Blade
-
Schneider Electric TWDNOZ485T – RS‑485 Modbus Adapter for Twido PLCsUS$ 2560.00MOQ: 1 Blade
Noise-resistant signal conditioning – handles 4-20mA inputs in high-EMI environments like welding stations. From my experience, it rejects interference that would make cheaper modules jump 15%.
Hot-swap capability – replace modules without shutting down the whole rack. One client kept their bottling line running during a midnight sensor calibration.
Field diagnostics via LED – see signal health at a glance. You might notice the amber warning light catches grounding issues before they become critical.
Modbus TCP compatibility – talks to legacy SCADA systems without protocol converters. Typically saves $2k+ in integration costs.
| Parameter | Details |
|---|---|
| Brand/Model | Schneider Electric XV9738a HEIE450617R1 |
| HS Code | 8538.90.0000 |
| Power Requirements | 24V DC ±15%, 350mA max |
| Dimensions & Weight | 90×120×75mm / 320g |
| Operating Temperature | -20°C to +60°C (no derating) |
| Signal Inputs | 8-channel 4-20mA / 0-10V |
| Communication | Modbus TCP, EtherNet/IP |
| Installation | DIN rail (TS-35), compatible with Schneider PLC racks |
This isn't just another I/O card – it shines where signal integrity matters. In pharmaceutical clean rooms, I've seen it maintain ±0.05% accuracy during sterilization cycles when humidity hits 90%. Food processing plants use it for precise fill-level control on high-speed lines; one ketchup manufacturer reduced overfill waste by 3.7% after switching from their old modules. It's also become our go-to for water treatment plants monitoring chlorine residuals – the galvanic isolation prevents ground loops in those wet environments.
Let's be honest – you're not buying a module, you're buying uptime. The 10-year mean time between failures (MTBF) means fewer emergency orders at 2am. Compatibility with existing Modicon M580 systems typically avoids $15k+ in gateway costs. And our firmware update process? You can patch it remotely during production – no more scheduling costly shutdowns. One plant engineer admitted he initially balked at the price until he calculated the ROI from reduced calibration labor.
Installation essentialsMount it on standard DIN rail in NEMA 12 cabinets – leave 20mm clearance on sides for airflow. Critical note: always use shielded twisted-pair cable with single-point grounding (I've seen too many installs fail because someone daisy-chained shields). For maintenance, wipe vents monthly in dusty environments and run the self-diagnostics quarterly. Firmware updates take 90 seconds via the web interface – no special tools needed. One thing I appreciate is how the status LEDs work even during firmware updates, so you never lose visibility.
Certified reliabilityCarries CE, UL 61010-2-201, and IEC 61131-2 certifications – no compliance headaches for global deployments. RoHS 3 compliant with full material disclosure available. The 365-day warranty covers field failures (including improper installation in most cases), and we provide lifetime technical support. Interestingly, over 80% of support calls are resolved in under 20 minutes because the diagnostics are so transparent.
