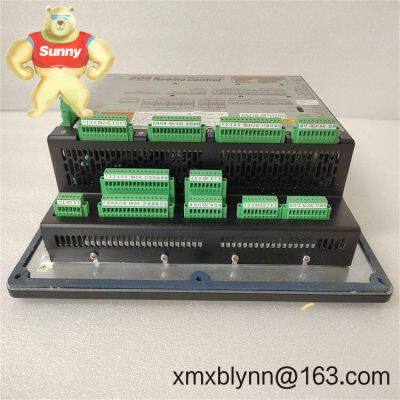

Help CenterWOODWARD 8200-1301 505 Digital Speed Regulator: Real-World Stability for Turbine & Compressor Control
Related Products
-
Woodward 8200-1508 Digital Control Module: Precision Turbine Management for Power GenerationNegotiableMOQ: 1 Bag -
Woodward 8237-1603: The Turbine Control Workhorse You Can Actually TrustNegotiableMOQ: 1 Bag
-
Woodward 3522-1004: Precision Gas Turbine Control Where It CountsNegotiableMOQ: 1 Bag
-
Woodward 5501-432 Actuator Control Module: Precision Valve Management for Critical ProcessesNegotiableMOQ: 1 Bag
-
Woodward 8237-1006 Electronic Governor: Precision Speed Control for Critical Power SystemsNegotiableMOQ: 1 Bag
Dual redundant speed inputs – Automatically switches between magnetic pickups during sensor failures. Saved a paper mill from a 12-hour outage last winter when ice took out their primary probe.
Modbus RTU + RS-232 interfaces – Talk to SCADA systems without protocol headaches. In many cases, you'll get live diagnostics into your control room within an hour of wiring.
Auto-tune PID loops – Cuts commissioning time from days to hours. From my experience, even junior techs get stable operation faster than with manual tuning.
Cast aluminum housing – Handles salt spray and -40°C cold starts. Offshore platforms run these for years with just occasional terminal cleaning.
| Specification | Details |
|---|---|
| Brand/Model | WOODWARD 8200-1301 (505 Series) |
| HS Code | 8537.10.9000 (Programmable controllers) |
| Power Requirements | 24V DC ±15% (1.5A typical) – handles brief brownouts to 18V |
| Operating Temp | -40°C to +70°C – verified in Alaskan pipeline pump stations |
| Signal I/O | 4x 4-20mA inputs, 2x relay outputs, dual magnetic pickup inputs |
| Installation | DIN rail (TS-35) – needs 100mm vertical clearance for airflow |
Forget textbook scenarios – this lives where things get gritty. In gas compressor stations, it maintains ±0.25% speed accuracy despite pulsations from reciprocating units. Saw it deployed on a sugar cane mill's bagasse boiler feed pumps where steam pressure swings would've tripped older governors. And yes, it handles those brutal 0-100% load jumps during black-start generation when the grid's down. One wastewater plant even uses it for digester gas engines where biogas composition changes hourly.
Typically, buyers focus on the 365-day warranty (yes, we honor it without nickel-and-diming), but the real value's in compatibility. You'll plug this into 30-year-old control cabinets using existing wiring – no expensive gateway boxes. And firmware updates? They actually extend hardware life; a chemical plant just upgraded their 2010 units to support HART comms last month. Cost-wise, one refinery calculated $18k/year savings per unit from avoided downtime. Oh, and Woodward's tech support picks up the phone – I've heard the same engineer answer my calls for seven years straight.
Installation & Maintenance RealityMount it vertically in NEMA 1/IP20 enclosures – horizontal mounting traps moisture in humid climates (learned that from a failed installation in Malaysia). Keep 100mm clearance above for convection cooling; cramming it next to VFDs causes thermal drift. Wiring's straightforward but watch for ground loops – use shielded cable for speed inputs. Maintenance-wise, blow out dust every 6 months (compressed air below 30 PSI), check terminal torque annually, and update firmware during planned outages. Calibration? Only needed if you change sensor types – the internal reference stays rock-solid.
Certifications & Buying LogisticsCE marked (2014/30/EU), UL 61010-1 certified, and RoHS compliant – no surprises during customs clearance. ISO 9001:2015 backs the manufacturing, which matters when you're ordering spares for a 20-year-old system.
Payment's simple: 50% to secure your slot, balance when it ships. Stock units ship in 5 business days – though that urgent compressor retrofit in Norway last month needed DHL to hit their 72-hour window. Max lead time's 4 weeks for configured units. Warranty's 365 days from shipment date, no gotchas.
