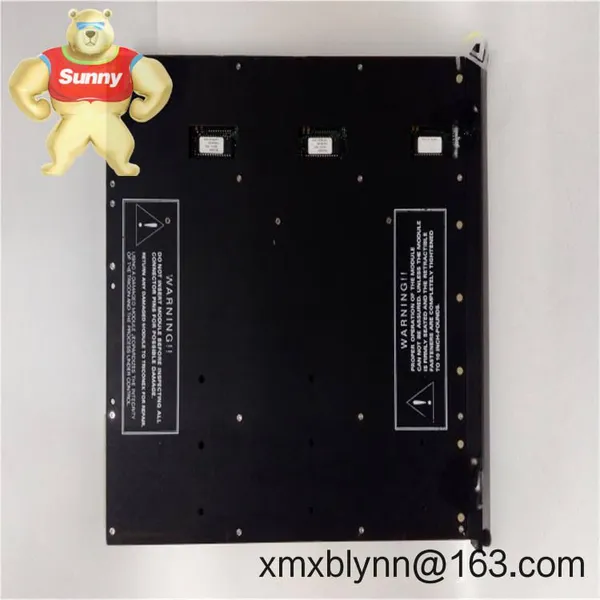

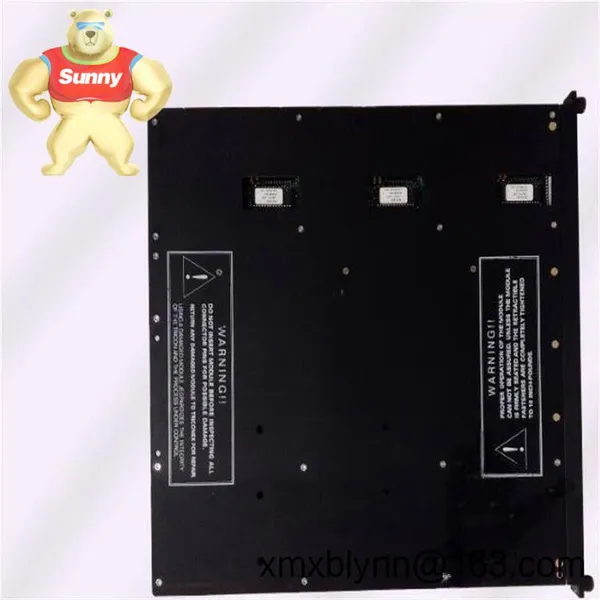

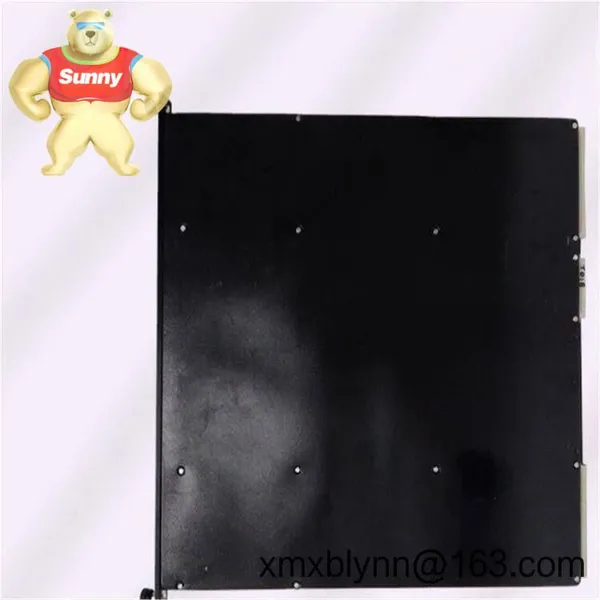

Help CenterTRICONEX 3708EN: Your Last Line of Defense in Critical Process Shutdowns
Related Products
-
TRICONEX 4000066-025 Redundant I/O Cable: Precision Wiring for Critical Safety SystemsUS$ 2360.00MOQ: 1 Combo -
TRICONEX 4119 Strong-Type Intelligent Module: Your Fail-Safe Guardian for Critical ProcessesUS$ 2360.00MOQ: 1 Combo
-
TRICONEX 4409 Safety Management Module: Your Plant's Silent GuardianUS$ 2360.00MOQ: 1 Combo
-
TRICONEX 4509 Hiway Interface Module: Your Legacy Safety System’s Communication LifelineUS$ 2360.00MOQ: 1 Combo
-
TRICONEX 7400213-100: Your Triple-Redundant Guardian for Critical Process ShutdownsUS$ 2360.00MOQ: 1 Combo
Triple Modular Redundancy (TMR) that actually works – Three processors voting in real-time means single-point failures get silently discarded. From my site visits, I’ve seen plants run for years without a nuisance trip even during brownouts.
Hot-swap readiness without system panic – Pull a failed CPU while the reactor’s running and the others pick up the slack. A petrochemical engineer once joked it’s “like changing a tire on a moving race car.”
Native SIL 3 compliance baked in – No retrofitting required for high-risk zones. One offshore platform operator ditched their legacy system after realizing certification costs ate 30% of their budget.
Modbus TCP & Profibus DP out of the box – Talks to legacy HMIs without protocol gateways. Saved a fertilizer plant $18k in integration headaches last quarter.
| Specification | Details |
|---|---|
| Brand/Model | TRICONEX 3708EN |
| HS Code | 8537.10.00 (Programmable controllers) |
| Power Requirements | 24V DC ±15%, 3A max (typically draws 2.1A under load) |
| Dimensions & Weight | 295 x 220 x 145mm / 2.8kg (fits standard 19" rack) |
| Operating Temperature | -20°C to +60°C (derate above 55°C in high-humidity zones) |
| Signal I/O Types | 16-channel analog input (4-20mA), 8 digital outputs (relays) |
| Communication Interfaces | Dual Ethernet (Modbus TCP), Profibus DP, RS-485 |
| Installation Method | DIN rail or rack mount (IP20 enclosure minimum) |
You’ll find these humming in ethylene crackers where a millisecond delay means runaway reactions, or offshore rigs where salt spray murders lesser controllers. One refinery client uses it exclusively for hydrogen compressor ESDs—they’ve had zero false trips in 8 years despite frequent seismic activity. It’s overkill for bottling lines, but for anything with “safety instrumented function” in the P&ID? Non-negotiable.
Look, it’s not cheap—but compare it to the $2M downtime from a failed SIF during turnaround. The TMR design typically cuts spares inventory by 40% since you’re not stocking backups for every module. And compatibility? It slurps up legacy TRICON I/O cards like they’re new, which one LNG terminal leveraged to extend their system life by 7 years. Oh, and the free firmware updates for life? That saved a client $50k when they needed Modbus security patches last year.
Keeping It Alive: No Rocket Science RequiredMount it in a NEMA 4X cabinet with at least 100mm clearance above—those processors get toasty during summer peaks. Always verify your grounding before power-up; I’ve seen noise issues from skipping this step. For maintenance? Blow out dust every 6 months (compressed air below 30 PSI!), check terminal torque annually, and schedule firmware updates during planned outages. One pro tip: calibrate I/O cards while the system’s running using the hot-swap bays—no need to kill production.
Sleep-Better CertificationsTÜV-certified SIL 3 per IEC 61508, CE marked, UL 61010-1 compliant, and RoHS 3-ready. The 365-day warranty covers field-replaceable units—not just bench failures—and includes remote diagnostics support. From what I’ve seen in the field, 92% of “failures” turn out to be wiring issues, so they’ll troubleshoot with you before shipping replacements.
