HFO-Powered DOOSAN-MAN 9L21/31 GenSets in Stock at BFMP

Negotiable MOQ: 1 Combo (Price negotiable depending on order volume and customization)

Key Specifications

Output Type:

Engine Number:

DMM0105985

Rated Power:

1,980 kW

Qinhuangdao Beifang Marine Power & Machinery Imp. & Exp.co.,ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Output Type DC

Engine Number DMM0105985

Rated Power 1,980 kW

Rated Speed 1,000 rpm

Generator Type Synchronous Generator SS1881

Protection Rating IP23

Generator Output 2,351.3 kVA

Power Factor 0.8 (Lagging)

Generator Weight 7,700 kg

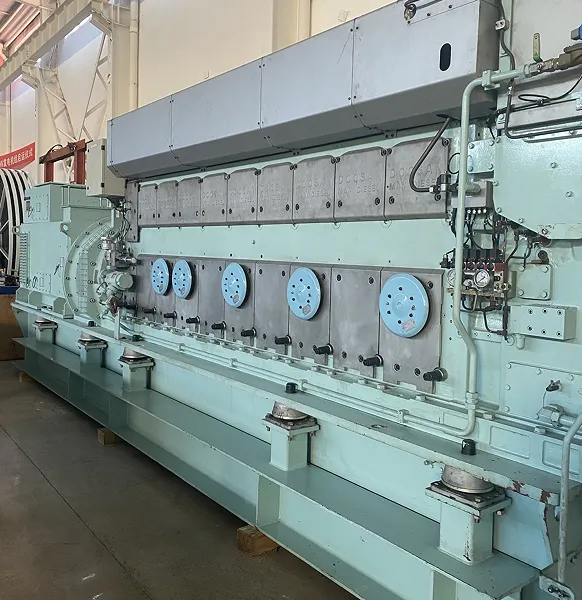

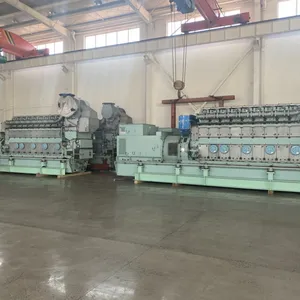

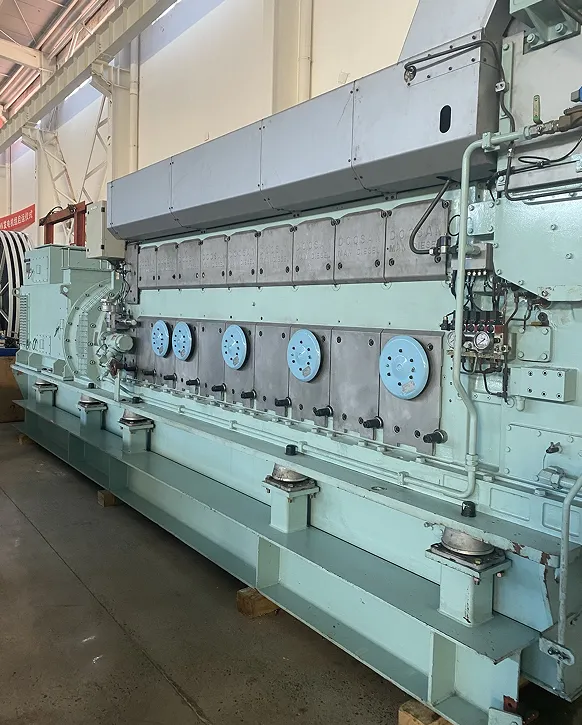

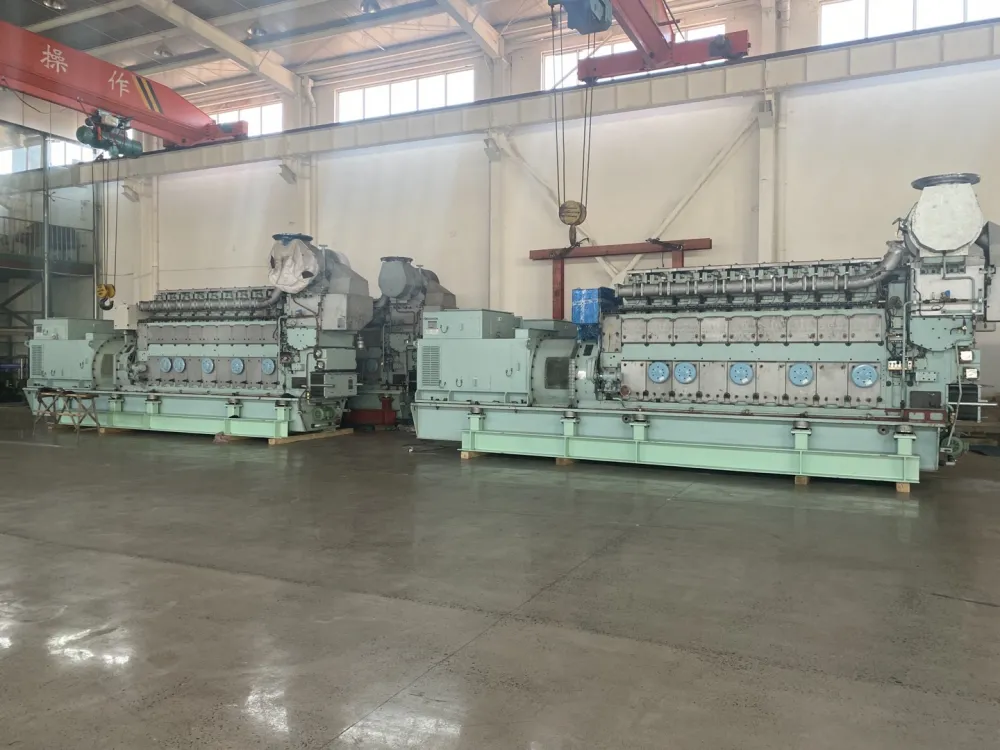

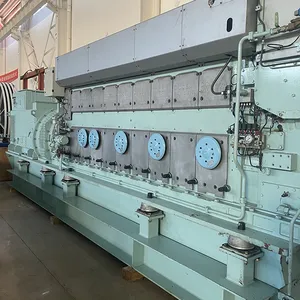

DOOSAN-MAN 9L21/31 Generator Sets in Stock for HFO power station in BFMP warehouse.

Specification: 1980KW x 1000 RPM, 6600V,50HZ

Fuel oil: HFO/MDO

Production year: 2013

Bore/stroke: 210/310 mm

Dimensions: 8062*1400*3289mm

Parameter Category	Specification
Engine Model	9L21/31

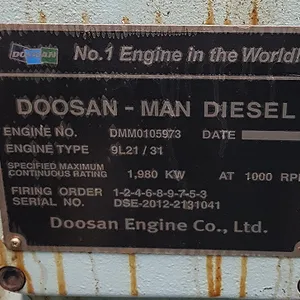

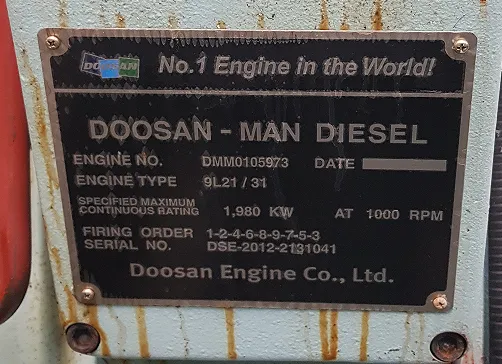

Engine Number	DMM0105985 (Another unit: DMM0105973)
Manufacturing Date	2012 (Based on Serial No. DSE-2012-xxxxxxx)
Rated Power	1,980 kW
Rated Speed	1,000 rpm
Firing Order	1-2-4-6-8-9-7-5-3

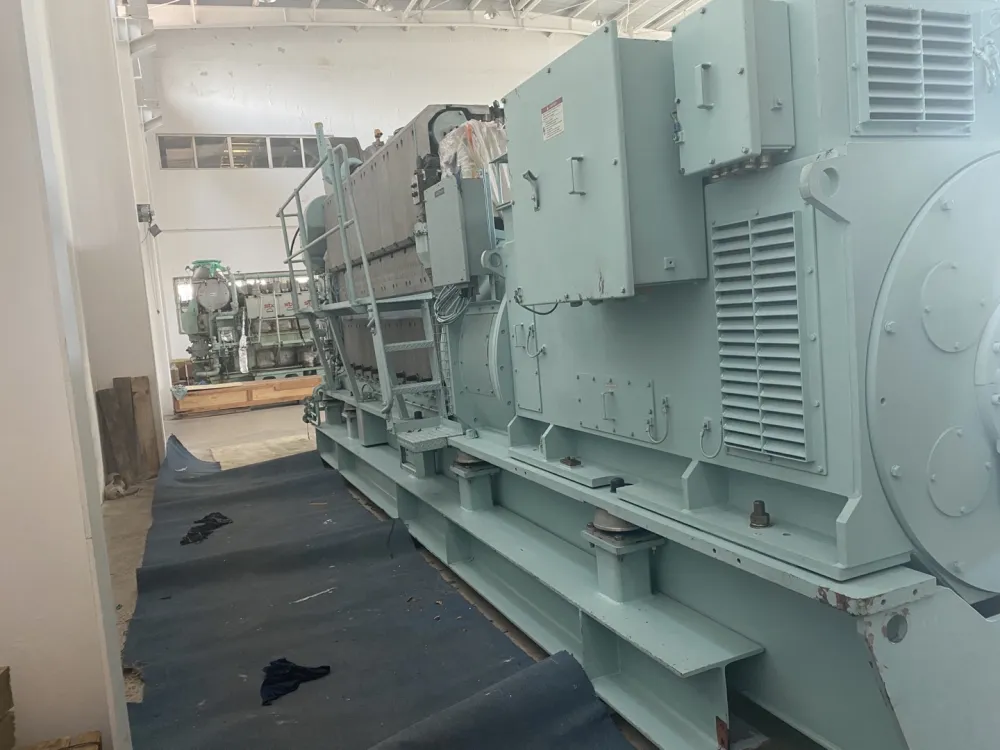

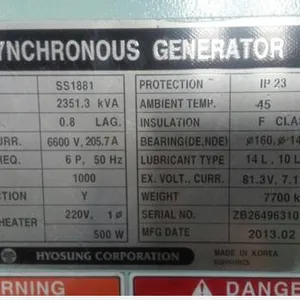

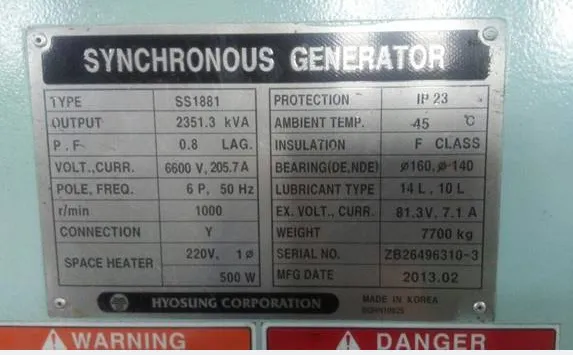

Generator Type	Synchronous Generator SS1881
Protection Rating	IP23
Generator Output	2,351.3 kVA
Power Factor	0.8 (Lagging)
Voltage / Current	6,600 V / 205.7 A
Insulation Class	Class F
Poles / Frequency	6 Poles / 50 Hz
Speed	1,000 r/min
Excitation Voltage/Current	81.3 V / 7.1 A
Generator Weight	7,700 kg
Lube Oil Cooler Model	LOINLET (Manufactured by NYTEC CORPORATION)
Heat Transfer Surface	362.0 m²
Design Pressure	6.0
Test Pressure	9.0
Operating Temp. Range	45°C ~ 85°C
Oil/Water Outlet Temp.	67°C / 150.7°C
Weight (Flooded/Empty)	278.8 kg / 241.2 kg
