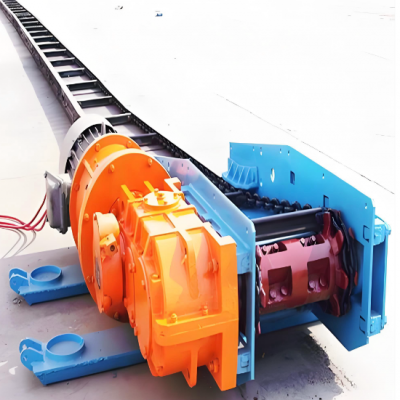

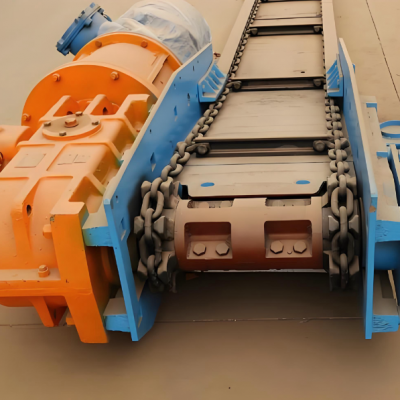

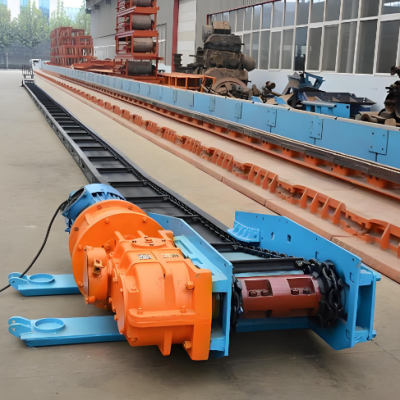

Product Name:Powerful Mining Equipment Scraper Chain Conveyor Scraper Conveyer SGB-630V/150(C) 1.Model:SGB-630V/150(C)
2.Conveying Capacity:250T/h
3.Scraper Chain Speed:0.868m/s
4.Laying Length:200m
5.Motor Mode:YBS-75
6.Power:75KWx2
7.Voltage:380/660V
8.Speed:1470 r/min
9.Middle Groove Specifications:1500x630x190
10.Round Link Chain Spec:∮18x64mm
11.Scraper Spacing:1024mm
12.Coupling Type:YOXD450
13.Machine Weight:76T
Use:Mining scraper conveyors are mainly used in underground coal mines, with the core function of transporting coal, gangue and other materials. It is a key equipment to achieve continuous operation of "coal mining → transportation" in the coal mining process.
1.Technological and functional supplement This kind of equipment usually has the characteristics of high load capacity and adapting to complex underground environment (such as humidity, dust, narrow space). It is the core equipment of the "material transportation" link in the mine production system, providing basic guarantee for the mining and subsequent processing of mineral resources such as coal.
2.Scene and function extension Industrial scene:
In addition to coal mines, it can also be applied to the material transportation links of mining, building materials, metallurgy and other industries.
3.Delivery characteristics: Through the circulating motion of the scraper chain, the materials are smoothly pushed along the conveyor slot to achieve long-distance and large-capacity continuous transportation, meeting the efficiency requirements of material transfer in the production process.
