Soldering Machines for LED Strip Lights

Soldering machines for LED strip lights

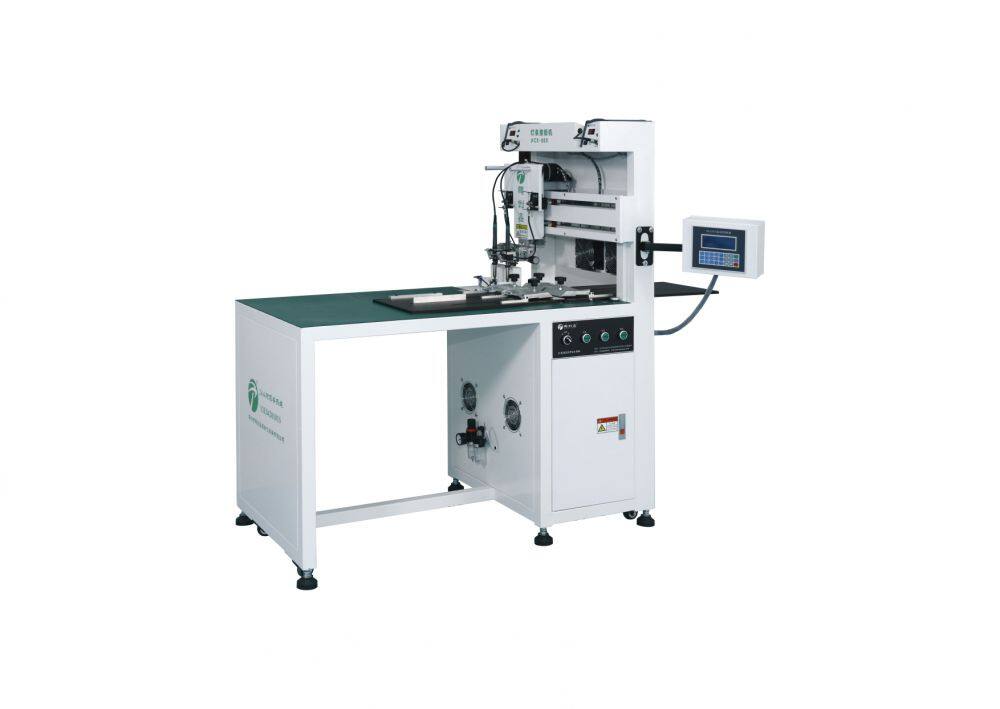

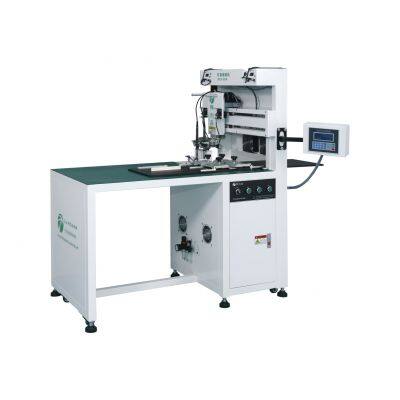

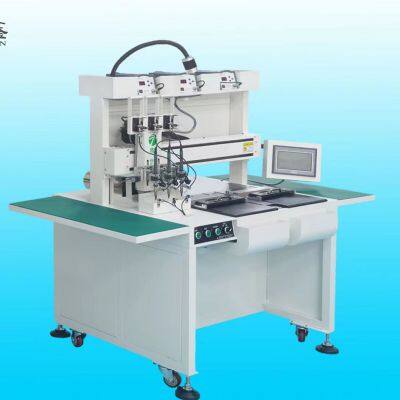

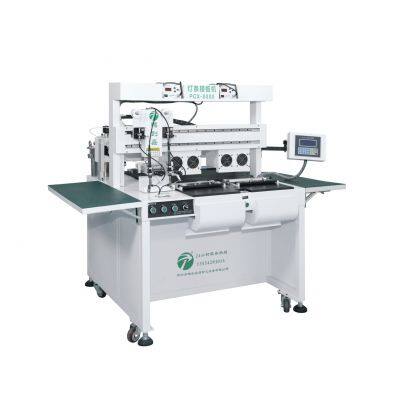

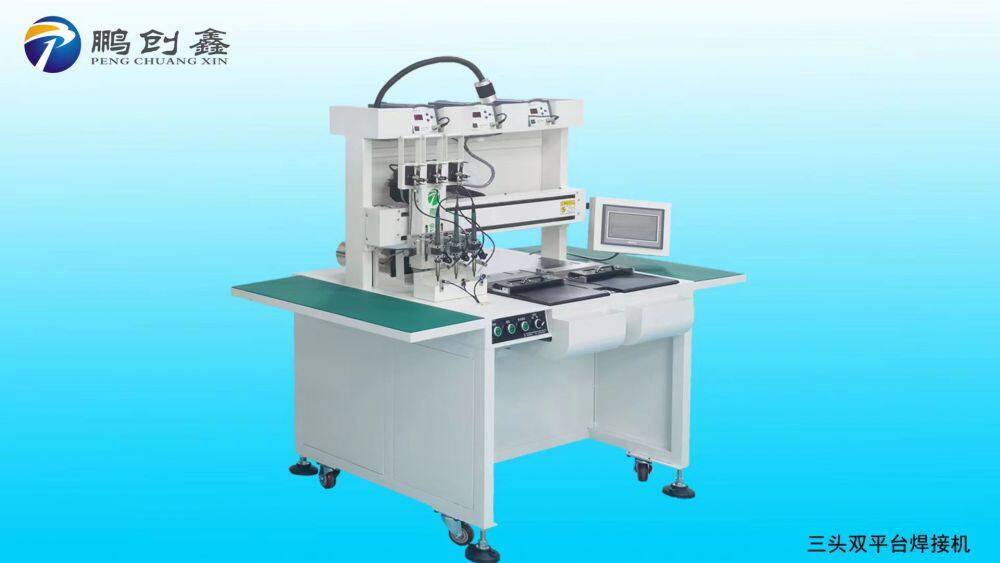

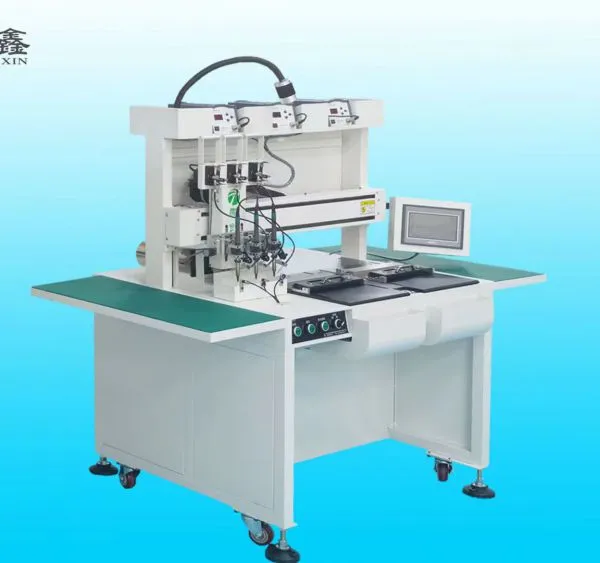

  PCX-8800 is a Double working platform LED strip light soldering machine with cleaning solder joints,It is a dedicated automatic welding equipment for 5 meter LED strip welding,According to the characteristics of LED equipment 5 meters depth of humanization design, engaged in a variety of different solder joints instead of manual soldering work, solve the manual welding of weld solder joint is not uniform, and other phenomena, and compatible with a variety of types of LED soft strip size of welding, simple operation and high practicability, quality stability, greatly enhance the efficiency,Not only that,its unique function of cleaning solder joints effectively reduces labor and costs.

First, product advantages:

1.Simple programming, operation control box mobile head position.

2.Welding speed, high efficiency, a solder machine can save 5-6 people

3.Save tin wire, good consistency of solder joint

4.High power heating controller ensures the stability of continuous welding

The utility model relates to a double head fine tuning welding gun structure, which is convenient for regulating the welding torch spacing and synchronous operation

5.Multi axis manipulator, advanced motion control algorithm, to improve the kinematic positioning accuracy and repeatability accuracy

6.According to the professional design of the lamp batten, it is convenient for manual feeding and feeding

7.Production efficiency: 2000-2500 meters /H.

8、It can replace the manual process and optimize the quality control.

9、Improve efficiency, save manpower, simple operation, new staff can achieve the welding effect of skilled workers

Two, scope of application:

LED soft light plate soldering machine application range: suitable for LED monochromatic light, 5050RGB lamp string, lamp belt, lamp strip and other products

Three, technical parameters:

Technical parameter configuration:
