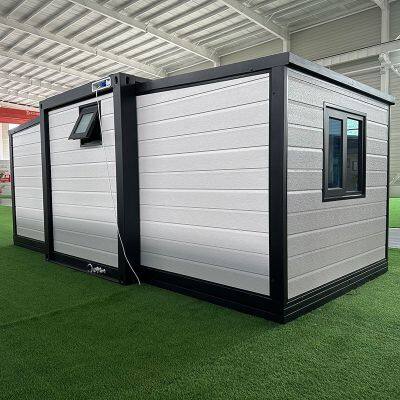

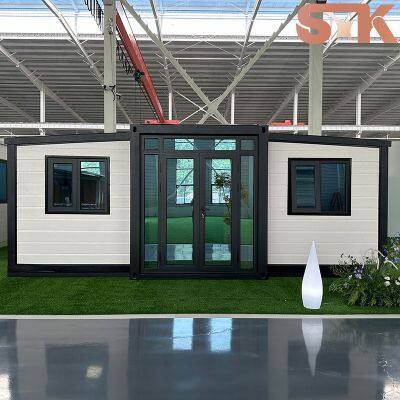

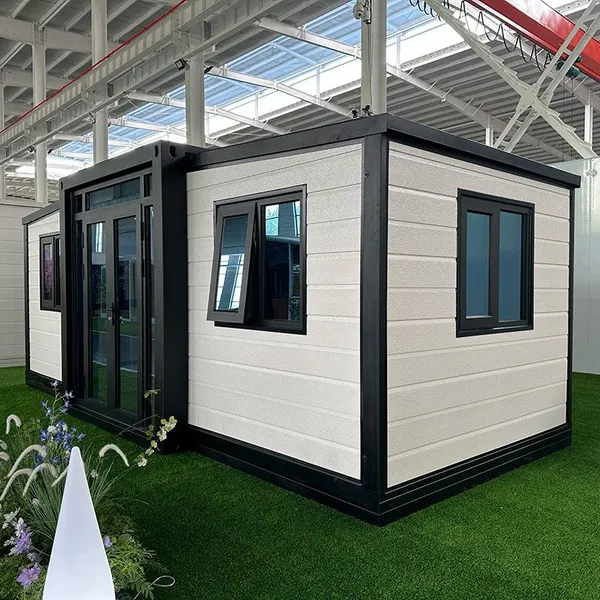

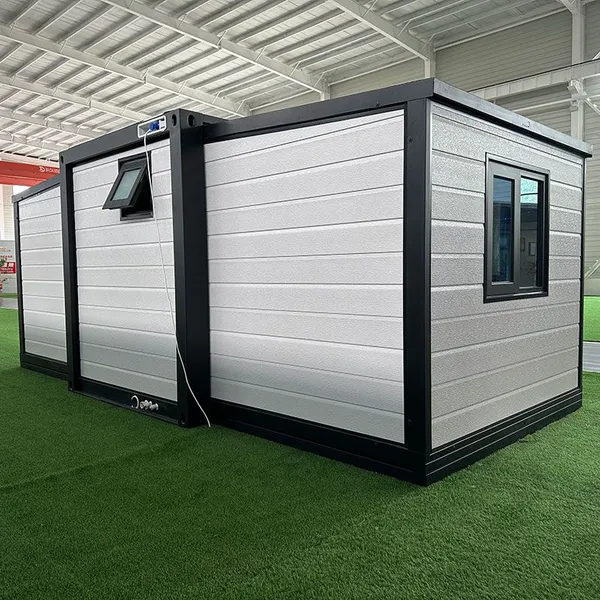

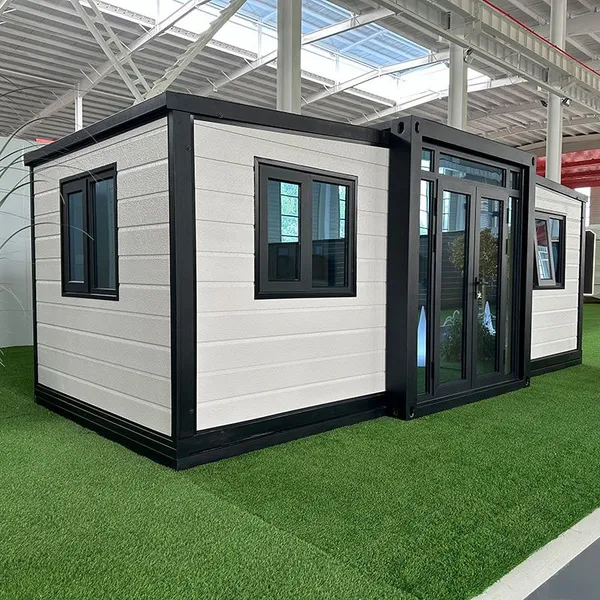

SXKON 10ft Expandable Folding House

Expanded size：L2950*W6300*H2480mm

internal dimensions：L2510*W6140*H2240mm

Folded dimensions：L2950*W2200*H2480mm

Footprint ：18.5㎡

SXKON 10ft expandable folding house

PARAMETER SPECIFICATIONS

1.Wallboard：Type 950 - 65mm thick double-sided 0.3mm, EPS color steel composite panel

2.Frame：Overall frame protective coating，Electrostatic spraying/straight white plastic powder baking process + anti-corrosion coating

3.Folding hinge: 130mm galvanized embedded hinge

4.Ground： Bamboo glue board 18mm thick，Stone plastic floor 4mm thick

5.Main exterior top plate：Type 950-50mm thick double-sided 0.3mm, EPS color steel composite board + corrugated veneer t0.45mm

6.Main interior ceiling panels：Type 950 - 50mm thick double-sided 0.3mm, EPS color steel composite panel

7.External top plates of both wings：Type 950-65mm thick double-sided 0.3mm, EPS color steel composite board + corrugated veneer t0.45mm

8.Windows and doors：Aluminum alloy double glass sliding window, steel fire door (optional broken bridge aluminum)

9.Electrical systems：standard can be configured according to customer requirements

INTERIOR LAYOUT CAN BE CUSTOMIZED

1. One bedroom, one kitchen and one bathroom

2. One bedroom, one study and one bathroom

DOOR & WINDOW DISPLAY

DOOR:

1. Security door: zinc alloy steel plate + aluminum craft door frame + smart fingerprint lock

2. Entrance door: broken bridge aluminum frame + double-layer hollow tempered glass

3. Bedroom door: titanium magnesium alloy frame + sandwich wood board

4. Bathroom door: titanium-magnesium alloy door frame + double-layer hollow tempered glass

WINDOW:

1. Broken bridge aluminum frame + double-layer hollow tempered glass

2. Aluminum alloy frame + double-layer hollow tempered glass

3. Plastic steel frame + double-layer hollow tempered glass

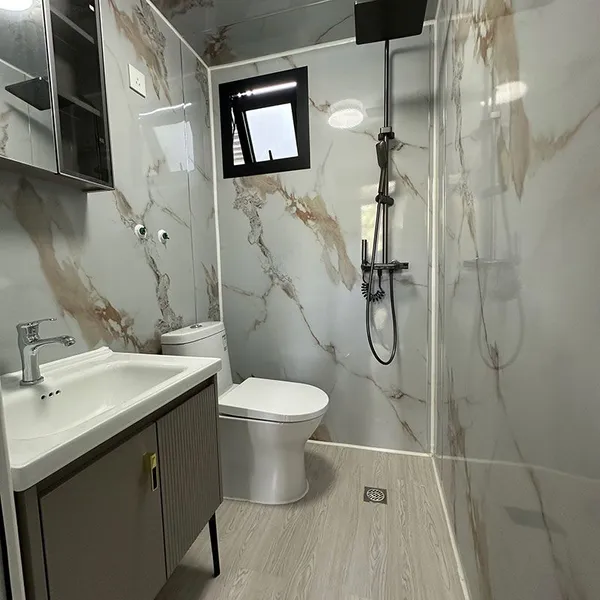

BATHROOM DISPLAY

Dry and wet separation bathroom：

1.Bathroom door: extremely narrow Changhong glass door

2.Shower partition door: Changhong swing door

3.Internal facilities: shower (all copper core), brand wash basin, brand intelligent light-filling mirror cabinet, brand toilet, floor drain, water and sewerage pipes

4.Wall: uv board

5.Floor: SPC stone plastic flooring

6.Bottom: polyurethane insulation

7.Bottom protection: 1.2mm thick steel plate

8.Support customization

EXTERIOR WALL PANELS:

1. Light weight, can reduce the load on the overall structure of the house,

2. High strength, good appearance can be guaranteed for a long time

3. Good cold resistance and heat resistance, A2 class fire protection standard.

4. Various colors, different colors can be customized,

5. Can be recycled multiple times to reduce resource waste
