As a Safety Manager, your mandate is clear: protect personnel, safeguard assets, and ensure unwavering compliance with ever-evolving regulations like OSHA and NFPA. The storage of flammable liquids represents one of the most pervasive and potentially catastrophic risks in any industrial or laboratory setting. Our Certified Fireproof Storage Cabinet is not just a product; it is a strategic component of your overall risk management ecosystem, engineered to meet stringent standards and provide a demonstrable commitment to workplace safety.
The Anatomy of Compliant Design: A Feature-by-Feature Breakdown
Understanding the "why" behind each feature is crucial for auditing and justification. This cabinet is built around a philosophy of proactive containment and passive fire protection.
Certified Fire-Resistant Construction: At its core, the cabinet utilizes a double-wall construction method. Two layers of high-quality, 1.2mm cold-rolled steel are separated by a precisely calibrated 40mm air gap. This gap is not empty space; it acts as a critical thermal barrier. In the event of an external fire, this insulating layer dramatically slows heat transfer, keeping the internal temperature below the auto-ignition point of the stored contents for a minimum of 90 minutes. This provides a vital window for evacuation and fire suppression response.
Spill Containment as a Non-Negotiable Standard: Compliance requires that any leak or spill is fully contained. The cabinet features a seamlessly welded, 5cm deep leak-proof sump at its base. This secondary containment system is designed to hold a capacity greater than the total volume of the largest standard container stored within, ensuring that a single container failure does not result in environmental contamination or a slip hazard.

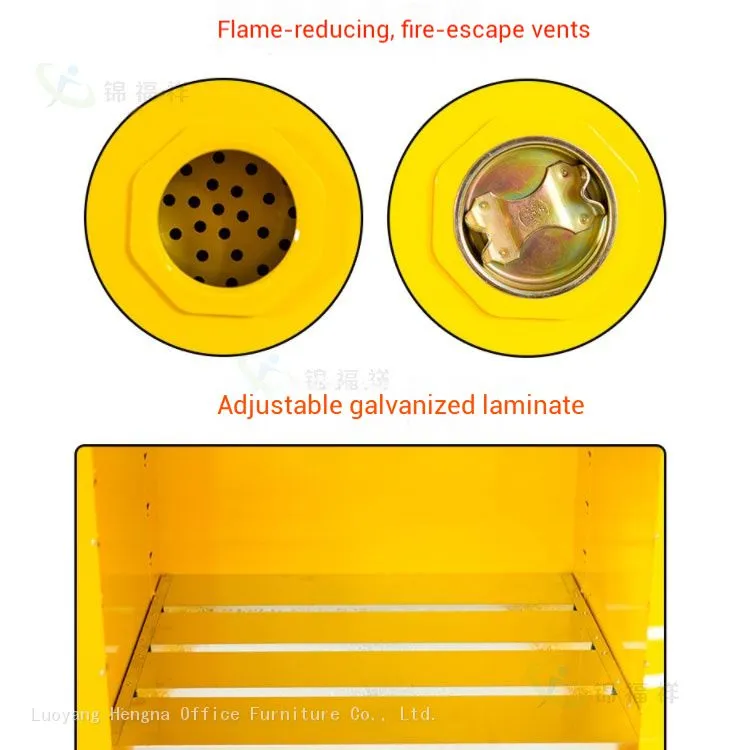

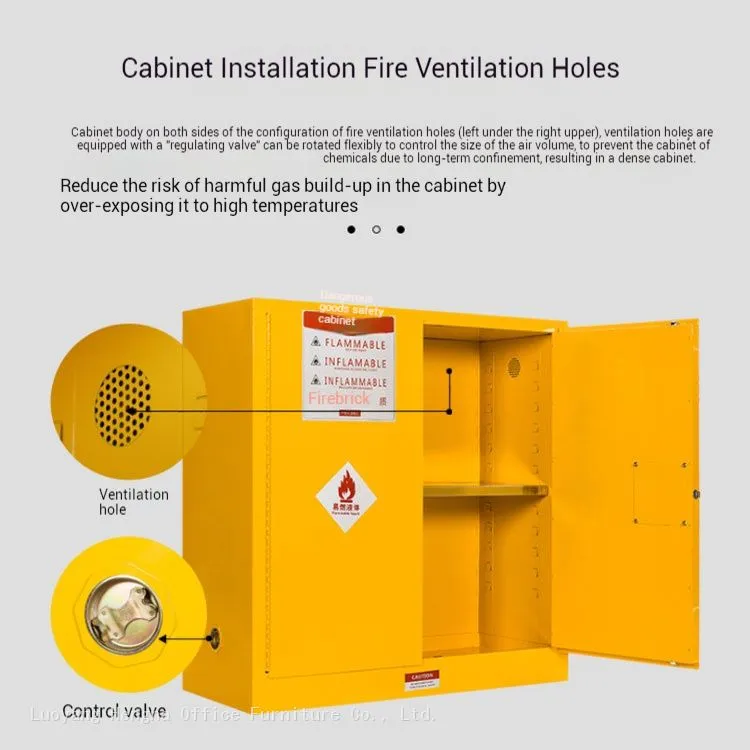

Vapor Management for Air Quality and Explosion Prevention: Flammable vapors are an invisible threat. The cabinet is pre-fitted with internally baffled, flame-arrester vent ports on both sides. These ports allow for the safe connection to a building's ventilation system, actively removing hazardous vapors and preventing the formation of an explosive atmosphere inside the cabinet. The flame-arrester design ensures that an external fire cannot travel back into the cabinet.
Physical and Operational Integrity: A safety system is only as strong as its weakest point. The cabinet door is secured by a three-point, thickened steel locking mechanism. This ensures an even pressure seal around the entire door perimeter, enhancing fire integrity and restricting access. The door swings on a continuous, uninterrupted piano hinge, a design that prevents sagging over time and guarantees a perfect seal, cycle after cycle.
From Specification to Implementation: A Manager's Checklist
To integrate this cabinet into your safety protocol, follow this checklist:
Conduct a Risk Assessment: Identify all flammable liquids on-site and their total volumes.
Select Appropriate Cabinet Size(s): From 4-gallon to 115-gallon capacities, choose models that prevent over-concentration of hazards.
Designate a Secure Location: Place the cabinet away from ignition sources and emergency exits.
Implement a Ventilation Plan: Connect the vent ports to a dedicated fume extraction system if required.
Establish Access Control: Utilize the robust locking system and maintain a log of authorized personnel.
Train Your Team: Ensure all employees understand the purpose, operation, and limitations of the cabinet.
An Investment in Peace of Mind
This cabinet transforms a regulatory requirement into a robust safety asset. It provides the tangible evidence auditors look for and, more importantly, gives you the confidence that you have taken a major step in eliminating a significant workplace hazard.
