BOLI Stainless Steel Screen and Plain Weave Woven/ SS304 SS316Twill Weave Wire Mesh Screen 150 Mesh 200 Mesh
US$ 10.2
≥1 Square Meter
Key Specifications
Get Latest Price
Material:
SUS304
Type:
Stainless Steel Plain Wire Mesh
Certification:
ISO9001
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
3 days
Related Products
-
Enquiry of Stainless Steel Wire Mesh Screen Material of SS304 SS316Twill Weave Wire Mesh Screen 150 Mesh 200 Mesh 500 MeshUS$ 10.2MOQ: 1 Square Meter -
Enquiry of Stainless Steel Wire Mesh Screen Material of SS304 SS316Twill Weave Wire Mesh Screen 150 Mesh 200 Mesh 500 MeshUS$ 10.2MOQ: 1 Square Meter
-
Stainless Steel Wire Mesh,Woven Stainless Steel 304 316L Wire Screen Boli SS Wire Mesh Factory ManufacturerUS$ 1.0 - 10.0MOQ: 10 Square Feet
-
304 316L Stainless Steel Wire Mesh,Woven Stainless Steel 304 316L Mesh Screen Boli SS Wire Mesh Factory Manufacturer Stainless MeshfilterUS$ 1.0 - 10.0MOQ: 10 Square Feet
-
5-600 Mesh Woven Stainless Steel 304 316L Mesh Screen Boli SS Wire Mesh Factory Manufacturer Stainless MeshfilterUS$ 1.0 - 10.0MOQ: 10 Square Feet
Material
SUS304
Type
Stainless Steel Plain Wire Mesh
Certification
ISO9001
Application
Filter, Screen
Technique
Woven
Weave Technique
Plain Dutch Weave
Wire Mesh Width
1.5m
Nickels
8%
Hole Shape
Square
Material Type
Stainless Steel Wire
BOLI Supply Plain and Twill Weave Woven Wire Cloth
Weave Type: Plain Weave or Twill Weave
Materials Available: Stainless Steel 201,302,304,304L,316, 316L,etc..
Other Materials: Copper and Brass, Nickel, Monel, Monel, Plain Carbon Steel.
Mesh Size: from 2 mesh to 635 mesh
Width: Normally is 1 m,max width is 2.0m, different width to be negotiated
Length:30 meters per roll, other length to be negotiated
Color: original color
Finish: None finish, Powder coated, Painted
Flexibility: Easy cut with scissors and easily to be bended
Package: in rolls and wrapped in brown paper then plastic bag or woven bag, then in wooden case.
OEM available: We accept customized product including the package design.
Applications: Mostly for filtetration, Sieving and Sizing. Also used as decoration mesh.

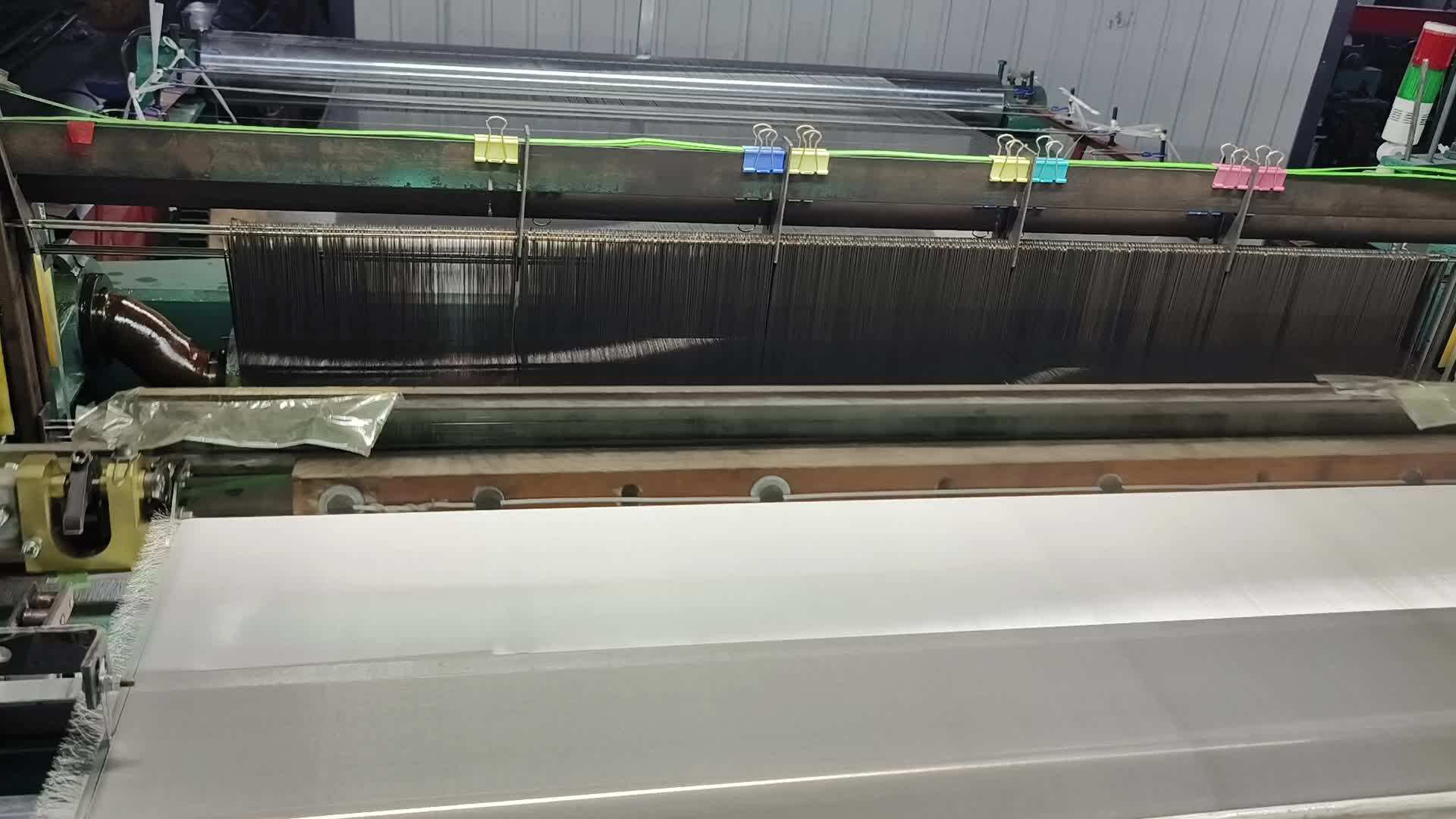

Stainless steel mesh as one of my company's leading products, over the years, we have been unremitingly introduced the international advanced weaving equipment and weaving technology, and strive to improve the quality of products. As one of the largest industrial metal mesh manufacturers in China, our goal is to continue to forge ahead and lead the world.
It is mainly used for screening and filtration under acid and alkali environmental conditions. It is used for mud mesh in petroleum industry, chemical fiber industry as screening mesh, electroplating industry as pickling mesh and gas, liquid filtration and other media separation.
.
Plain Weave Stainless Steel Woven Wire Mesh
| Normal Specification Maishi Plain Weave Stainless Steel Woven Wire Mesh | ||||||
| Mesh/inch | Wire diameter (mm) | Aperture (mm) | -- | Mesh/inch | Wire diameter (mm) | Aperture (mm) |
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 500mesh | 0.025 | 0.0385 | |
| Technical Note: 1. Standard roll length: 15.24m, 30m, 30.5m, 61m 2. Standard roll width: 0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25') 3. Special sizes available at request 4. Packing: In waterproof paper, PVC bag, wooden case. Custom packing available at request. | ||||||
Twill weave
| Mesh/inch | Diameter(mm) | Aperture(mm) | - | Mesh/inch | Diameter(mm) | Aperture(mm) |
| 100mesh | 0.14 | 0.114 | 325mesh | 0.035 | 0.043 | |
| 120mesh | 0.1 | 0.111 | 350mesh | 0.032 | 0.0405 | |
| 150mesh | 0.09 | 0.079 | 400mesh | 0.03 | 0.0335 | |
| 180mesh | 0.07 | 0.071 | 450mesh | 0.026 | 0.0304 | |
| 200mesh | 0.06 | 0.067 | 500 mesh | 0.025 | 0.0258 | |
| 250mesh | 0.045 | 0.0566 | 600 mesh | 0.018 | 0.0243 | |
| 300mesh | 0.04 | 0.0446 | 635mesh | 0.018 | 0.022 |
Plain Dutch Weave
| Mesh/inch Wrap*weft | Wire diameter Wrap*weft(mm) | Aperture (um) | - | Mesh/inch Wrap*weft | Wire diameter Wrap*weft(mm) | Aperture (um) |
| 8 X 62 | 0.63mm X 0.45mm | 300 | 45 X 250 | 0.16mm X 0.112mm | 56 | |
| 10 X 79 | 0.50mm X 0.355mm | 250 | 50 X 250 | 0.14mm X 0.11mm | 53 | |
| 12 X 64 | 0.58mm X 0.40mm | 280 | 55.5 X 280 | 0.14mm X 0.10mm | 50 | |
| 14 X 88 | 0.40mm X 0.30mm | 180 | 65 X 330 | 0.11mm X 0.08mm | 36 | |
| 19 X 140 | 0.315mm X 0.20mm | 140 | 70 X 350 | 0.11mm X 0.08mm | 35 | |
| 20 X 300 | 0.35mm X 0.20mm | - | 70 X 385 | 0.11mm X 0.07mm | 32 | |
| 24 X 110 | 0.355mm X 0.25mm | 120 | 78 X 700 | 0.11mm X 0.08mm | 30 | |
| 25 X 140 | 0.28mm X 0.20mm | 100 | 80 X 400 | 0.10mm X 0.065mm | 40 | |
| 30 X 150 | 0.25mm X 0.18mm | 80 | 80 X 600 | 0.10mm X 0.06mm | - | |
| 35 X 175 | 0.224mm X 0.16mm | 71 | 80 X 800 | 0.15mm X 0.04mm | - | |
| 40 X 200 | 0.20mm X 0.14mm | 60 | 81 X 780 | 0.10mm X 0.07mm | 30 | |
| 90 X 550 | 0.12mm X 0.05 | - |
Twill Dutch weave
| Mesh/inch Wrap*weft | Wire diameter Wrap*weft(mm) | Aperture (um) | - | Mesh/inch Wrap*weft | Wire diameter Wrap*weft(mm) | Aperture (um) |
| 91 X 787 | 0.10mm X 0.07 | 25 | 200 X 600 | 0.071mm X 0.06 | - | |
| 101 X 900 | 0.10mm X 0.063 | 20 | 200 X 800 | 0.071mm X 0.06 | - | |
| 120 X 400 | 0.10mm X 0.075 | - | 200 X 1400 | 0.071mm X 0.04 | 12 | |
| 127 X 1100 | 0.07mm X 0.05 | 17 | 202 X 1760 | 0.05mm X 0.032 | 10 | |
| 160 X 1500 | 0.063mm X 0.04 | 15 | 216 X 1860 | 0.045mm X 0.030 | 9 | |
| 165 X 400 | 0.071mm X 0.06 | - | 254 X 2000 | 0.04mm X 0.028 | 8 | |
| 165 X 600 | 0.071mm X 0.05 | - | 285 X 2235 | 0.036mm X 0.025 | 7 | |
| 165 X 800 | 0.071mm X 0.05 | 25 | 312 X 2100 | 0.035mm X 0.025 | - | |
| 165 X 1100 | 0.071mm X 0.045 | - | 318 X 2235 | 0.036mm X 0.025 | - | |
| 165 X 1400 | 0.071mm X 0.04 | 16 | 325 X 2300 | 0.035mm X 0.025 | 5 | |
| 174 X 1700 | 0.063mm X 0.032 | 13 | 400 X 3100 | 0.035mm X 0.019 | 3 |
If you did not find the mesh you want, please contact us any time.
