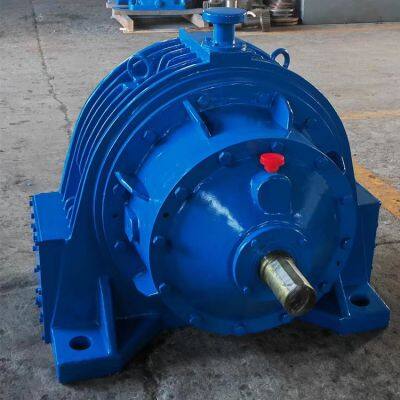

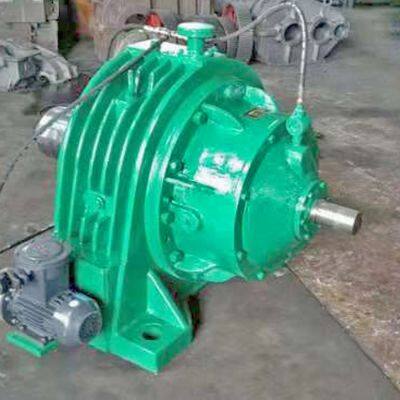

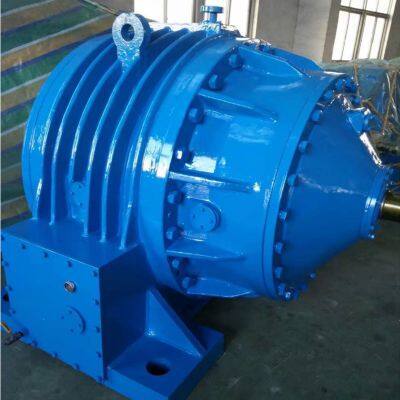

NBD630 Planetary Gear Reducer Coal Industry Matching

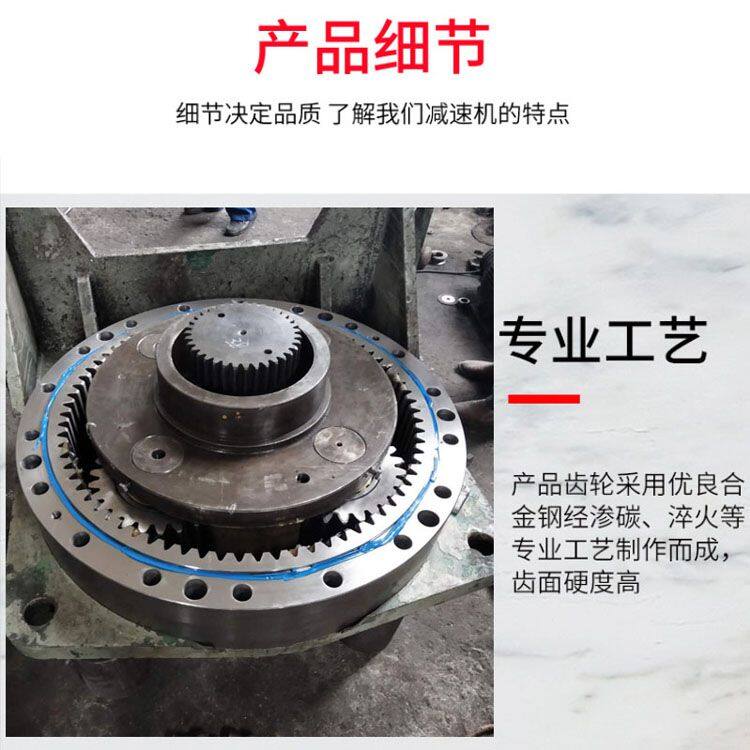

Extremely High Torque Density and Load Capacity "Power Splitting" Principle: The core advantage of a planetary gear reducer lies in its power transmission method. Power enters through the sun gear and is simultaneously transmitted to the ring gear and planet carrier via multiple planetary gears. This structure distributes the load evenly across several planet gears, enabling the NBD630 to transmit significantly higher torque than standard parallel shaft gear reducers (such as the H series) of comparable volume and weight. Conclusion: This is the most prominent advantage of planetary reducers. They offer a very compact structure while being capable of outputting enormous torque, making them particularly suitable for applications where installation space is limited but high power is required. High Rigidity and Low Backlash Multiple Meshing Points: The simultaneous meshing of multiple planet gears with both the sun gear and the ring gear greatly enhances the system's rigidity. This means there is less torsional deflection under rapidly changing loads, resulting in higher positioning accuracy. Precision Manufacturing: Reducers at the NBD630 level are typically designed for high-precision applications. Their backlash (return clearance) can be controlled to very low levels (e.g., below 5 arc-min, potentially even reaching 1 arc-min or less). This is crucial for equipment requiring precise repeatable positioning, such as robots and machine tools. High Transmission Efficiency Due to the symmetrical power transmission path and precise gear design, single-stage transmission efficiency in planetary reducers can reach over 97%. High efficiency translates to less energy loss and heat generation, leading to significant energy savings. Smooth and Quiet Operation The symmetrical distribution of multiple planet gears balances the input and output forces, canceling out radial forces. This greatly reduces vibration and operating noise. Its operational smoothness surpasses that of many other types of gear reducers.
