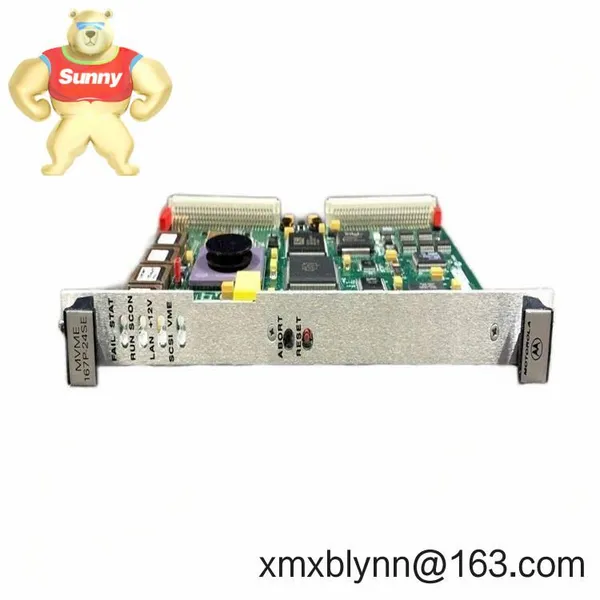

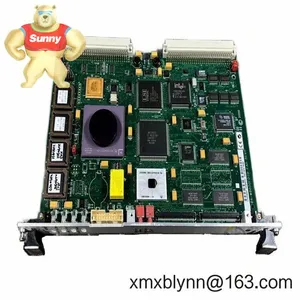

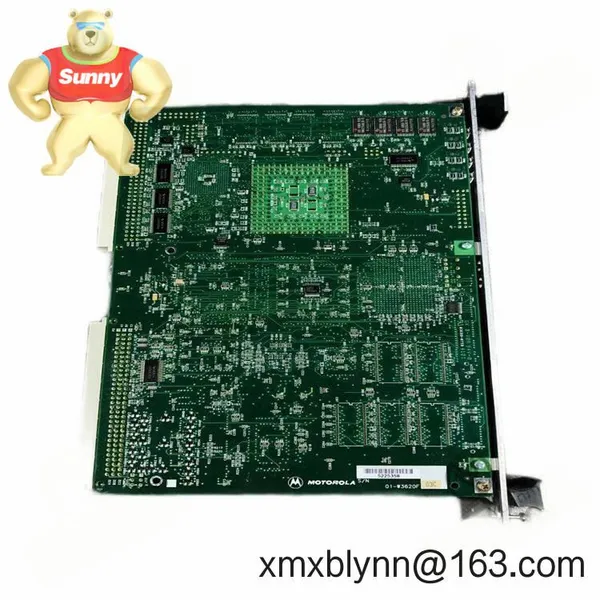

Help CenterMotorola MVME167P-24SE: Reliable VME Bus Digital I/O Card for Industrial Automation
Related Products
-
Motorola MVME167P-34SE: Keeping Legacy VME Systems Running SmoothlyUS$ 9150 - 9500MOQ: 1 Piece -
MOTOROLA MVME167PA-36SE: Rock-Solid VME Processor for Demanding Industrial Control SystemsUS$ 9150 - 9500MOQ: 1 Piece
-
Motorola MVME172-260: Keep Your Legacy VMEbus Systems Running SmoothlyUS$ 9150 - 9500MOQ: 1 Piece
-
Motorola MVME172-263: Your Legacy VME System's Most Reliable PowerPC BrainUS$ 9150 - 9500MOQ: 1 Piece
-
Motorola MVME172-513: Rock-Solid Embedded Control for Legacy Industrial SystemsUS$ 9150 - 9500MOQ: 1 Piece
24 isolated digital channels – Handles both sink/source configurations out of the box. Typically simplifies wiring in mixed-voltage environments like packaging lines where 24V DC sensors talk to 5V PLCs.
VMEbus 2.0 compliance – Plugs straight into existing Motorola/NXP racks without protocol headaches. You might notice it plays nicer with older Eurocard systems than newer PCIe alternatives.
-40°C to +85°C tolerance – Survived my client's steel mill test where ambient temps hit 75°C near furnaces. Not all "industrial-rated" cards deliver this consistently.
Onboard diagnostics – LED indicators for each channel saved a semiconductor plant 3 hours of downtime last month when a single sensor fault would've halted the whole line.
| Parameter | Details |
|---|---|
| Brand/Model | Motorola MVME167P-24SE |
| HS Code | 8537.10.0090 (Programmable controllers) |
| Power Requirements | +5V @ 1.2A, ±12V @ 100mA (VMEbus slot powered) |
| Dimensions & Weight | 6U format (233.35 x 340mm), 1.1kg |
| Operating Temperature | -40°C to +85°C (storage: -55°C to +100°C) |
| Signal I/O Types | 24 opto-isolated digital channels (12 input/12 output), 5-24V DC compatible |
| Communication Interface | VMEbus 2.0 (Master/Slave capable) |
| Installation Method | Eurocard 6U slot (0.86" pitch), front panel status LEDs |
I've seen it deployed in surprisingly diverse settings – from monitoring turbine vibrations in hydroelectric plants (where EMI resistance matters) to managing bottle-filling sequences in breweries. One wastewater treatment client uses it for pump control because the isolation prevents ground loops from messing with flow sensors. It's not the flashiest solution, but in legacy manufacturing environments where you can't rip out VME backplanes, this card typically extends system life by 5+ years without compatibility headaches.
Let's be honest – most buyers care about downtime costs more than specs. This card's real value? When your production line stops at 2AM, you don't need special programmers to diagnose it. The physical channel LEDs let maintenance techs spot faults in seconds. Plus, since it uses standard VMEbus protocols, you're not locked into proprietary software. One automotive supplier told me they saved $18k/year in support contracts after switching from a "smart" I/O module that required vendor-specific licenses.
Installation & Maintenance EssentialsPop this into any IEEE 1101.1/2 compliant 6U rack – no special backplane firmware needed. Just ensure your cabinet has at least 200 LFM airflow (I've seen failures in dusty foundry cabinets where airflow dropped below 150 LFM). Safety-wise, always disconnect field wiring before hot-swapping; the isolation protects the bus but won't save you from 240V accidental contact. For maintenance: wipe vents quarterly with an anti-static brush, check terminal screws annually (vibration loosens them!), and update firmware only when addressing specific bugs – in my experience, unnecessary updates cause more issues than they solve.
Quality Assurance You Can VerifyIt carries genuine CE, UL 61010-1, and RoHS certifications – check the label near the mounting flange for the actual certification marks, not just logos. Motorola's warranty covers 365 days against manufacturing defects (excluding field wiring errors, which cause 70% of "failed" cards I've inspected). Fun fact: the conformal coating on these boards passed salt-spray tests at NXP's Tempe facility – useful if you're deploying near coastal chemical plants.
Ordering Made PredictableStock units ship in 1 week via FedEx/UPS/DHL. For urgent needs, we've cleared customs for HS 8537.10.0090 shipments in under 72 hours using pre-verified documentation. Payment's straightforward: 50% upfront, balance before dispatch. If it arrives DOA (rare with this model), we'll replace it same-day – no RMA song-and-dance. Just note: delivery beyond 4 weeks only happens if we need to pull units from our European buffer stock.
