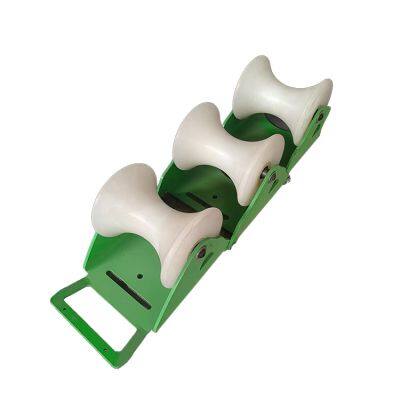

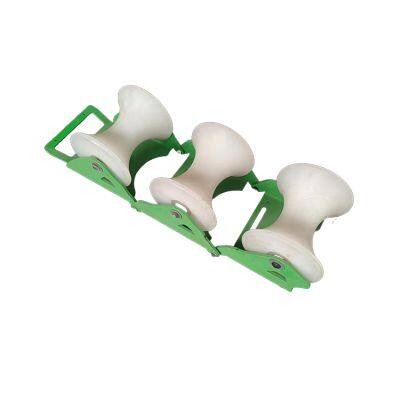

Triple Pulley | 5mm Thickened Steel Triangular Base + Nylon Pulleys | Seamless Welding | 58cm Total Width & Foldable
US$ 25
1 - 4 Unit
US$ 20
≥5 Unit
Key Specifications
Get Latest Price
Type:
Other, Cable Pulley
Certification:
CE, ISO
Feature:
Moistureproof, Insulation
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/shanghai/qingdao/shenzhen/shanghai
Delivery Detail:
1 days
Related Products
-
High-quality Nylon Two-Wheel Corner Pulley: Wear-Resistant Design, Gently Protects Cables From FrictionUS$ 18 - 25MOQ: 1 Piece -
Two-Wheel Right-Angle PulleyUS$ 20 - 25MOQ: 1 Piece
-
Heavy Duty Cable Laying Pulley Blocks - HDPE Sheave & Steel Frame for Overhead Power Line Stringing (Plate, Corner, Wellhead Types)US$ 20 - 100MOQ: 1 Piece
-
Heavy‑Duty Blue Powder‑Coated Steel Cable Pulleys for Cable LayingUS$ 20 - 85MOQ: 1 Piece
-
Red Anodized Aluminum Cable Pulleys for Cable LayingUS$ 20 - 85MOQ: 1 Piece
Type
Other, Cable Pulley
Certification
CE, ISO
Feature
Moistureproof, Insulation
Condition
New
Customized
Customized
Transport Package
wooden crate packaging
Specification
58cm*21cm
Trademark
China, ChangYun Technology
Origin
China
Triple-Pulley Product Specifications
I. Product Overview
II. Core Structure and Parameters
Key Components
III. Four Core Advantages
Seamless Welding for Exceptional Structural Durability
Dust-Proof Bearings for Smooth, Effortless Operation
Premium Nylon Pulleys: Quiet, Durable, and Lightweight
IV. Flexible Design Highlights
V. Applicable Scenarios
VI. Installation and Maintenance Tips
I. Product Overview
II. Core Structure and Parameters-
Overall Appearance
-
Total Length (When Bases Are Side-by-Side): 58 cm (span of all three bases arranged in a row). -
Single Pulley Diameter: 15.5 cm (compatible with most standard cable diameters). -
Base Height: 21 cm (provides stable support to prevent cable drag on the ground).
-
Bases: Red triangular metal supports (stamped from high-strength reinforced iron plate, with each base approximately 21 cm in height). -
Pulleys: Three light-yellow nylon pulleys (each with a 15.5 cm diameter, featuring a smooth surface to minimize cable friction). -
Connection Mechanism: Screw connectors on the red triangular bases enable quick assembly/disassembly and angle adjustment.
-
Design Form: Tri-base modular structure (three red triangular bases arranged side-by-side or in a triangular layout, connected via adjustable screws for flexible disassembly into individual units or foldable storage). -
Main Components: -
Key Dimensions (based on measured markings in the images):
-
Material: Reinforced iron plate with internal ribs (stamped and formed). -
Thickness: Measured at 5.1 mm (manufactured to a standard 5mm-thick specification, ensuring high strength and safety).
-
Material: Premium light-yellow nylon (engineering plastic, wear-resistant and anti-aging). -
Features: Smooth surface protects cable exteriors during rotation, significantly reducing friction damage risks; lightweight design minimizes load on the bases while offering excellent wear resistance and quiet operation.
-
Nylon Pulleys: -
Iron Plate Bases: -
Bearing Design: Each nylon pulley integrates a dust-proof bearing (sealed structure to block dust/debris ingress), ensuring smooth rotation. -
Connection Structure: Bases are connected via adjustable screws (supporting flexible disassembly, folding, and adaptation to varying cable quantities/layout needs).
III. Four Core Advantages-
Reinforced Thickness for Ultra-High Load-Bearing Capacity
-
Craftsmanship: Bases are stamped from 5mm-thick reinforced iron plate with internal vertical/horizontal ribs, forming a one-piece structure with enhanced rigidity (not ordinary thin plates). -
Effect: Supports higher loads (suitable for simultaneous multi-cable guidance), resists deformation over long-term use, and ensures safety and reliability for industrial heavy-duty applications.
-
Craftsmanship: Edges and critical joints of the red triangular bases (e.g., connections between ribs and the main body) are joined using seamless welding technology, producing smooth, burr-free, and high-strength welds. -
Effect: Delivers outstanding structural integrity—resistant to cracking even under repeated use or external impacts (e.g., cable traction vibrations)—significantly extending the product’s lifespan and reducing maintenance costs.
-
Design: Each nylon pulley houses a high-precision dust-proof bearing (sealed structure designed to block dust/debris entry). -
Effect: Minimizes rotational friction, making manual or mechanical cable traction easier (reducing manpower/power consumption). Also lowers heat generation and abnormal wear, ensuring smoother and more stable performance.
-
Wear Resistance: Moderate surface hardness prevents abrasion during prolonged cable contact, reducing replacement frequency and protecting cable integrity. -
Quiet Operation: Noise level below 40 dB during rotation (near ambient background sound), suitable for indoor or noise-sensitive environments. -
Lightweight: Significantly lighter than metal pulleys, reducing pressure on the base mounting points while maintaining sufficient strength to support cable weight.
-
Material: Pulley wheels are made of high-quality light-yellow nylon (high-performance engineering plastic with excellent weather and fatigue resistance). -
Features:
IV. Flexible Design Highlights-
Modular Combination: The three pulley bases can be disassembled into single/dual-pulley units (for guiding 1–2 cables) or folded for compact storage, adapting to varying operational needs. -
Adjustability: The screw-connected structure allows fine-tuning of base spacing to accommodate different cable layout angles (e.g., side-by-side guidance or triangular distributed traction).
V. Applicable Scenarios-
Power Engineering: Synchronized steering of multiple power cables during installation (e.g., centralized guidance at branch points of cable trays in substations). -
Telecommunications Construction: Group traction management for optical cables/communication lines (preventing cable tangling). -
Engineering Installation: Ground/wall-mounted steering layouts for large equipment or pipeline-associated cables requiring multi-cable coordination. -
Construction Sites: Temporary cable routing environments where cable quantity and direction need frequent adjustments.
VI. Installation and Maintenance Tips-
Installation: Secure the assembled unit to flat surfaces (walls, brackets, or equipment) using bolts/screws (recommend expansion bolts for added stability), ensuring the pulley axles are perpendicular to the cable traction direction. -
Maintenance: -
Regularly check screw connections for looseness (especially after frequent disassembly) and tighten as needed. -
Apply anti-rust treatment to welded areas in humid environments. -
Clean nylon pulley surfaces with a neutral detergent if contaminated with oil/dirt (avoid strong acids/alkalis to prevent material degradation). -
Inspect bearing flexibility periodically; add a small amount of cable-specific lubricant if rotation becomes stiff.
