Compact EX10 Handheld Thermal Camera With 160×120 Resolution, AI Super-Resolution to 320×240, and 40mK Sensitivity

Raythink Technology Co., Ltd.
2Yrs
Compact EX10 Handheld Thermal Camera With 160×120 Resolution, AI Super-Resolution to 320×240, and 40mK Sensitivity thumbnail-1
Compact EX10 Handheld Thermal Camera With 160×120 Resolution, AI Super-Resolution to 320×240, and 40mK Sensitivity thumbnail-2
Compact EX10 Handheld Thermal Camera With 160×120 Resolution, AI Super-Resolution to 320×240, and 40mK Sensitivity thumbnail-3
Compact EX10 Handheld Thermal Camera With 160×120 Resolution, AI Super-Resolution to 320×240, and 40mK Sensitivity thumbnail-4
Compact EX10 Handheld Thermal Camera With 160×120 Resolution, AI Super-Resolution to 320×240, and 40mK Sensitivity thumbnail-5
Compact EX10 Handheld Thermal Camera With 160×120 Resolution, AI Super-Resolution to 320×240, and 40mK Sensitivity photo-1
Compact EX10 Handheld Thermal Camera With 160×120 Resolution, AI Super-Resolution to 320×240, and 40mK Sensitivity photo-2
Compact EX10 Handheld Thermal Camera With 160×120 Resolution, AI Super-Resolution to 320×240, and 40mK Sensitivity photo-3
Compact EX10 Handheld Thermal Camera With 160×120 Resolution, AI Super-Resolution to 320×240, and 40mK Sensitivity photo-4
Compact EX10 Handheld Thermal Camera With 160×120 Resolution, AI Super-Resolution to 320×240, and 40mK Sensitivity photo-5
US$ 129 - 169 MOQ: 1 Piece
Key Specifications
Get Latest Price
Application:
Industry
Measuring Method:
Automatic
Transport Package:
Other
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Industry
Measuring Method Automatic
Transport Package Other
Specification 257g±10g (including battery), 206.9×67×81.5mm
Trademark Raythink
Origin Yantai

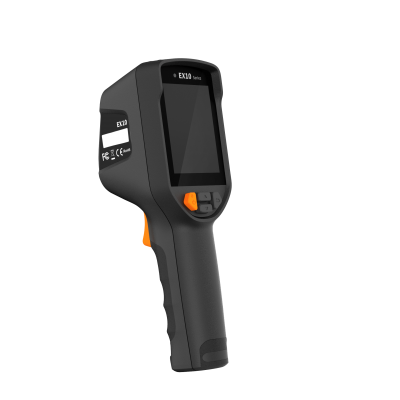

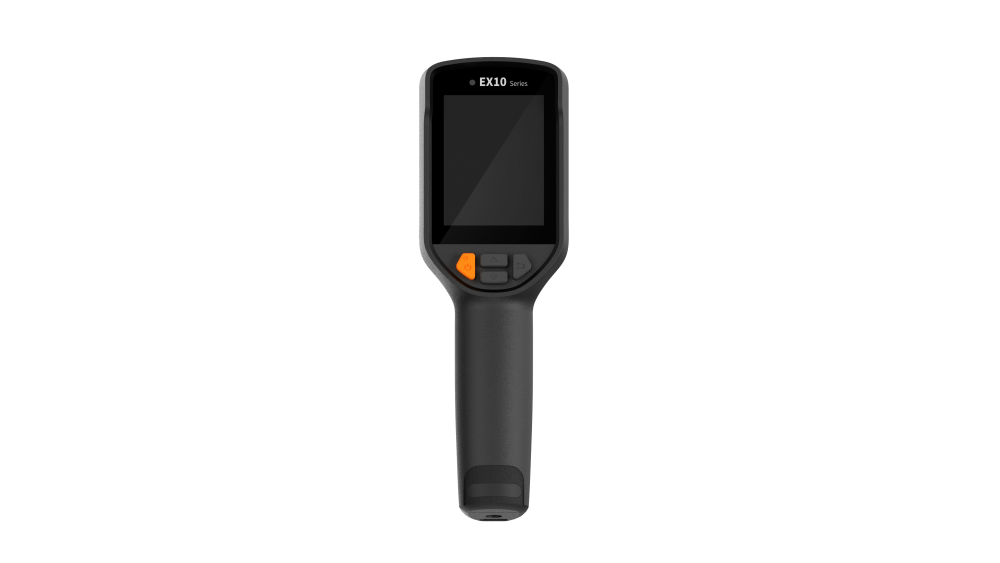

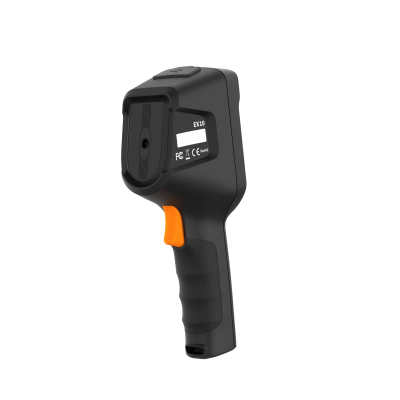

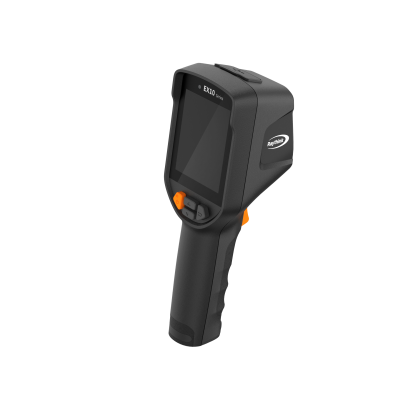

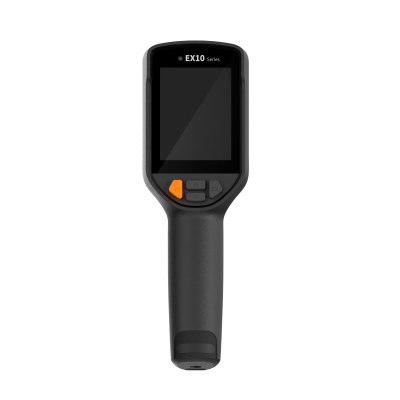

EX10 Handheld Thermal Camera

1Provided with an infrared detector with a 160×120 resolution, EX10 Series employs real-time AI super-resolution to enhance its resolution to 320 ×240. Featuring a 2.8-inch display, video recording, UVC+WiFi screen projection and optional laser pointer, the device can be widely used in household maintenance, electrical maintenance, HVAC leak detection, automotive repairs and other fields.

FeatureHigh-Resolution Thermal Imaging, Powered by Real-Time AI Super-Resolution

  • 160×120 infrared resolution, enhanced to 320 × 240 with real-time AI super-resolution

  • NETD as low as 40mK, capable of distinguishing subtle temperature differences of 0.04°C

  • 8-inch display, presenting thermal images in detail

Conduct smart surveys with efficient and accurate target localization

  • Laser pointer function for quickly locating abnormal points

  • Wide measurement range from -20℃ to 550℃, automatic range switching

  • Support video recording for post-analysis and documentation

  • Support UVC + Wi-Fi screen projection, compatible with PC and app software for further analysis

With professional-grade durability and offers unwavering reliability

  • Feature a quick start-up function and offers up to 10 hours of continuous operation

  • 8GB of built-in memory, supporting large amounts of data storage

  • Rated IP54 for protection against dust and water, and built to withstand drops from up to 2 meters

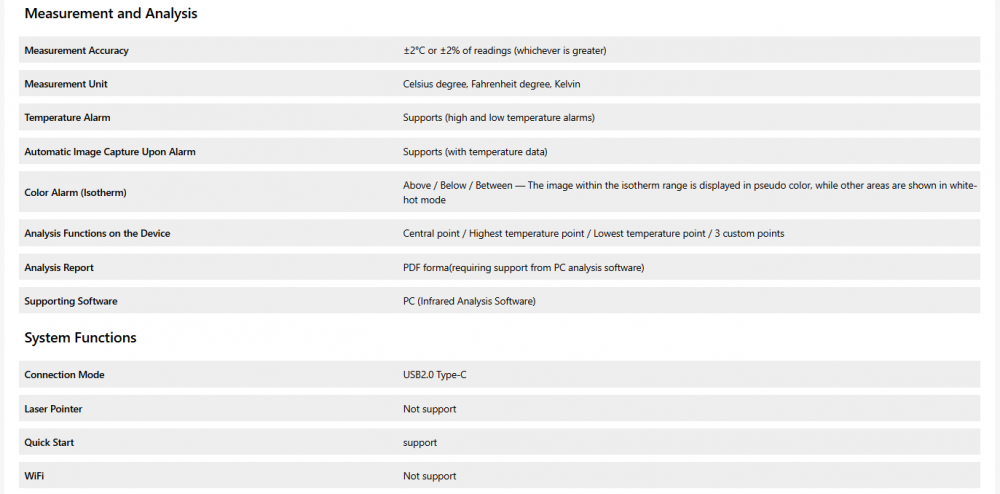

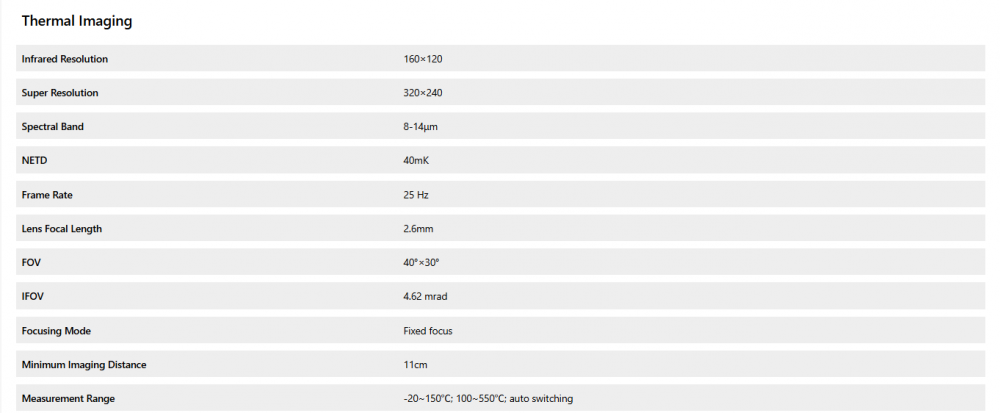

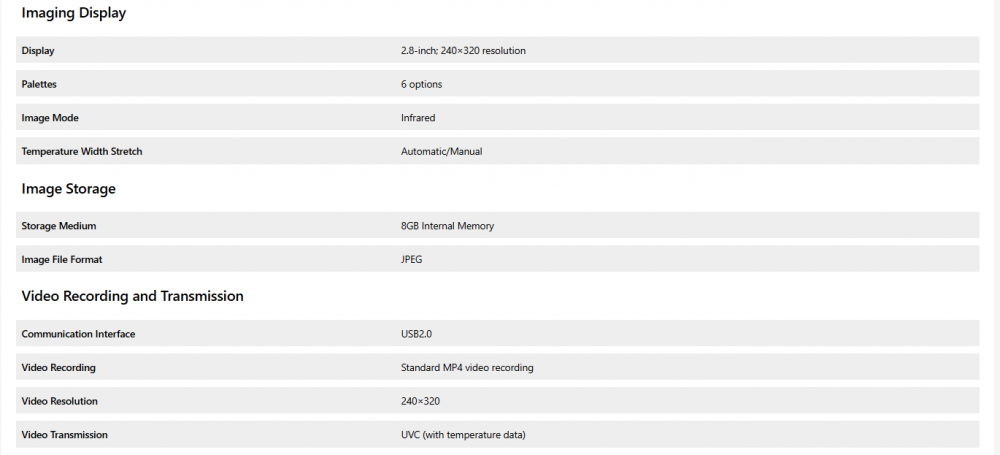

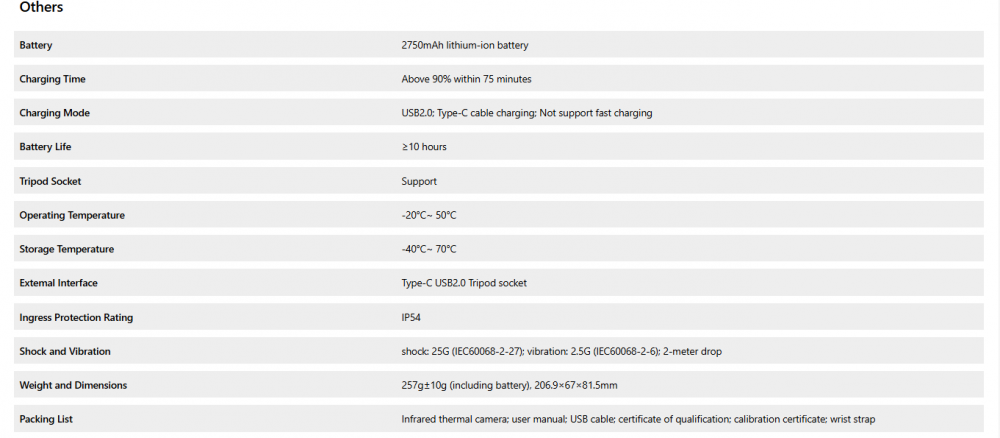

Specification


Application Scenarios


Product Tags: Handheld Thermal Camera , Thermal Camera , Handheld Camera
