Henan PanQi Branch Sawdust Machine Sawdust Wood Chipper Sawdust Crushing Machinewith CE

Henan PanQi Branch Sawdust Machine Sawdust Wood Chipper Sawdust Crushing Machinewith CE thumbnail-1
Henan PanQi Branch Sawdust Machine Sawdust Wood Chipper Sawdust Crushing Machinewith CE thumbnail-2
Henan PanQi Branch Sawdust Machine Sawdust Wood Chipper Sawdust Crushing Machinewith CE thumbnail-3
Henan PanQi Branch Sawdust Machine Sawdust Wood Chipper Sawdust Crushing Machinewith CE thumbnail-4
Henan PanQi Branch Sawdust Machine Sawdust Wood Chipper Sawdust Crushing Machinewith CE thumbnail-5
Henan PanQi Branch Sawdust Machine Sawdust Wood Chipper Sawdust Crushing Machinewith CE photo-1

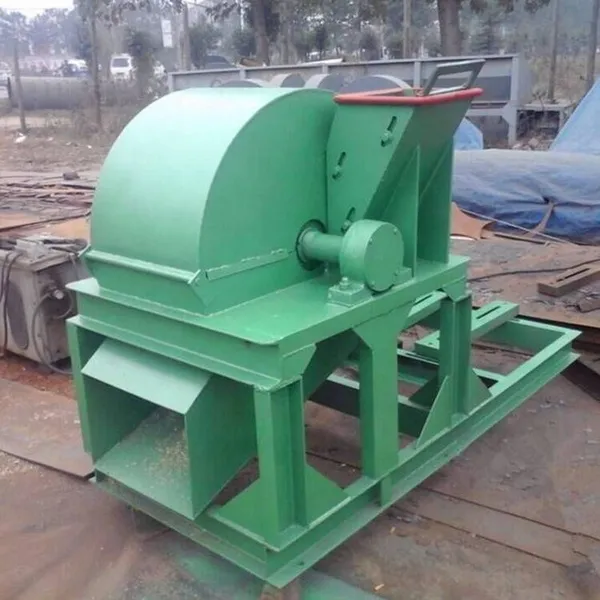

Henan PanQi Branch Sawdust Machine Sawdust Wood Chipper Sawdust Crushing Machinewith CE photo-2
Henan PanQi Branch Sawdust Machine Sawdust Wood Chipper Sawdust Crushing Machinewith CE photo-3

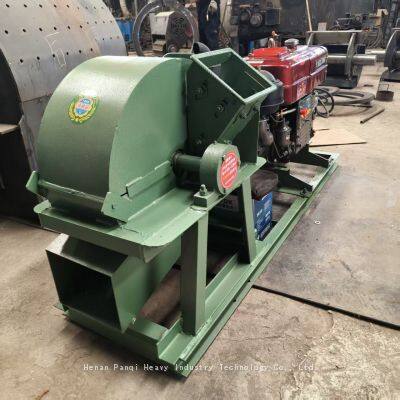

Henan PanQi Branch Sawdust Machine Sawdust Wood Chipper Sawdust Crushing Machinewith CE photo-4

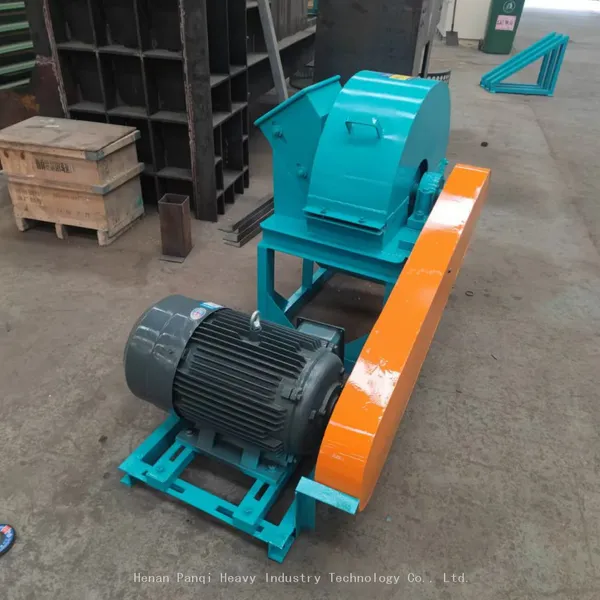

Henan PanQi Branch Sawdust Machine Sawdust Wood Chipper Sawdust Crushing Machinewith CE photo-5
US$ 530 - 3990 MOQ: 1 Set
Key Specifications
Get Latest Price
Warranty:
1 Year
Power Source:
Other, Electric/Diesel
After-sales Service:
Lifetime online technical support
Contact Supplier Request Quote Chat Now
Henan Panqi Heavy Industry Technology Co., Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port/Shanghai port/Ningbo port,.ect
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Warranty 1 Year
Power Source Other, Electric/Diesel
After-sales Service Lifetime online technical support
Automatic Grade Semi-Automatic
Product Name Sawdust machine
Product Effects Sawdust (2-30mm)
Company Attributes Manufacturer
Transport Package Wooden box
Specification SW-600
Trademark PanQi
Origin China
产品图片
👤
Contact

Monica

💬
WhatsApp/WeChat

+86 13598883649

📧
Email

lixiang3029@gmail.com

Technical Specifications

Model Physical Dimension Weight Motor HourlyOutput Feed size
SW-420 1200*630*850mm 250kg 7.5kw 100-400kg 160*160mm
SW-500 1350*700*850mm 300kg 18.5kw 500-1000kg 200*200mm
SW-600 1600*750*920mm 650kg 22kw 1000-2000kg 220*230mm
SW-700 1700*890*1000mm 800kg 30kw 2500-3000kg 240*240mm
SW-800 1800*1000*1290mm 1000kg 37kw 3000-3500kg 250*280mm
SW-900 2000*1100*1250mm 1150KG 55kw 3500-4500kg 290*300mm
SW-1000 2200*1200*1350mm 1300kg 75kw 4500-6000kg 310*350mm
SW-1100 2350*1280*1400mm 1500kg 90kw 5000-8000kg 380*380mm
SW-1200 2500*1350*1420mm 1650kg 110kw 8000-10000kg 400*420mm
SW-1400 2800*1500*1590mm 2000kg 132kw 10000-12000kg 420*450mm
SW-1500 3000*1750*1650mm 2500kg 160kw 12000-15000kg 450*450mm
Applicable Materials
适用物料全局图

The equipment can crush a variety of raw materials, such as  logs, pine, miscellaneous wood, poplar, fir, bamboo, bamboo skin, branches, twigs, wood chips, board edge materials, bark, particle board, plywood, discarded furniture, thatch, corn stalks, sorghum stalks, etc.

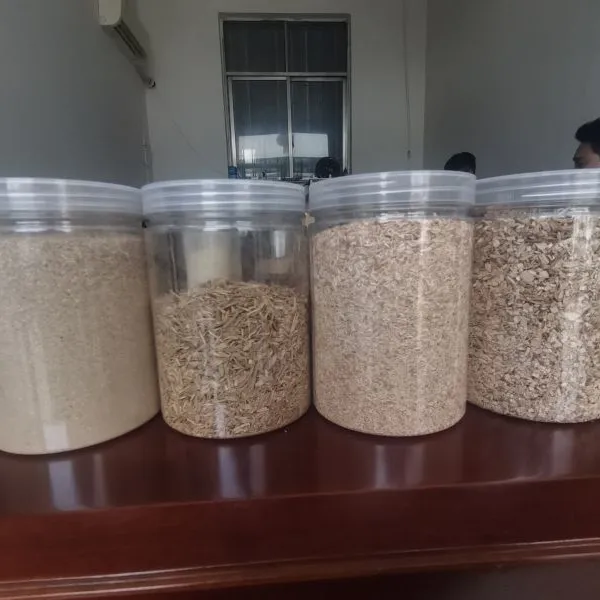

Production effect

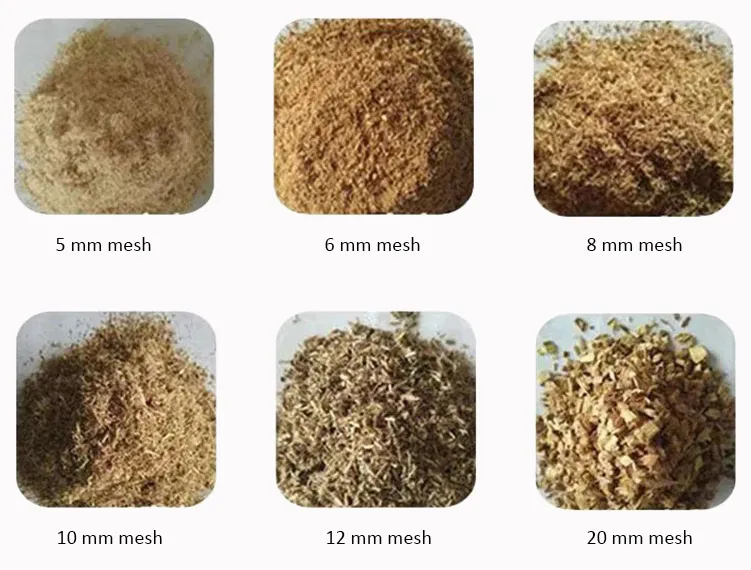

粉碎效果

The output size can be adjusted through the built-in screen to meet the needs of different industries (such as biomass fuel requires fine particles, construction recycling materials require specific size fragments).The minimum crushing effect can reach 2mm

Product Features
High-quality materials

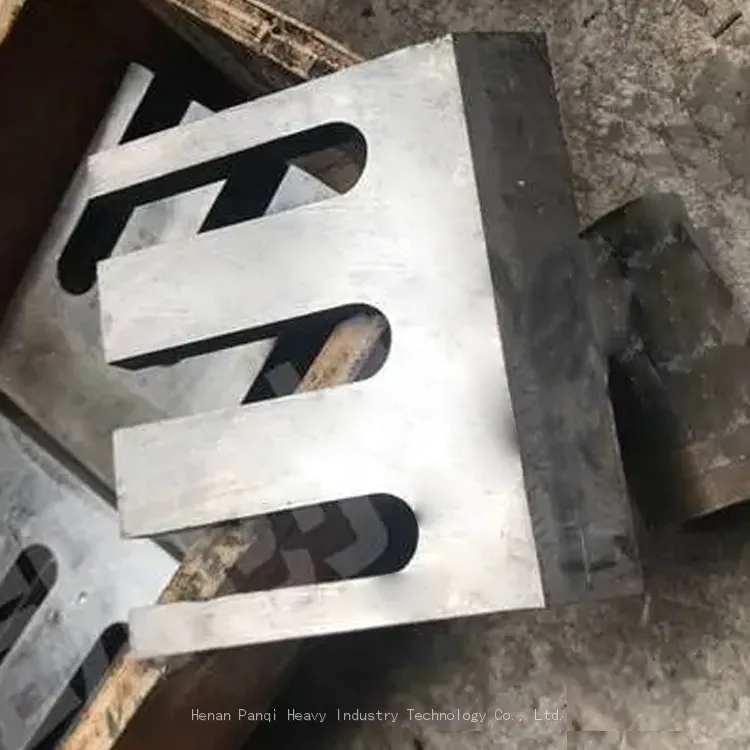

Alloy blade

Cutting blade adopts high quality alloy cutting tool, the tool is tough, wear resistance cutting sharp, not easy to rust, corrosion resistance, long service life, can make the crusher efficiency, thereby increasing the output.

Pure copper motor

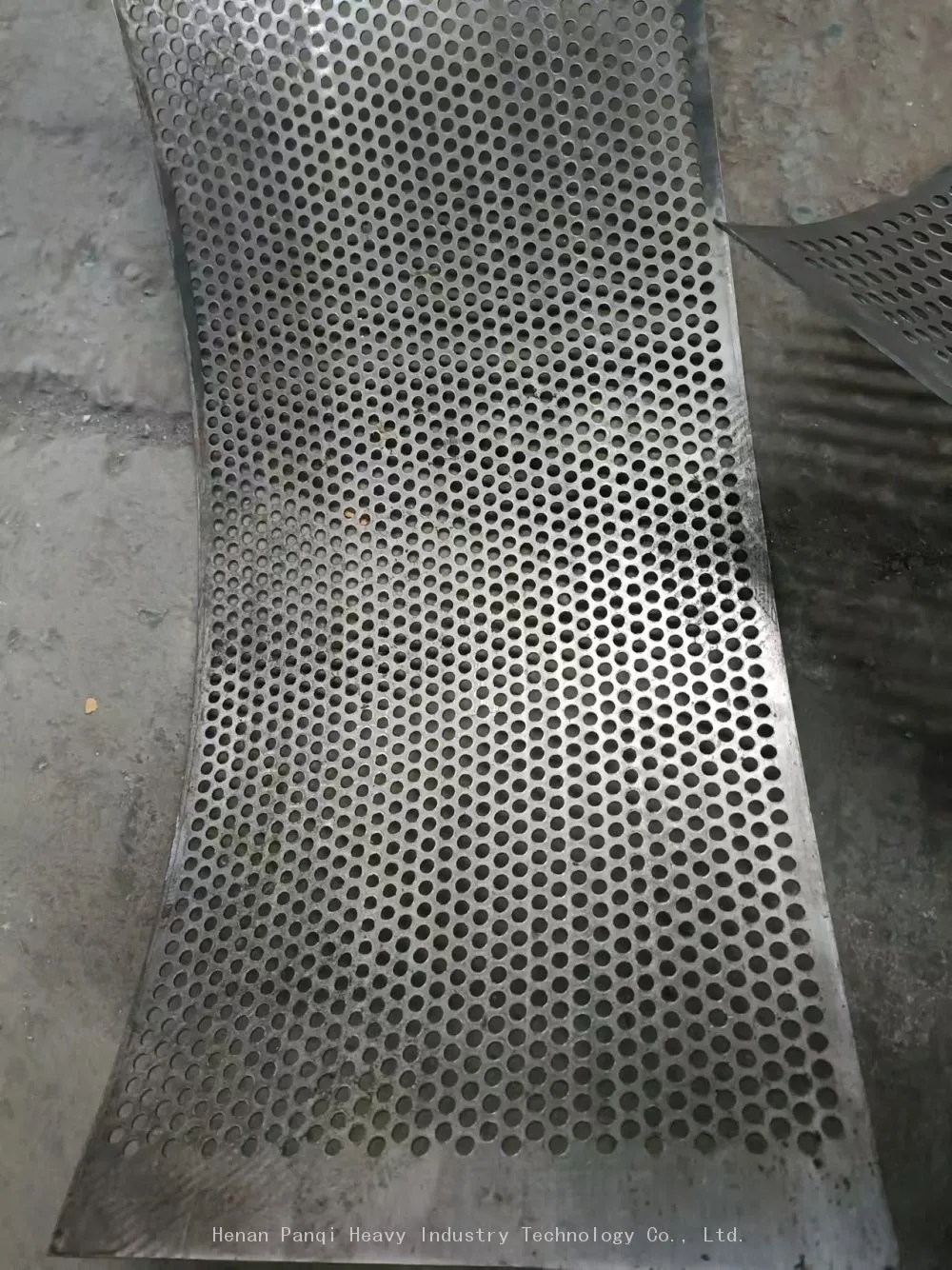

Screen

Screen is mainly used to screen the size of the material and adjust the fineness of the material, strong corrosion resistance, good wear performance, with high hardness and strength

Widely applicable

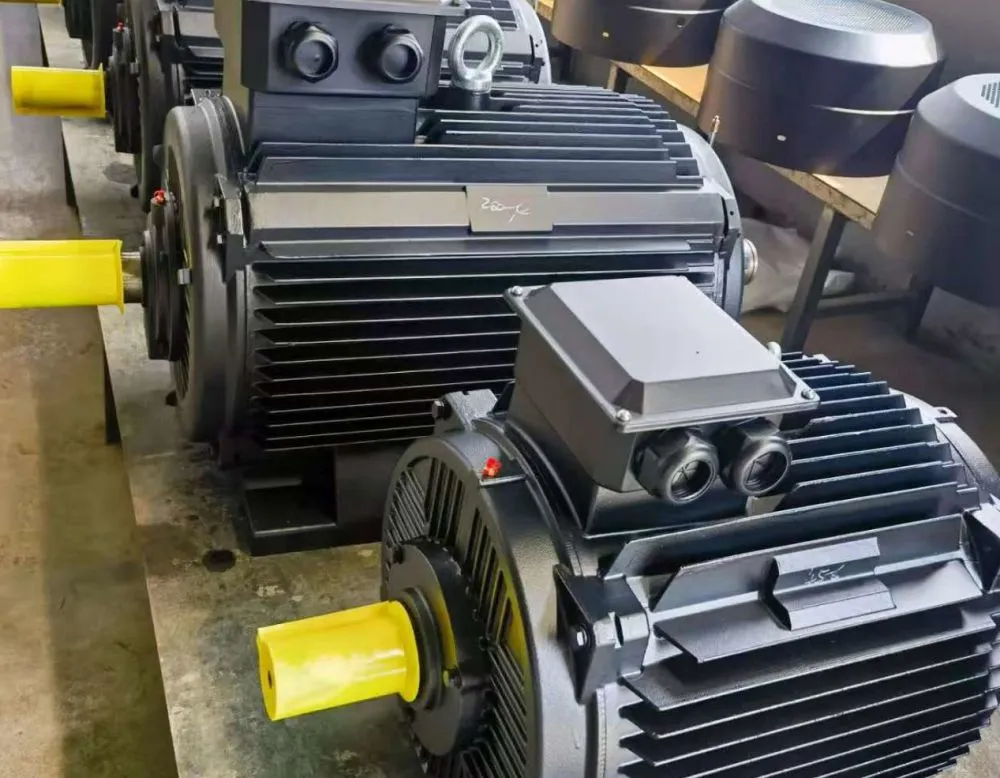

All-copper motor

Reduce energy consumption, improve production safety, and increase equipment lifespan.



Product display

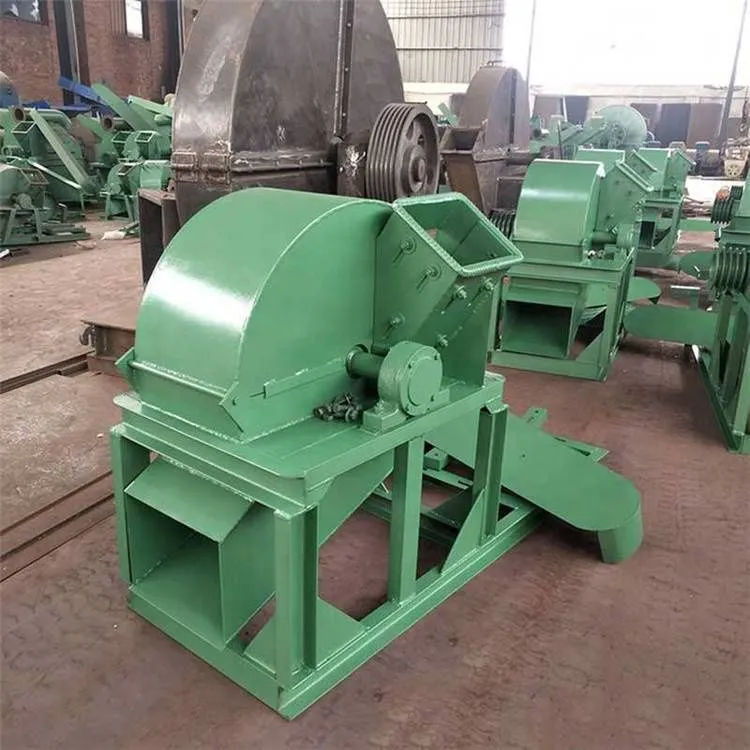

产品图片1

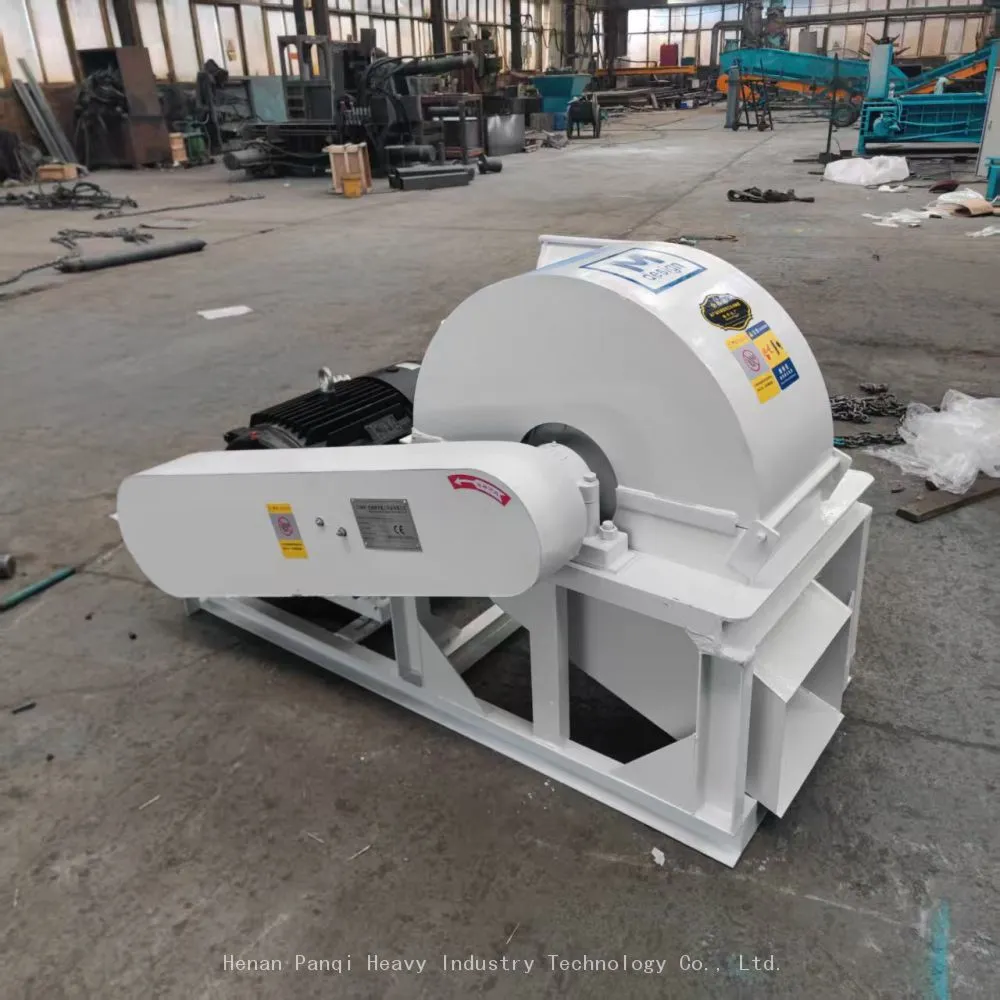

产品图片2

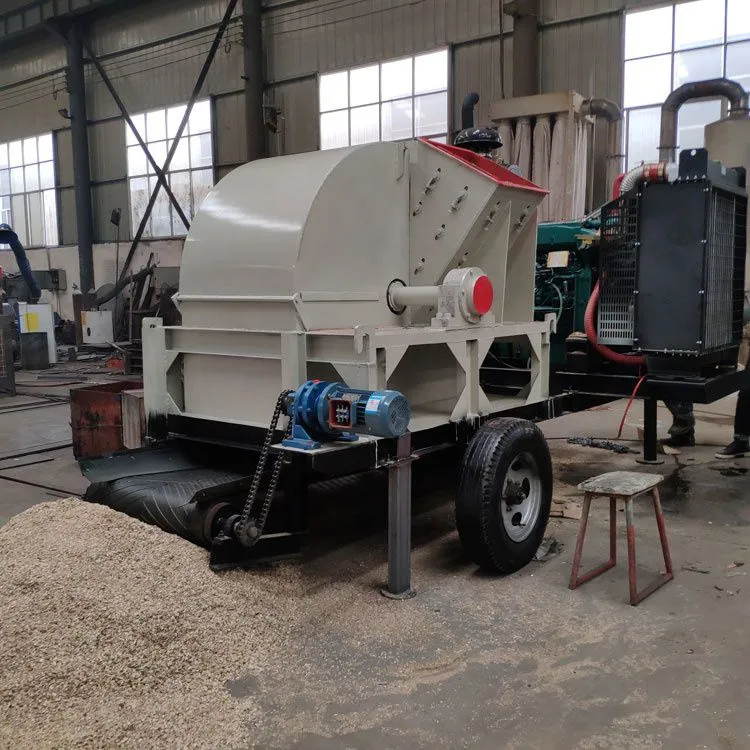

产品图片3

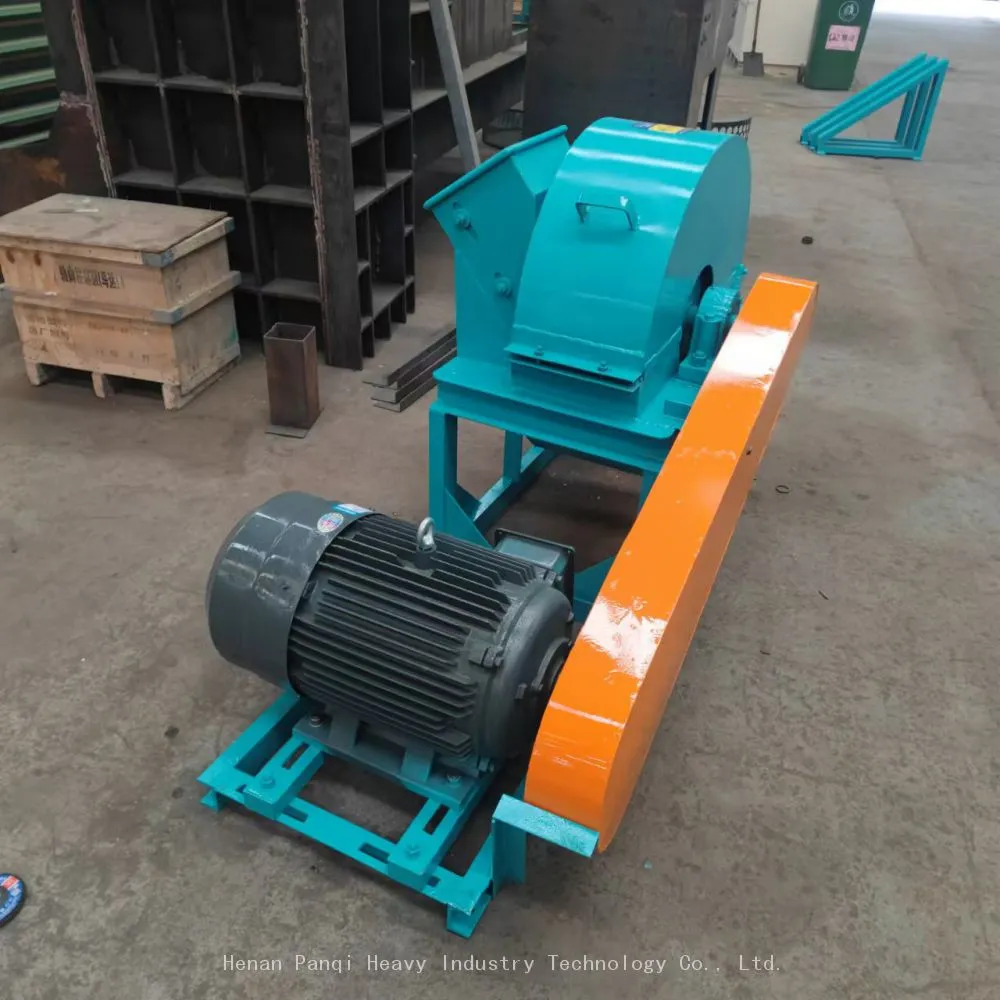

产品图片4

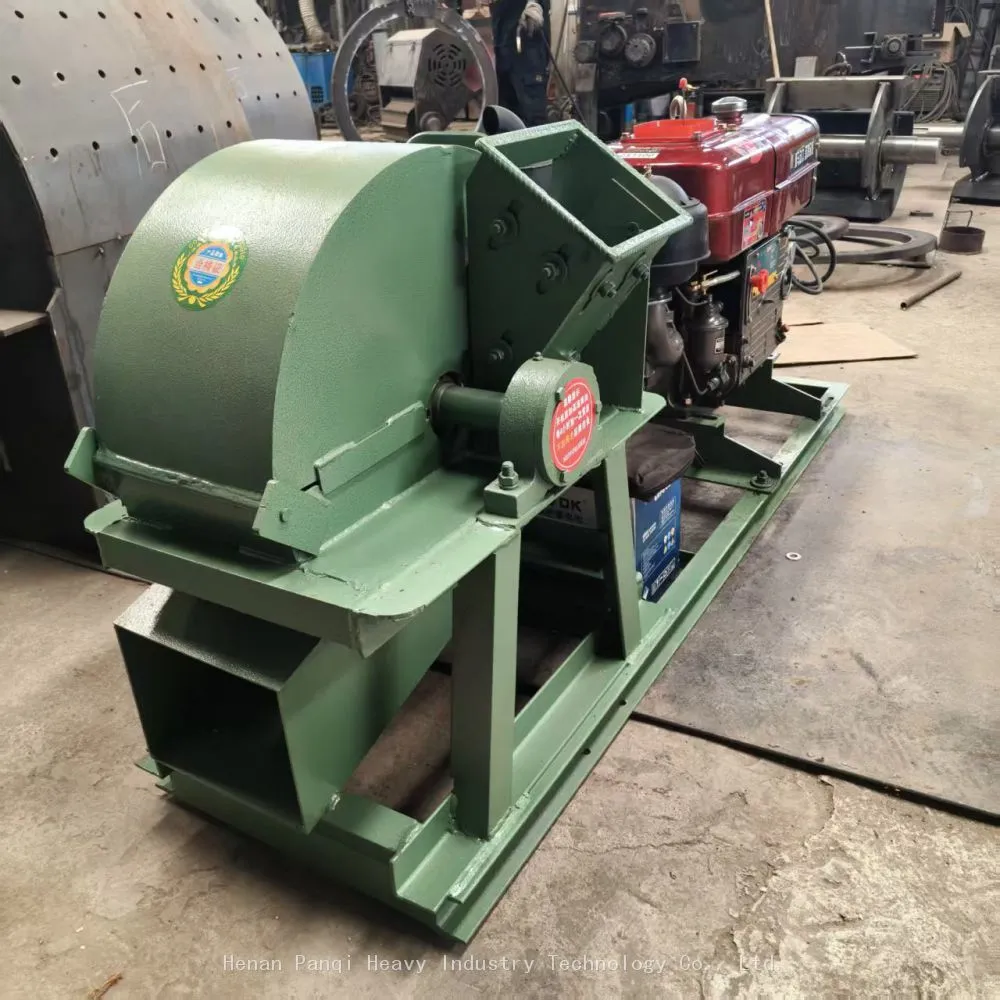

产品图片5

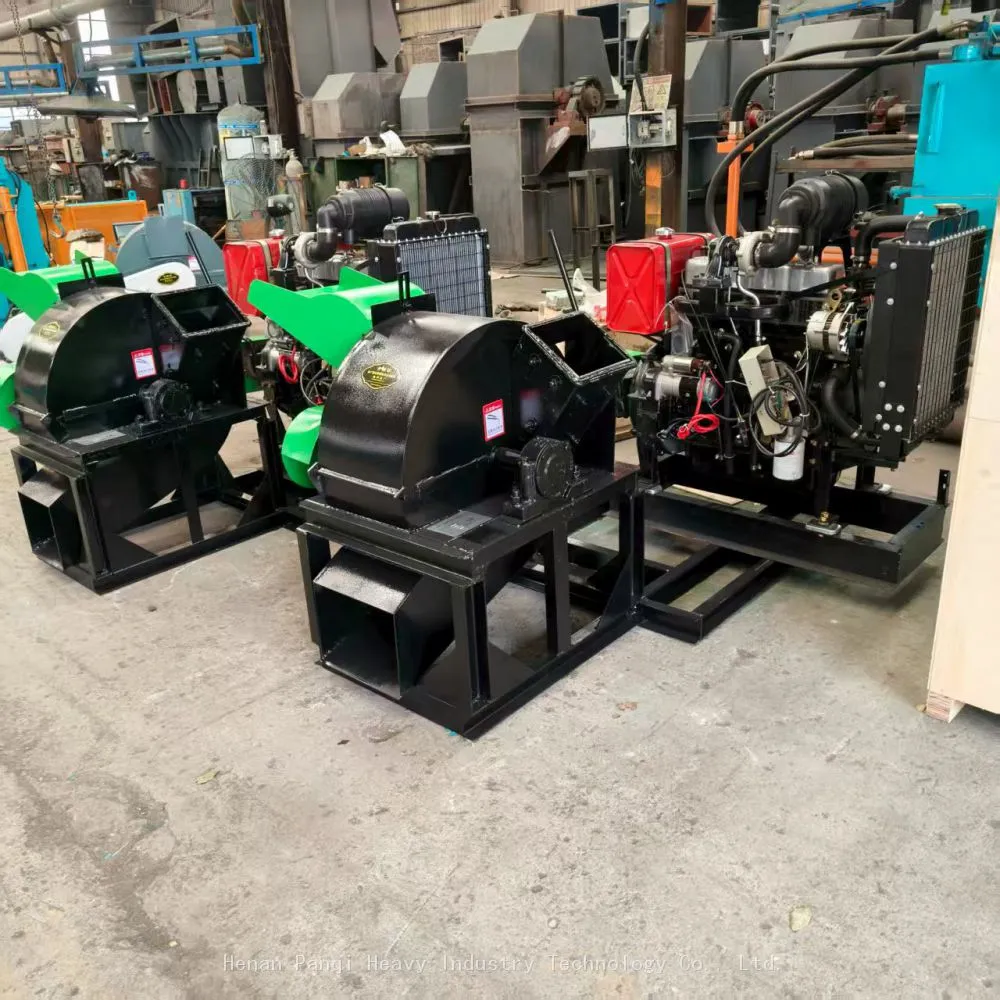

产品图片6
Biomass briquette charcoal product line
       Company Profile
Factory

Henan Panqi Heavy Industry Technology Co., Ltd. is a well-known enterprise specializing in the production of various types of crushing machinery. Over the past decade, we have continuously introduced advanced technologies from home and abroad, professional technical teams, and experienced production personnel.

We have developed a series of products including wood shredders, sawdust machines, charcoal machines, carbonization furnaces, wood splitters, biomass pellet machines, etc.

Our products are popular with customers. Our products are complete in specification and model, and can meet the needs of different users.

We are responsible for the revitalization of Chinese crushing machinery to cooperate wholeheartedly with the vast numbers of users.

Workshop & Production

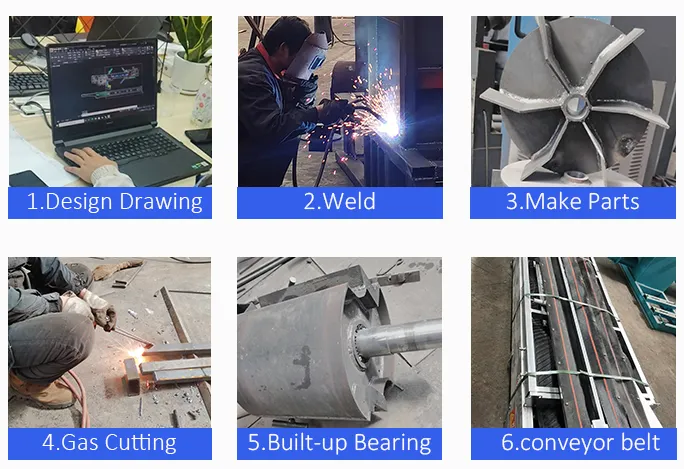

Factory Display            Factory Display

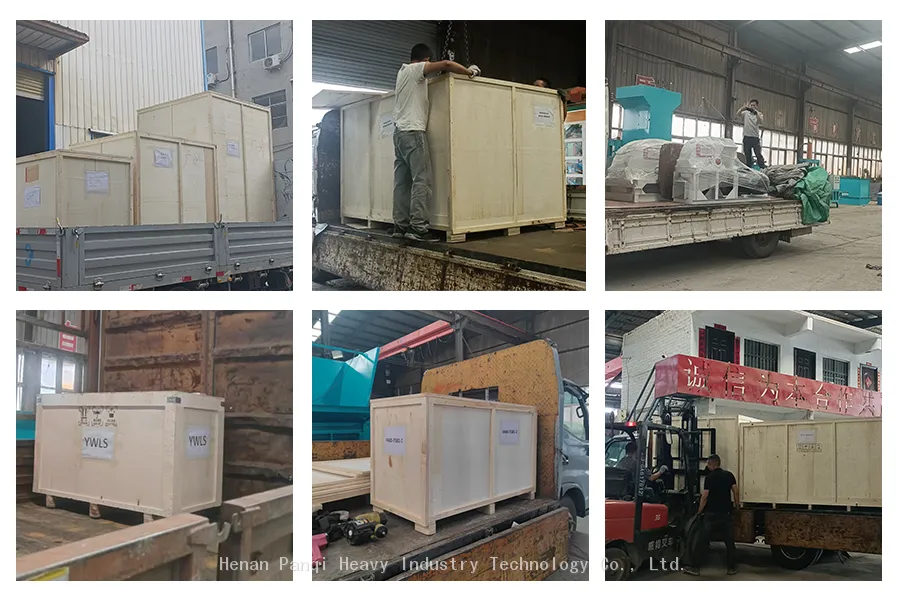

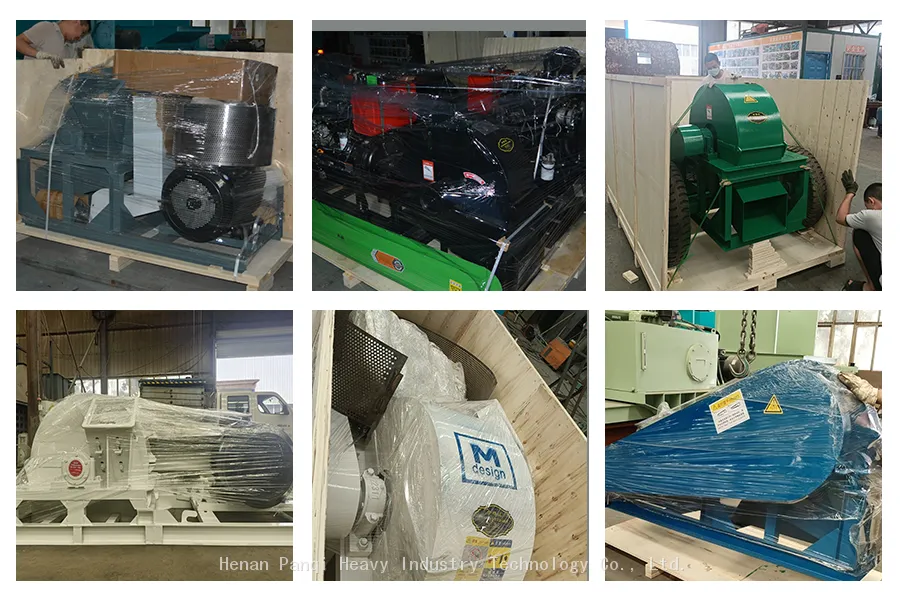

Shipping & Transportation            Packaging DisplayPackaging Display

Packing:

  1. The equipment and wearing parts are packed in plastic film and wooden box.

  2. FCL: Shipped in standard export container.

  3. Various packaging methods can be provided according to customer requirements, such as: fumigation-free wooden boxes, steel boxes, etc.

Sea freight:

We ship the good to China's main seaports, such as Qingdao, Tianjin, Shanghai, etc., and then ship the equipment to your country by sea.

Certificate

Certificate

Cooperate

Cooperate

FAQ
Q: Can the crushing fineness of the wood crusher be adjusted?
A: Yes, the grinding fineness can be adjusted within a certain range, usually by replacing the screen with different apertures.
Q: What should be paid attention to in the daily maintenance of wood crusher?
A: Check wearing parts regularly and replace them promptly if excessive wear is found; keep the machine in good lubrication condition and add grease to the bearings weekly; check the rotor rotation diameter to ensure that the blades and screen are kept at a safe distance; pay attention to any abnormal sounds during machine operation to prevent hard objects from entering the machine.
Q: How to operate a wood chipper in a high temperature environment?
A: Use high-temperature resistant lubricants to prevent damage to the machine due to high temperatures; regularly stop the machine for inspection to avoid long-term overload operation; keep the machine ventilated to prevent heat accumulation.
Q: What are the safety precautions for wood chippers?
A: Ensure that the equipment meets safety standards and is equipped with safety sensors and emergency stop systems; inspect the machine before operation to ensure there are no loose parts; cleaning or maintenance work is prohibited while the machine is running.
