Home > Products > Enamelled Aluminum round wire > IEC-60317 Standard AWG6-32 Enameled Aluminum Round Wire for Transformer UL ISO9001 Certification Germany

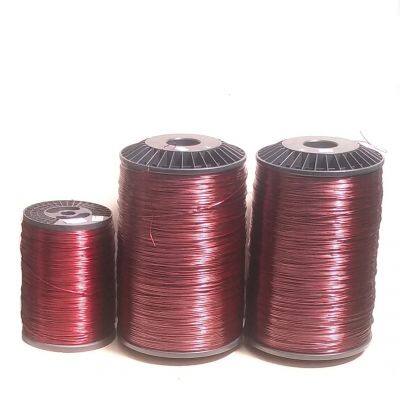

IEC-60317 Standard AWG6-32 Enameled Aluminum Round Wire for Transformer UL ISO9001 Certification Germany
500 - 4999 Kilograms
≥5000 Kilograms
You May Like
-
IEC-60317 Standard High Grade 200/220 Class AWG 6-28 Insulated Winding Wire Enameled Aluminum Wire for Motor and Transformer Germany
-
AWG4-32 IEC-60317 Top Grade High Temperature Resistances Insulated Winding Wire Aluminum With Coating for Motor and Transformer Germany
-
Polyamideimide 240 Class Enamel Winding Wire Aluminum Magnet Insulated Electrical Wires AWG4-32 Germany
-
Manufacture Price AWG Gauge IEC60317 Standard Enameled Aluminium Round Insulated Winding Wire for Motor and Transformer Germany
-
UL Certification Enamel Wire Aluminium Winding for Ceiling Fan Motor and Transformer Electrical Wires Germany
-
Factory Direct Sales Insulated Winding Wires Motor Winding Magnet Wire Aluminum Enameled AWG 13 14 15 for Transformer Germany
Product Details
| Type | Insulated | |||
| Conductor Material | Aluminum | Conductor Type | Solid | |
| Model Number | Q(ZY/XY)-200 | Brand Name | YONGDONG | |
| Place of Origin | Shandong, China(Mainland) | Diameter: | awg | |
| Style: | Enameled Aluminum Wire | Shape: | Round | |
| Heat-resisting class: | C class | Insulation Material: | polyester-imide, Polyamide imide | |
| Production Range: | 0.20mm-5.00mm | Certification: | ULE234565 ROHS REACH | |
| Bobbin: | PT25 PT30 PT60 PT200 PT270 | Product name | Enameled Aluminum Wire | |
| Color | Brown |
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire swg
NEMA IEC JIS standard AWG6 to AWG32 Enameled Aluminum round wire for coil winding

Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class C |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
PT200 spool | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG |
















Company Profile
Shandong Huilong Electrical Material Co.,ltd. was founded in 1970. The factory is located in the north area of Tianqu Industrial Park, Dezhou City, Shandong Province. It has a registered capital of 3 million RMB. It covers an area of 23,310 square meters and it is a modern enterprise with a history of more than 50 years of professional enameled wire production. Welcome to visit our factory Shandong Huilong Electrical Material Co.,ltd. We renew our machinery park and our quality control laboratory with up-to-date technologies and increase our activity across international markets day by day. The company's products are widely used in Photovoltaic inverters,UPS inverters,power transformers, new energy electric vehicles, aerospace, Speaker coil,welding machines,instrumentation,household appliances,refrigeration compressors,deflection coils, high-frequency transformers,motors,electronics, power tools and other fields. The company's products are all based on IEC-60317, GB/T, JIS and NEMA production standards. With the in-depth development of global economic integration, in order to cope with the new opportunities and challenges brought by the international market, the company adheres to the business philosophy of “survive by quality and develop by credit”. The annual production capacity is up to 12,000 tons under full load. Shandong Huilong Electrical Material Co.,ltd. Our products have been exported to more than 50 countries in Europe, North America,South America,Africa, the Middle East and other regions. We offer customer specific solutions, tailor-made to suit every possible need. Whether standard or special, all our products are sustainably manufactured in a high-precision process using state-of-the-art technology. Please check out our product guide for more information!
