Home > Products > AUTONICS > TR1D-T4RR TR1D-T4CC AUTONICS Slim Single Display PID Temperature Controllers
TR1D-T4RR TR1D-T4CC AUTONICS Slim Single Display PID Temperature Controllers
1 - 99 Pieces
≥100 Pieces
- shang hai
- T/T
- 7 days
You May Like
Product Details
| Certification | ROHS, CE | Display Type | LED | |
| Brand | Other, AUTONICS | Customized | Non-Customized | |
| Transport Package | Cardboard box | Origin | China |
Product Description

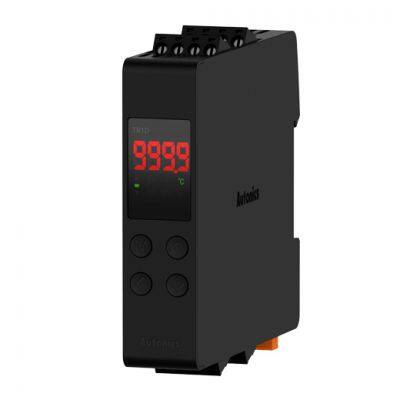

TR1D SeriesSlim Single Display PID Temperature Controllers
The TR1D series slim single display PID temperature controllers feature high-speed sampling cycle rate of 50ms with ±0.3% display-accuracy. The controllers offer high precision temperature control with simultaneous heating and cooling control. The space-saving design with 22.5mm width and DIN rail bracket allows easy installation in limited spaces. The front display can be easily used to set the control status and parameters.
Compact, space-saving design with 22.5mm width size
50ms high-speed sampling and ±0.3% display accuracy
Simultaneous heating and cooling control function
Switch between current output and SSR drive output
Easy mount on DIN rails
RS485 (Modbus RTU) communication output model available - Protocol: Modbus RTU or ASCII - Communication speed: up to 115,200 bps
Parameter setting via PC (USB or RS485 communication) - Comprehensive device management software (DAQMaster) provided
Heater disconnect alarm function (CT input) - Current transformer (CT) sold separately : CSTC-E80LN, CSTC-E200LN, CSTS-E80PP
Screen protection function
