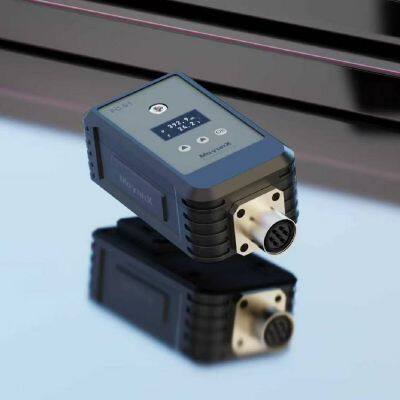

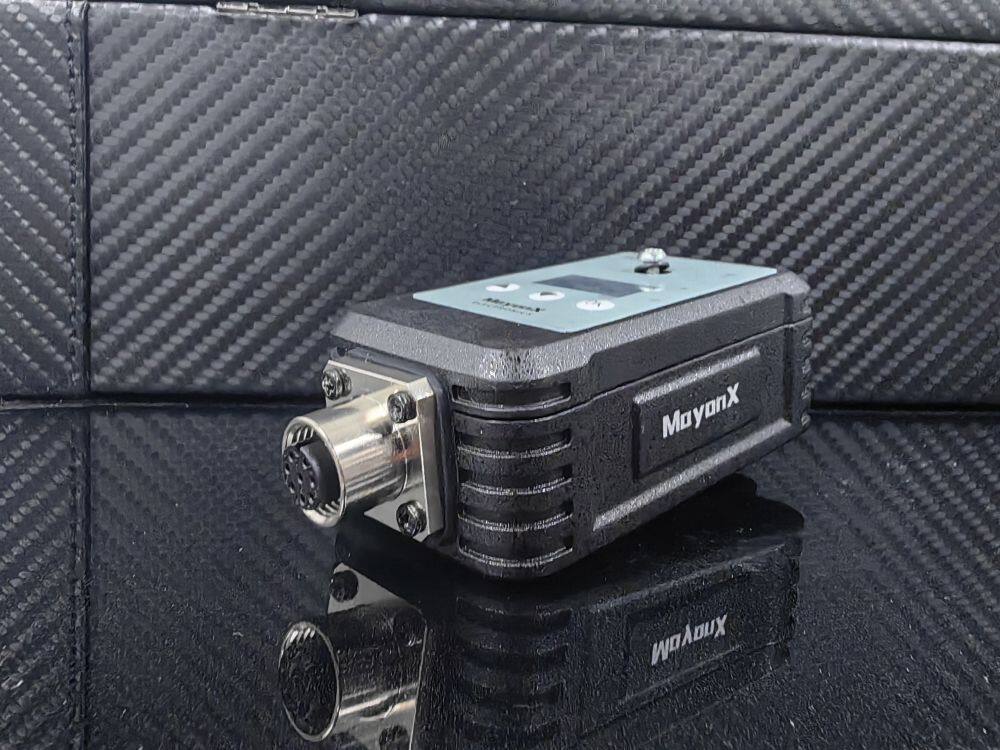

FC-S1 Single Plug-In Proportional Solenoid Driver |
Adjustable Dither Current, Differential Command Signal Input, RS485 Interface, DIN 43650-A/ISO 4400 Standard Plug |
Features
Independent core algorithm effectively accelerates solenoid valve response, reducing overshoot and hysteresis.

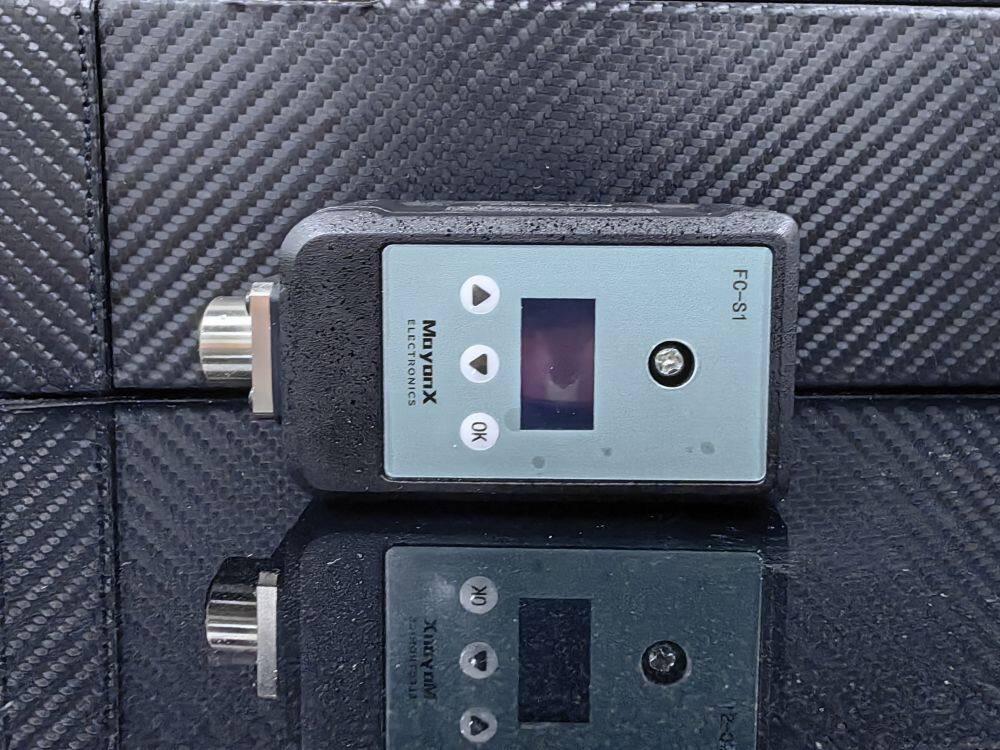

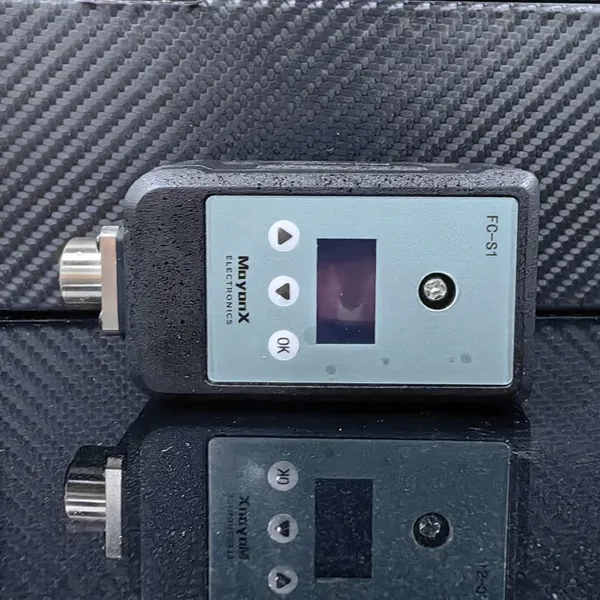

Integrated OLED display and key operation functions allow users to easily and intuitively view or set local parameters.
Supports configuration of key physical performance parameters of solenoid valves such as coil inductance and DC resistance.
Multiple adjustable parameters including PWM frequency, dither frequency, dither amplitude, ramp, and maximum output current.
Real-time monitoring of faults such as wire breakage and overcurrent for quick fault cause localization.
RS485 communication interface supporting Modbus RTU protocol, enabling cascade control of multiple devices.

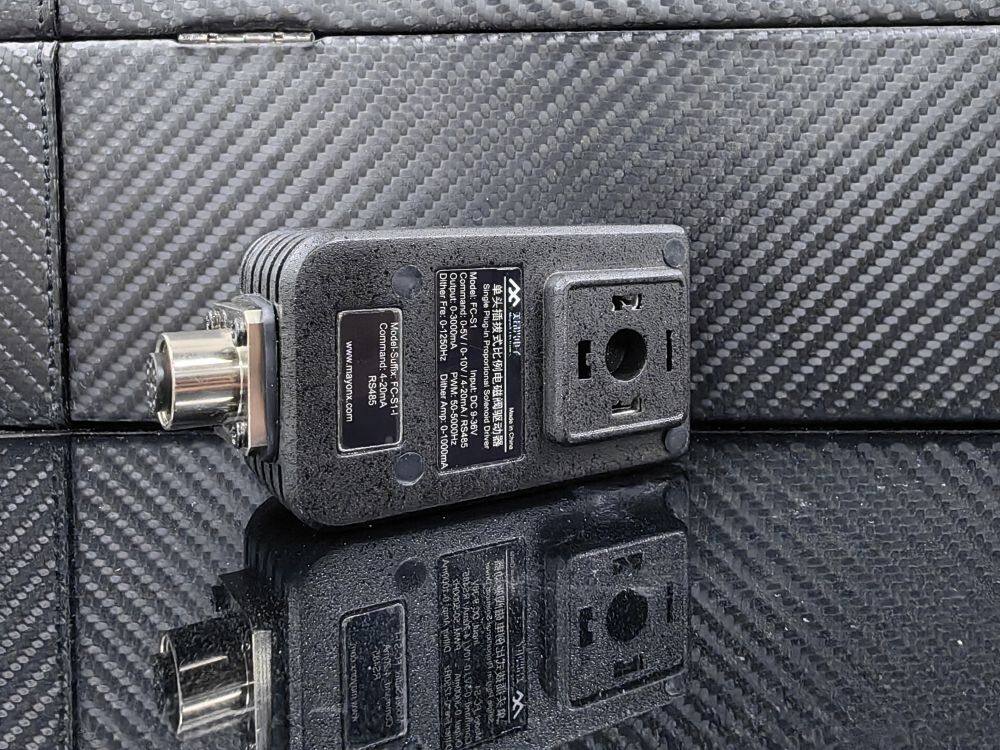

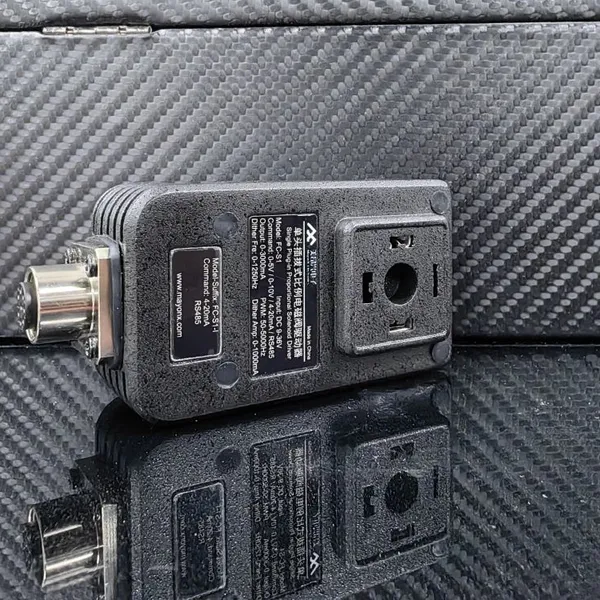

DIN 43650-A/ISO 4400 standard plug for direct assembly on electromagnets.
Ordering Model |
|
FC-S1-X （1） |
|
(1) Command Type I = 4 – 20mA / RS485 V = 0~5V / 0~10V / RS485 |
