Rechargeable lifting emergency light YD-45-300 type
Product Introduction

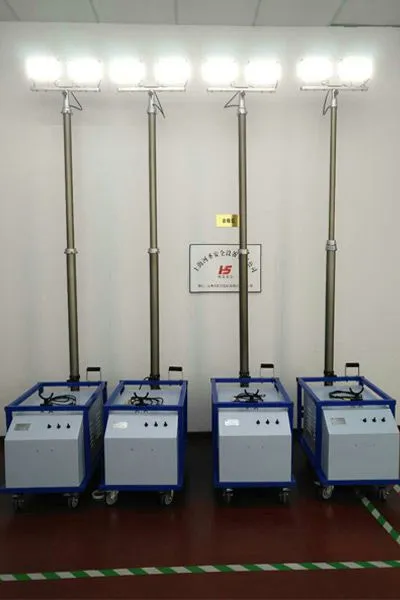

The rechargeable lift emergency light is an integrated portable DC mobile lighting system. It is composed of several major parts, including the chassis, pneumatic lifting lamp post, 2X150W high-brightness LED light source, rechargeable battery pack and control system.
The rechargeable lifting emergency work light is equipped with a built-in battery, automatically raises and lowers, and uses a 150W high-brightness LED light source, which is environmentally friendly and green. The entire set of equipment has a reasonable structure and is easy to operate.
Scope of application
It is widely used in various scenarios such as night emergency lighting, construction work, engineering repair, emergency rescue, fire lighting, on-site lighting and advertising shooting, meeting the on-site demand for large-area and high-brightness lighting.
Features
1. High lamp brightness: It adopts two 150W high-brightness light sources with a lumen of up to 10,500lm.
2. Airtightness of the lamp post: The pneumatic lifting lamp post does not descend for 2 hours and is equipped with built-in wiring.
Fast lighting start-up: With chip control, it can be triggered by hot start, making up for the deficiency of cold start of metal halide light sources. It can be used in emergency situations
Light up the lamps at any time to provide emergency lighting.
4. It features energy conservation and environmental protection, no noise, zero pollution and zero emissions, and energy saving.
Illumination brightness
The lifting lighting fixture is composed of two 150W high-brightness LED lamps. This fixture features high luminous efficiency, good color rendering, and long lifespan. The luminous flux reaches 10,500lm per lamp, and the lifespan of the light source can exceed 100,000 hours.
Irradiation range
The emergency lifting lighting panel adopts a 4-stage high-strength aluminum alloy telescopic cylinder, with a lifting height of 4.5 meters. The lifting cylinder is lifted by a patented micro air compressor pump. The irradiation Angle of the light beam can be fully adjusted manually, and the coverage radius of the light can reach 30 to 50 meters.
Control mode
The control system of the emergency lighting equipment is fixed in the battery box. The chassis is made of steel structure and has universal and braking functions. The lifting and lowering of the equipment, the separate lighting of the lamps and the off function can be controlled through the control buttons.
Working hours
The battery pack of the rechargeable lifting lighting lamp can be fully charged for 12 hours at a time, and the continuous working time can reach 5 to 10 hours.
Usage environment
The charging mobile lighting lamp is made of high-quality metal materials throughout, with a compact structure and stable performance, ensuring normal operation in various harsh environments and climatic conditions. It has a wind resistance level of 8 (for flat floors).
Safe to use
The entire power supply system of the mobile lighting equipment, except for the charging cable, is a DC12V low-voltage safe voltage, which provides greater protection for the personal safety of users and better avoids accidents such as electric shock caused by misoperation or improper operation during use.
Technical parameters
Rated voltage -12V (Safe power supply)
Lamp cap power -2×150W (High-power lamp cap)
Light source brand ----CREE (brand lamp beads)
Emission Angle ----160° (wide-angle illumination)
Waterproof rating ----IP67 (can be used normally in the rain)
Operating voltage -12V (safe voltage)
Luminous flux - 21,000 lm (high luminous flux)
Average service life - 100,000 hours (ultra-long service life)
Battery capacity -100AH x 2 (Large capacity battery)
Telescopic cylinder storage height - 1800mm (small storage)
Telescopic cylinder lifting height - 4500mm (maximum height)
Equipment external dimensions - length × width × height: 1800X480X780 (folded size)
The overall weight of the machine is approximately 95 kilograms
