High-Density Secure Storage System for Sensitive Documents and Valuable Assets – Optimized for Safety, Space Efficiency, and Easy Access

The Paradigm of Consolidated Security

In an era of heightened regulatory scrutiny and sophisticated threats, the security of physical assets—from proprietary intellectual property to sensitive client data—cannot be an afterthought. Traditional filing cabinets and static shelving offer negligible resistance to determined intrusion and provide no defense against environmental degradation. The VaultLine System redefines secure storage by moving beyond the concept of a simple container to that of a fortified, intelligent enclosure. It is engineered for Chief Security Officers, Compliance Managers, and Archivists who understand that true security is a layered defense, combining robust physical barriers, stringent access control, and proactive environmental management. This system transforms a storage room into a high-security vault, consolidating your most critical assets into a single, defensible perimeter that is easier to monitor, control, and protect.

Anatomy of a Fortress: Technical & Security Specifications

The VaultLine's security begins with its fundamental architecture, where every component is selected and designed to contribute to the overall defensive posture.

•

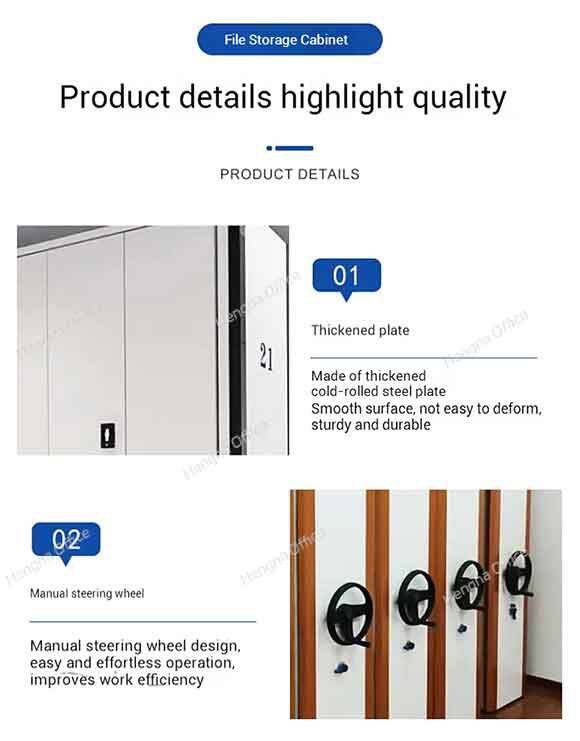

• Fortified Structure: The chassis and panels are constructed from 1.5mm thick, cold-rolled steel, significantly exceeding the thickness of standard units. Critical load-bearing joints are reinforced with additional steel gussets and are welded, not merely bolted, for maximum structural integrity and resistance to forced entry.

• Advanced Locking Mechanisms:

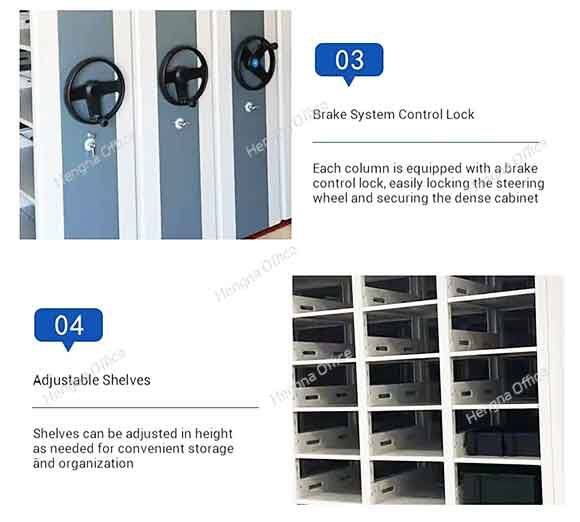

• Primary Access Control: The standard system includes a central, key-operated brake lock. We offer upgrades to Medeco® or Abloy® high-security key cores, which provide superior pick-resistance and strict key control.

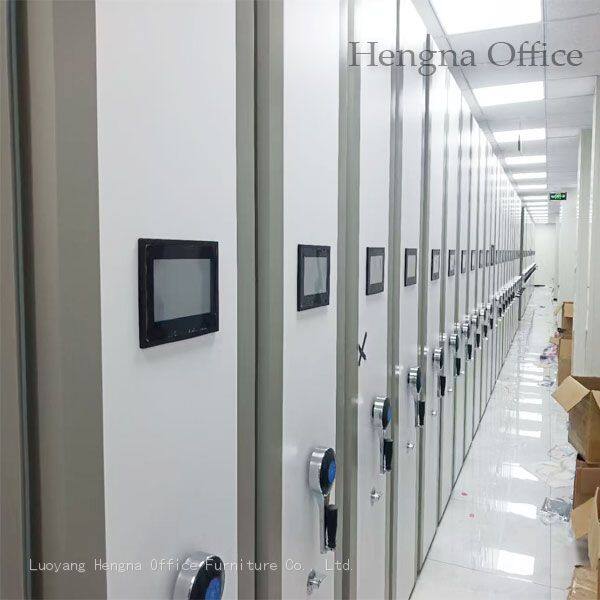

• Electronic Integration: The intelligent model features an integrated digital access system as standard. This includes an RFID card reader and a biometric fingerprint scanner option. All access events—successful and denied—are logged with a timestamp and user ID, providing a complete audit trail.

• Environmental Defense Seals: The seals are made from industrial-grade, flame-retardant EPDM rubber. Their multi-fin design creates an interlocking barrier that is exceptionally effective at excluding not only dust but also moisture vapor and airborne contaminants. This is critical for preserving evidence, legal documents, and delicate artifacts.

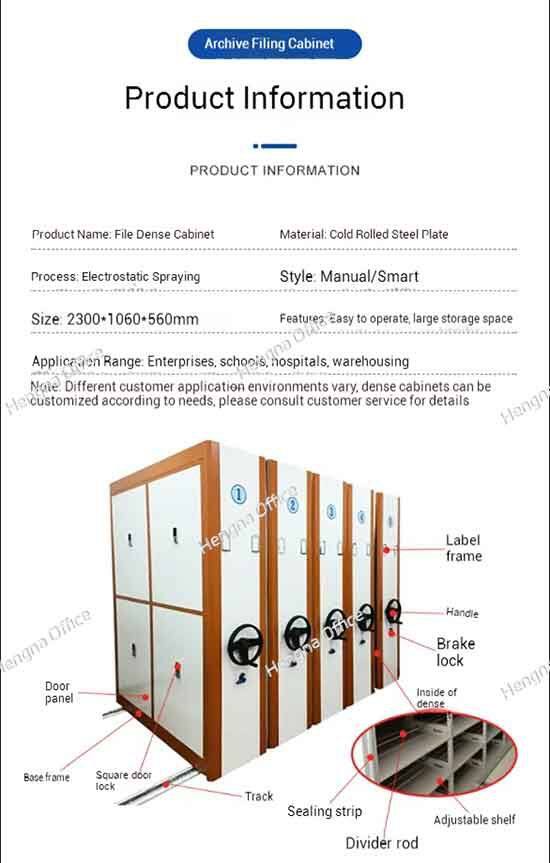

• Track and Stability System: The heavy-duty steel floor track is not merely a guide but an integral part of the anti-tilt and anti-lift defense. The carriage rollers are designed to lock into the track if an attempt is made to lever the unit upwards, preventing physical displacement of the entire system.

Deployment Scenarios: Where Security is Non-Negotiable

The VaultLine is deployed in environments where a breach of physical security would constitute a catastrophic failure.

• Classified Government Facilities: For storing sensitive but unclassified (SBU) and classified materials, providing a compliant, physically secure environment.

• Financial Institutions: Securing loan documents, signature cards, and financial instruments in bank back-offices and vault anterooms.

• Legal Firms and Corporate Compliance: Protecting attorney-client privileged materials, merger & acquisition documents, and internal investigation records.

• R&D and Pharmaceutical Laboratories: Safeguarding patent applications, clinical trial data, and proprietary research from corporate espionage and environmental damage.

The Five Pillars of the VaultLine Defense

1. Deterrent by Design: The system's formidable appearance—a continuous, monolithic steel facade—acts as a powerful psychological deterrent. It signals a high level of security, potentially discouraging opportunistic attempts at intrusion before they begin.

2. Denial of Access: This is the core function. The multi-point locking system physically denies entry. The consolidation of assets means that instead of securing dozens of individual filing cabinets, security personnel need only monitor and control a single, unified system. This drastically reduces the attack surface and simplifies security protocols.

3. Detection and Audit Capability: The electronic access control system transforms the VaultLine from a passive barrier into an intelligent sensor. Real-time monitoring and detailed logs answer the critical questions of "who, when, and where." In the event of a security incident, this data is invaluable for forensic analysis and establishing accountability.

4. Delay and Defeat: The time required to defeat the VaultLine's defenses is exponentially greater than that for a standard filing cabinet. The reinforced steel, high-security locks, and integrated track system are designed to significantly delay a perpetrator, increasing the likelihood of detection and intervention by security forces.

5. Defense Against Decay: Security extends beyond human threats to environmental ones. The advanced sealing system creates a stable, controlled microenvironment. By blocking dust—which can be acidic and abrasive—and regulating humidity, the VaultLine actively defends the chemical and physical integrity of the assets within, ensuring they remain legible, admissible, and valuable for their entire retention period.

Frequently Asked Questions (F&Q)

• Q: What level of fire protection does the VaultLine provide?
  A: The standard VaultLine is not a certified fire safe. However, we offer an upgrade to FireShield panels, which are filled with a non-combustible ceramic wool insulation. These panels can provide up to 1-hour of fire resistance, protecting internal contents from temperatures up to 1000°C, subject to certification upon installation configuration.

• Q: Can the access control system be integrated with our central security monitoring system?
  A: Absolutely. The smart VaultLine system is equipped with a standard RS-485 or TCP/IP output. This allows it to seamlessly integrate with your existing Building Management System (BMS) or Security Operations Center (SOC) software, enabling real-time alarm triggering and centralized monitoring.

ODM/OEM for Maximum Security
For projects with unique or extreme security requirements, our ODM/OEM program is the solution. We have engineered systems with custom features including:

• Continuous Monitoring Sensors for internal temperature, humidity, and even tamper detection.

• Custom Locking Logic for dual-custody access (requiring two separate authorized users to be present to open the system).
  We treat each security project with the confidentiality and precision it demands, working with your security team to design a system that meets your exact threat profile.
