Color coated aluminum coils are light in weight but high in strength and have good wind pressure resistance, making them suitable for use as building materials.

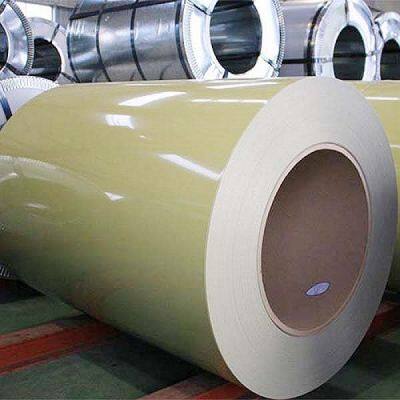

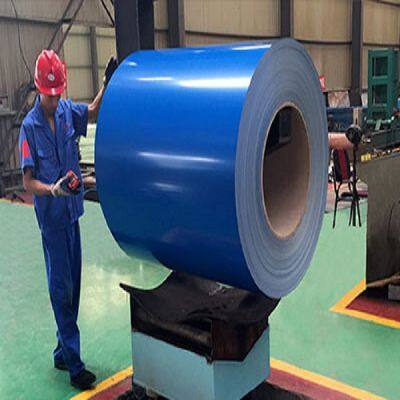

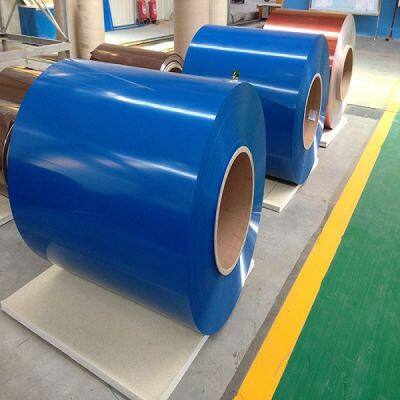

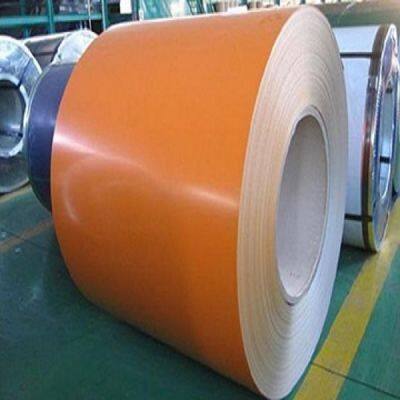

Color coated aluminum coil is an aluminum product with paint coloring on the surface of the aluminum substrate. It is widely used in many fields and has many excellent properties.
Color coated aluminum coils are light in weight but high in strength and have good wind pressure resistance, making them suitable for use as building materials.
Color coated aluminum coils are easy to cut, stamp and bend, and can be customized to meet different processing requirements.
Color coated aluminum coils come in a variety of colors and can be customized according to customer needs, providing personalized choices. It do not contain harmful substances, meet environmental protection requirements, and are a green building material.
Surface Coating For Aluminum Coil1. Fluorocarbon-coated color coated aluminum coil (PVDF)The fluorocarbon coating is a coating of PVDF resin mainly referring to a vinylidene fluoride homopolymer or a copolymer of vinylidene fluoride and other small amounts of the fluorine-containing vinyl monomer.
A fluorine/carbon bond combines the chemical structure of the fluoric acid base. This chemical structural stability and firmness make the physical properties of fluorocarbon coatings different from conventional coatings.
In addition to the abrasion resistance in terms of mechanical properties, impact resistance has excellent performance, especially in harsh weather and environment, showing long-lasting resistance to fading and UV.
After the high-temperature barbecue is formed into a film, the molecular structure in the coating is tight and has excellent weather resistance.
It is especially suitable for the decoration and display of indoor, and outdoor decorations, commercial chains, exhibition advertisements, etc.
2. Polyester coated aluminum coil (PE)The polyester coating formed by multiple baking of the surface of the aluminum plate can create a solid film adhered to have a protective decorative property. It is an anti-UV ultraviolet coating.
The polyester resin uses a polymer containing an ester bond in the main chain as a monomer, and an alkyd resin is added.
The ultraviolet absorber can be divided into a matt and a high-gloss series according to the gloss. It can give rich color to color aluminum products, has good shine and smoothness, as well as superior texture and hand feeling, and can also add layering and three-dimensionality.
It can protect objects from ultraviolet radiation, wind, rain, frost, and snow;
The coating can protect due to temperature differences, freeze-thaw cycles, corrosive gases, and microorganisms. Especially suitable for interior decoration and advertising panels.
Specifications of Aluminum Coil| Products Name | Aluminium Coil | |||
| Alloy/Grade | 1050, 1060, 1070, 1100, 1200, 2024, 3003, 3104, 3105, 3005, 5052, 5754, 5083, 5251, 6061, 6063, 6082, 7075, 8011, 8079, 8021 | |||
| Temper | F, O, H | MOQ | 5T for customized, 2T for stock | |
| Thickness | 0.014mm-20mm | Packaging | Wooden Pallet for Strip & Coil | |
| Width | 60mm-2650mm | Delivery | 15-25days for production | |
| Material | CC & DC route | ID | 76/89/152/300/405/508/790/800mm | |
| Type | Strip, Coil | Origin | China | |
| Standard | GB/T, ASTM, EN | Loading Port | Any port of China, Shanghai & Ningbo & Qingdao | |
| Surface | Mill Finish, Anodized, Color coated PE Film Available | Delivery Methods | 1. By sea: Any port in China 2. By train: Chongqing(Yiwu) International Railway to Middle Asia-Europe | |
Color coated aluminium coils have the characteristics of light weight, high strength, corrosion resistance, easy processing, and easy maintenance, and are widely used in construction, decoration, automobile manufacturing and other fields.
