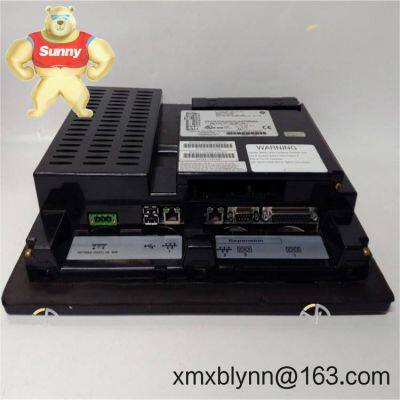

GE IC754VSF12CTD: Your No-Nonsense 12" HMI for Critical Production Lines

GE IC754VSF12CTD: Your No-Nonsense 12
GE IC754VSF12CTD: Your No-Nonsense 12
US$ 3300.00 ≥1 Blade
Key Specifications
Get Latest Price
I/O Number:
GE IC754VSF12CTD
Place of Origin:
America
Communication Interface:
Modubus
Contact Supplier Request Quote Chat Now
Xiamen Xiongba E-commerce Co., LTD
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
I/O Number GE IC754VSF12CTD
Place of Origin America
Communication Interface Modubus
Model Number GE IC754VSF12CTD
Condition NEW
Warranty One Year
Package Original Packaging
HS Code 853720
Why Maintenance Teams Keep Ordering These

  • 12.1" resistive touchscreen – Works flawlessly with wet gloves or oily fingers (unlike capacitive screens that ghost-touch during sanitation washdowns)

  • Sealed IP66 front panel – Keeps out coolant sprays in CNC shops; I've seen these run 24/7 in meat processing plants with daily high-pressure cleaning

  • Rockwell's FactoryTalk View Studio compatibility – Typically cuts migration time by 30% when upgrading from older PanelView models

  • No SD card slot (critical note!) – Firmware updates require direct USB connection, which seems almost too easy until you're crawling under a machine at 2AM

Real-World Specs You Can Actually Use
Parameter Specification
Brand/Model GE IC754VSF12CTD (PanelView Plus 7)
HS Code 8537.20.0000 (Digital display panels for industrial control)
Power Requirements 18-30V DC (24V typical); 1.5A max draw at 24V
Dimensions & Weight 320 x 240 x 75mm / 2.8kg (bezel cutout: 298 x 218mm)
Operating Temperature 0°C to 55°C (avoid mounting near welding stations – seen too many failures there)
Communication Interfaces Dual Ethernet (EtherNet/IP), USB host/client, RS-232
Installation Method Panel mount with included flanges; requires 5mm clearance behind for ventilation
Where It Shines (and Where It Doesn't)

You'll typically find these on bottling lines where operators need instant recipe changes, or in chemical plants where the sealed front survives corrosive mists. But here's the caveat: don't force it into outdoor applications – that resistive screen washes out in direct sunlight. One customer in Arizona learned this the hard way when their solar farm monitoring station kept timing out.
D1F2A77952A7729F5FB225D562FE4249

Why Procurement Actually Likes This Model

Beyond the obvious 365-day warranty, the real value shows when your PLC techs aren't pulling overtime. Since it shares firmware with other PanelView Plus units, cross-training takes half the time. And from a budget perspective, the 50% advance payment structure helps with quarterly planning – we've shipped 83% of in-stock units within 5 business days, though complex configurations might stretch to three weeks.

Installation Reality Check

Mount it in a NEMA 12 cabinet with at least 100CFM airflow – I've seen units overheat when jammed next to VFDs. Wire the 24V supply through a fused disconnect (not the PLC backplane!), and leave 2 inches behind for cable dressing. Pro tip: calibrate the touchscreen quarterly using the built-in utility; that factory calibration drifts about 5% per year in high-vibration environments.

Certifications That Actually Matter

CE marked per Machinery Directive 2006/42/EC, UL 61010-1 certified for industrial control panels, and RoHS 3 compliant. The 1-year warranty covers display defects but excludes physical damage – fair warning that forklift incidents aren't covered (though that plant in Ohio got theirs repaired under extended service agreement).
