Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Crusher > Pellet Drzewny Making Machine Branch Shredder Oak Shredder With CE

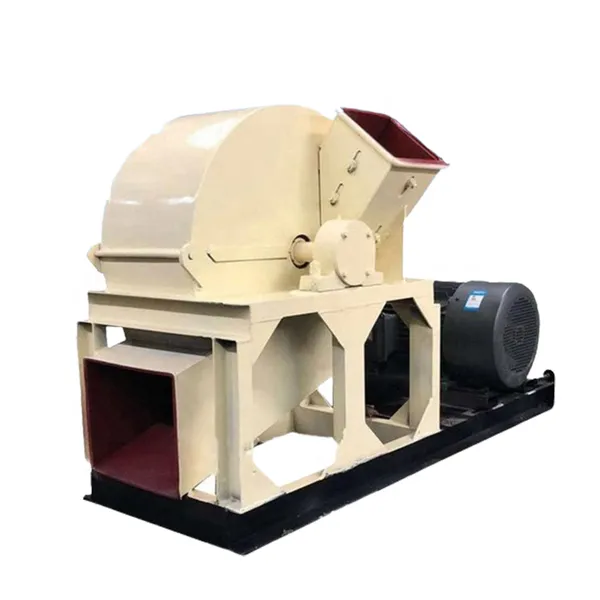

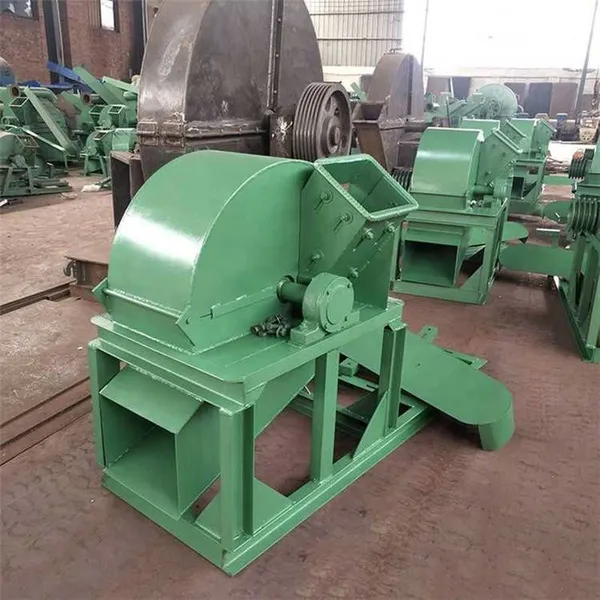

Pellet Drzewny Making Machine Branch Shredder Oak Shredder With CE
US$ 530 - 1150
MOQ: 1 Set
Key Specifications
Get Latest Price
place of origin:
Henan, China
brand name:
PanQi
video outgoing-inspection:
Provided
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Saw Dust Machines Sawdust Small Sawdust Making Machine for AnimalUS$ 660 - 660MOQ: 1 Set -
Mini the Green Wood Crusher Mobile Wood Chipper Sawdust Machine for Horse BeddingUS$ 660 - 660MOQ: 1 Set
-
Wood Sawdust Crusher Machine Sawdust Crusher Wood Sawdust Machine for Chicken FarmUS$ 660.00MOQ: 1 Set
-
Small Wood Chipper Sawdust Production Machine Saw Dust Machine Corn Cob Crusher With CEUS$ 660 - 3990MOQ: 1 Set
-
Mobile Diesel Powered Sawdust Wood Crusher Machine Wood Sawdust Machine for Sawdust ManufacturingUS$ 1160 - 1160MOQ: 1 Set
place of origin
Henan, China
brand name
PanQi
video outgoing-inspection
Provided
machinery test report
Provided
core components
Engine, Bearing, Gearbox, Motor, Gear
voltage
110V/220V/380v
power(w)
22
dimension(l*w*h)
1600*750*920mm
warranty
1 Year
key selling points
Low Maintenance Cost
weight (kg)
650
Capacity
3T/h, 4t/h, 5T/h, 2T/H, 6t/h, 7t/h, 8t/h
1. Widely applicable - The wood chipper can cut branches and trunks with a diameter of 1-40cm (even up to 45 cm), as well as chips of fibrous stalks such as bamboo, thatch, corn stalks,sorghum stalks, etc.
2. Widely used - used in the preparation section of industrial production such as papermaking,edible fungus culture medium,machine-made charcoal, particleboard, sawdust
board,high-density board, medium-density fiberboard, and a single wood powder (sawdust) production base.
board,high-density board, medium-density fiberboard, and a single wood powder (sawdust) production base.
3. Adjustable particle size - The particle size of sawdust can be adjusted according to the screen to ensure uniform particle size of sawdust.
4. High processing efficiency - Depending on the model, the wood chip machine has an hourly output ranging from 800-1000 kg to 4000 kg with high production efficiency.
5. High utilization rate of raw materials - the wood chip machine can process wood, branches and other raw materials into wood chips at one time, with high utilization rate of raw materials. 6. Reasonable design - compact structure, small footprint, suitable for mobile operations.
7. Easy to operate - simple to operate, easy to maintain and good economic benefits.
Model |
SW-420 |
SW-600 |
SW-800 |
SW-1000 |
|||
Physical Dimension |
1100*1000*1350mm |
1600*1750*1920mm |
1800*1000*1290mm |
2100*1200*1350mm |
|||
Weight |
400KG |
650KG |
1000KG |
1500KG |
|||
Main Motor Power |
7.5KW |
22KW |
37KW |
75KW |
|||
Hourly Output |
100-400KG |
500-800KG |
800-1500KG |
2000-2500KG |
|||
Maximum Crushing Diameter |
10CM |
15CM |
20CM |
30CM |
|||
Notice |
All can be driven by electric motor, gasoline engine or diesel engine. Please contact us for details. |
||||||
Hammer
Blade
Screen
Henan Panqi Heavy Industry Technology Co., Ltd. is a well-known enterprise specializing in the production of various types of crushing machinery. Over the past decade, we have continuously introduced advanced technologies from home and abroad, professional technical teams, and experienced production personnel. We have developed a series of products including wood crushers, jaw crushers, wood chippers, plastic crushers, metal crushers, sawdust machines, double-shaft crushers, stainless steel food crushers,etc.
Our products are popular with customers.Our products are complete in specification and model, and can meet the needs of different users. We are responsible for the revitalization of Chinese crushing machinery to cooperate wholeheartedly with the vast numbers of users.
Our products are popular with customers.Our products are complete in specification and model, and can meet the needs of different users. We are responsible for the revitalization of Chinese crushing machinery to cooperate wholeheartedly with the vast numbers of users.
Q: Can the crushing fineness of the wood crusher be adjusted?
A: Yes, the grinding fineness can be adjusted within a certain range, usually by replacing the screen with different apertures.
Q: What should be paid attention to in the daily maintenance of wood crusher?
A: Check wearing parts regularly and replace them promptly if excessive wear is found; keep the machine in good lubrication condition and add grease to the bearings weekly; check the rotor rotation diameter to ensure that the blades and screen are kept at a safe distance; pay attention to any abnormal sounds during machine operation to prevent hard objects from entering the machine.
Q: How to operate a wood chipper in a high temperature environment?
A: Use high-temperature resistant lubricants to prevent damage to the machine due to high temperatures; regularly stop the machine for inspection to avoid long-term overload operation; keep the machine ventilated to prevent heat accumulation.
Q: What are the safety precautions for wood chippers?
A: Ensure that the equipment meets safety standards and is equipped with safety sensors and emergency stop systems; inspect the machine before operation to ensure there are no loose parts; cleaning or maintenance work is prohibited while the machine is running.
If you have any other details you would like to know, please contact me!!
A: Yes, the grinding fineness can be adjusted within a certain range, usually by replacing the screen with different apertures.
Q: What should be paid attention to in the daily maintenance of wood crusher?
A: Check wearing parts regularly and replace them promptly if excessive wear is found; keep the machine in good lubrication condition and add grease to the bearings weekly; check the rotor rotation diameter to ensure that the blades and screen are kept at a safe distance; pay attention to any abnormal sounds during machine operation to prevent hard objects from entering the machine.
Q: How to operate a wood chipper in a high temperature environment?
A: Use high-temperature resistant lubricants to prevent damage to the machine due to high temperatures; regularly stop the machine for inspection to avoid long-term overload operation; keep the machine ventilated to prevent heat accumulation.
Q: What are the safety precautions for wood chippers?
A: Ensure that the equipment meets safety standards and is equipped with safety sensors and emergency stop systems; inspect the machine before operation to ensure there are no loose parts; cleaning or maintenance work is prohibited while the machine is running.
If you have any other details you would like to know, please contact me!!
