Stainless Casting Hardware for Marine
- Qingdao
- T/T L/C
- 35 days
You May Like
Product Details
| Material | Stainless Steel | Structure | Other | |
| Standard | Nonstandard | Brand | Other | |
| Condition | New | Transport Package | Carton |
Product Description
Auto shell making line
Product Introduction

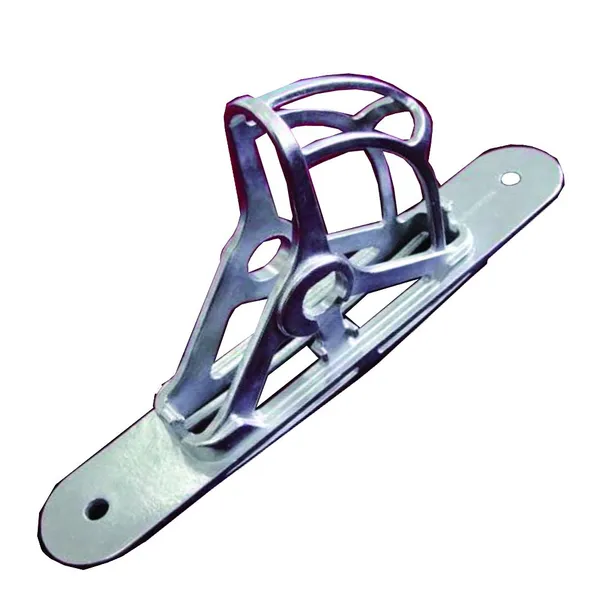

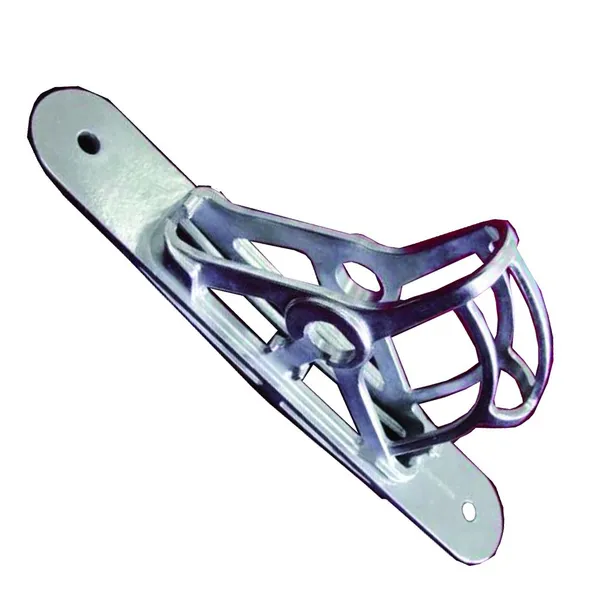

Our stainless steel pulley grids for yachts are an essential component for ensuring smooth sailing and efficient operation of the vessel. These pulley grids are designed to guide ropes and cables on a yacht, allowing for seamless movement of sails and other equipment.
1.Product Description
These stainless steel pulley grids provides exceptional strength and durability for all marine applications. Crafted from duplex stainless steel 2205, they are designed to withstand harsh conditions while offering optimal performance. These stainless steel pulley grids with feature lightweight designs, suitable for both wire and fiber ropes.
2. Product Parameters
Stainless Steel Pulley Grid Dimension | mm | mm | mm |
Length | 118.5 | 165.5 | 196 |
Width | 23 | 29 | 34 |
Height | 50 | 73 | 100 |
Sheave size | Φ40 | Φ60 | Φ80 |
3. Product Features & Applications
Key Features
Higher tensile strength and anti-corrosion: Duplex Stainless steel 2205 is known for its strength and ability to withstand harsh marine environments, making it the ideal material for yachting applications.
Durability and resistance to corrosion: Stainless steel pulley grid performs optimally for years to come, without worrying about rust or deterioration.
Precision Casting Manufacturing: Lost wax precision silica sol shell made process.
Applications
- Sailing navigation control
- Luxury yacht equipment traction
- Mast rigging system
4. Production Details
Manufacturing Process:Silica sol shell made investment casting for groove accuracy and lost wax casting method for variants used in geothermal marine zones.
Material:2205 is for higher tensile strength and anti-corrosion.
Complex Geometric Structure:The flatness, coaxiality and straightness are perfectly achieved.
Customization:Material,dimension,grid patterns,surface treatment and mounting holes distance.
Quality Control: 100% visual testing, salt spray testing (ASTM B117), and 3D scanning for precision verification.
5. Product Qualification
Certifications:ISO14001,ISO 45001, DNV-GL ISO 9001 .
Production Strength:
33,350㎡ Manufacturing facility with automated shell casting and CNC machining.
20+marine biologists and technical engineers on R&D teams.
Salt spray test in foundry with closed-loop water systems.
6. Delivery, Shipping & Service
Global Logistics:FOB CNF CIF terms, air,land or sea freight with corrosion-resistant packaging.
Lead Time: 21–35days (standard), with 3D-printed spare parts on demand.
7. FAQ
Q:Can the pulley grid self-repair minor surface scratches?
A:No,—self-healing is not available for this stainless steel pulley grid.
Q: What is the MOQ?
A. MOQ starts at 50 units to support small batch.
Q:Why choose stainless steel 2205?
A: Stainless steel 2205 offers superior saltwater corrosion resistance due to its molybdenum content.
8. Purchasing Consideration
Stainless steel pulley grids are a valuable investment for yacht owners who are looking to enhance the performance and appearance of their vessel. With their durability, aesthetic appeal, and ease of maintenance, these boxes provide an efficient and reliable solution for guiding ropes and cables on a yacht. Whether sailing for leisure or competing in regattas, yacht owners can trust in the superior quality and performance of a stainless steel pulley grid.
