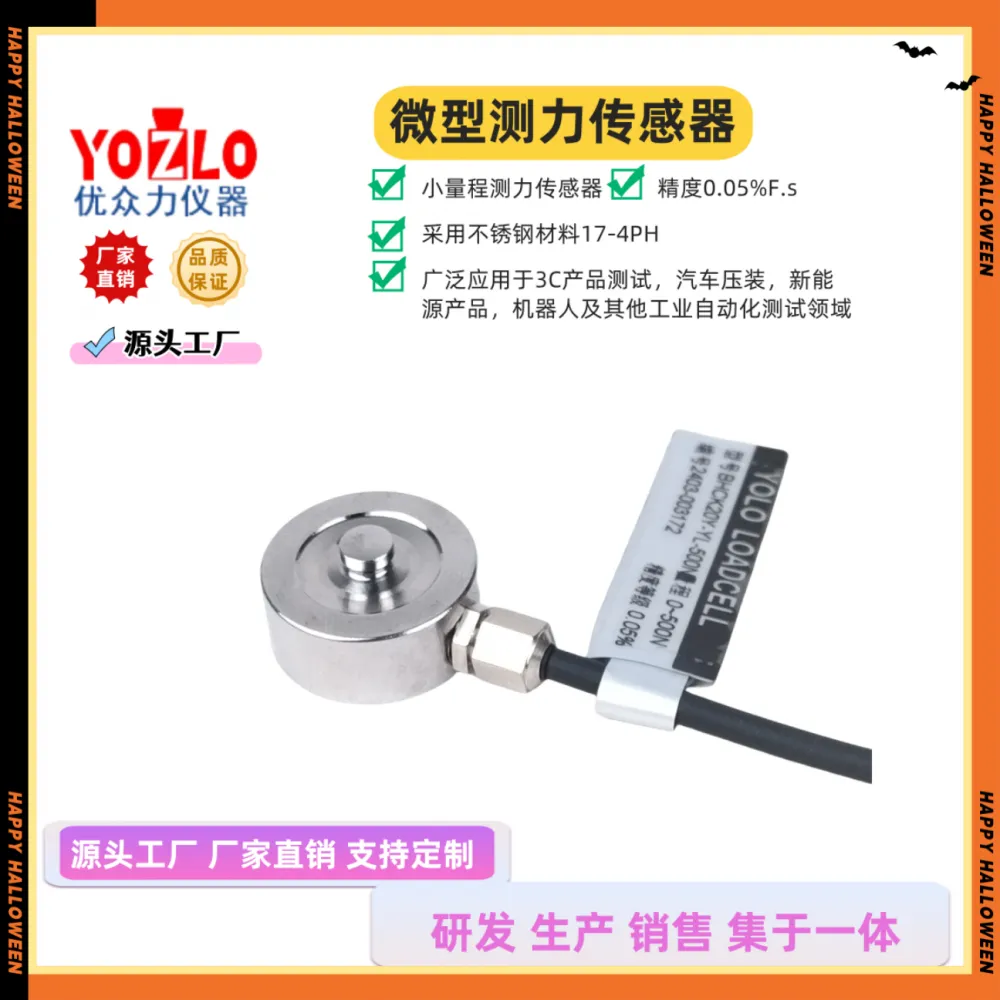

1.Microdesign,seamlesslyadaptedtotheconfinedSpacesof3Cdevices
TheYouzhongli100Nmicroforcesensor,withitsextremelycompactstructuraldesign,breaksthroughtheinstallationspacelimitationsof3Cautomationequipment.ByadoptingMEMSprocessoptimizationandanintegratedelasticbodystructure,itsvolumeiscompressedto80%ofsimilarproductsintheindustry,makingiteasytobeembeddedinspace-constrainedscenariossuchasSMTplacementmachines,microroboticarms,andFFCflexiblecableassemblylines.Thelightweightmaterialcombinedwithflexibleinstallationinterfacesenablesrapidintegrationwithoutmodifyingtheoriginallayoutofthedevice,perfectlymeetingtheforcemeasurementrequirementsofpreciseprocessessuchasmobilephonekeytesting,TWSearphoneboxopeningforcedetection,andscreenbonding.
Second,bidirectionaltensileandcompressiveload-bearing,preciselycapturingmicro-forcechanges
Asthe"forcecontrolnerve"of3Cmanufacturing,theproductfeaturesbidirectionaltensileandcompressivemeasurementcapabilities,withameasurementrangecoveringtheentirerangefrom0.1to100N,preciselymatchingcorescenariossuchas3Ccomponentassembly,insertionandextractionforcetesting,anddispensingpressurecontrol.Relyingontheself-developedstraingaugetechnologyofYouzhongliandtheWheatstonebridgesolution,themeasurementaccuracyreaches0.01%FS,theresponsespeedexceeds1kHz,anditcansensitivelycapture0.01Nlevelmicro-forcefluctuations,providingreal-timeandpreciseforcefeedbacksignalsfortheequipmentcontrolsystem,effectivelyavoidingqualityproblemssuchascomponentdamageandassemblydeviations.Thespecialelastomerstructuredesignenhancestheperformanceofresistingeccentricloadsandlateralforces.Evenundercomplexstressconditions,itcanstillmaintainthestabilityandconsistencyofmeasurementdata.
Three.Industrial-gradestability,ensuringcontinuousproduction
Inresponsetothehigh-intensityandlong-termoperationcharacteristicsof3Cautomatedproductionlines,theproductshaveundergonemultiplerigoroustestssuchasconstanttemperatureaging,coldandhotcycling,andpulsatingfatigue.Theresidualstressoftheelastomerhasbeenfullyreleased,andthezerodriftiscontrolledattheleadinglevelintheindustry.Itadoptsvacuumglueinjectionsealingandlaserweldingtechnology,withaprotectionlevelofIP67.Itcanwithstandtemperaturefluctuations,vibrationshockanddustpollutionintheproductionworkshopandworkcontinuouslyandstablyinawidetemperaturerangeof-40℃to85℃.CombinedwiththeISO/IEC17025internationalstandardcertifiedmetrologysystem,theproduct'soverloadresistanceexceeds150%,significantlyreducingtheriskofproductionlinedowntimecausedbysensorfailures,providingareliableguaranteeforthelarge-scalemassproductionof3Cproducts.
Fourth,full-chainadaptationtoempowertheupgradeofintelligentmanufacturing
TheoutputsignaloftheproductiscompatiblewithmainstreamPLCS,dataacquisitioninstrumentsandcontrolsystems,supportingrapidintegrationintotheclosed-loopcontrolsystemof3Cautomatedproductionlines,andachievingreal-timelinkageof"forcevaluemonitoring-datafeedback-parameteradjustment".Asthefirstdomesticenterprisetoachievedualbreakthroughsinmicroandultra-largerangesensors,Youzhonglicanprovidefullindustrialchainservicesof"measurement-calibration-testing",andoffernon-standardcustomizedsolutionsforthepersonalizeddemandsof3Cmanufacturing.Fromthecontrolofthegraspingforceofmicromechanicalarmstothequalityinspectionoffinishedproductassembly,theproductscomprehensivelycovertheentire3Cproductionprocess,helpingenterprisesimproveproductionefficiency,reducedefectrates,andacceleratetheprocessofintelligentupgrading.
