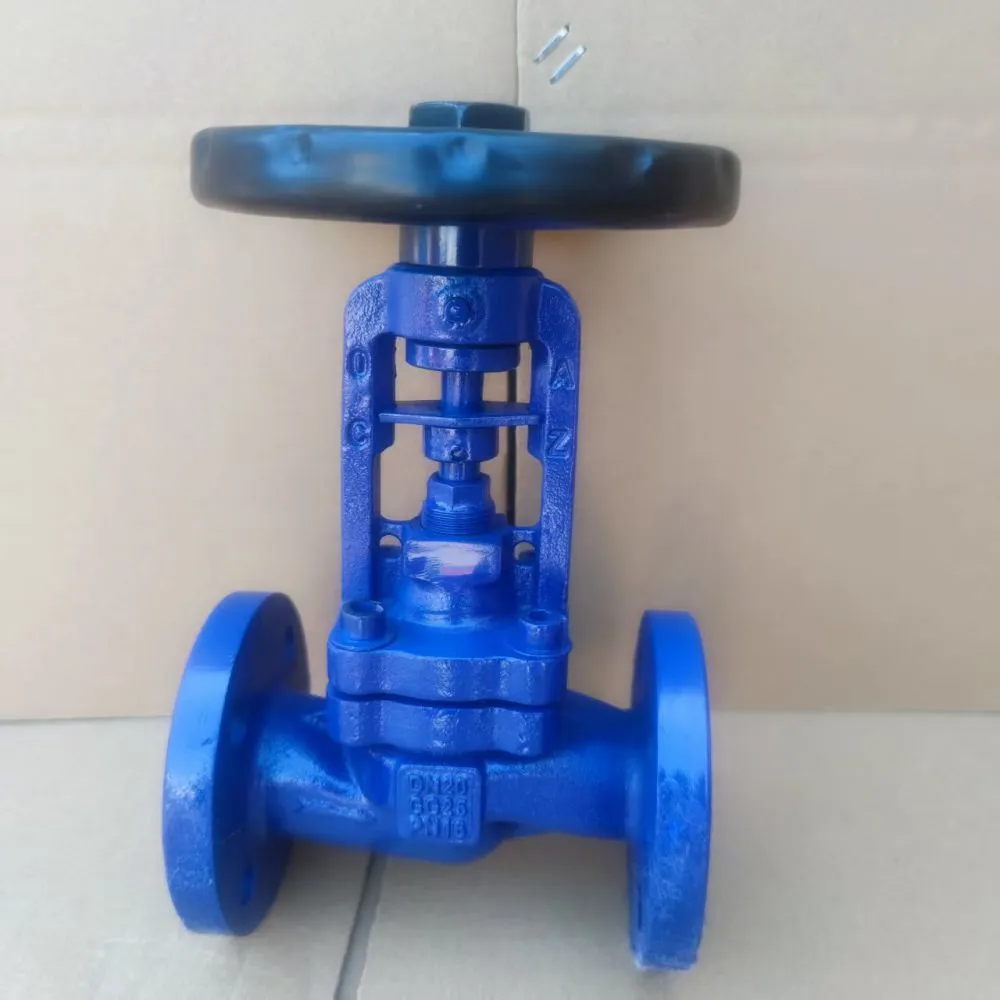

Experience superior leak prevention in demanding industrial environments with our DIN-compliant bellows globe valves. Engineered for exceptional sealing performance, these valves feature a unique bellows design that eliminates stem leakage – a critical advantage for handling hazardous or expensive media. With sizes ranging from DN15 to DN400 and pressure ratings of PN10/PN16, they offer versatile solutions for pipeline systems requiring reliable shut-off capabilities.
Manufactured by Chengxin Valve with three decades of industrial expertise, these valves combine robust cast iron construction with precision German engineering standards. The DIN 3356 compliance ensures seamless integration into European-designed piping systems, while the bellows seal extends service life by protecting internal components from corrosion and wear.
Core Technical Advantages:
Zero-emission sealing prevents process fluid loss and environmental contamination
Double-sealing mechanism (bellows + packing) provides redundant leakage protection
Rugged cast iron body withstands high-pressure industrial applications
DIN-standard dimensions ensure compatibility with existing pipeline infrastructures
Reduced maintenance requirements due to protected stem and bonnet assembly
Our bellows globe valves deliver critical benefits for operators:
Enhanced safety compliance for toxic, corrosive, or volatile media handling
Extended service intervals lowering total ownership costs
Reliable performance in temperature ranges from -20°C to 300°C (consult for specific media)
Minimized fugitive emissions meeting stringent environmental regulations
| Parameter | Specification | Notes |
|---|---|---|
| Body Material | Cast Iron GG25 | Per EN-JL1040 |
| Bellows Material | Stainless Steel 304/316 | Corrosion resistant |
| Face-to-Face Dimensions | DIN 3202 F1 series | Interchangeable |
| Test Standards | ISO 5208 Rate A | Zero visible leakage |
| Fluid Compatibility | Water, Steam, Oil, Gas | Confirm for aggressive media |
These valves serve critical functions across multiple sectors:
Chemical Processing: Handling acids, solvents and aggressive compounds
Power Generation: Steam isolation in boiler feed systems
Oil & Gas: Pipeline isolation and metering stations
Pharmaceutical: Maintaining sterile process integrity
Optimize your operations with valves backed by Chengxin's manufacturing excellence. Our 50,000m² facility combines automated production with rigorous quality control, ensuring every valve meets exacting performance standards. With established export channels through major Chinese ports and certifications including ISO9001, we deliver compliant solutions to global industrial partners.
Contact our engineering team today to discuss your specific application requirements. We offer technical consultation, customized solutions for special operating conditions, and flexible order quantities with efficient shipment coordination from Tianjin, Qingdao, Shanghai or Ningbo ports.
Frequently Asked Questions
Q: How does bellows design improve valve performance?
A: The stainless steel bellows creates a hermetic seal around the stem, eliminating traditional packing leakage points while protecting threaded components from corrosion.
Q: Are these suitable for steam service?
A: Yes, when specified with appropriate materials. Confirm temperature/pressure parameters for optimal material selection and extended service life.
Q: What maintenance is required?
A: Bellows valves significantly reduce maintenance needs. We recommend annual visual inspections and operational checks, with comprehensive servicing every 5 years depending on service conditions.
Q: Can I get different end connections?
A: While flanged connections are standard per DIN, threaded or welded ends can be accommodated for specific project requirements.
Q: What documentation accompanies shipments?
A: All valves include material test certificates, inspection reports, and operation manuals. Additional documentation available upon request.
Q: How do you ensure quality consistency?
A: Our automated production processes combined with ISO-certified quality management systems and 100% pressure testing guarantee performance reliability.
