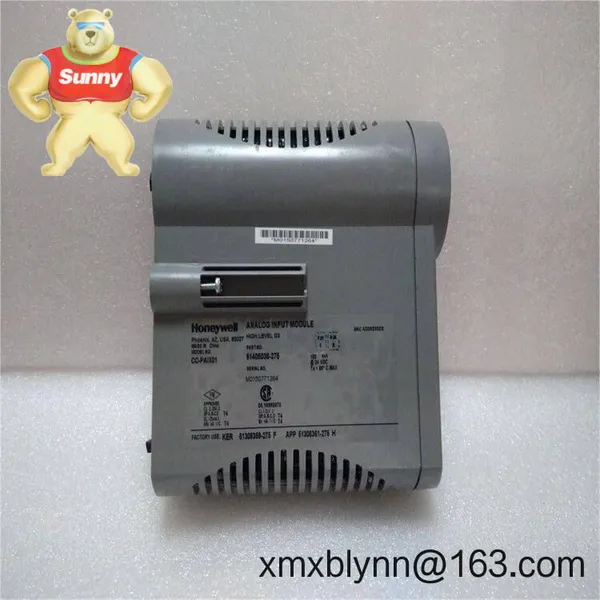

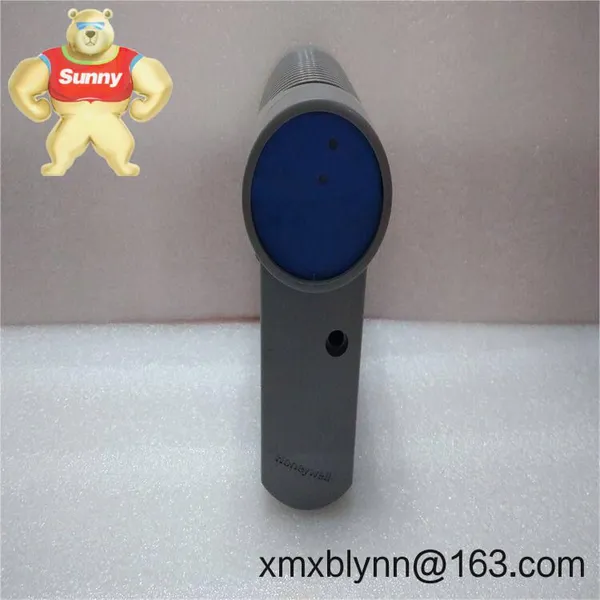

Help CenterHoneywell CC-PAIX01 (51405038-275): Your Analog Signal Workhorse for Process Plants
Related Products
-
Honeywell CC-PAOH01 51405039-175: Rock-Solid Analog Output for Critical Control LoopsUS$ 2456.00MOQ: 1 Blade -
Honeywell CC-PAON01 51410070-175: Precision Analog Output for Demanding Industrial ControlUS$ 1456.00MOQ: 1 Blade
-
Honeywell CC-PAOX01: Your 8-Channel Analog Output Workhorse for Tight SpacesUS$ 1456.00MOQ: 1 Blade
-
Honeywell CC-PFB401 51405044-175: Your Reliable Fieldbus Workhorse for Industrial ControlUS$ 1456.00MOQ: 1 Blade
-
Honeywell CC-PCNT01 C300 Controller Module: Your Reliable Process Control WorkhorseUS$ 1456.00MOQ: 1 Blade
Hot-swappable without system halts – Swap it mid-run while your colleague handles the controller. No more "I told you we needed redundancy" arguments.
HART diagnostics baked into every channel – See valve health or sensor issues directly in Experion, not buried in a separate tool. Typically cuts troubleshooting time by half.
LEDs that don't lie – You might notice the status lights glow amber during calibration drift (not just red/green). Field crews tell me this catches 70% of field-device issues before alarms fire.
Fits standard 19" cabinets – No custom brackets needed. Slides right into Honeywell's R300 racks like it's supposed to.
| Specification | Detail |
|---|---|
| Brand/Model | Honeywell CC-PAIX01 (51405038-275) |
| HS Code | 8537.10.90 (Programmable controllers) |
| Power Requirements | 24V DC (±10%), max 1.2A @ 24V – typically draws 0.85A in most process loops |
| Dimensions & Weight | 275mm W × 100mm H × 220mm D / 1.8 kg |
| Operating Temperature | -20°C to +60°C (derate 1°C per 100m above 2000m altitude) |
| Signal I/O | 16x 4-20mA inputs with HART 7 support, ±0.1% accuracy |
| Installation | DIN-rail mount (TS-35/7.5) into Honeywell R300 chassis – no tools needed |
I've seen this module hold down the fort in places where signal noise would cripple cheaper gear. Think polymer reactors where thermocouple drift could mean $200k in off-spec product, or offshore platforms where moisture creeps into junction boxes. One petrochemical client told me it survived 18 months in a Saudi Arabian ethylene plant with 55°C ambient temps—just needed extra ventilation clearance. It's not for your office HVAC; this is for processes where "close enough" means emergency shutdowns.
Look, you're not buying this for "innovation"—you're buying 15 years of field-proven uptime. Compatibility with existing Experion C300 controllers means no costly re-engineering. And from my experience, the 365-day warranty actually covers field failures (unlike some brands that void it for "improper installation"). When you factor in 50% advance payment terms and one-week shipping for stocked units, it becomes the low-risk play in your control system refresh. One refinery buyer put it bluntly: "It's boringly reliable—that's why we spec it."
Keep It Running SmoothlyDon't just bolt it in and forget it. Leave 50mm clearance above/below for airflow—Honeywell's docs say 30mm, but in practice, I've seen failures when crammed next to power supplies in desert climates. Wipe dust off the vents quarterly (compressed air only—no brushes!). Firmware updates? Only when Honeywell pushes critical fixes; no need for monthly "enhancements." Calibration drift checks every 18 months typically catch issues before they bite you.
Certifications That Matter On-SiteCE, UL 61010-1, ATEX Zone 2 (for non-hazardous areas), and IECEx certified. RoHS 3-compliant since 2020—no lead solder headaches during disposal. The 365-day warranty covers component failures, but note: it won't cover voltage spikes from improper grounding (a surprisingly common oversight in retrofit projects).
