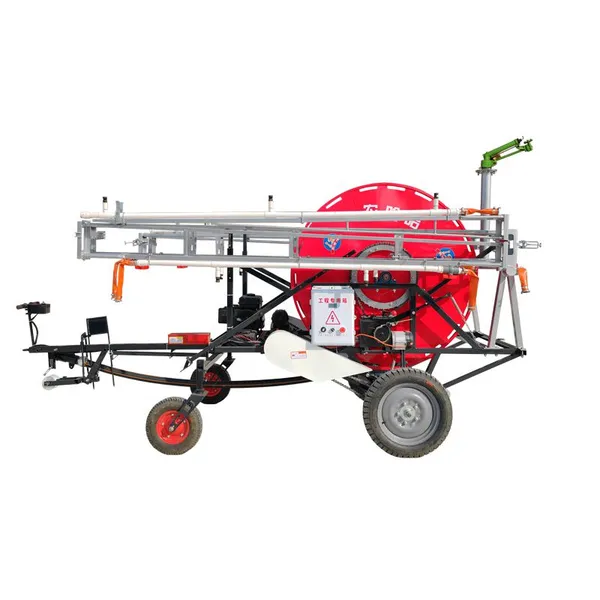

Hose Reel Irrigation Machine Moving Rain Gun Farm Traveling Winch Sprinkler Irrigation PE Pipe Irrigator Travelling Sprinkler Irrigation

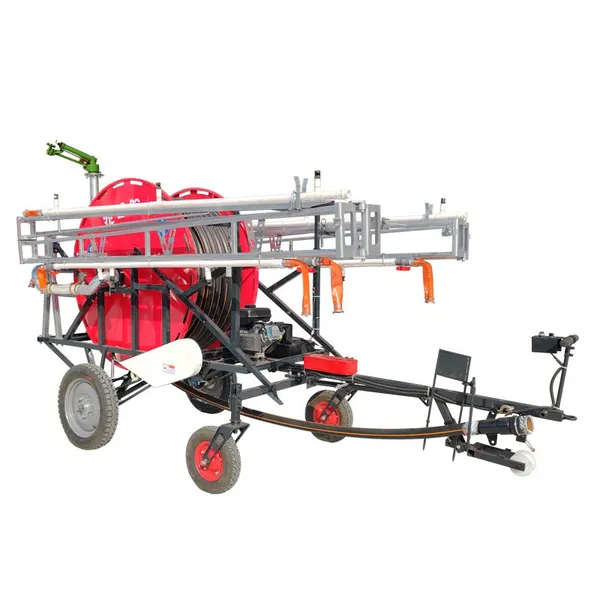

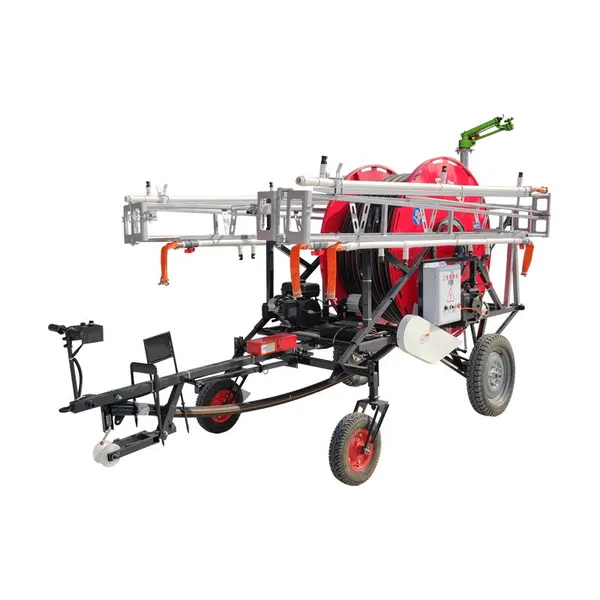

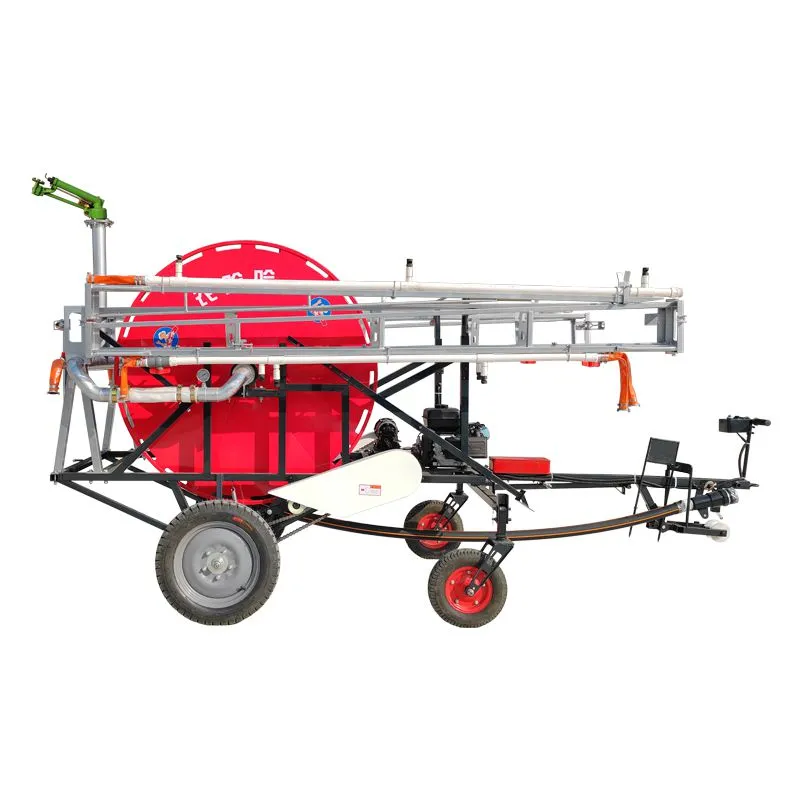

Electrically driven flexible winch type sprinkler suitable for the small plots Hose-reel sprinkler


Owning the first-class internation spray irrigation technology

Manufacturing the most high-end sprinkler irrigation products

Great stability, ideal for handling pipes of small type winch sprinkler

8JP63-100 self-propelled hose reel spray and shower irrigation sprinkler key technical index

1.This product is very suitable for the middle and small scale planting users to work on the big farm for watering the fields, generally the scale of the field is within 3.33-13.33 ha;or on the relatively scattered plots. With the advantages of small and flexible, easy operation,less investment, less times of pressing the filed, walk straight, without tractor to pull etc. Completely change the traditional hose reel sprinkler to use tractor to tract, nozzle car is not straight, more pressing times on the fields etc shortcomings.

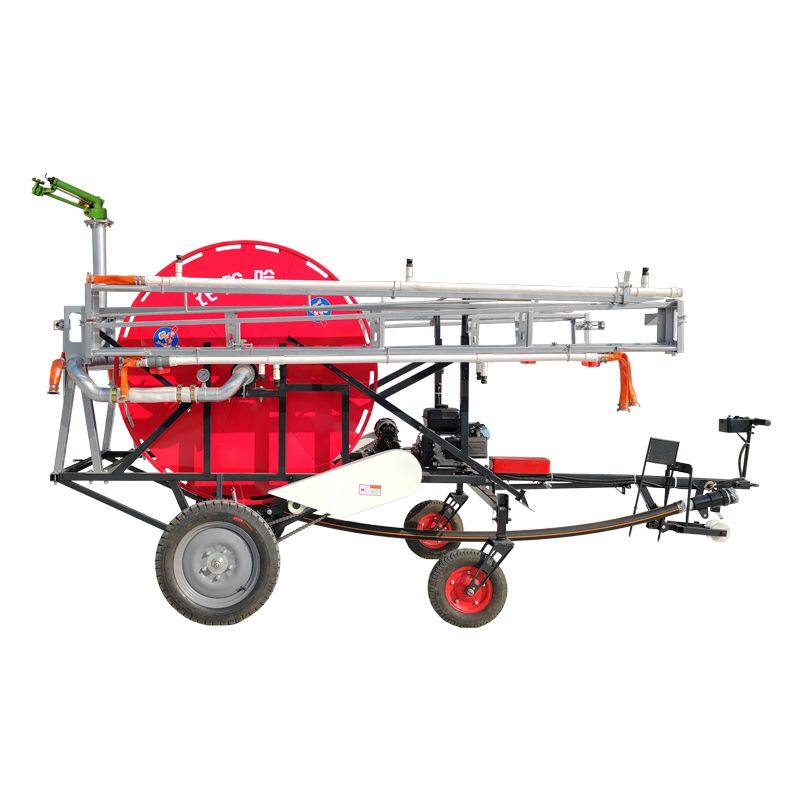

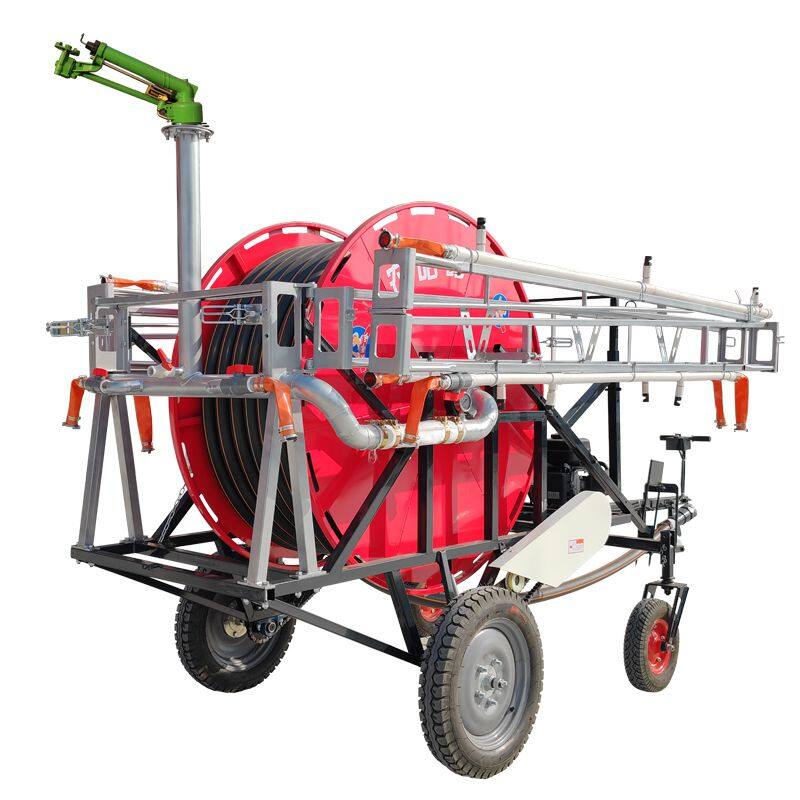

2.This product is a self-propelled hose reel (shower irrigation)sprinkler which is with its own power, the hose reel has PE pipe, caliber is 63mm, length is 100m. The whole machine walks into the fields automatically,  lay and recycle the PE pipe during watering, watering amount for each hectare can be adjusted by adjusting the walking speed of hose reel machine. After the PE pipe is recycled completely, the machine stops automatically.
3.The whole machine walks, drives and recycles pipes are all driven by motor, the power supply is a 48 volt 12 amp hour battery pack, equipped with gasoline engine range extender to charge for the battery pack, it can realize 24 hours of  limitless battery life.

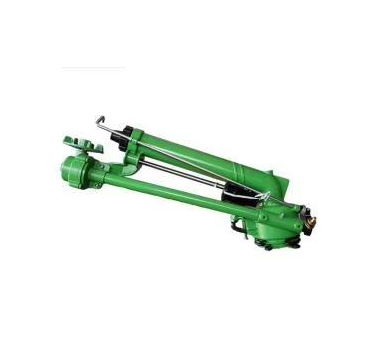

The spray gun is suitable for two major fields: farmland irrigation and industrial and mining dust removal. Promoting water-saving irrigation technology is one of the main ways to solve agricultural water shortage and ensure stable and high yield of grain, and has become an important measure for developing agriculture in water-scarce countries in the world. In this case, the spray gun is used in the winch sprinkler, but also used in large area irrigation projects. The spray gun used in this machine adopts special materials and reinforced sealing structure, and adopts unhindered DC transmission design device. The spraying in windy weather is also excellent, and a variety of caliber nozzles can be selected to adapt to the changing needs of the spraying site. The special adjustable water breaker is designed to reduce water atomization and evaporation, which is widely used in the field of sprinkler irrigation.

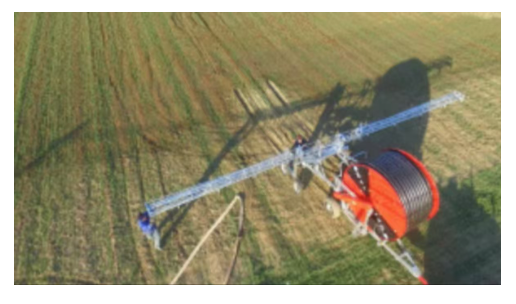

               As an optional part commonly used in roll-type                          sprinkling machine, sprinkling rack has the                                advantages of low pressure consumption, saving                        water, irrigating crops that are more fragile and can                  not withstand water pressure impact, spraying                            evenly, etc., and it is gradually recognized and                          accepted by large grain growers. The nozzle                              equipped with the truss is a semicircular refraction                    nozzle, which effectively avoids the phenomenon                      that the wet water of the tire of the nozzle car sticks                  to the soil. It has the characteristics of convenient                      operation and transportation, reducing labor                               intensity, saving people, saving labor, saving time                   and improving work efficiency.

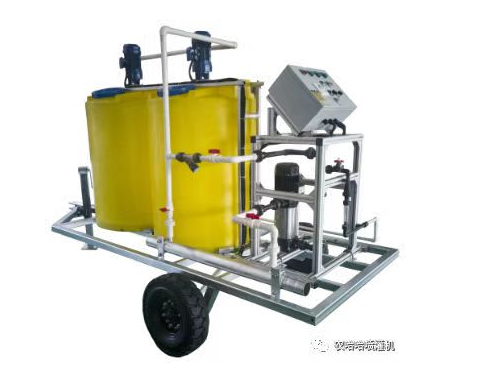

The traditional fertilization method consumes energy and time, and the utilization rate of fertilizer is not high, which is easy to cause the phenomenon of soil compaction. After many years of improvement, the fertilizer applicator has the characteristics of small size, light weight and easy operation. The use of the fertilizer applicator connected with the sprinkler can reduce the labor intensity of farmers, improve the utilization rate of fertilizer, reduce environmental pollution, and achieve the good effect of saving fertilizer, labor, time and money. Fertilization equipment has a low price, strong practicality, improve yield and fertilizer utilization, reduce labor intensity, less pollution and other effects, completely suitable for household as a unit of production and management activities, especially in the lack of water resources in the area and in the mulch cultivation of crops, it should be widely promoted.

Q1: Are you a factory or trading company?
We are manufacturer with self-supported import and export right.
Q2: How can I trust on your company?
We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, ourproducts have been exporting to a number of countries including USA, Thailand, Russia, Poland, Netherlands.Australia, Chile, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith, punctual, strict'quality control and reasonable price, throughout is the pledge we to each customer.
Q3: Where is your factory located? How can Ivisit there?
Our factory is located in Shijiazhuang City, Hebei Province, China. About 1.5 hour away from Shijiazhuang Zhengding International Airport. All our clients are warmly welcomed to visit us!
Q4: How can I place an order from your website?
lt is very easy.Once you find the implement you need on our website and place an inquiry or get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers.
Q5: How can I make the payment?
Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice 30% as prepayment and pay the balance when the goods are ready for shipping.
Q6: What's the Payment terms?
FOB the price of the implement without sea shipment costs.
ClF,including the unit cost + marine insurance + Shipment charges to your destination port.
CFR, including the unit cost + Shipment charges to your destination port.
Q7: At which port do vou usually ship the good?
We usually ship goods via Tianiin port, Qinadao port, Shanghai port and Ningbo port of China
