Product Overview
The Yellow Flammable Liquid Storage Cabinet HN-EX45 is a purpose-built safety solution designed to securely store flammable liquids, ensuring compliance with industrial safety standards while minimizing fire and leakage risks. Engineered with a focus on durability and functionality, this cabinet combines robust construction materials, intelligent design features, and user-centric accessibility to meet the demands of laboratories, industrial facilities, and automotive service stations. Its bright yellow finish—standard for flammable liquid storage—enhances visibility and quick identification, while the factory-direct supply model ensures cost-effectiveness without compromising quality.
Core Construction & Materials
Exterior & Structural Integrity: The cabinet’s outer shell is crafted from 1.2–2.0mm cold-rolled steel, a material chosen for its strength and resistance to corrosion. The steel undergoes high-temperature molding, a process that reinforces its structural stability and provides long-term protection against environmental wear.
Double-Walled Fire-Resistant Design: A defining feature is its double-layered fireproof steel plate construction, with a 38mm air gap between the inner and outer walls. This air gap acts as a thermal barrier, slowing heat transfer in the event of a fire and extending the time available for emergency response.
Internal Corrosion Resistance: The interior is lined with galvanized steel plates, which are height-adjustable to accommodate various container sizes. This adjustability ensures optimal space utilization while maintaining protection against chemical corrosion.
Leak-Proof Foundation: A 5cm-high sump at the base collects accidental spills, preventing liquids from spreading and protecting surrounding areas from contamination or fire hazards.
Safety & Ventilation Features

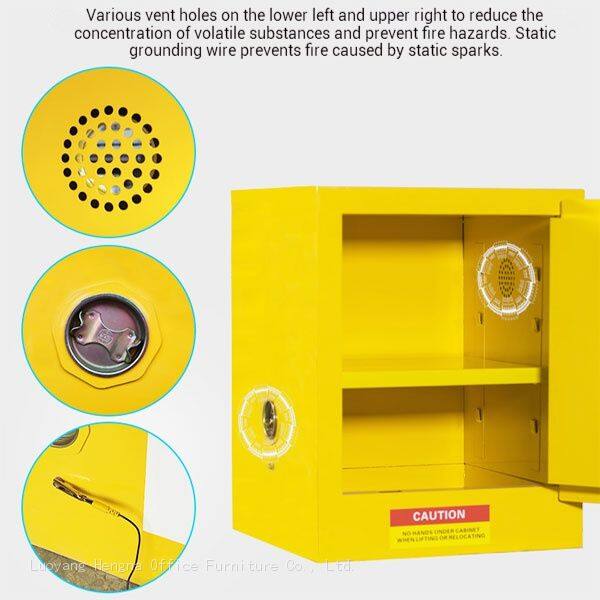

Flame Arrester Vents: Equipped with two flame arrester devices on the exterior, these vents regulate internal pressure while blocking the spread of flames. This dual-function design ensures safe ventilation without compromising fire safety.
Corrosion-Resistant Interior Coating: The inner surfaces are coated with epoxy resin and treated with high-temperature processing, enhancing resistance to chemical degradation and extending the cabinet’s lifespan.

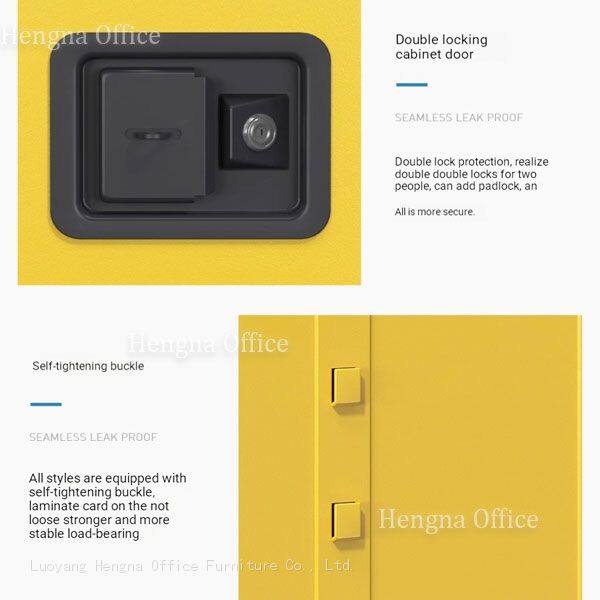

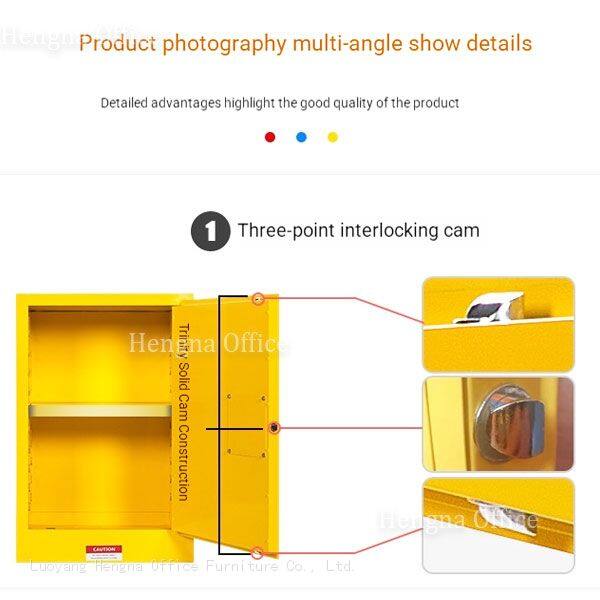

Secure Locking System: The cabinet uses a three-point (three-point) locking mechanism paired with an electronic password system and dual keys. This multi-layered security prevents unauthorized access, while the 180° cabinet door allows full visibility and easy retrieval of stored items.
Capacity & Color Coding
Size Flexibility: Available in capacities ranging from 4 gallons to 110 gallons, the HN-EX45 adapts to diverse storage needs, from small laboratory quantities to bulk industrial supplies.
Color-Coded Safety: The cabinet is offered in three standard colors for clear hazard identification:
Red: For highly flammable materials.
Yellow: For flammable liquids.
-
Blue: For corrosive substances.
Application Scenarios
The HN-EX45 is ideal for:
Laboratories: Storing flammable reagents, solvents, or chemicals.
Industrial Facilities: Managing flammable liquids in manufacturing or processing plants.
Automotive Service Stations: Safely storing fuels, lubricants, or cleaning agents.
Warehouses: Organizing and securing hazardous materials in compliance with safety regulations.
| Feature | Details |
|---|---|
| Material | 1.2–2.0mm cold-rolled steel |
| Air Gap | 38mm (double-walled) |
| Interior Lining | Galvanized steel (height-adjustable) |
| Base Sump Height | 5cm |
| Lock Type | Three-point + electronic password + dual keys |
| Door Design | 180° full-opening |
| Capacity Range | 4–110 gallons |
| Color Options | Red (flammable), Yellow (flammable liquid), Blue (corrosive) |
Safety Precautions
Store only compatible flammable liquids; avoid mixing incompatible substances.
Regularly inspect the cabinet for damage, corrosion, or malfunctioning locks/vents.
Follow local safety regulations and guidelines for hazardous material storage.
