Precision Cutting: Sharp, adjustable blades ensure clean, smooth edges.
Compact & Portable: Small footprint for easy integration into workshops or labs.
Versatile Material Handling: Compatible with plastic films, foils, non-wovens, and more.
User-Friendly Controls: Simple operation with tension adjustment for consistent results.
Low Waste: Optimized design reduces material loss during slitting.
| Control system | SIEMENS touch screen, SIEMENS PLC | Blade holder qty | 10pcs of standard blade holder or customize blade spacers |
| Drive system | SANYO servo motor for rewinding | Speed | 20~150m/min |
| Unwinding roll width | 450mm | L/T application table | With leader/trailer application table |
| Unwinding roll core dia | 1 inch or customized 3inches | Waste system | Torque motor for waste ribbon winding |
| Unwinding roll diameter | 300mm | Tension control system | - |
| Rewinding roll core dia | 1 inch or customized special core size | Power: single phase | 220V,50~60HZ |
| Rewinding roll dia | 100mm in max | Air power | 0.6~0.8MPa |
| Film thicknes | 4~20um | Dimension | 1890*1450*1320(mm) |
| Rewind system | 4 rewinding shafts system | N.W. | 180kgs |
| Rewind shaft | 4pcs of 1 inch air. shaft or customized solid shaft | - | - |

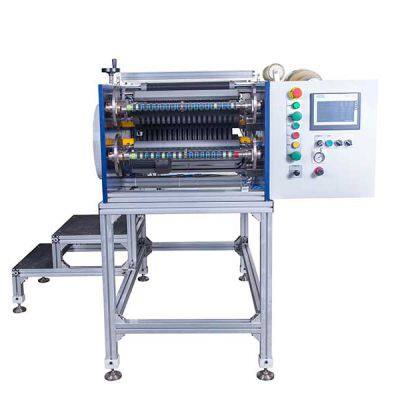

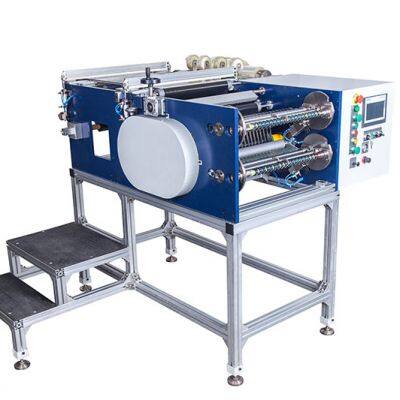

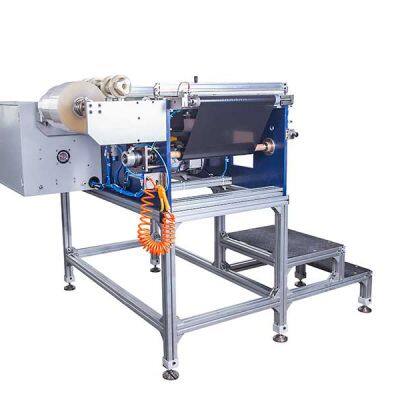

A mini slitter is a compact, precision cutting machine designed to slit or rewind flexible materials—such as films, foils, papers, adhesives, and thin metals—into narrower strips with high accuracy. Ideal for small-scale production, R&D labs, and customized processing, mini slitters offer efficiency, ease of use, and minimal material waste.
Where excellence meets trust-partner with us for sustainable growth!
Delish' s senior R&D team is made up of first-class elites from the industry that have abundant experience in product design and performance control. We have many patents and seek for ever greater perfection throughout the process including R&D, production, measurement and control to ensure that the products are smarter, safer and more efficient.
Delish insists on"Change to meet changes".Driven by customers'actual demand,our core R&D team specializes in auto equipment drawing design,program composition.custom development of electrical equipment, independent production at high-end CNC machining center, precision assembly and debugging,and strict process management in order to ensure that all functions pass the test and that the equipment is suitable for continuous,stable production toachieve customer value maximization.
Delish provides intelligent factory upgrade solutions to meet customer demand,and builds an effective connection with customers'operational systems including ERP for intelligent operational task assignment to realize auto and intelligent production to help the customers improve their operational eficiency.
Delish adopts international famous-brand components and conducts balance control during machine installation in accordance with high-precision requirements to ensure the stability of tension for product slitting at high speed.
Our professional marketing service team offerall-round pre-sale,in-sale,and after-sale services.Our 24-hour response system ensures that we provide a timely analysis and solution for customers.
