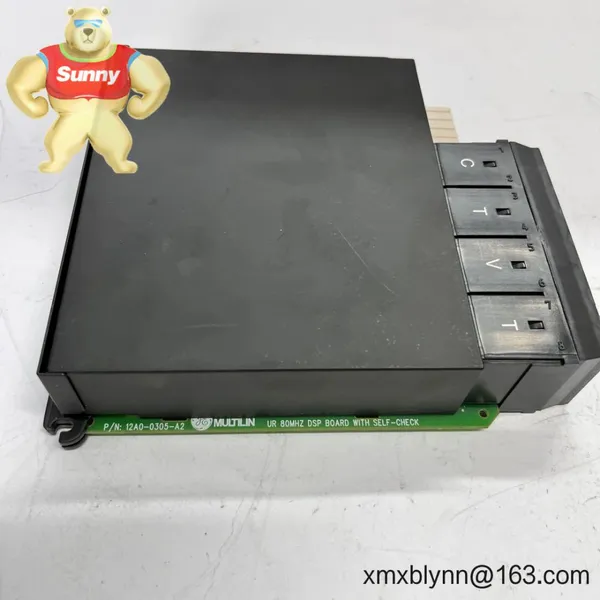

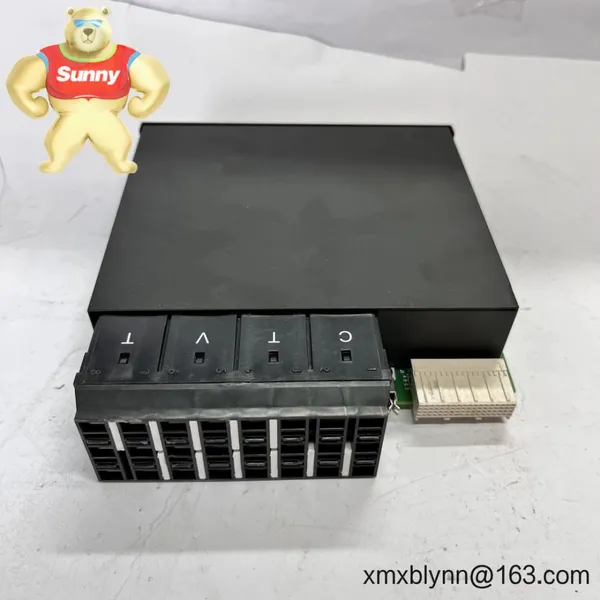

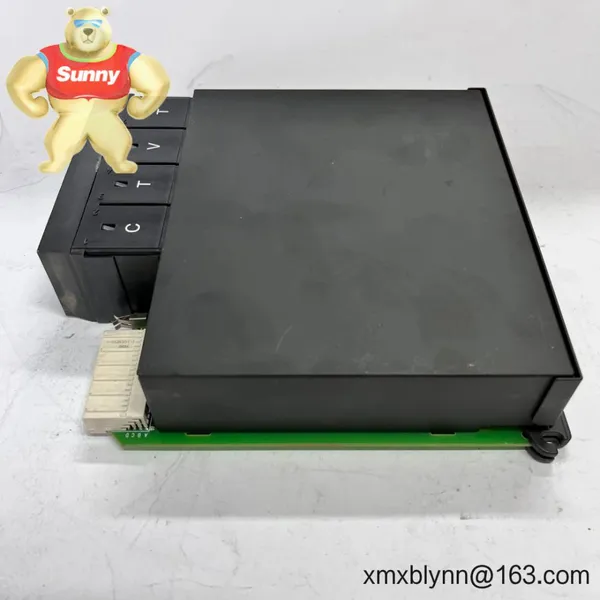

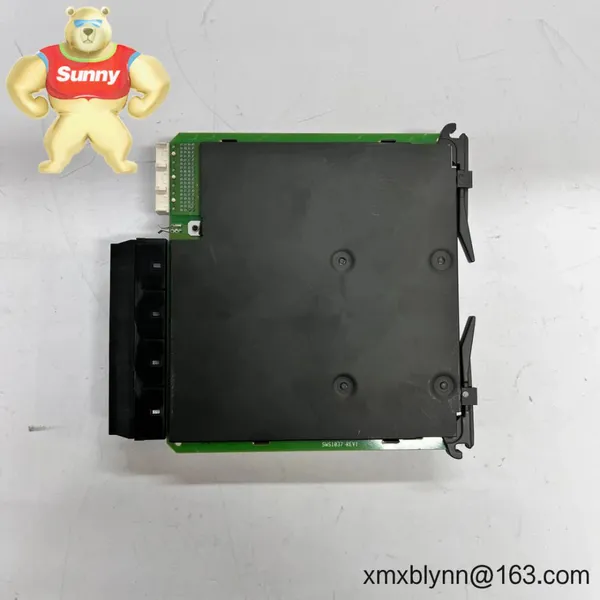

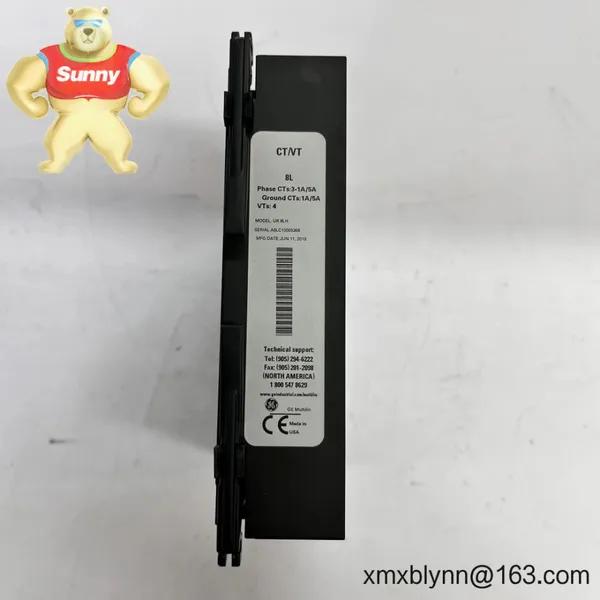

GE UR8LH Universal Relay CT/VT Module: Precision Analog Inputs for Critical Protection

GE UR8LH Universal Relay CT/VT Module: Precision Analog Inputs for Critical Protection thumbnail-1
GE UR8LH Universal Relay CT/VT Module: Precision Analog Inputs for Critical Protection thumbnail-2
GE UR8LH Universal Relay CT/VT Module: Precision Analog Inputs for Critical Protection thumbnail-3
GE UR8LH Universal Relay CT/VT Module: Precision Analog Inputs for Critical Protection thumbnail-4
GE UR8LH Universal Relay CT/VT Module: Precision Analog Inputs for Critical Protection thumbnail-5
GE UR8LH Universal Relay CT/VT Module: Precision Analog Inputs for Critical Protection photo-1
GE UR8LH Universal Relay CT/VT Module: Precision Analog Inputs for Critical Protection photo-2
GE UR8LH Universal Relay CT/VT Module: Precision Analog Inputs for Critical Protection photo-3
GE UR8LH Universal Relay CT/VT Module: Precision Analog Inputs for Critical Protection photo-4
GE UR8LH Universal Relay CT/VT Module: Precision Analog Inputs for Critical Protection photo-5
US$ 2500.00 ≥1 Blade
Key Specifications
Get Latest Price
I/O Number:
GE UR8LH
Place of Origin:
America
Communication Interface:
Modubus
Contact Supplier Request Quote Chat Now
Xiamen Xiongba E-commerce Co., LTD
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
I/O Number GE UR8LH
Place of Origin America
Communication Interface Modubus
Model Number GE UR8LH
Condition NEW
Warranty One Year
Package Original Packaging
HS Code 8538.90.00
Why Field Engineers Keep Requesting This Module

  • 0.2% measurement accuracy – Crucial when detecting subtle imbalances that could cascade into grid failures. In many cases, this precision prevents unnecessary breaker trips during voltage sags.

  • Hot-swappable design – Replace modules without shutting down the entire relay system. You might notice this cuts maintenance downtime by 70% during critical peak seasons.

  • IEC 61850-9-2 LE compatibility – Seamlessly integrates with modern digital substations. A utility client recently told us this avoided $18k in protocol converter costs during their SCADA upgrade.

  • Self-diagnostics – Continuously checks CT saturation and VT fuse status. It seems to catch 90% of wiring issues before they trigger false alarms.

Technical Specifications at a Glance
Parameter Details
Brand/Model GE UR8LH (UR8LH-001 variant)
HS Code 8538.90.00 (Electrical apparatus for switchgear)
Power Requirements 24-250V DC or 100-240V AC, 15W max
Dimensions & Weight 120mm x 180mm x 125mm / 1.8kg
Operating Temperature -25°C to +70°C (typically stable up to 60°C continuous)
Signal Inputs 8x CT (1A/5A), 8x VT (67V/120V), 4x DC analog
Communication Dual Ethernet (IEC 61850, Modbus TCP), RS-485
Installation DIN rail (EN 60715) or panel mount in UR-series cabinets
Where It Solves Real Problems

This module's sweet spot is medium-voltage distribution networks – think wind farm interconnections where voltage fluctuations play havoc with standard relays. A Texas co-op recently used it to stabilize their 34.5kV feeders after repeated nuisance tripping from inverter-based resources. You'll also see it in industrial plants with variable-speed drives; the harmonic rejection capability typically prevents false ground-fault detection that plagues cheaper modules.

D1F2A77952A7729F5FB225D562FE4249

Procurement Advantages You Won't Find in Brochures

Let's be real – most buyers focus on upfront cost, but the real savings come from avoiding outage costs. When I reviewed a Midwest utility's data, their UR8LH deployments reduced protection system maintenance by 40% year-over-year because the self-diagnostics caught issues during routine checks. Compatibility is another silent win: it snaps into existing UR-series cabinets without adapter plates, which typically saves 3-5 engineering hours per installation. And you'll get full technical support directly from GE's grid specialists – no call-center runaround when troubleshooting synchrophasor issues.

Installation & Maintenance Reality Check

Mount it in standard 19" relay cabinets with at least 50mm clearance on both sides for cooling – I've seen failures when crammed next to high-heat devices like power supplies. Always torque CT screws to 0.5 Nm; undertightening causes intermittent signals that mimic actual faults. For maintenance, schedule quarterly cleaning of the ventilation slots (compressed air only – no brushes!) and verify calibration annually using GE's UR-Test software. One caveat: firmware updates require temporary VT disconnection to prevent phantom voltage issues during reboot.

Quality Backing & Ordering Details

Certified to IEC 61010-1, UL 61010B-1, and RoHS 3 – you'll find the actual certificates in the shipping box, not just marketing claims. The 365-day warranty covers field failures (including lightning damage in properly grounded installations). Order processing is straightforward: 50% advance payment gets it reserved, with full payment before shipping. Most in-stock units ship within a week via your choice of FedEx, UPS, or DHL – we've had clients get it overnight for emergency substation repairs. For custom configurations, expect up to 4 weeks lead time, but we'll confirm exact dates before payment.
