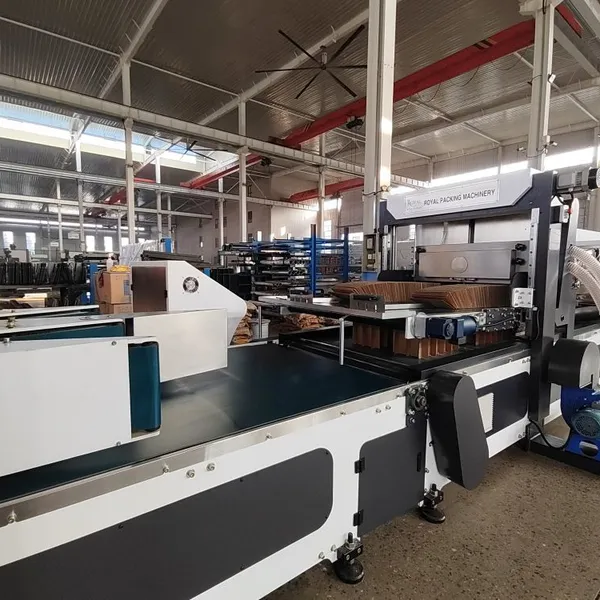

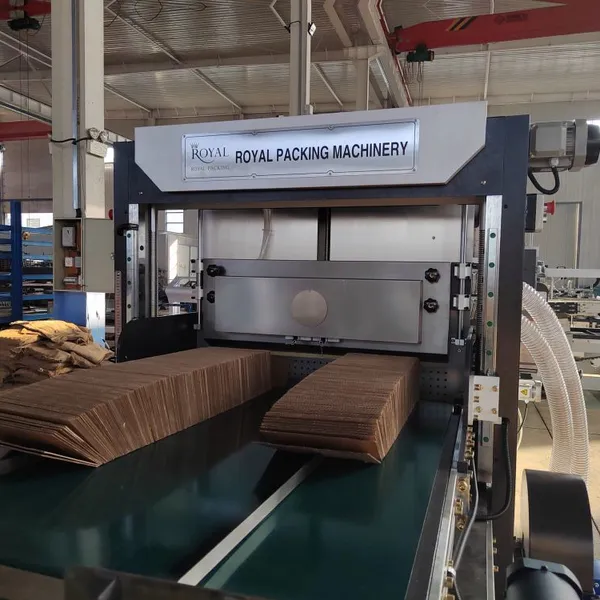

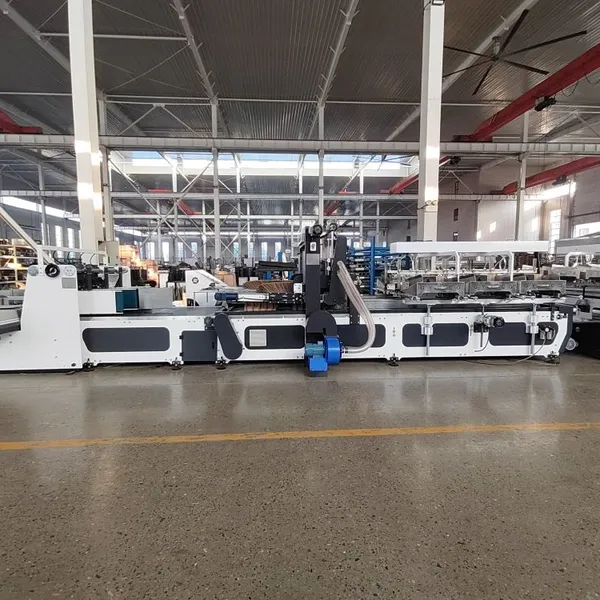

RYBL-450-3L Automatic Partition Assembler Machine with Collector Machine
Introduction：
RYBL serious automatic partition assembler machine is optimized to be a new partition assembler devices on the basis of absorbing the advantage of equipment at home and abroad in our factory. The equipment takes the place of the traditional manual operation made, automatic complete insertion of clapboard, saving labor costs, effectively improve the production efficiency at the same time. It is the ideal packing equipment of fruit and vegetable, glass ceramic, plastic and so on.
Main Parameters:
Name RYBL-450 RYBL-600
Transverse assembly width: A Double station 80-420mm Double station 80-420mm
Single station 80-900mm Single station 80-900mm
Lengthways length: B 210~450mm 210~600mm
Clapboard Height: C 70~300mm 70~300mm
Transverse clapboard distance: D 20~550 mm 20~550 mm
Lengthways clapboard distance: E 45-800mm 45-800mm
Lengthways sheets quantity 1-6sheets 1-6sheets
Horizontal clapboard quantity 1-21sheets 1-29 sheets
Carton inserting mouth width：F ＞board thickness mm ＞board thickness mm
Carton thickness: G 1.5~8mm mm 1.5~8mm mm
Proximate Speed
(capacity related to the product you make) About 100units/min About 80units/min
Model introduction:
S/N Components Name Qty Remarks
1 Auto Partition Assembling Machine 1unit Assembly method: Double Stations
Cross-Assembling
2 Feeding Unit 1 unit
3 Pneumatic System 1 set Customer provided air compressor
4 Electric Components 1 set PLC, HMI, Servo control
Components List
Name Brand
Servo Motor Yaskawa, Japan
PLC Schneider
Servo Driver Yaskawa, Japan
Inverter Schneider
Touch Screen Schneider
AC Contactor Schneider
Draught fan Popula
Vacuum pump EUROVAC, Taiwan
Proximity switch SICK, South Korea
Roller motor Dedong Electric, China
Cylinder Airtac, Taiwan
Solenoid valve AirTAC, Taiwan
Clean air components AirTAC, Taiwan
Oil-water separator SNS
Structure Character
* Lengthways & transverse same time cross assembling
* suit for each kind clapboard, baffle/block board automatic assembly
* Instead traditional manual working, double-station output in same time
※ Remark: Special size need confirm before confirm the order
※ Parameter changes due to machine upgrades by our factory will not be notified in advance
The testing partition board should meet the following requirements
1. Partition board molding: die cutting molding
2. Partition board interval should have bevel/oblique opening (as shown in the following figure)
Partition board molding: die cutting molding
Customer Prepare
1. Air pressure: Working pressure 0.4-0.8Mpa，Air consumption 650L/min
2. Power Requirements: 380v 50Hz Three-phase four-wire system，total power 6.8KW
3. Electric wire need join to operate cabinet, and pneumatic pipeline need join to main pneumatic pipeline.
4. Test machine use die-cutting-clapboard
5. Machine use lubricate oil and grease
6. Foundation work.
Packing size:
Model Dimension (L x W x H m) Total power
RYBL-450-3L 7.3*2.0*1.9m 6800kg
RYBL-600-3L 7.9*2.0*1.9m 7000kg

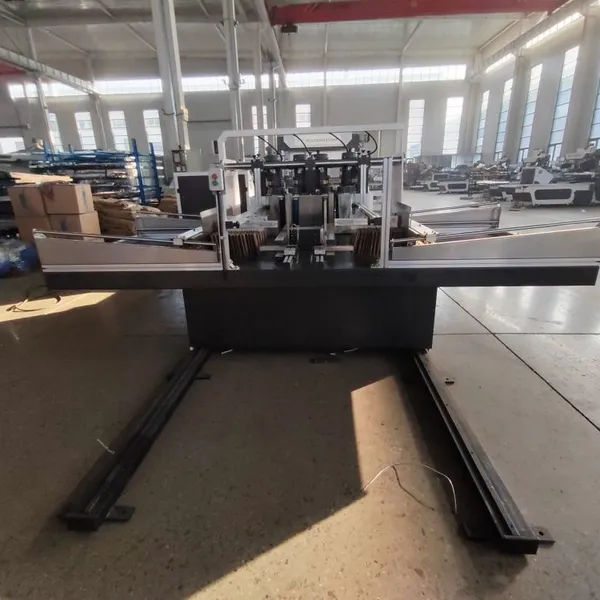

Automatic Collector for Partition Assembler
Introduction:
This automatic collector is the follow-up machine of partition assembler. With the function of collect, count, part. It can instead of the manual perfectly.
Technology Parameter
Model Dimension Total power
RYDJ600 3.2×3.1×1.2M 2.0KW
※ Remark: Special size need confirm before confirm the order
※ Due to upgrade, the changes in the parameters of the machine without notice.
