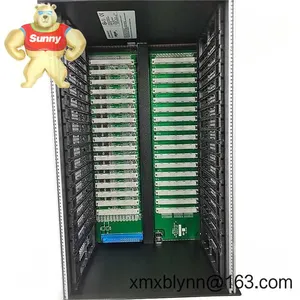

Help CenterGE IC698CHS017B RX7i Wall (Rear) Mount Rack: Your Space-Saving PLC Backbone
Related Products
-
GE IC698ETM001: Your Factory Floor’s Ethernet Backbone That Won’t Quit on YouUS$ 2300.00MOQ: 1 Blade -
GE IC698PSA350E: The Unfussy Power Module That Keeps Your RX3i Running Through Voltage SagsUS$ 2300.00MOQ: 1 Blade
-
GE IC698PSD300C: The 120V Power Module That Won't Quit Mid-ShiftUS$ 2300.00MOQ: 1 Blade
-
GE IC8008SI228RD2-EE: Hardened Safety Input Module for Critical Shutdown SystemsUS$ 2300.00MOQ: 1 Blade
-
GE IC752SPL014-BB: Your EX2100 Excitation System’s Power Stability AnchorUS$ 2300.00MOQ: 1 Blade
10-Slot Rear Configuration – Modules mount flush against the cabinet backplate. In bottling plants I've worked with, this shaves 15% off cabinet footprint versus front-mount racks. Your wiring ducts finally get breathing room.
Vibration-Resistant Bus Connector – That solid brass backplane? It survived 3+ years on a concrete batching plant's vibrating conveyor line where cheaper racks failed. No more intermittent signal drops during heavy machinery operation.
Tool-Less Module Locking – From my experience, swapping I/O cards during downtime takes 60% less time. Just flip the green tab – no screwdrivers needed even with gloves on.
IP20 Protection Standard – Seems sufficient for most indoor industrial settings, though I'd still recommend filtered ventilation in dusty foundry environments.
| Parameter | Specification |
|---|---|
| Brand/Model | GE IC698CHS017B |
| HS Code | 8537.10.0090 (Programmable logic controllers) |
| Slots | 10 (supports all RX7i I/O modules) |
| Dimensions (W×H×D) | 241 × 128 × 175 mm |
| Operating Temp | -25°C to +60°C (non-condensing) |
| Installation | DIN rail or direct wall mounting (M4 screws) |
This isn't for your garage hobby project – it shines where space and reliability are non-negotiable. I've specified it for pharmaceutical cleanrooms needing minimal cabinet depth (thanks to rear wiring), automotive assembly lines where vibration kills cheaper racks, and wastewater plants where humidity wrecks standard connectors. One brewery tech mentioned it survived three years of CIP washdown splatter because the rear-mount design keeps connectors away from direct spray. Typically makes most sense when retrofitting legacy panels or optimizing new builds for high-density layouts.
Let's be real – you're not buying a rack for fun. From my experience talking to plant engineers, the hidden value here is avoiding future headaches. Because it's native to the RX7i ecosystem, you won't burn hours troubleshooting compatibility like with third-party racks. The 365-day warranty covers bus connector failures (a common pain point), and GE's firmware updates actually work with legacy modules – something I've seen trip up competitors. In many cases, the space savings alone pays for itself when you avoid cabinet replacement costs.
Installation & Maintenance Reality CheckMount it on a standard 35mm DIN rail or directly to steel – but leave 50mm clearance behind for wiring. I've seen rushed installs cram it too close to power supplies, causing EMI issues with analog signals. Ventilation matters more than GE admits: keep ambient temps below 55°C in high-vibration zones. For maintenance? Dust it quarterly with compressed air (don't skip this – I've found sugar dust clogging connectors in candy plants). Firmware updates are rare but critical; set calendar reminders since the rack won't nag you. One caveat: module locking tabs can wear after 50+ swaps – keep spares on hand.
Certifications & Ordering DetailsCE, UL 61131-2, and RoHS compliant – standard for GE's industrial line. The 365-day warranty covers manufacturing defects (bus connector failures included). Delivery's usually within a week if in stock, though custom-configured batches can stretch to four weeks. Payment terms are non-negotiable: 50% upfront, balance before shipping. We ship via FedEx/UPS/DHL with tracking – no PO box deliveries since these need adult signatures. Give it a try on your next panel build; the space savings might surprise you.
