The Flammable Safety Storage Cabinet represents the pinnacle of chemical storage safety engineering, specifically designed to meet the rigorous demands of industrial facilities, laboratories, and manufacturing environments where flammable materials require secure containment. This premium fire-resistant storage solution combines advanced construction technology with intelligent safety features to provide unparalleled protection against fire hazards while ensuring regulatory compliance and operational efficiency.
Key Features and SpecificationsSuperior Fire-Resistant Construction
Double-Walled Steel Design: thick outer and inner steel plates with 38mm fire-retardant insulation
30-Minute Fire Rating: Certified to maintain internal temperature below 177°C during fire exposure
Thermal Barrier Technology: Specialized insulation material preventing heat transfer to stored contents
Self-Closing Doors: Automatic closing mechanism activated by fusible links at 74°C
Advanced Safety Mechanisms
Dual Locking System: Combination of key lock and padlock compatibility for maximum security
Pressure Relief Ventilation: 2-inch flame arrestor vents preventing pressure buildup while blocking flame propagation
Grounding Connector: Built-in grounding point for static electricity dissipation
Spill-Containment Sump: 2-inch deep leak-proof bottom tray containing accidental spills
Technical Specifications Table
| Parameter | Specification |
|---|---|
| External Dimensions | 1090mm (H) × 860mm (W) × 590mm (D) |
| Internal Capacity | 30 gallons (113 liters) |
| Weight Capacity | 350 lbs (158 kg) |
| Door Type | Double doors with 180° opening |
| Shelf Configuration | 1 adjustable shelf (50 lbs capacity) |
| Material | 18-gauge steel construction |

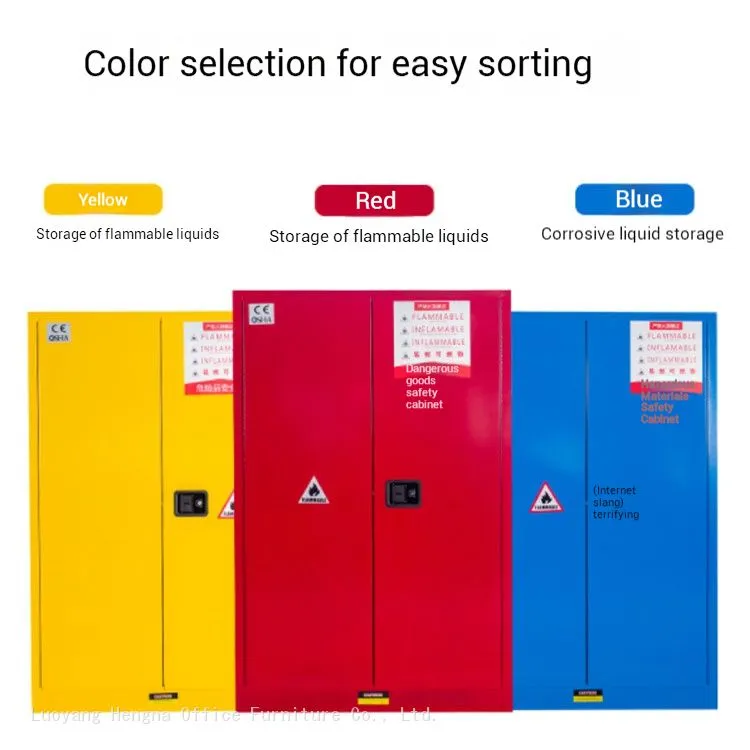

| Color Options: Safety Yellow, Blue |
Construction and MaterialsPremium Steel Framework
The cabinet’s robust construction begins with heavy-duty 18-gauge cold-rolled steel, providing exceptional structural integrity and impact resistance. The double-walled design creates an effective thermal barrier, with the cavity filled with non-asbestos fire-retardant insulation material. This construction methodology ensures the cabinet maintains its protective properties even under extreme temperature conditions.
Corrosion-Resistant Finish
The powder-coated surface treatment provides superior resistance to chemical corrosion, scratches, and environmental degradation. The vibrant safety yellow color option ensures high visibility in emergency situations, while the blue alternative offers versatility for different facility color schemes.
Safety Compliance and Certifications
This flammable storage cabinet meets or exceeds industry safety standards including:
OSHA 29 CFR 1910.106: Compliant with workplace flammable liquid storage regulations
NFPA 30: Meets National Fire Protection Association codes for flammable liquids
UL 142: Listed for safety and performance standards
FM Approved: Factory Mutual certified for industrial fire protection
Hazard Communication System
Prominent warning labels and GHS-compliant pictographs ensure clear hazard identification. The cabinet features bilingual warning signs (English/Chinese) for international workplace compliance, with flame icons and “FLAMMABLE” markings for immediate recognition.
Applications and Use CasesIndustrial Manufacturing
Chemical processing plants
Petroleum refineries
Pharmaceutical manufacturing
Paint and coating facilities
Laboratory Environments
Research and development labs
Quality control laboratories
Educational institutions
Medical research facilities
Commercial Applications
Automotive repair shops
Printing facilities
Cleaning service companies
Agricultural chemical storage
Installation and Operational GuidelinesPlacement Requirements
Maintain minimum 18-inch clearance from heat sources
Ensure level flooring with maximum 1-degree slope tolerance
Provide adequate ventilation in storage area
Install away from exits and emergency pathways
Loading and Usage Protocol
Inventory Management: Maintain detailed chemical inventory log
Segregation: Store compatible chemicals only (no mixing of incompatible substances)
Quantity Limits: Do not exceed 60 gallons of Class I liquids per cabinet
Regular Inspection: Weekly visual inspection of seals, locks, and vents
Maintenance Schedule
| Task | Frequency | Requirements |
|---|---|---|
| Visual Inspection | Weekly | Check for damage, corrosion, seal integrity |
| Lock Testing | Monthly | Verify all locking mechanisms function properly |
| Vent Cleaning | Quarterly | Remove debris from flame arrestor vents |
| Grounding Verification | Semi-annually | Test electrical grounding continuity |
Environmental and Economic BenefitsSustainability Features
Recyclable Construction: 100% steel materials with minimal environmental impact
Long Service Life: Durable construction reducing replacement frequency
Energy Efficiency: Passive fire protection requiring no power consumption
Spill Prevention: Integrated containment reducing environmental contamination risk
Cost-Effectiveness Analysis
Initial Investment: Competitive pricing for premium safety features
Insurance Benefits: Potential premium reductions due to enhanced safety measures
Regulatory Compliance: Avoidance of fines and penalties
Operational Efficiency: Improved organization reducing chemical waste and handling time
This flammable safety storage cabinet includes comprehensive warranty coverage:
10-Year Structural Warranty: Coverage against manufacturing defects and material failure
5-Year Component Warranty: Locks, hinges, and safety mechanisms
Lifetime Technical Support: Expert consultation for installation and compliance
Replacement Parts Guarantee: Availability of components for product lifecycle
The Flammable Safety Storage Cabinet with Fire-Resistant Design represents an essential investment in workplace safety and regulatory compliance. Its superior construction, advanced safety features, and comprehensive certification make it the ideal choice for organizations requiring reliable flammable material storage. By combining cutting-edge fire protection technology with practical design elements, this cabinet ensures maximum safety while maintaining operational efficiency.
Whether for industrial manufacturing, laboratory research, or commercial applications, this storage solution provides the peace of mind that comes with knowing your flammable materials are stored according to the highest safety standards. The cabinet’s robust construction, intelligent safety features, and compliance with international regulations make it an indispensable component of any comprehensive chemical safety program.
