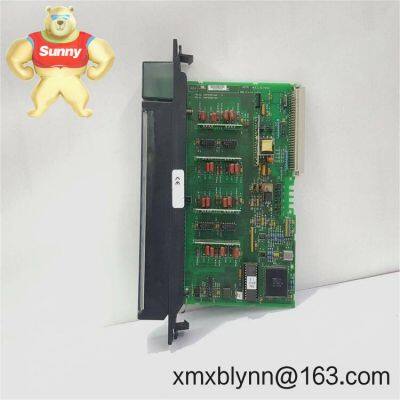

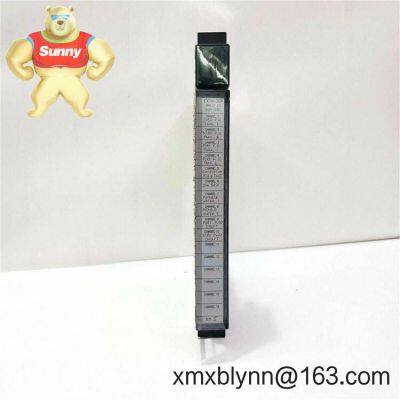

GE Fanuc IC697ALG440 – 90-70 Analog Input Expansion Module for Reliable Voltage/current Signal Acquisition

• Warranty: 365 days

• Delivery time: In-stock items typically ship within 1 week; no more than one month at the latest

• Payment: 50% advance payment; full payment prior to delivery

• Express delivery: FedEx, UPS, DHL

• Analog flexibility: Designed for standard industrial ranges like ±10 V, 0–10 V, 0–20 mA, and 4–20 mA, making it practical for process and factory I/O.

• Rack-native integration: Slides into a Series 90-70 I/O slot and communicates over the IC697 backplane—no external comms module needed.

• Noise-aware design: Input conditioning and shielded wiring practices help keep ripple and drift under control in noisy panels.

• Configuration consistency: Channel setup through the 90-70 CPU/logic tools keeps commissioning straightforward and repeatable.

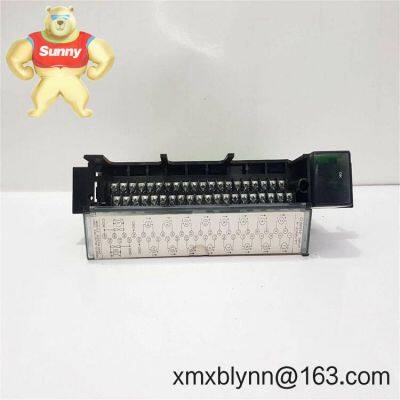

• Serviceable wiring: Field wiring terminates at the front, simplifying loop checks and maintenance in cramped cabinets.

• Lifecycle continuity: Well-suited for expansions and replacements in installed 90-70 fleets where downtime has a real cost.

I typically see the IC697ALG440 used where stable analog loops matter: water and wastewater treatment skids, power generation auxiliaries, refining and chemicals, metals rolling lines, and large OEM test stands. It pairs well with transmitters for flow, pressure, level, temperature (through transmitters), and position. One plant maintenance lead mentioned they added this module to bring additional 4–20 mA loops online during a phased expansion—no rack rework, just tidy cable management and a brief logic download.

• Reliability: Designed for industrial panels; noise handling seems to be quite decent when wiring is shielded and grounded correctly.

• Compatibility: Native to Series 90-70—ideal for upgrades or capacity additions without changing the PLC platform.

• Cost control: Extends existing racks, which in many cases avoids the expense of a platform migration.

• Supportability: Clear documentation and consistent channel configuration make maintenance quicker for onsite teams.

• Cabinet & rack: Install in an approved Series 90-70 rack with adequate ventilation. Keep ambient within the published industrial range.

• Wiring practices: Use shielded twisted pair for analog loops. Land shields at a single point. Separate analog wiring from high-voltage and VFD cables.

• Grounding: Maintain a clean analog ground reference. Avoid multiple ground paths that can create loops.

• Loop checks: Before start-up, simulate with a calibrator (e.g., 4–20 mA source) and verify scaling and alarms in the PLC program.

• Routine care: Periodically inspect terminal tightness, clean dust from the module face, and review trend data for drift. Keep CPU/rack firmware up to date as recommended by GE Fanuc documentation.

• Spare strategy: In most cases, keeping one spare per panel row or per line reduces downtime risk during unplanned events.

• Certifications: CE and UL/CSA markings are typical for Series 90-70 modules; RoHS compliance may depend on production year.

• Manufacturer warranty: Standard 365-day warranty from shipment.

• Traceability: Units are supplied with identifiable labels and revision info for maintenance records.

• Racks: Series 90-70 IC697 chassis such as IC697CHS750 (5-slot) and IC697CHS790 (9-slot) for system layout flexibility.

• Power Supply: IC697PWR711 AC power supply sized to support the CPU and I/O load on the backplane.

• Field termination: Use the appropriate 90-70 termination/terminal assemblies and shield bars for clean, maintainable wiring.

One thing I appreciate is how predictable the commissioning feels with the 90-70 analog family—once you’ve done a couple of loops, scaling and alarm handling are very repeatable. If you’re expanding an existing GE Fanuc system and need stable analog inputs without surprises, the IC697ALG440 is typically a safe pick.
