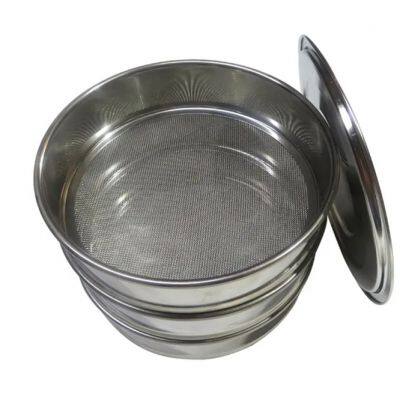

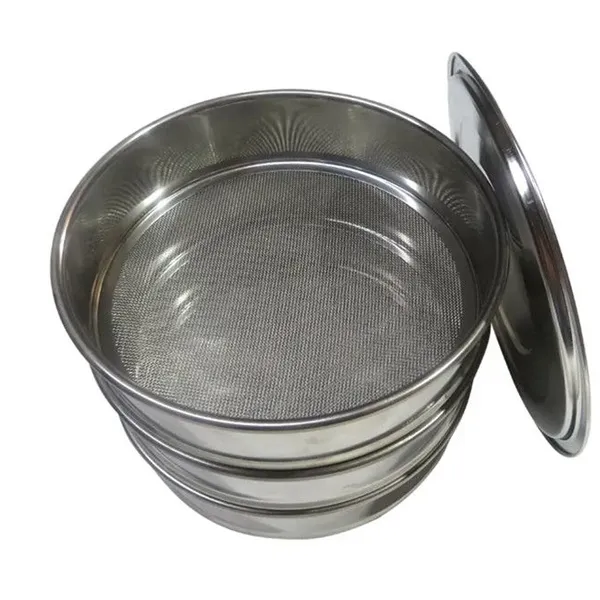

Features:
Test sieve is made of SUS 304# stainless steel, the thickness is 0.6 mm, firm and durable, no magnetism.
Sieve and frame are soldered all around, then make a mosaic base, as the frame is two-double, so that the testing sieve is more firm and durable.
Test sieve is processed by use special electrochemistry methods, and coat chrome, so the surface of testing
sieve is exact, glazed and wearable,it will not get distorted after long time use .
Application:
The standard testing sieve is applied to exact mesh analysis, test, measure, classification for powdery material in lab, hospital, pharmacy, foodstuff, metallurgy, construction etc departments.

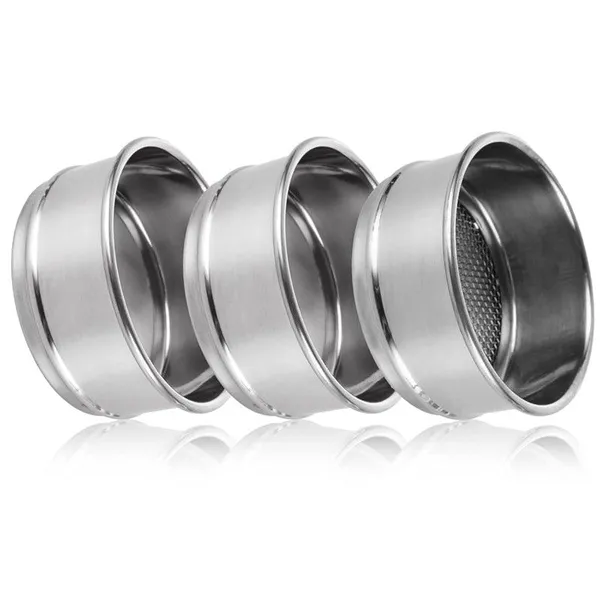

According to different materials and produce process, test sieves can be divided into brass mesh test sieves, woven mesh test sieves, perforated plate sieves and grid sieves. Special sieves are available, such as half height sieves, micro plate sieves, wet washing sieves, extra depth sieves, air jet sieves, grain Sieves. For instance, stainless steel half height sieve and microplate sieve with woven wire mesh in diameter 30mm to 120mm used to sieve silica from a particle size of 500 microns to 20 microns.

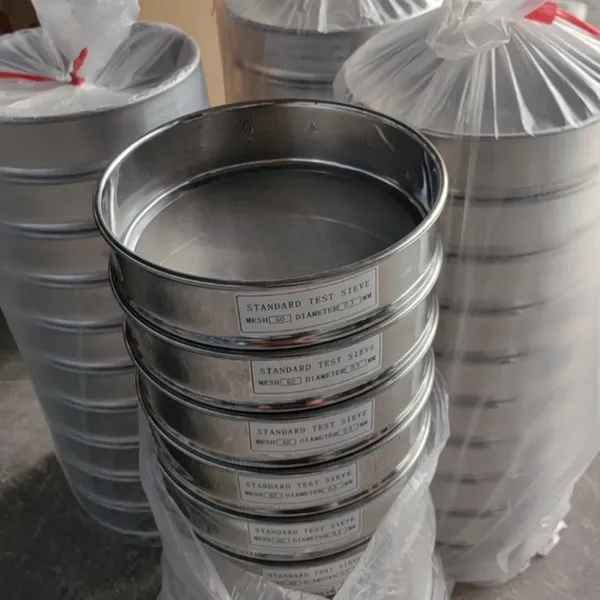

Laboratory test sieve
Laboratory test sieve is a measuring instrument, mainly used in metallurgy, abrasive, construction industries and research lab for precise classification of the minute granule materials. For example, certified sieves may be used for pharma testing. Sieves should be used with care, cleaned regularly and stored in a safe dry place. To avoid chemical corrosion, we recommend the use of stainless steel sieves.

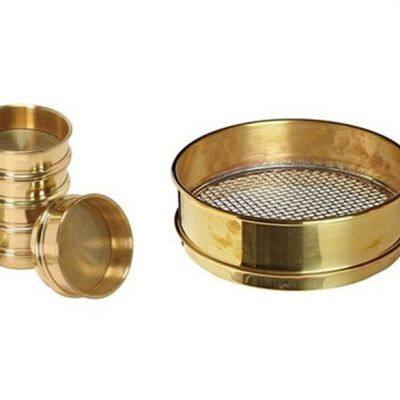

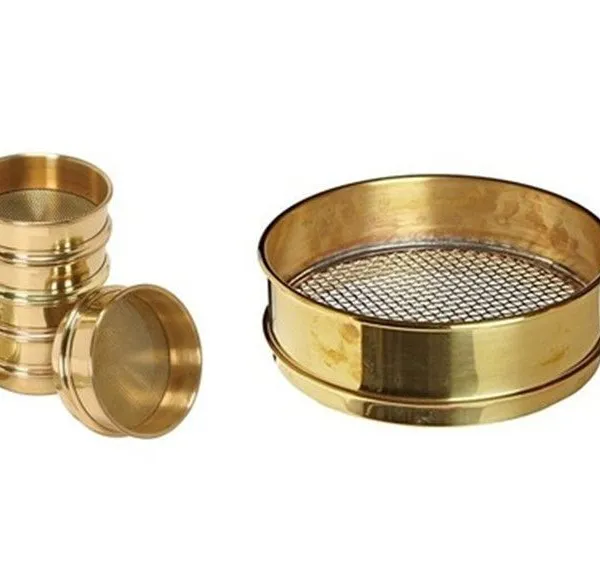

Woven wire mesh test sieves
Woven wire mesh sieves with precise opening are the most widely used test sieves for laboratory particle size analysis. Seamless frames ensure a precise fit and superior quality. They are made of the highest quality brass or stainless steel materials and are available in diameter sizes of 38, 100, 150, 200, 250, 300, 315, 350, 400 and 450 mm.

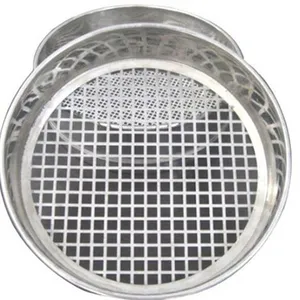

Perforated test sieves
Perforated plate sieves are available in diameter sizes of 200, 300, 315, 350, 400 and 450 mm. Aperture sizes range from 125 mm to 4 mm in square hole and 125 mm to 1 mm in round hole.
About the aperture size of mesh can be customized according to your requests.
Φ200 test sieve is mainly used to detect particle size analysis of materials, widely used in abrasives, the worthy, screening detection metallurgy, pharmacopoeia, chemical and building materials industries granular materials.
|
No.
|
Type
|
Mesh(mm)
|
No.
|
Type
|
Mesh(mm)
|
|
1
|
8#
|
2.360
|
15
|
70#
|
0.212
|
|
2
|
10#
|
2.000
|
16
|
80#
|
0.180
|
|
3
|
12#
|
1.700
|
17
|
100#
|
0.150
|
|
4
|
14#
|
1.400
|
18
|
120#
|
0.125
|
|
5
|
16#
|
1.180
|
19
|
140#
|
0.106
|
|
6
|
18#
|
1.000
|
20
|
170#
|
0.09
|
|
7
|
20#
|
0.850
|
21
|
200#
|
0.075
|
|
8
|
25#
|
0.710
|
22
|
230#
|
0.063
|
|
9
|
30#
|
0.600
|
23
|
270#
|
0.053
|
|
10
|
35#
|
0.500
|
24
|
325#
|
0.045
|
|
11
|
40#
|
0.425
|
25
|
400#
|
0.038
|
|
12
|
45#
|
0.355
|
26
|
500#
|
0.028
|
|
13
|
50#
|
0.300
|
27
|
>500#
|
<0.028
|
|
14
|
60#
|
0.250
|
|
|
|
Main features:
1) Low noise,light weight
2) The platform operation without fixed.
3) Multi-layer screen can be installed, up to 8 layers.
4) We offer customized lab test sieve shaker.if you have special request, contact customer service.
