Help CenterG65/3 G65/4 G80/4 G45/2 G/40/2 High-Tensile Slope Stabilization System/Rockfall Protection Netting
Related Products
-
High Tensile Strength Avalanche Fence to Prevent the Formation of Avalanches/> 1770 MPaUS$ 7.99MOQ: 100 Square Meters -
Rockfall Protection Net Mountain Landslide Protection NetUS$ 7.99MOQ: 100 Square Meters
-
Slope Protection Mesh/ Spider Spiral Rope Net /Active Protection for Blocky Rock SlopesUS$ 73.00 - 78.00MOQ: 100 Rolls
-
High Strength 80/3 Steel Chain Link Mesh for Slope Protection Woven Technique Minimum Tensile Strength 1770 N/mm2 CE CertifiedUS$ 2.9 - 8.8MOQ: 1 Square Meter
-
Factory Price Rockfall Barrier Reinforcement Steel Wire Mesh 65/3 Woven Chain Link Mesh for Slope ProtectionUS$ 2.9 - 8.8MOQ: 1 Square Meter
Rockfall Netting is made of high tensile strength steel wire 3.0mm 4.0mm or 2.0mm, with the tensile strength ≥1,770N/mm2, knotted ends ≥1.5 laps,normally the specifications are including G65/3 G65/4 G80/4 G45/2 G/40/2, All these designs enable the tensile strength of 1m with of mesh no less than 150kN/m, which can supply maximum protection to the slopes and peoples.
slope stabilization system is an importantactive protection typein the rockfall barrier projects. This system mainly consists of wire rope anchor, spike plate, boundary rope, sewing rope and specialized clips. The mesh esare fastened to the slope tightly by the wire rope anchor and spike plate through prestressed tension. Then the boundary rope, sewing rope and clips will reinforce the mesh for solid and firm. When the landslide and debris flow comes, the large stones or debris will be blocked by the mesh and reduce the attack to the ground.
Compared with other rockfall barrier systems, the mesh is made of high carbon steel wire with high strength and hardness. system is the simplest structure among all the rockfall barrier systems.
One common method of deploying mesh is known as the Drape System. In this approach, the mesh is draped over the unstable rock face and secured in place using anchoring systems. This creates a flexible barrier that intercepts and contains any potential rockfall, preventing it from reaching the ground below or impacting infrastructure such as roads or buildings.
Another application of mesh is as an Attenuator. In this method, the mesh is installed at the top of a slope or cliff to intercept falling rocks or debris. The mesh absorbs the energy of the falling material, gradually dissipating its momentum and reducing the force of impact.
This helps to minimize the risk of damage and injury in the event of a rockfall event.
Overall, high-tensile steel wire mesh, deployed through methods like the Drape System and Attenuator, provides effective and reliable protection against rockfall hazards, enhancing safety in vulnerable areas and mitigating the potential for costly infrastructure damage.

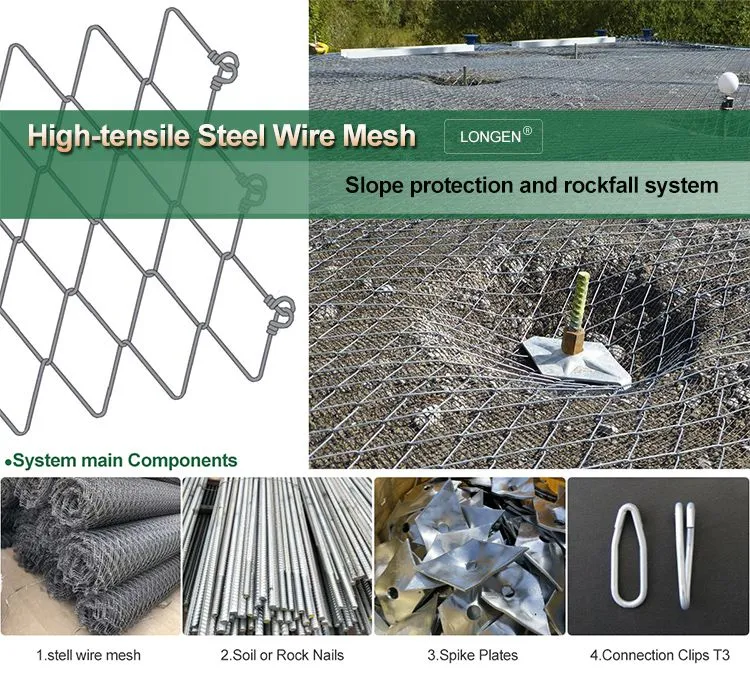

Component

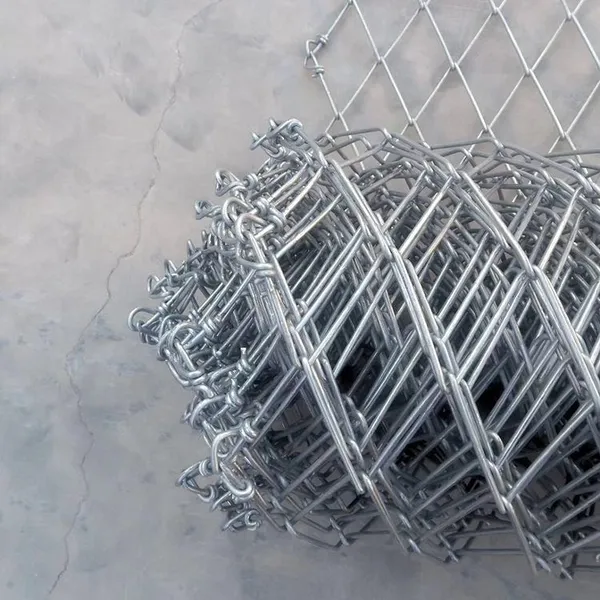

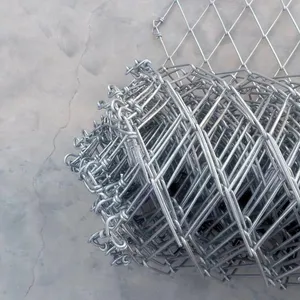

• Mesh.Main part of the slope stabilization system. It is made of high tensile steel wire and have excellent corrosion resistance • performance. The 1770 N/m2tensile strength supply maximum protection for the slope and people.
• Steel anchor.The steel anchor is made of deformed steel bar with 25 mm diameter, it is mainly used to fix the mesh onto the rock or soil slopes. It can supply the whole stability to the slope and mesh.
• Claw type spike plate.The claw type spike plate is commonly used with nails to fasten the mesh onto the slope firmly. The claw design make the spike plate a more stable and firm structure.
• Soil or rock nails.Used with claw type spike plate to fix the mesh onto the mountain. High tensile strength and solid structure make it be long service life and good condition.
• Clips.The clips are used to connect the neighbor mesh firmly. It is an alternative to the sewing rope and the connection is commonly without overlap.
• Sewing rope.It is used for connecting the neighbor meshes. And the connection is commonly have overlaps. It can be used to replace the clips.
• Boundary rope.Pass through the mesh and then be fixed onto the anchor for mesh and system stability.
Benefits of Rockfall Protection Nets:
Rockfall protection nets offer several benefits over other types of rockfall protection measures. First and foremost, they are cost-effective and require minimal maintenance. Unlike other rockfall protection measures such as barriers and fences, rockfall protection nets do not require frequent replacement, repair, or repainting. Additionally, they can be installed quickly, minimizing disruption to the surrounding area.
The high-tensile mesh is also woven in a diamond structure and quite convenient to store. It's easy and quick to unroll and install the mesh with the help of mechanized technology, which largely save you time on the project.
installation Instructions
The correct system installation process
Stage I :Clearing and leveling of the slope according to design requirements
Stage II : Staking out all important points on a slope (nail-distance according to design value, drilling points, etc.)
Stage III : Drilling works and nails installation
Stage IV : Choose anchor points in depressions or cutting and preparing of dells around nail heads
Stage V :Drainage or other required elements installation
Stage VI : Erosion control mat installation for enhanced greening if soil material can be flushed away
Stage VII : Unrolling and mesh fixation
Stage VIII :Connecting individual sheets of meshes with connection clips
Stage IX : Rope anchors with flexible head and boundary ropes installation
Stage X : System pretensioning according to design value using a torque wrench
Stage XI : Slope greening (seeding, hydroseeding, etc.)
• Slope stabilization
• Protection against slides breaking out
• Rockfall protection
• Erosion protection
