Wholesale Diamond Hole Shape Rockfall Net for Shallow Landslide 1770MPa Tensile Strength G65/3 Plain Weave Chain Link Mesh Woven
US$ 2.9 - 8.8
/ Square Meter
1 Square Meter(Min. Order)
You May Like
-
China Wholesale Galvanized Wire Mesh Gabion Netting Hexagonal Hole Gabion Basket for Erosion Control Plain Weave Woven Technique
-
Hr20 Steel Geocomposite 80*100mm Drape Mesh System Rockfall Protective Mesh Price for Coastal Protection
-
Double Twisted Hexagonal Mesh Slope Protection Net Stone Falling Protective Netting Price for Rockfall Protection
-
Wholesale 25m Length Hr30 Hexagonal Double Twisted Mesh Plain Weave Slope Protection Netting for Slope Stabilization Woven
-
Factory Sale High Tensile Geogrid Woven Technique Hexagonal Net HR Slope Protection Drapery System for Rockfall Protection
-
High Tensile Galvanized Hr 100 Reinforced Mesh Cheap Price Hexagonal Rockfall Net for Slope Protection Plain Weave Cutting
Product Details
| Technique | Woven | Model Number | Slope protection Mesh 52215 | |
| Brand Name | longen | Place of Origin | Hebei, China | |
| Delivery Time | 8-14 days | Processing Service | Bending | |
| Weave Style | Plain Weave | Diameter | 3.0mm, 4mm | |
| Tensile strength | >1770MPa | product type | chain link | |
| roll width | 1-3.5m Customers' Requirement | roll length | 1-30m Customers' Requirement | |
| coating | ( 95% ZN -5% Al ) > 150 g/m2 | mesh type | Rhomboid hole | |
| Braking load of single wire | 12.5 kN | fitting | Steel anchor, spike plate, soil or rock nails,clips, sewing rope |
Product Description
Product Description
65/3 80/3 80/4 80/4.6 Mesh Rockfall Protection Barrier
The 65/3 80/3 80/4 80/4.6 Mesh Rockfall Protection Barrier is securely tensioned against the slope using wire rope anchors and spike plates, applying prestressed force to ensure tight contact. Boundary ropes, sewing ropes, and clips further reinforce the mesh, creating a durable and stable barrier. During landslides or debris flows, the mesh effectively intercepts large rocks and debris, mitigating ground impact and enhancing slope safety.
Advantages over traditional rockfall systems:
1. Material Superiority: Fabricated from high-carbon steel wire, the mesh offers exceptional tensile strength and corrosion resistance.
2. Simplified Design: Its streamlined structure requires fewer components compared to conventional barriers, reducing installation complexity.
3. Cost Efficiency: Minimal maintenance and long service life ensure cost-effectiveness in slope stabilization projects.
1. Material Superiority: Fabricated from high-carbon steel wire, the mesh offers exceptional tensile strength and corrosion resistance.
2. Simplified Design: Its streamlined structure requires fewer components compared to conventional barriers, reducing installation complexity.
3. Cost Efficiency: Minimal maintenance and long service life ensure cost-effectiveness in slope stabilization projects.
Specification
Technical Data Sheet CE European Technical Approval ETA-17/0118 | ||
Technical data | 65/3 | |
Wire diameter | 3.0mm | |
Steel quality | high-tensile steel wire | |
Tensile resistance of a wire | 12.5kN | |
Mesh shape | Rhomboid | |
Tensile strength of steel wire | >1770 N/mm² | |
Tensile strength steel wire mesh | min.150kN/m | |
Diagonal | 83×143mm(+/-3%) | |
Mesh width | 65mm(+/-3%) | |
Compound protection | Zn/AI coating of steel wires | |
Compound of corrosion protection | 95% Zn / 5% AI | |
Coating | min.150g/m² | |
≤5% dark brown rust in salt spray test according to EN ISO 9227 | 1700 hours(ETA-17/0118) | |
Roll with | 2m,2.5m,3m,3.5m,4m,customized | |
Roll length | 10m,20m,30m,(as per site requirement) | |
Mesh edges | Mesh ends knotted(customized) | |
Specifications of high tensile steel wire mesh
• Wire diameter: 3 mm or 4 mm.• Mesh type: rhomboid hole.
• Mesh size: Inscribed circle diameter is 65 mm.
• Tensile strength: minimum 1770 MPa.
• Corrosion treatment: hot dipped galvanized or zinc-aluminum coated.
• Zinc thickness: no less than 150 g/m2.
• Breaking load of single wire: 12.5 kN.
• Roll width: 1 m - 3.5 m.
• Roll length: 10 m - 30 m.
• Wire diameter: 3 mm or 4 mm.• Mesh type: rhomboid hole.
• Mesh size: Inscribed circle diameter is 65 mm.
• Tensile strength: minimum 1770 MPa.
• Corrosion treatment: hot dipped galvanized or zinc-aluminum coated.
• Zinc thickness: no less than 150 g/m2.
• Breaking load of single wire: 12.5 kN.
• Roll width: 1 m - 3.5 m.
• Roll length: 10 m - 30 m.
High-Tensile Steel Wire Mesh for Slope Rockfall Protection
The high tensile steel wire mesh slope protection system is a critical active protection solution in rockfall barrier engineering.
This system primarily includes:
High tensile steel wire mesh (reinforced grid structure)
Wire rope nails
Spike plates
Boundary ropes
Sewing ropes
Specialized clips
High tensile steel wire mesh (reinforced grid structure)
Wire rope nails
Spike plates
Boundary ropes
Sewing ropes
Specialized clips
Soil or Rock Nails （Steel Anchor）
steel wire mesh can be anchored in accordance with plan with commercial soil or rock nails. Anchor consists of commercially available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm).
steel wire mesh can be anchored in accordance with plan with commercial soil or rock nails. Anchor consists of commercially available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm).
Limited stock – Bulk discounts available!
Spike Plates
The plates are galvanized and have dimensions of 13.0''*7.5"*0.3"/0.4"(330mm*190mm*8/10mm),
13.0''*7.08"*0.3"/0.4"(330mm*180mm*8/10mm), 13.0''*7.5"*0.3"/0.4"(330mm*205mm*8/10mm), etc.
The plates are galvanized and have dimensions of 13.0''*7.5"*0.3"/0.4"(330mm*190mm*8/10mm),
13.0''*7.08"*0.3"/0.4"(330mm*180mm*8/10mm), 13.0''*7.5"*0.3"/0.4"(330mm*205mm*8/10mm), etc.
Custom designs welcome – Contact us now!
Connection Clips T3
These clips are hot-dip galvanized and consist of 0.16" (4mm) or 0.25"(6mm) thick steel spirals.
These clips are hot-dip galvanized and consist of 0.16" (4mm) or 0.25"(6mm) thick steel spirals.
Get the right thickness – Ask our experts!
Application
high tensile steel wire mesh application
• Slope stabilization
• Protection against slides breaking out
• Rockfall protection
• Erosion protection
• Slope stabilization
• Protection against slides breaking out
• Rockfall protection
• Erosion protection

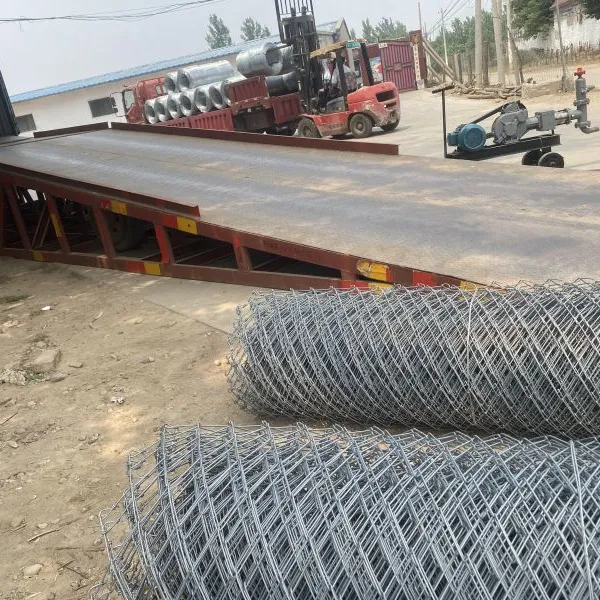

Packing & Delivery
1 in bulk 2. on pallet 3. as customer's requirement.
installation Instructions
The correct system installation process
Stage I :Clearing and leveling of the slope according to design requirements
Stage II : Staking out all important points on a slope (nail-distance according to design value, drilling points, etc.)
Stage III : Drilling works and nails installation
Stage IV : Choose anchor points in depressions or cutting and preparing of dells around nail heads
Stage V :Drainage or other required elements installation
Stage VI : Erosion control mat TECMAT® installation for enhanced greening if soil material can be flushed away
Stage VII : Unrolling and TECCO® mesh fixation
Stage VIII :Connecting individual sheets of meshes with connection clips
Stage IX : Rope anchors with flexible head and boundary ropes installation
Stage X : System pretensioning according to design value using a torque wrench
Stage XI : Slope greening (seeding, hydroseeding, etc.)
Stage I :Clearing and leveling of the slope according to design requirements
Stage II : Staking out all important points on a slope (nail-distance according to design value, drilling points, etc.)
Stage III : Drilling works and nails installation
Stage IV : Choose anchor points in depressions or cutting and preparing of dells around nail heads
Stage V :Drainage or other required elements installation
Stage VI : Erosion control mat TECMAT® installation for enhanced greening if soil material can be flushed away
Stage VII : Unrolling and TECCO® mesh fixation
Stage VIII :Connecting individual sheets of meshes with connection clips
Stage IX : Rope anchors with flexible head and boundary ropes installation
Stage X : System pretensioning according to design value using a torque wrench
Stage XI : Slope greening (seeding, hydroseeding, etc.)
Company Profile
FAQ
Q1: What are your payment terms?
A1: We accept wire transfer (T/T), Letter of Credit (L/C), Western Union, or payments via Alibaba. Terms: 30% deposit upfront, with the remaining 70% due before shipment. We provide photos and packaging details for your approval before final payment.
Q2: Do you offer after-sales support?
A2: Quality and service are our top priorities. Complimentary after-sales assistance is provided to ensure long-term satisfaction.
Q3: Can you produce custom-designed products?
A3: Yes, we specialize in bespoke manufacturing based on your designs, specifications, or technical drawings.
Q4: How do you justify your pricing?
A4: Our quotations include transparent cost breakdowns to demonstrate competitive and fair pricing.
Q5: Do you accept client-provided designs?
A5: Absolutely. We work closely with your designs to deliver tailored solutions.
Q6: What delivery terms do you offer?
A6: Options include EXW (Ex-Works), FOB (Free On Board), CFR (Cost and Freight), and CIF (Cost, Insurance, Freight).
Q7: What are your packaging standards?
A7: Standard packaging uses rods/belts for bundles or coils, but we customize to meet specific client requirements.
A1: We accept wire transfer (T/T), Letter of Credit (L/C), Western Union, or payments via Alibaba. Terms: 30% deposit upfront, with the remaining 70% due before shipment. We provide photos and packaging details for your approval before final payment.
Q2: Do you offer after-sales support?
A2: Quality and service are our top priorities. Complimentary after-sales assistance is provided to ensure long-term satisfaction.
Q3: Can you produce custom-designed products?
A3: Yes, we specialize in bespoke manufacturing based on your designs, specifications, or technical drawings.
Q4: How do you justify your pricing?
A4: Our quotations include transparent cost breakdowns to demonstrate competitive and fair pricing.
Q5: Do you accept client-provided designs?
A5: Absolutely. We work closely with your designs to deliver tailored solutions.
Q6: What delivery terms do you offer?
A6: Options include EXW (Ex-Works), FOB (Free On Board), CFR (Cost and Freight), and CIF (Cost, Insurance, Freight).
Q7: What are your packaging standards?
A7: Standard packaging uses rods/belts for bundles or coils, but we customize to meet specific client requirements.
Company Profile
Hebei Longen Wire Mesh Products Co., Ltd.
With 20 years of manufacturing and export experience along with excellent quality, advanced services and competitive prices, Longen Wire Mesh Products Co., Ltd. has won numerous customers\' trust and support.We can offer customized solutions for a wide range of stainless steel rope mesh, hand- woven stainless steel rope mesh, Ferrule cable mesh which are widely used in the construction of zoo mesh, animal fences, bird cages, safety fences, green wall, suspend anti-fall mesh, architecture mesh, decorative mesh,Slope Protection,Rockfall Protection System,etc.
