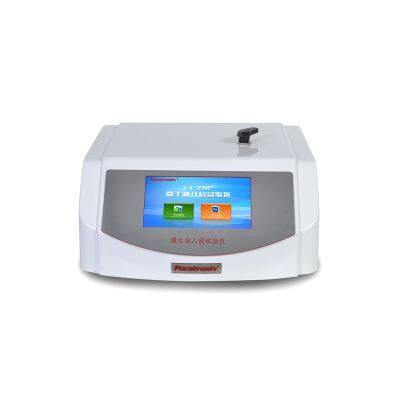

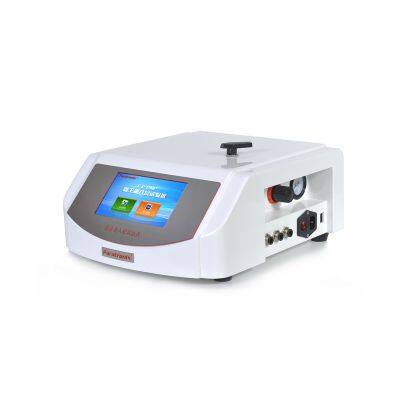

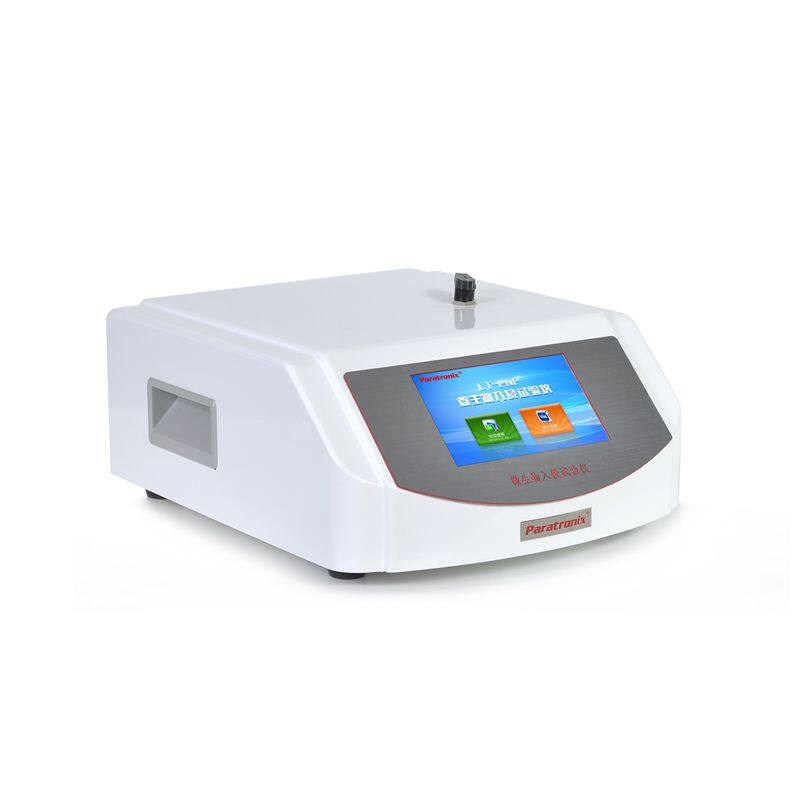

Help CenterLT-PNP Positive &Negative Pressure Sealing Tester
Related Products
-
Laboratory Air Leakage Testing Machine Sealing Tightness Tester for Poly Pouch Package LeakNegotiableMOQ: 1 Combo -
Sealing Tightness Tester for Air Tightness or Leak Tightness Inspection of of Flexible PackagesNegotiableMOQ: 1 Combo
-
Leak Detection Test Devices for Safeguarding Sterility of Medical Device PackagingNegotiableMOQ: 1 Combo
-
Bubble Method and Vacuum Method Medical Packaging Leak Detection TesterNegotiableMOQ: 1 Combo
-
Vacuum Leak Tester for Packaging Sealing Tightness / Integrity TestNegotiableMOQ: 1 Combo
Positive & Negative Pressure Sealing Tester is suitable for sealing test of flexible packaging in food, pharmaceutical, medical equipment, daily chemical, electronics and other industries. The equipment can perform positive and negative pressure tests. The sealing process and sealing performance of various samples can be compared and evaluated effectively through the test, which provides scientific basis for determining the relevant technical indicators. It can also be used to test the sealing performance of specimens after dropping and pressure resistance tests. It is also suitable for the quantitative determination of sealing strength, creep, heat sealing quality, bursting pressure and sealing leakage performance of soft and hard metal, plastic packaging and aseptic packaging formed by various heat sealing and bonding processes, microbial invasion test and the quantitative determination of sealing performance of various plastic anti-theft bottle caps, medical humidified bottles, metal drums and caps. Quantitative measurement of the overall sealing performance, compressive strength, cap body connection strength, trip strength, hot edge sealing strength, binding strength and other indicators of various hoses; At the same time, it can also evaluate and analyze the compressive strength, breaking strength and other indicators of the materials used in the flexible packaging bag, the seal index of the bottle cap, the connection release strength of the bottle cap, the stress strength of the material, and the sealing property, compression resistance and breaking resistance of the whole bottle. Compared with the traditional design, the intelligent test is realized: multi-group test parameter presetting can greatly improve the detection efficiency.
Features
7 inch color touch screen, real-time view test data and test curve

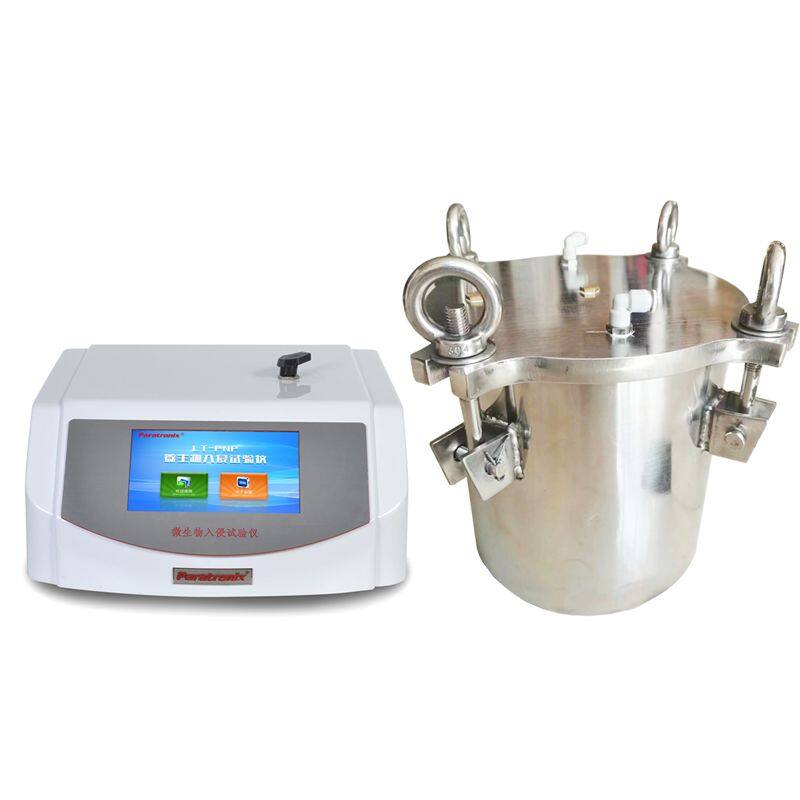

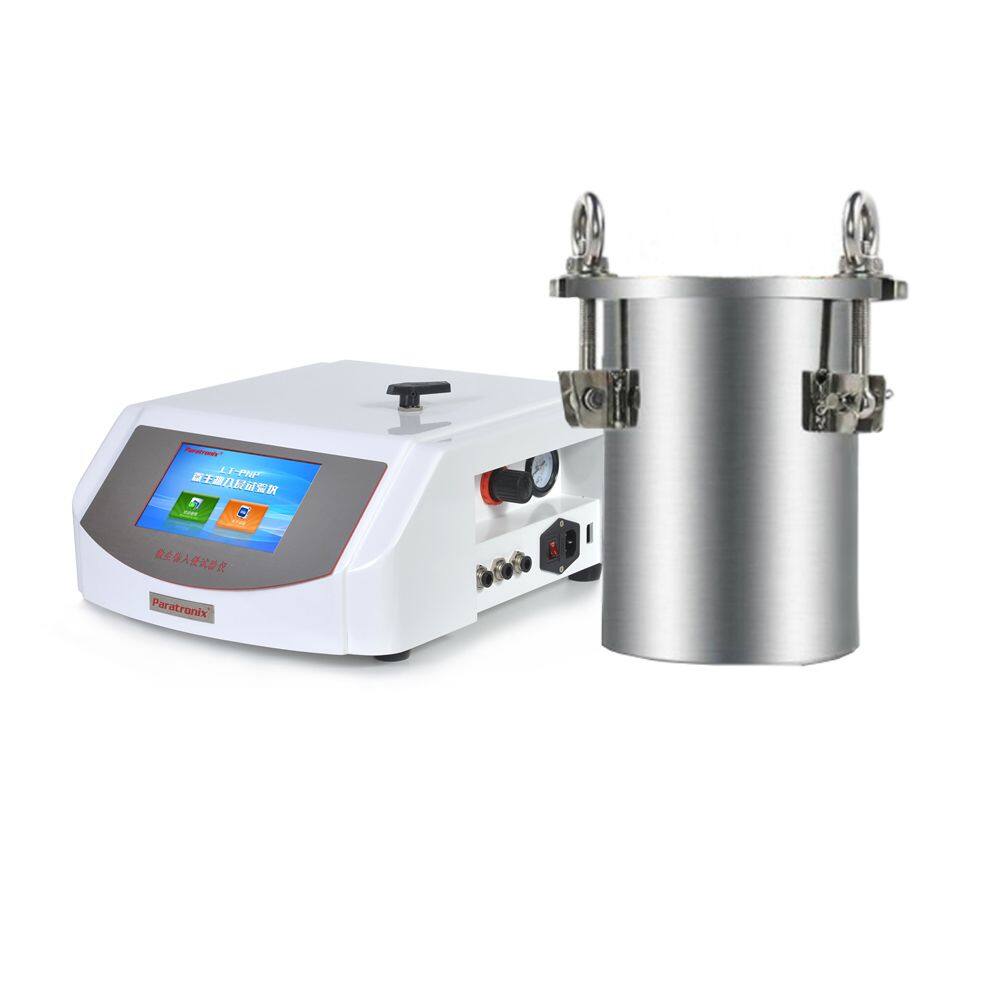

The integrated design principle of positive pressure and negative pressure can realize the free selection of test items such as color water method and microbial invasion sealing
Equipped with high-speed and high-precision sampling chip to ensure the real-time and accuracy of test data
Japan SMC pneumatic components, stable and reliable performance
Large scale test range to meet more test requirements of users
High precision automatic constant pressure, the whole experiment process is stable and accurate
Automatic blowback unloading, reduce human intervention
Positive pressure, negative pressure, holding time, test sequence and number of cycles can be preset, one click to complete the test
The unique test chamber design can ensure that the sample is completely immersed in the solution, and ensure that the experimental personnel do not touch the solution during the test
Unique gas path integrated design, good pressure maintenance effect, and effectively extend the service life of the equipment
Set hierarchical user permissions to meet GMP requirements, test record audit, and tracking functions (optional)
The test curve is displayed in real time, which facilitates quick viewing of test results and historical data

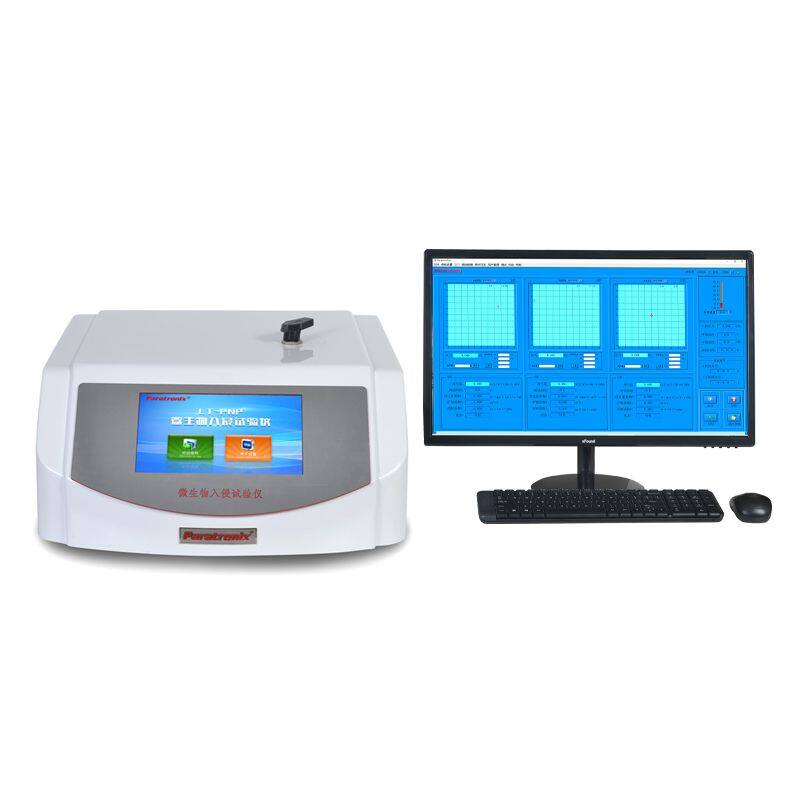

The equipment is equipped with standard communication interface and can be connected to a computer. The test data and test curve can be displayed in real time through professional software
Test principle
Positive and negative pressure alternating test can be carried out to detect the leakage state of the sample under different pressure differences. The physical properties and leakage position of the sample are determined.
