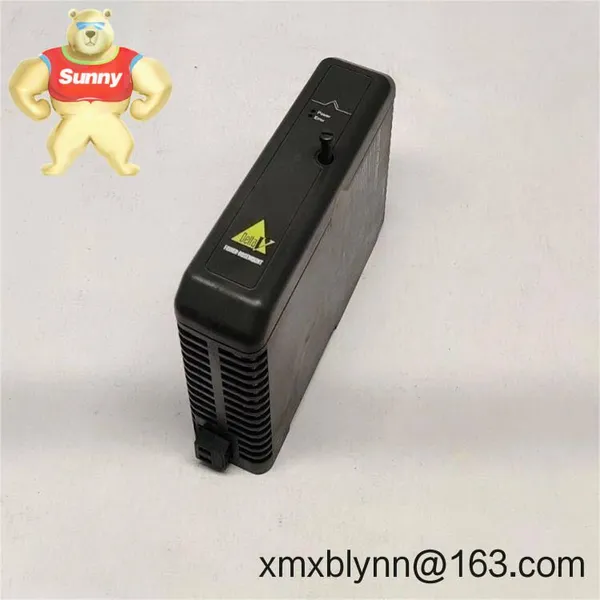

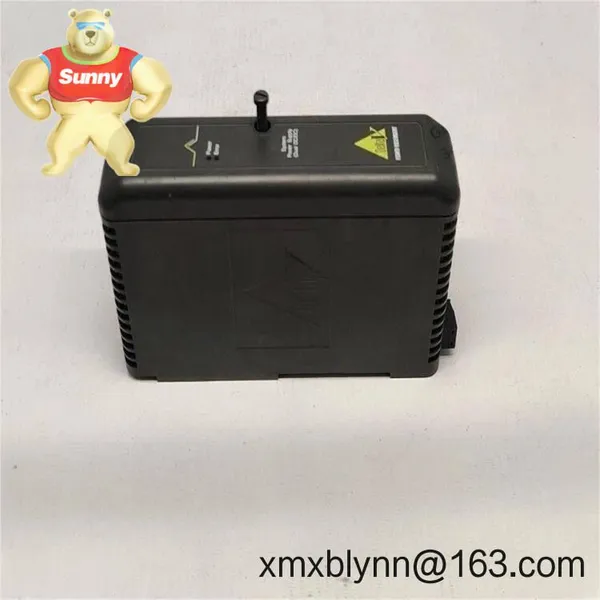

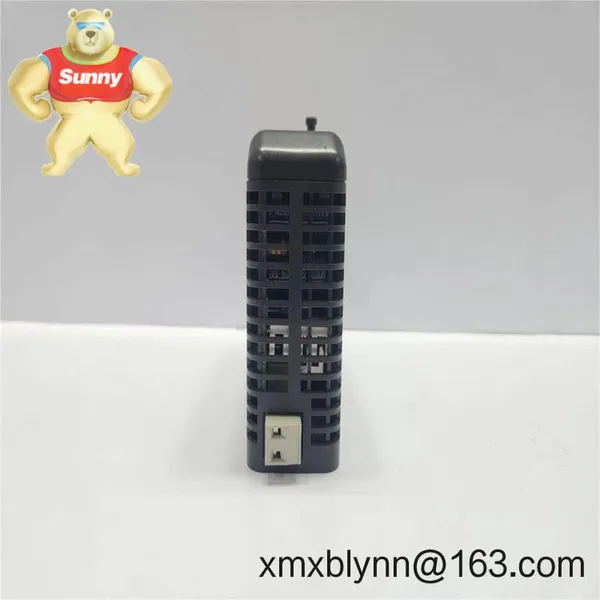

Help CenterEmerson KJ1501X1-BD1 – DeltaV I/O Module for Reliable Process Signal Integration
Related Products
-
Emerson KJ1501X1-BE1 Digital Input/Output Module – Reliable 24 VDC Discrete I/O for Process Control RacksUS$ 2216.00MOQ: 1 Blade -
Emerson DeltaV KJ1611X1-EF1 Network Switch Module – Reliable Ethernet Switching for DeltaV Control NetworksUS$ 2216.00MOQ: 1 Blade
-
Emerson DeltaV KJ1501X1-BK1 – System Power Module for Stable Backplane PowerUS$ 2216.00MOQ: 1 Blade
-
Emerson KJ1502X1-BA2 Controller Module – High-reliability Control Core for DeltaV DCS NodesUS$ 2216.00MOQ: 1 Blade
-
Emerson KJ1700X1-BA1 I/O Interface Module – Reliable Backplane Interface for DeltaV I/O SubsystemsUS$ 2216.00MOQ: 1 Blade
Warranty: 365 days
Lead time: typically 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
DeltaV-native integration – Plugs into standard DeltaV carriers with automatic recognition and diagnostics.
Hot-swappable maintenance – Swap the module under power to minimize downtime during maintenance windows.
Stable analog signal handling – Typically used for low-noise acquisition of process variables with DeltaV filtering and status.
HART pass-through support – In many cases, the BD1 variant allows HART device diagnostics via AMS Device Manager.
Backplane-powered – No external power to the front of the module; power is delivered through the DeltaV carrier.
Compact, modular footprint – Saves cabinet space and simplifies expansions as loops are added over time.
Built-in channel fault reporting – Clear per-channel status to speed up troubleshooting in the field.
| Brand / Model | Emerson DeltaV / KJ1501X1-BD1 |
| HS Code | 8538.90 (Parts for control panels and programmable controllers) |
| Power Requirements | Supplied via DeltaV backplane/carrier; no external power connection to the module front |
| Dimensions & Weight | DeltaV plug-in module form factor; compact, modular footprint (typical M-series size) |
| Operating Temperature | Typically 0 to 55°C (32 to 131°F) |
| Signal Input/Output Types | Commonly used for analog process signals; BD1 variant is often applied for AI with HART pass-through |
| Communication Interfaces | DeltaV backplane communication; HART diagnostics routed to AMS (where applicable) |
| Installation Method | Mounted to DeltaV carrier (DIN-rail cabinet); keyed, hot‑swappable module replacement |
Plants typically deploy the KJ1501X1-BD1 wherever stable process measurements and device diagnostics matter. Common areas include:
Oil & Gas: wellhead pressures, separator levels, and custody transfer diagnostics
Chemicals & Petrochemicals: reactor temperatures, flow loops with HART smart transmitters
Power Generation: boiler and balance-of-plant analog signals
Water & Wastewater: flow, pressure, and pH measurements with tag-level device status
Pharma & Food: clean-room utilities, CIP/SIP loop monitoring where traceability is expected
One maintenance supervisor told us the switch-over was painless—“we hot-swapped the module during a shift, verified HART comms in minutes, and didn’t miss a batch.” That’s fairly typical when the cabinet and carrier are already set up to DeltaV standards.
Reliability: Solid-state design with DeltaV diagnostics to reduce nuisance trips and troubleshooting time.
Compatibility: Works within the DeltaV ecosystem; typically no extra gateways for device status data.
Lifecycle cost savings: Hot-swap and clear channel health help cut maintenance time and spares holding.
Scalability: Modular expansion as loops grow—add modules or channels without cabinet redesigns.
Technical support: Easy to align with standard DeltaV engineering tools and AMS for HART devices.
Cabinet standards: Install on the specified DeltaV carrier in a clean, dry, vibration-controlled enclosure; maintain adequate spacing for ventilation.
Wiring: Use shielded twisted pairs for analog signals; land field wiring on the correct DeltaV terminal assembly; keep analog and power wiring segregated.
Grounding: Bond shields at a single point as per site practice; avoid ground loops that can add noise.
Power: Ensure the system’s 24 VDC supplies and carrier loads are within Emerson’s limits before adding modules.
Hot-swap safety: Place the loop in manual or bypass as appropriate; verify keying to prevent inserting the wrong module type.
Routine maintenance: Periodically check terminal tightness, clean dust with dry air, review diagnostics in DeltaV/AMS, and apply firmware updates as recommended.
Calibration: Transmitters carry the calibration load; confirm scaling and HART ranges align with control strategy and historian tags.
Certifications: Typically CE marked; many DeltaV I/O modules carry UL/cUL and RoHS compliance. Exact listings vary by module revision.
Manufacturer standards: Produced under ISO-based quality systems consistent with DeltaV hardware practices.
Warranty: 365-day warranty from us, covering workmanship and functionality under normal use.
If you want, share your existing DeltaV cabinet type and carrier part numbers, and we can confirm channel type, HART capability, and any recommended terminal assemblies for KJ1501X1-BD1 before you place the order.
