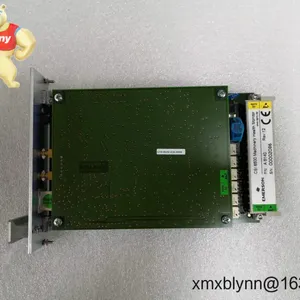

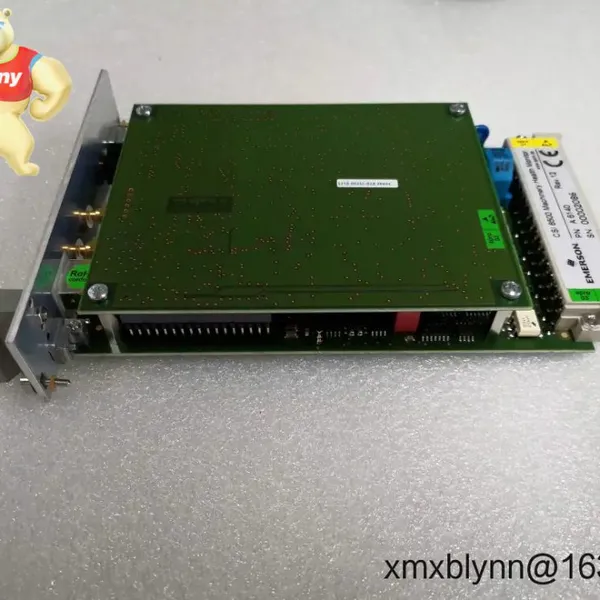

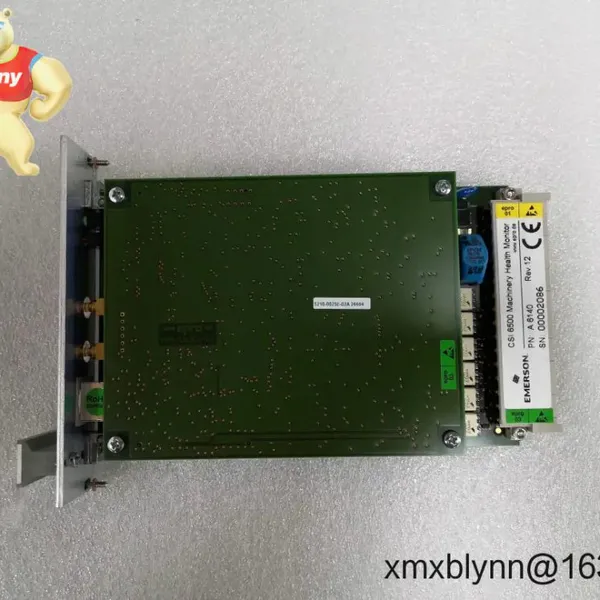

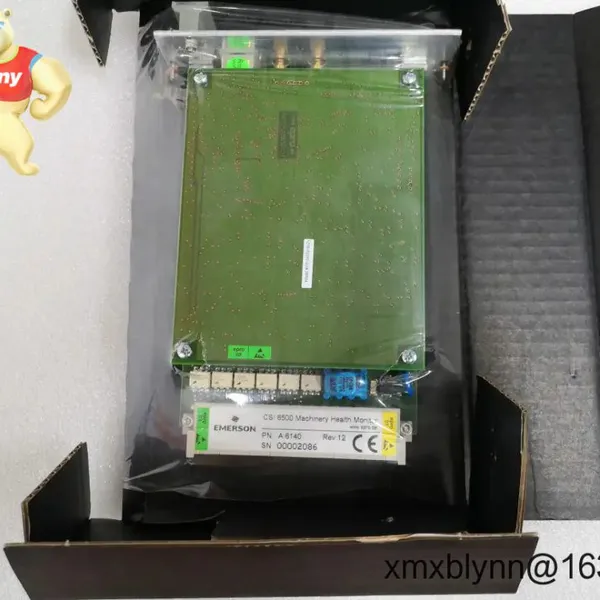

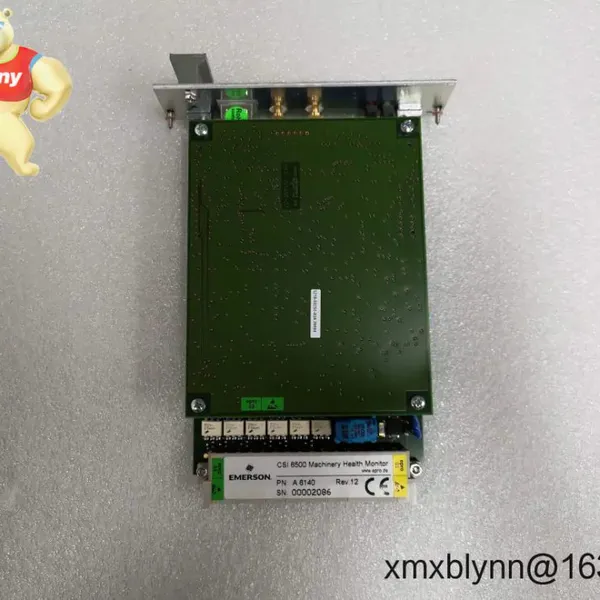

Help CenterEmerson A6140 Dual-Channel Shaft Absolute Vibration Monitor – Purpose-built for Critical Rotating Machinery Protection
Related Products
-
Emerson KJ2101X1-CA1 Displacement Processor Module for Precision Shaft and Position MonitoringUS$ 2216.00MOQ: 1 Blade -
Emerson KJ2231X1-BB1 Auxiliary Relay DTA‑Direct Module – Clean, Isolated Interposing for DeltaV Discrete CircuitsUS$ 2216.00MOQ: 1 Blade
-
Emerson KJ2231X1-EE1 Current‑Limiting Digital Output Module – Protected 24 VDC Discrete Control for DeltaV SystemsUS$ 2216.00MOQ: 1 Blade
-
Emerson KJ3001X1-BA1 – 8-Channel Analog Input Module for DeltaV Process I/OUS$ 2216.00MOQ: 1 Blade
-
Emerson KJ3241X1-BK1 Serial Interface Card – Robust RS‑232/RS‑485 Connectivity for DeltaV SystemsUS$ 2216.00MOQ: 1 Blade
Warranty: 365 days
Delivery: 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express Options: FedEx, UPS, DHL
Dual-channel shaft absolute measurement: Each channel combines shaft-relative (eddy-current) and casing vibration (accelerometer/velocity) to derive absolute shaft motion.
Protection-ready logic: Configurable Alert/Danger thresholds with latching behavior; drives rack relays for trips and interlocks via the CSI 6500 system.
Sensor OK and line integrity checks: Monitors probe bias, transducer health, and wiring so you catch issues before they impact coverage.
Buffered dynamic signals: Access raw waveforms for diagnostics and phase analysis directly from the rack—handy during startups and coastdowns.
System integration: Works within the Emerson CSI 6500 Machinery Health Monitor architecture; data access via the rack controller over Ethernet for DCS/SCADA/AMS links.
Flexible configuration: Configure filtering, detection, and channel pairing to suit bearings, rotor construction, and machine train layout.
API 670 style deployment: Typically used on sleeve-bearing turbines/compressors where absolute shaft vibration is required by standards or site policy.
| Brand / Model | Emerson A6140 (Dual-Channel Shaft Absolute Vibration Monitor) |
| HS Code | 9032.89 (automatic regulating or controlling instruments; typical classification) |
| Power Requirements | Supplied from CSI 6500 rack backplane (24 VDC system supply; module draw typically low, no separate power) |
| Channels | 2 channels; each intended for shaft absolute vibration calculation |
| Signal Inputs | Proximity probe input (eddy-current, API 670-style via proximitor driver) and casing vibration input (accelerometer or velocity sensor) per channel |
| Signal Outputs | Buffered dynamic signals via rack; status and alarms to rack controller/relay modules |
| Communication Interfaces | Through CSI 6500 rack controller over Ethernet; supports plant integration via Modbus TCP/OPC through Emerson software |
| Operating Temperature | Typically 0 to +60°C for rack-mounted modules |
| Installation Method | Plug-in module for Emerson CSI 6500 Machinery Health Monitor rack; field wiring via rack terminal base |
| Compliance | Designed for use in API 670-style protection architectures; consult site standard for setpoints and proof tests |
| Typical Pairing | API 670-compliant eddy-current probe systems (5 mm / 8 mm) and industrial accelerometers/velocity sensors |
You might notice that the A6140 is most often specified where shaft absolute is a must-have: large sleeve-bearing machines and assets with tight trip philosophies.
Steam and gas turbines (base-load and peaker units)
Integrally geared and axial/centrifugal compressors
Critical process pumps and boiler feedwater pumps
Large fans and blowers with journal bearings
Gearboxes where casing motion influences relative probe readings
Maintenance teams I’ve worked with like it during startups: you get absolute shaft vibration that typically correlates better with real rotor behavior when the casing is moving, which avoids nuisance trips caused by structural amplification.
Reliability: Protection-grade measurement with sensor OK monitoring and configurable alarm logic for safer trips.
Compatibility: Works with common API 670-style eddy-current probes and standard industrial seismic sensors, so you can reuse installed hardware in many cases.
Cost Efficiency: Dual-channel in a single slot reduces rack footprint; using the CSI 6500 backplane avoids extra power and wiring complexity.
Integration: Feeds the same rack relays and Ethernet pathways already used by operations and the DCS, simplifying loop ownership.
Supportability: Configuration through Emerson’s toolset and access to buffered dynamic signals speeds up troubleshooting and turnarounds.
Simulated feedback from a refinery rotating engineer: “Switching to shaft absolute on our 20 MW compressor cut false alarms during load swings. The A6140 was straightforward to tune—alert/danger settings lined up with our API 670 practice.”
Installation & MaintenanceCabinet and rack: Install in an Emerson CSI 6500 rack within a 19-inch cabinet. Ensure adequate ventilation; avoid high-vibration panels; maintain protective earth grounding.
Wiring and shielding: Use twisted, shielded cable runs. Ground shields at one end to minimize ground loops. Keep transducer cables separate from power conductors.
Proximity probe setup: Connect via proximitor driver; verify target material, gap voltage, and linear range. Document the exact gap and extension length.
Casing sensor placement: Mount accelerometer/velocity sensor rigidly on the bearing housing; torque to sensor spec; check resonance and cable strain relief.
Alarm strategy: Define Alert/Danger with your process hazard analysis. From my experience, periodic proof testing (quarterly or semi-annually) helps maintain SIL-related practices.
Routine care: Review sensor OK and alarm logs, clean connectors annually, confirm buffered signal quality, and keep rack firmware/config backups up to date.
CE compliant instrumentation (typical for CSI 6500-series modules)
UL/cUL for control equipment, where applicable to the rack system
RoHS conformity for electronic assemblies
Manufacturer’s warranty follows standard Emerson policy; we support a 365-day supply warranty on this item
Emerson CSI 6500 Machinery Health Monitor rack and system controller (Ethernet)
Eddy-current proximity probe systems with matching proximitor drivers (5 mm or 8 mm tip, API 670-style)
Bearing housing accelerometers or velocity sensors with appropriate mounting studs and cabling
Rack relay modules for trip/interlock implementation and dry-contact handoff to the DCS/ESD
Note: Specifications above reflect typical deployment of the A6140 within the CSI 6500 system. If your project has strict documentation requirements, share your sensor models and rack layout and we’ll validate compatibility and channel loading before order placement.
