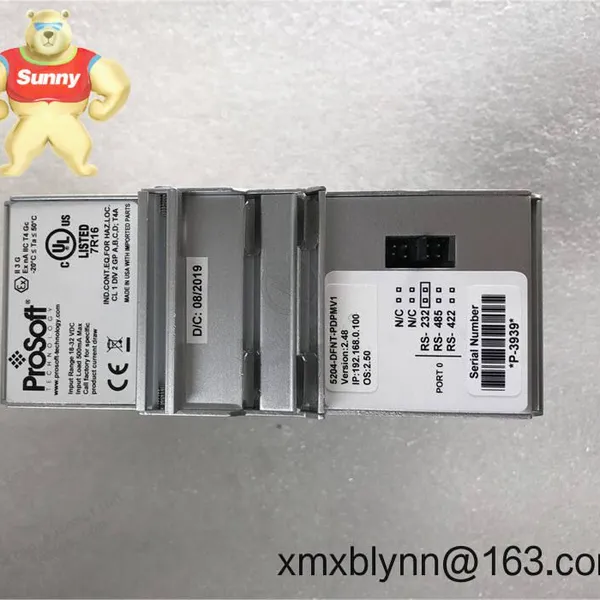

Help CenterProSoft 5204-DFNT-PDPMV1 – High‑Speed EtherNet/IP (DFNT) to PROFIBUS DP‑V1 Gateway for Fast PLC–Fieldbus Integration
Related Products
-
EMG ECU01.5 (ECU01 Series) – Analog Input Module for Precise Industrial Signal AcquisitionUS$ 1216.00MOQ: 1 Blade -
ENTERASYS P0973BP Power Supply Module – Stable, Redundant AC Power for Enterasys Switches/ChassisUS$ 1216.00MOQ: 1 Blade
-
ENTERASYS STK-RPS-150PS – Redundant Power Supply Module for Stackable/Edge Switch UptimeUS$ 1216.00MOQ: 1 Blade
-
Enterasys SSA-G1018-0652 Gigabit Switch Module – High‑density 10/100/1000 Access for S‑Series ChassisUS$ 1216.00MOQ: 1 Blade
-
Kongsberg RMP420 (306712) Remote Multipurpose I/O Module – Flexible Field I/O for Marine and Industrial ControlUS$ 2216.00MOQ: 1 Blade
Warranty: 365 days
Delivery: 1 week for in‑stock items; no more than one month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
EtherNet/IP (DFNT) to PROFIBUS DP‑V1 bridging – Exchanges data between Rockwell PLCs (MSG/PCCC over Ethernet) and DP devices efficiently.
DP Master with DP‑V1 acyclic support – Handles cyclic I/O and device diagnostics/parameterization for smarter maintenance.
Industrial 10/100 Ethernet port – Standard RJ45 for plant networks; easy to route through managed switches or VLANs.
Isolated PROFIBUS interface – Robust DB9 DP port with shielded bus support for long runs and noisy environments.
Quick configuration – Uses ProSoft Configuration Builder; GSD-based device setup typically takes minutes.
Diagnostics you’ll actually use – Web/port diagnostics make it simple to see live status, bus health, and error counters.
DIN‑rail friendly – Compact metal enclosure that fits neatly into existing control cabinets.
| Brand / Model | ProSoft 5204-DFNT-PDPMV1 |
| HS Code | 8517.62 (Data communication apparatus) |
| Power Requirements | 24 VDC nominal (typically 18–32 VDC), |
| Operating Temperature | 0 to 60 °C (32 to 140 °F), non‑condensing humidity |
| Communication Interfaces | 1x 10/100Base‑T Ethernet (RJ45) for DFNT; 1x PROFIBUS DP Master (DB9), up to 12 Mbps |
| Signal I/O Types | Cyclic I/O data image; DP‑V1 acyclic services; diagnostics/status mapping over DFNT |
| Installation Method | DIN‑rail mount inside control cabinet; shielded cabling recommended |
| Dimensions & Weight | Approx. 127 × 102 × 35 mm; ~0.45 kg |
You’ll typically see the 5204-DFNT-PDPMV1 used where Rockwell controllers need to exchange data with PROFIBUS‑based instrumentation, drives, or remote I/O racks:
Process skids integrating PROFIBUS flowmeters and valve islands into CompactLogix/ControlLogix projects
Drive rooms with PROFIBUS VFDs that must be monitored and controlled from EtherNet/IP PLCs
Brownfield plant upgrades where PROFIBUS remote I/O remains in service while control moves to Ethernet
Utilities and water plants consolidating mixed‑vendor fieldbuses to a single SCADA layer
Feedback we hear a lot: “Swapping in the gateway saved us a shutdown—kept our DP devices intact while we migrated the PLC to Ethernet.”
Reliability – Industrial design with isolated DP interface helps maintain bus stability in high‑noise areas.
Compatibility – Works with Rockwell MSG instructions and standard GSD‑based PROFIBUS devices; no vendor lock‑in.
Cost savings – Avoids full device replacements; reuse existing DP instruments while modernizing controls.
Support & lifecycle – ProSoft’s tools and documentation are straightforward; in many cases, commissioning time drops significantly.
Panel/cabinet – Mount on DIN‑rail inside a ventilated enclosure; maintain ambient 0–60 °C with adequate airflow.
Wiring – Use shielded PROFIBUS DP cable with proper termination at segment ends; keep Ethernet on industrial Cat5e/6.
Grounding – Bond shields at a single reference point; avoid ground loops on DP networks.
Commissioning – Load GSDs, define cyclic I/O sizes, and map data in ProSoft Configuration Builder; test with device diagnostics before handover.
Routine maintenance – Periodic inspection of bus terminations, clean dust from vents, back up configuration, and update firmware when validated.
CE, UL/cUL, and RoHS compliance are typically available for this family of ProSoft gateways
Manufacturer policy: ProSoft Technology devices are commonly covered by a limited 1‑year warranty
Our supply warranty: 365 days from shipment, with rapid replacement support
24 VDC DIN‑rail power supply (industrial grade, ripple‑controlled)
PROFIBUS DP shielded cable and DB9 connectors with integrated termination
Industrial Cat5e/Cat6 Ethernet patch cords and managed switch with VLAN/QoS as needed
Panel labeling and tested grounding/earthing kit for the DP segment
