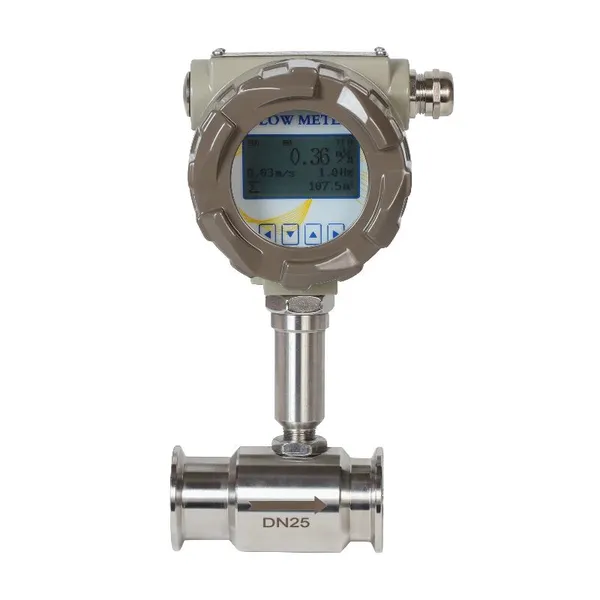

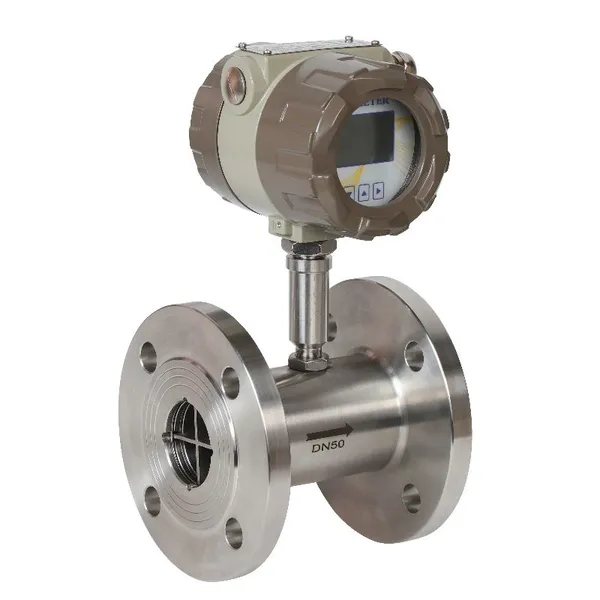

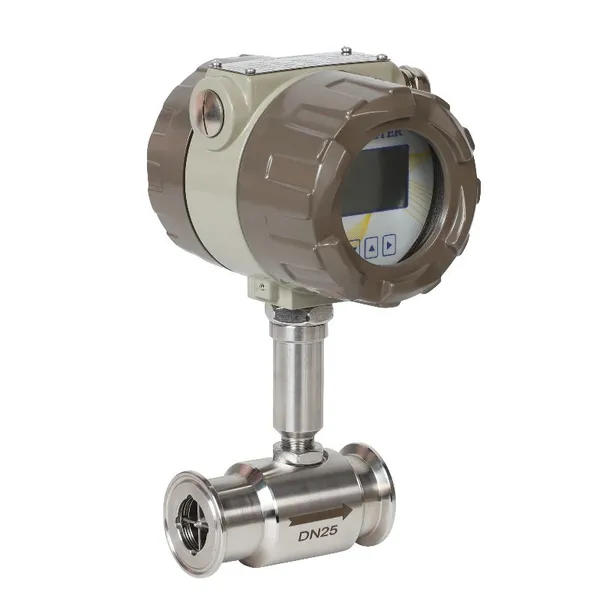

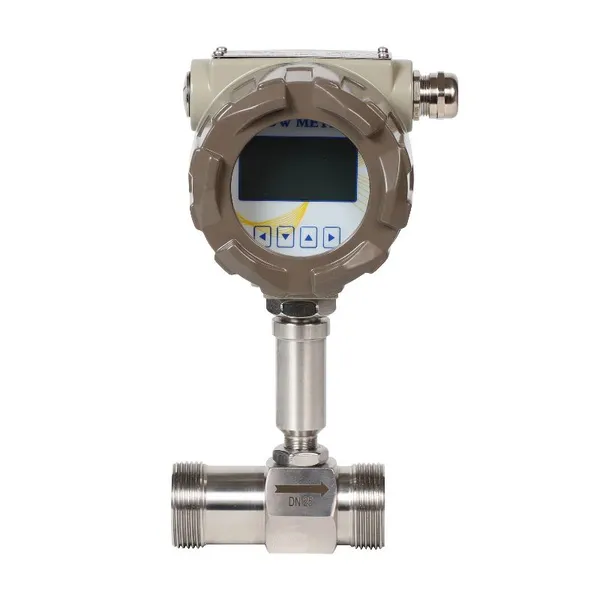

Digital Tri-Clamp Stainless Steel 304/316L Liquid Turbine Flow Meter
1.Product Introduction
LWGY series turbine flow meter are based on torque balance principle and belong to speed flow meters. The flow meter has the characteristics of simple structure, light weight, high precision, good reproducibility, sensitive response, convenient installation, maintenance and use, etc.
It is widely used in petroleum, chemical industry, metallurgy, water supply, papermaking and other industries, and is an ideal instrument for flow measurement and energy saving.
Typical application: water, diesel oil, methanol and other liquids without impurities and strong corrosiveness
2.Main Features
1)Simple and compact structure, light weight, easy installation and maintenance.
2)High accuracy, the measurement accuracy of liquid turbine flowmeter can generally reach ±1%R, ±0.5%R
3)Multiple outputs can be optional, 4-20mA, RS485, Hart.
4)Low power consumption,long life and easy to operate.
5)High-definition backlight LCD display.
6)Professional explosion-proof enclosure.
7) Suitable for high-pressure measurement, no holes are required on the instrument body.
3.Technical Specification Table
| Material | SUS304 or SUS316L (customized ) | ||||||
| Display | LCD display for total flow and instantaneous flow | ||||||
| Application | No impurities, no strong corrosive liquids, such as water, diesel,oil,alcohol,etc |
||||||
| Diameter | DN4-DN200 mm | ||||||
| Flow range | 0.04-800 m3/h | ||||||
| Accuracy | 1.0% or 0.5% (customized) | ||||||
| Connection | Flange/ thread / tri-clamp | ||||||
| Material | Body | SUS304 or SUS316L (customized ) | |||||
| Flange | SUS304 or SUS316L (customized ) | ||||||
| Power | 24VDC | ||||||
| Output | 4-20 mA / pulse | ||||||
| Medium temp. | -20 + 80 ºC | ||||||
| Enclosure | IP65 | ||||||
| Flange | DIN (GB): standard PN16, customized:PN25,PN40 Option: ANSI: 150LB, 300LB, 600LB, 900LB JIS:10K,20K,30K,63K |
||||||
4.Technology Parameter
| Item | Diameter (mm) |
Flow range (m3/h) |
Accuracy |
| LWGY-4 | DN4 | 0.04-0.25 | 1.0% 0.5% |
| LWYG-6 | DN6 | 0.1-0.6 | |
| LWGY-10 | DN10 | 0.2-1.2 | |
| LWGY-15 | DN15 | 0.6-6 | |
| LWGY-20 | DN20 | 0.8-8 | |
| LWGY-25 | DN25 | 1-10 | |
| LWGY-32 | DN32 | 1.5-15 | |
| LWGY-40 | DN40 | 2-20 | |
| LWGY-50 | DN50 | 4-40 | |
| LWGY-65 | DN65 | 8-80 | |
| LWGY-80 | DN80 | 10-100 | |
| LWGY-100 | DN100 | 20-200 | |
| LWGY-125 | DN125 | 25-250 | |
| LWGY-150 | DN150 | 30-300 | |
| LWGY-200 | DN200 | 80-800 |

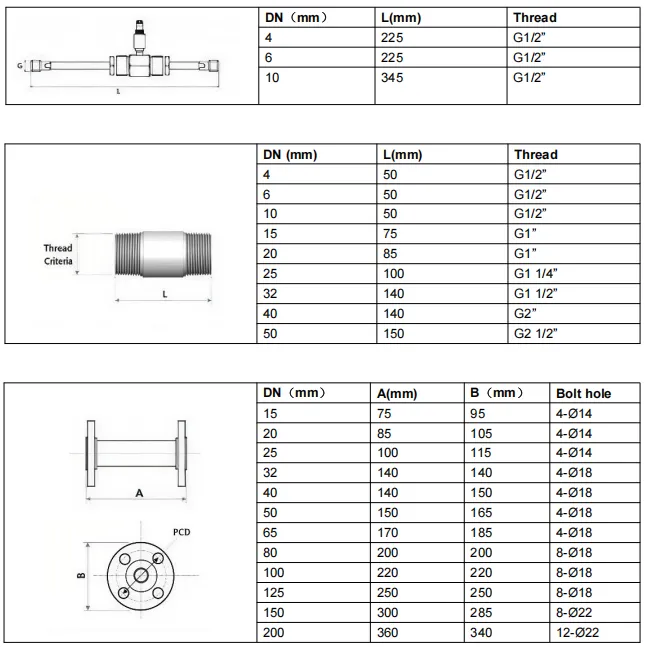

5. Size
