1500bar 22000psi High Pressure Water Jet Chemical Plant Heat Exchanger Pipe Ultra-high Pressure Cleaning Machine
US$ 16000.00
≥1 Set
Key Specifications
Get Latest Price
machine type:
HIGH PRESSURE CLEANER
condition:
New
place of origin:
shenyang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2025 New Design High Pressure Water Jetting Hydro Blasting Machine Industrial Pipeline Cleaning Diesel High Pressure CleanersUS$ 19000.00MOQ: 1 Set -
Industrial Ultra High Pressure Water Blaster Washing Machine for Sale With 1000 Bar Machine for Rust Paint Pipe Tube Tank WashUS$ 19999.00MOQ: 1 Set
-
800 1000 Bar High Pressure Cleaning Machine Ship Hull Rust Remove Water Blaster Hydro Jetting Machine Water Jet Cleaner WashingUS$ 19999.00MOQ: 1 Set
-
700bar Electric Water Jetting Pumps 10000 Psi High Pressure Water Blasting Pumps for Pipe Cleaning DescalingUS$ 9000.00MOQ: 1 Set
-
500bar to 1500bar High Pressure Pump Cleaner Machine for Industry CleaningUS$ 9000.00MOQ: 1 Set
machine type
HIGH PRESSURE CLEANER
condition
New
place of origin
shenyang, China
brand name
RELIABLE
feature
Non-Toxic
power source
Diesel
use
High pressure water jet cleaning
cleaning process
Cold Water Cleaning
cleaning type
HIGH PRESSURE CLEANER
material
Metal / Coil
Power
200kw
dimension(l*w*h)
300*170*180cm
warranty
1 Year
max. pressure
280Mpa
weight (kg)
3000 kg
Name
hydro jetting machine
Working pressure
100Mpa/15000psi
Water flow
82 L/min
Diesel engine
225 kw,
Electric motor power
160 kw
Start type
electric start
Delivery date
10 days
machine color
canbe customized
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Motor, Pump, Engine
Key Selling Points
Long Service Life
Marketing Type
New Product 2024
Product Overview
RLB50150 ultra High pressure hydro jet machine
This high pressure hydro jet machine is driven with 6-cylinder diesel engine, Max. working pressure 40000psi/2800bar; chould be better for ship yard/ marine rust paint removal, surface heavy dirt cleaning, industrial heavy dirt cleaning, condenser/ heat exchanger pipe cleaning, tube/tank cleaning, marine rust paint removal, concrete surface roughening, cement removal, etc. welcome customized.
FEATURES AT A GLANCE
Model: RLB50150E
Rate pressure: 150Mpa/1500bar/22000psi
water flow: 50 L/min
pump speed: 366rpm
pump plunger diameter: 24mm;
Pneumatic pressure regulator
pressure gauge;
Electric motor drive: 160kw
with water tank/inlet water filter/ booster pump
Model: RLB50150D
Rate pressure: 150Mpa/1500bar/22000psi
water flow: 50 L/min
pump speed: 366rpm
pump plunger diameter: 24mm;
Pneumatic pressure regulator
pressure gauge;
Diesel engine drive: 264kw, 6-cylinder
with water tank/inlet water filter/ booster pump
water flow: 50 L/min
pump speed: 366rpm
pump plunger diameter: 24mm;
Pneumatic pressure regulator
pressure gauge;
Diesel engine drive: 264kw, 6-cylinder
with water tank/inlet water filter/ booster pump
PRODUCT SPECIFICATIONS
Model |
Rate pressure |
Water flow |
Electric motor drive |
Diesel engine drive |
RLB28045 |
280Mpa/2800bar |
45 L/min |
250kw |
350kw |
RLB28030 |
280Mpa/2800bar |
30 L/min |
160kw |
220kw |
RLB1330 |
150MPa/1500bar |
50 L/min |
160kw |
225kw |
RLB1824 |
120Mpa/1200bar |
70 L/min |
160kw |
225kw |
RLB2230 |
150Mpa/1500bar |
85 L/min |
200kw |
264kw |
RLB1320 |
100Mpa/1000bar |
50 L/min |
90kw |
120kw |
RLB1814 |
70Mpa/700bar |
70 L/min |
90kw |
120kw |
RLB1510 |
50MPa/500bar |
60 Lmin |
55kw |
64kw |
RLB2210 |
50Mpa/500bar |
85 L/min |
90kw |
120kw |
RLB0610 |
50Mpa/500bar |
22 L/min |
22kw |
33kw |

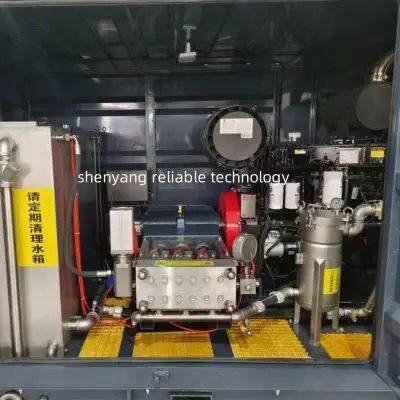

PRODUCT CONFIGURATION
6-cylinder diesel engine
150Mpa high pressure pump
Seismic pressure gauge
Overflow water spray gun
Pressure has 1500bar/2800bar
Overflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
High pressure rubber hose
Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc
Pressure: Max.2800bar;
material: ruber with wire winding inside
Barracuda nozzle / turbo nozzle
4-jet rotating nozzle
better for surface strong dirt cleaning
Flexible lance
Pressure 1500bar/2800bar/3035bar
Size: DN8-10-12mm;
Contact thead: M22*1.5 & M24*1.5
Length can be customized
Overflow foot control valve
Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
industrial Pipe Cleaning nozzle
Size: DN13,24,40, etc;
7-jet rotating nozzle;
Pressure: 1500bar/2800bar
for industrial inner pipe cleaning
Successful Project
Tank & reactor cleaning
concrete surface roughening
industrial strong dirt cleaning
large Pipe cleaning
cement removal
concrete cutting
FAQ
Q1：What pressures and flow rates are available in these machines?
A1：Pressure ranges from 3,000 PSI to 40,000 PSI (200 to 2800 bar) or more. Flow rates typically range from 15 to 600 L/min;
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3: How do I choose the right nozzle for my application?
A3: Fan Nozzles: For surface cleaning. Rotary Nozzles: For deep cleaning and descaling. Piercing Nozzles: For cutting and precise applications. Pipe cleaning nozzles: For industrial pipe/sewer drain pipe cleaning; Turbo nozzle: for surface strong dirt cleaning, Customized Nozzles: Designed for specific tasks or materials.
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: Electric: Suitable for indoor use and quieter operation. Diesel: Preferred for outdoor use and higher power needs. Gasoline: Portable option, ideal for remote locations.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
Q11:Do you offer training or instructional materials on how to use your machines safely and effectively?
A11:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.
