RELIABLE 1600bar Diesel Drive Road Marking Line Removal Machine High-Pressure Cleaner for Rubber Mark Removal New Condition
US$ 19000.00
≥1 Set
Key Specifications
Get Latest Price
Certification:
CE
machine type:
HIGH PRESSURE CLEANER
condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Direct Highway Airport Rubber Removal Machine New Condition Diesel Pavement Marking Cleaning Water Blasting Unit EngineUS$ 19000.00MOQ: 1 Set -
RELIABLE High-Pressure Jet Cleaner Machine New Condition Efficient Road Paint Remover Line Washer Equipment for Road Marking RemovalUS$ 19000.00MOQ: 1 Set
-
Hot Selling Road Marking Removal Welding Machine New Condition Water Cleaning Process Core Engine ComponentsUS$ 19000.00MOQ: 1 Set
-
New High-Pressure Cold Water Blasting for Efficient Road Marking Removal for Flat Profile Agglomerate LinesUS$ 19000.00MOQ: 1 Set
-
1600bar Airport Runway Rubber Removal System Water Blaster Integrated Design Hydroblaster Environment Friendly WaterblasterUS$ 19000.00MOQ: 1 Set
Certification
CE
machine type
HIGH PRESSURE CLEANER
condition
New
place of origin
shenyang, China
brand name
RELIABLE
feature
Non-Toxic
power source
Diesel
use
road mark removal
cleaning process
Cold Water Cleaning
cleaning type
HIGH PRESSURE CLEANER
material
Metal / Coil
Power
132
dimension(l*w*h)
420*210*220cm
warranty
1 Year
weight (kg)
4000
Name
road mark remove machine
Working pressure
160Mpa/1600bar
Water flow
30 L/min
Diesel engine
153kw
High pressure hose
50meters
road mark removal device
hand push system
function
road mark removal and recovery
machine color
canbe customized

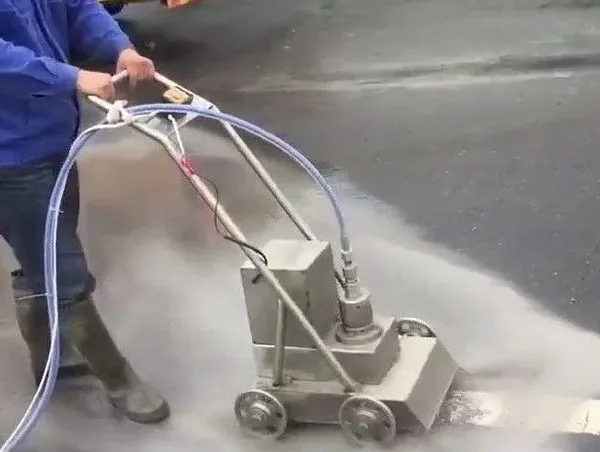

Road mark removal high pressure water jetting machine
UHP Water Jetting road marking removal equipment for removing pavement or road line. UHP waterjetting works faster and more thoroughly without dust or pavement damage. Pavement markingremoval equipment also use new technology like water blasting to obliterate the surface Road markings are designed for the long run, but sometimes they need to be removed. When a trafficsituation changes or a parking is redesigned. Special tools and techniques enable to remove stripesand pavement markings efficiently. Removing existing road striping or pavement markings is a real difficulty. The markings must beefficiently removed without causing damage to the road surface. Sometimes the marking are even harder than the underlying asphalt. So water jetting equipment forroad marking removal will be the best way will not cause any dust. Now pavement marking removalequipment prefer to water blasting .
High pressure water jetting machine for road mark removal
Advantages of water blasting road line
* Completely removes markings, coatings and runway rubber * No abrasives to damage concrete or asphalt * Saves time and labor. * Creates a stronger bond for repainting * Eliminates dust and debris with vacuum system. * Cleans deep into runway grooves The complete road marking removal equipment from all surfaces has never been as quick, clean andcost-eficient. And perhaps best of all, very little to no confusing mark left behind. No resurfacing, andno secondary clean-up or drying necessary. Thermoplastic, waterborne paints, epoxy paints. Rubberized paints and permanent foil backed orwaffle tapes do not stand a chance against the 40,600 psi (2800 bar)
Model |
Rate pressure |
Water flow |
Electric motor drive |
Diesel engine drive |
RLB0530 |
160MPa/1600bar |
30 L/min |
90kw |
132kw |
RLB0550 |
200Mpa/2000bar |
45 L/min |
160kw |
225 kw |
Name: High pressur plunger pump
Rate pressure: 160Mpa/1600bar
water flow:30 L/min~110L/min
Pump speed： 366rpm
plunger stroke: 120mm
with pressure gauge and safety valve;
pump head and plunger material: stainless steel
with plunger cooling system and pump end lubrication system

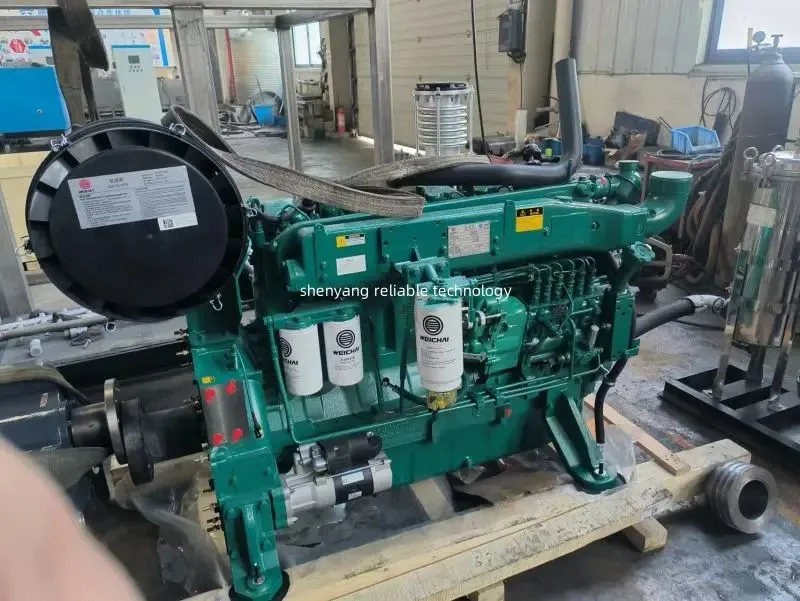

Name: Diesel engine
engine power: 120-264kw; 6-cyliner
Speed： 1500rpm
start type: electric start, 24v/100Ah
with cooling system
contact with high pressure pump

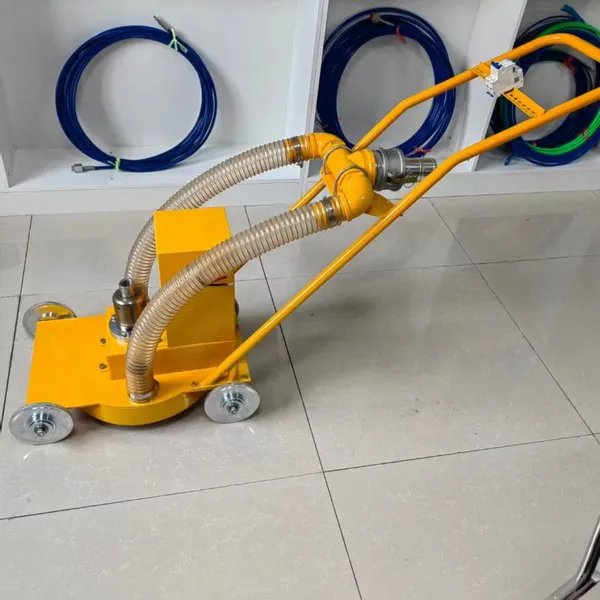

Road mark removal device
without recovery device
Road mark removal device
include recovery device
Road mark revmoal device
stainless steel material
road mark removal system
Road mark removal device
airport rubber removal
Overflow water spray gun
Pressure has 1500bar/2800bar
Overflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
High pressure rubber hose
Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc
Pressure: Max.2800bar;
material: ruber with wire winding inside
Barracuda nozzle / turbo nozzle
4-jet rotating nozzle
better for surface strong dirt cleaning
Flexible lance
Pressure 1500bar/2800bar/3035bar
Size: DN8-10-12mm;
Contact thead: M22*1.5 & M24*1.5
Length can be customized
Overflow foot control valve
Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
industrial Pipe Cleaning nozzle
Size: DN13,24,40, etc;
7-jet rotating nozzle;
Pressure: 1500bar/2800bar
for industrial inner pipe cleaning
Q1：What pressures and flow is suitable to road mark removal?
A1：Pressure normally suggest 1500bar~2500bar; Flow rates suggest 30-50L/min,
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3: How do I choose the right nozzle for my application?
A3: suggest hand push road mark removal device with recovery function. also can do rust paint removal. also this machine can choose water spray gun and cleaning nozzles for surface strong dirt cleaning, choose pipe cleaning nozzle for industrial pipe cleaning purpose,
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: for road mark removal, suggest diesel engine drive will be more convenient;
also can choose Electric: Suitable for indoor use and quieter operation.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
Q11:Do you offer training or instructional materials on how to use your machines safely and effectively?
A11:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.
