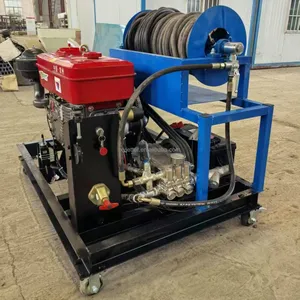

Municipal Sewer Cleaning Equipment 170L/min Large Water Flow Sewerage Pipeline Cleaning Machine
US$ 9900.00
1 - 4 Set
US$ 9000.00
≥5 Set
Key Specifications
Get Latest Price
Certification:
CE
machine type:
HIGH PRESSURE CLEANER
condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sewer Cleaning Tools High Pressure Nozzle Sewer Cleaning Pipe Dredging Water Jet Sewer CleanerUS$ 2600.00 - 3000.00MOQ: 1 Piece -
240bar Large Sewer Drain Pipe Cleaning Machine Sewerage Cleaning EquipmentUS$ 8000.00MOQ: 1 Set
-
High Pressure Water Blaster Washer 24Mpa/240bar Water Jet Machine Hydro Blaster Jetting Washing Cleaning MachineUS$ 9000.00MOQ: 1 Set
-
400mm Sewerage Pipe Cleaning Machine Hydro Jetting Machine on SalesUS$ 2800.00MOQ: 1 Set
-
Sewer Pipe Cleaner Drainage Pipe Cleaning Machine ChinaUS$ 2800.00MOQ: 1 Set
Certification
CE
machine type
HIGH PRESSURE CLEANER
condition
New
place of origin
shenyang, China
brand name
RELIABLE
feature
Non-Toxic
power source
Diesel
use
sewer drain pipe cleaning
cleaning process
Cold Water Cleaning
cleaning type
HIGH PRESSURE CLEANER
material
Metal / Coil
Power
145kw
dimension(l*w*h)
290*155-*165cm
warranty
1 Year
weight (kg)
2200
Voltage
24v
Pump Type
TRIPLEX
Fuel Tank Capacity
200L
Horsepower
145kw
Water Tank Capacity
1000L
Flow Rate
170L/min
Pump Drive
direct mount
Pressure Washer Duty
Heavy-Duty
Name
sewer drain pipeline cleaning machine
Working pressure
24Mpa/240bar
Water flow
170 L/min
Diesel engine
145kw
Electric motor
90kw, 3 phase
High pressure hose
100meters
nozzle
DN40-DN80 sewer drain pipe cleaning
function
sewer drain pipe cleaning machine
machine color
canbe customized
cleaning sewer diameter
100-1500mm

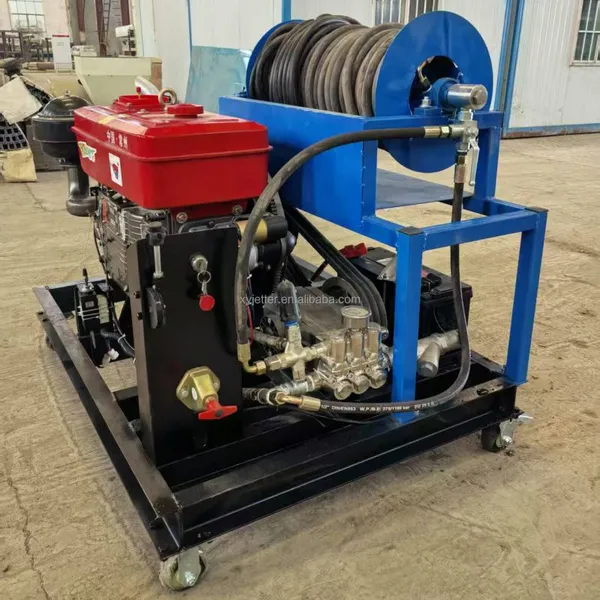

Sewer drain pipe cleaning machine
High pressure water jet cleaning machine, with large water flow 50-170L/min, pressure 24Mpa; use suitable pipe cleaning nozzle-multi hole jetting nozzle, better for sewer drain inner pipe cleaning, to unclog the blocked pipe.
Name |
sewer drain pipe cleaning machine |
Engine drive |
Diesel engine |
power |
33kw 41kw 145kw etc |
Rate pressure |
200bar -240bar-300bar |
water flow |
50L/min 85L/min 170L/min 250L/min 300L/min can be chosen |
hose reel |
automatic hydraulic hose reel |
water filter |
water inlet filter 80um |
how to choose |
according to the pipe diameter you plan to cleaning |
Model |
Rate pressure |
Water flow |
Electric power |
Diesel power |
cleaning pipe dia. |
RLB4505 |
240MPa/240bar |
170 L/min |
90kw |
145kw |
100~1500mm |
RLB2204 |
20Mpa/200bar |
85 L/min |
30kw |
41kw |
50~800mm |
RLB1304 |
20Mpa/200bar |
50 L/min |
15kw |
28HP |
50~400mm |

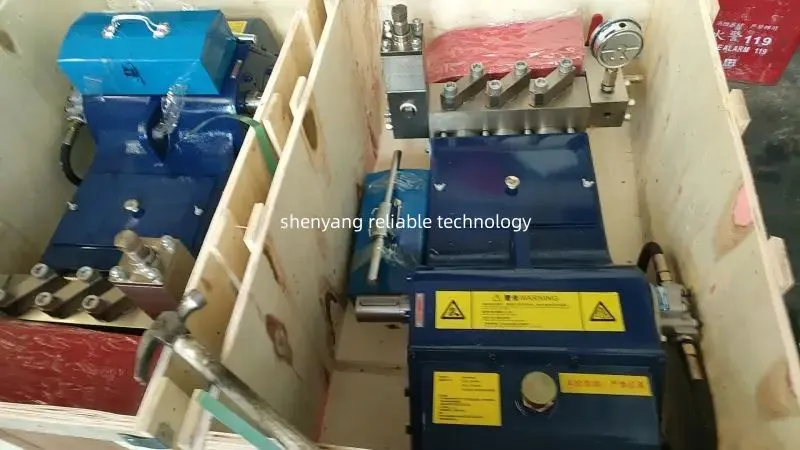

Name: High pressur plunger pump
Rate pressure: 24Mpa/240bar
water flow:170 L/min
Pump speed： 405rpm
plunger diameter:40 mm
with pressure gauge
safety valve
for diameter 100-1200mm sewer drain pipe cleaning purpose
Name: diesel engine drive
Power: 41kw to 145kw, 264kw etc
Speed： 1500rpm
start type: electric start, 24v/45Ah
belt connect with high pressure pump

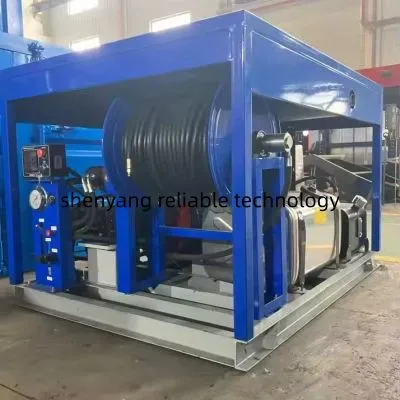

customized automatic cleaning device
water spray gun cleaning
automatic cleaning device

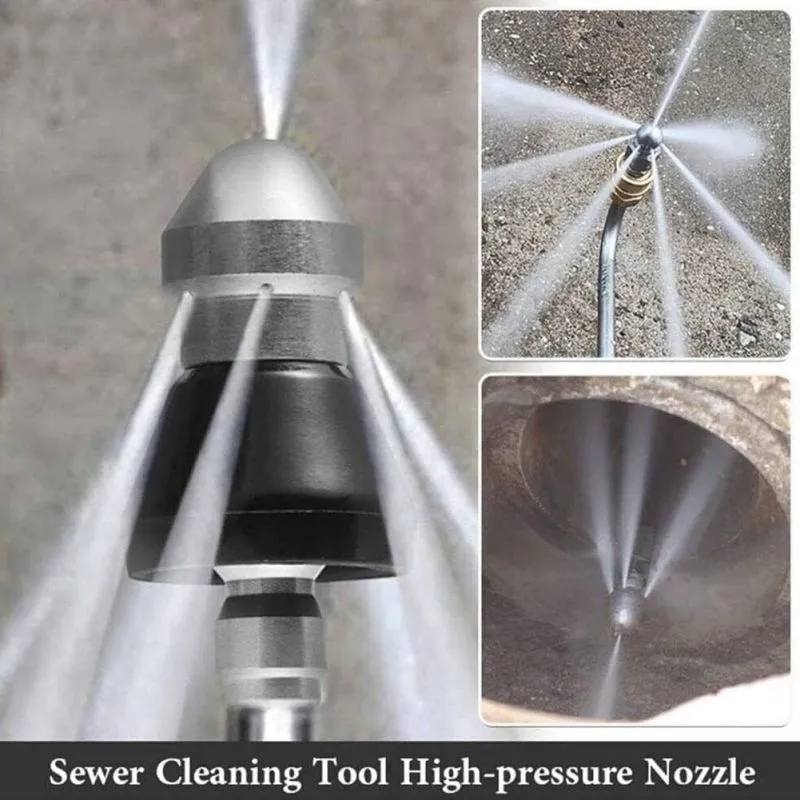

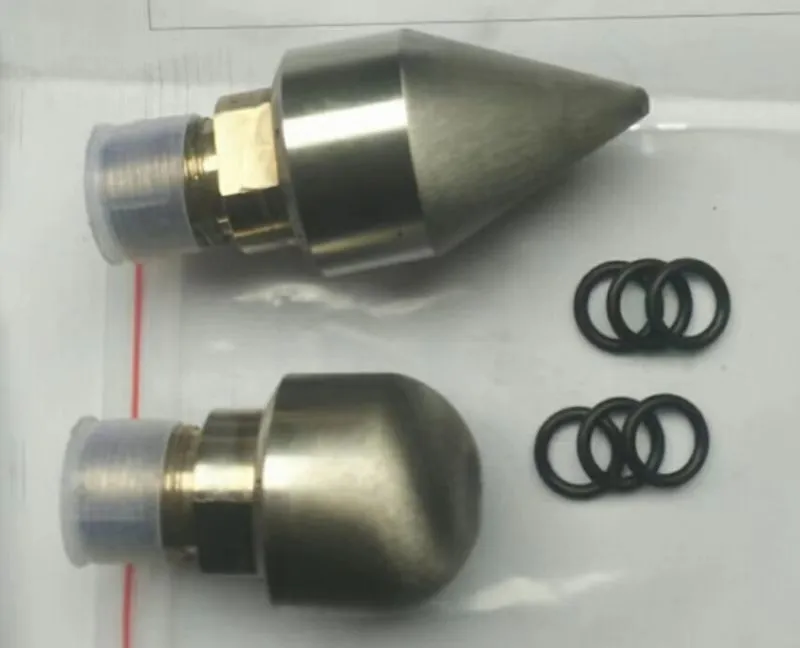

Mul-ti hole jetting nozzle
M22*1.5 thread
material: stainless steel
Size: DN20/30/40/50/80

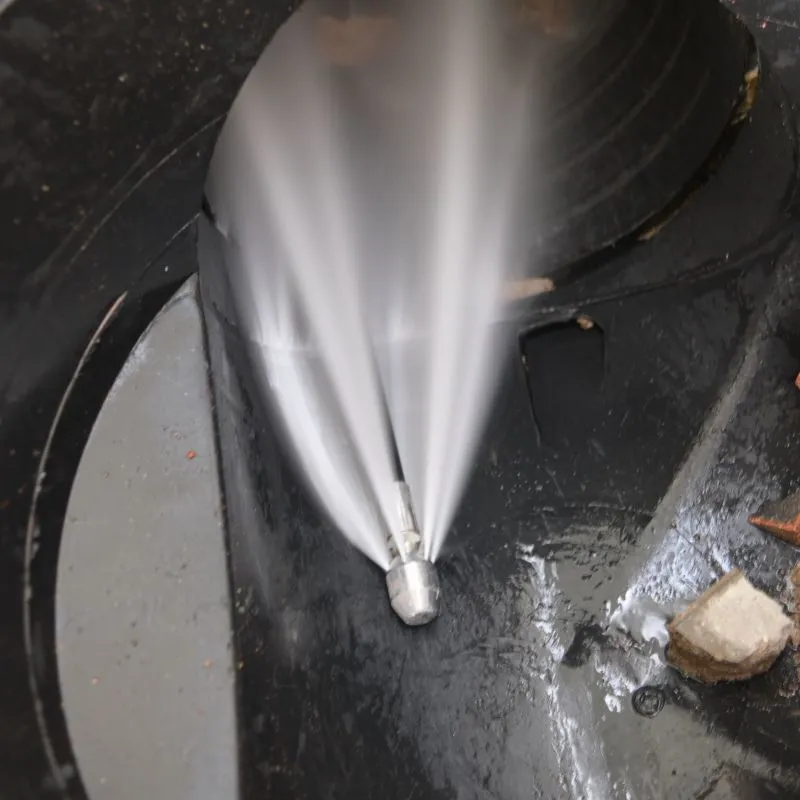

Rotary pipe cleaning nozzle
connect: 1/2'' M22*1.5 or customized
mul-ti hole jetting, body rotary
high effect for pipe cleaning
large pipe cleaning nozzle
alumium material, light weight;
easy to be operate
for large diameter pipe cleaning

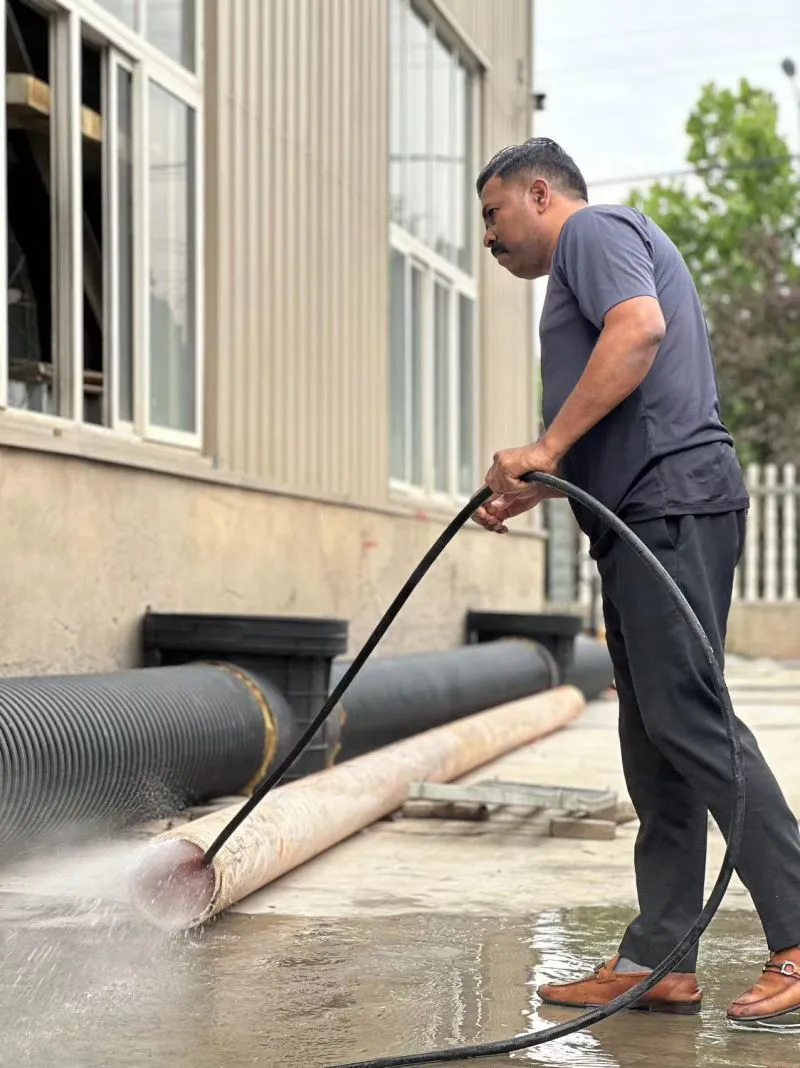

plastic pipe cleaning

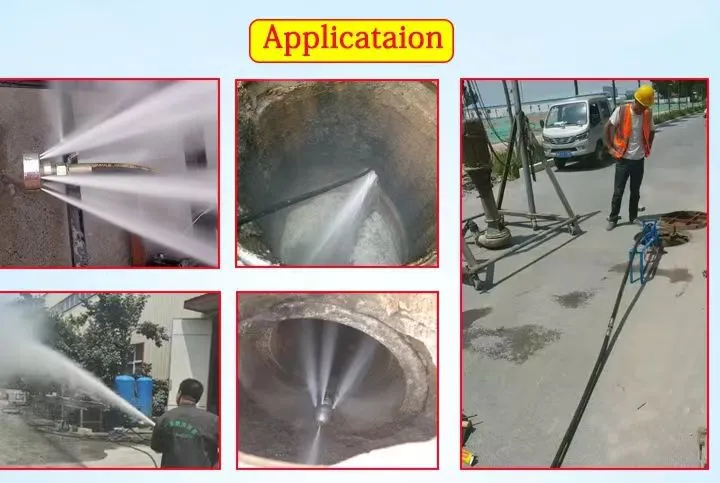

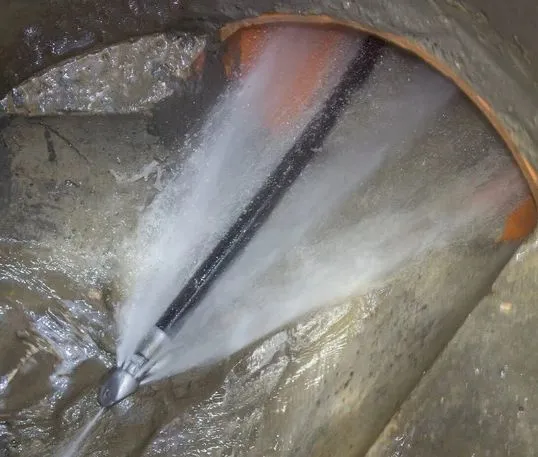

Municipal pipeline cleaning

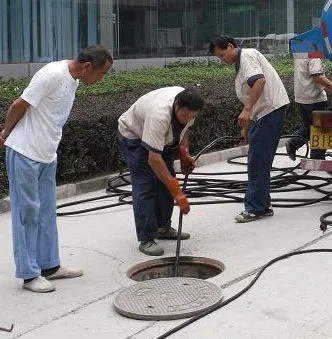

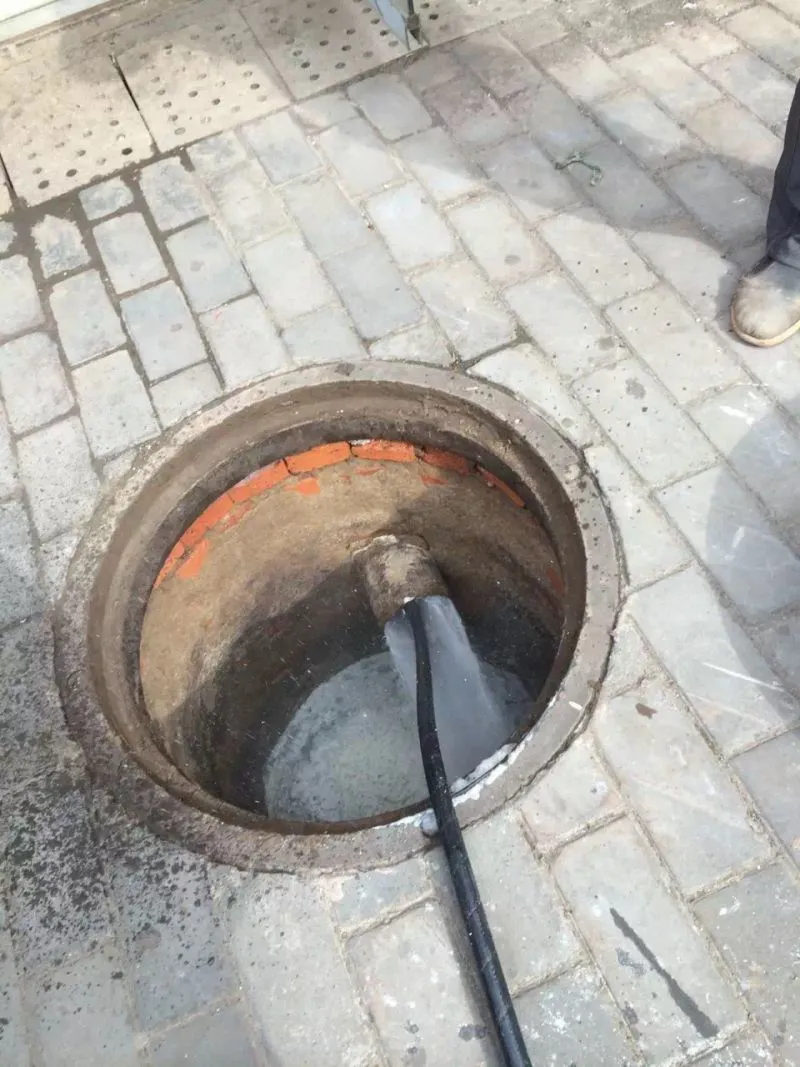

sewer drain pipe cleaning
Overflow water spray gun
Pressure has 1500bar/2800bar
Overflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
High pressure rubber hose
Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc
Pressure: Max.2800bar;
material: ruber with wire winding inside
Barracuda nozzle / turbo nozzle
4-jet rotating nozzle
better for surface strong dirt cleaning
Flexible lance
Pressure 1500bar/2800bar/3035bar
Size: DN8-10-12mm;
Contact thead: M22*1.5 & M24*1.5
Length can be customized
Overflow foot control valve
Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
industrial Pipe Cleaning nozzle
Size: DN13,24,40, etc;
7-jet rotating nozzle;
Pressure: 1500bar/2800bar
for industrial inner pipe cleaning
Q1：What pressures and flow is suitable to sewer drain pipe cleaning?
A1：Pressure normally suggest 200bar~500bar; Flow rates suggest 50-500L/min,
pressure not need so higher, as big water flow us large pipe cleaning.
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3:What's the cleaning type for the sewer drain pipe cleaning?
A3: a: use mul-ti hole jetting nozzle, go inside the pipe itself for inner pipe cleaning
b: use rotating nozzle, rotary during water jetting, so it will be better effect.
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: for road mark removal, suggest diesel engine drive will be more convenient;
also can choose Electric: Suitable for indoor use and quieter operation.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
