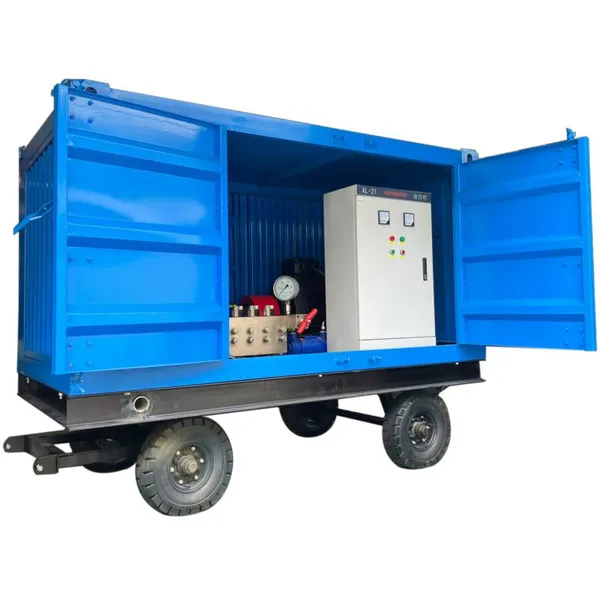

700bar/10000psi Electric High Pressure Water Blasting Hydro Jet Machine High-Pressure Cleaner for Steel Factory Pipe Cleaning
US$ 9900.00
≥1 Set
Key Specifications
Get Latest Price
Certification:
CE
machine type:
HIGH PRESSURE CLEANER
condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Russia High Pressure Hydro Jetting Machine 1500bar Water Jet Machine for Oil Gas Plant Pipeline Cleaning IndustrialUS$ 18000.00MOQ: 1 Set -
Diesel High Pressure Cleaner Hydro Blasting Machine With 22000 Psi 1500bar Water Jetting EquipmentNegotiableMOQ: 1 Set
-
150Mpa Diesel Engine Hydro Blasting Machine Industrial Pipeline Tube Cleaning SystemUS$ 15000.00MOQ: 1 Set
-
1500bar Industrial Hydro Jetting Machine for Pipe Tube Tank Cleaning EquipmentUS$ 16000.00MOQ: 1 Set
-
22000psi Industrial Pipe High Pressure Water Jet Cleaning Cleaner SystemUS$ 16000.00MOQ: 1 Set
Certification
CE
machine type
HIGH PRESSURE CLEANER
condition
New
place of origin
shenyang, China
brand name
RELIABLE
feature
Non-Toxic
power source
Electric
use
High pressure water jet cleaning
cleaning process
Cold Water Cleaning
cleaning type
HIGH PRESSURE CLEANER
material
Metal / Coil
Power
90kw
dimension(l*w*h)
260*150*160cm
warranty
1 Year
weight (kg)
2000
Voltage
380 V
Pump Type
TRIPLEX
Horsepower
90KW
Water Tank Capacity
300l
Flow Rate
70lPM
Pump Drive
direct mount
Pressure Washer Duty
Heavy-Duty
Working pressure
70Mpa/10000psi
Water flow
70L/min
electric motor
power 90kw 3 phase
Diesel engine
145kw,6-cylinder
Start type
electric start
Delivery date
7 days
machine color
canbe customized
700BAR/10000psi Electric high pressure water jetting machine
Name: High pressure water jetting machine
Driven type: Electric motor
Rate pressure: 700bar/10000psi
Water flow: 70 L/min
Motor power: 90kw, 3phase, 380v/50Hz
Type: trailer type or fixed type could be chosen
Model |
Rate pressure |
Water flow |
Electric motor drive |
Diesel engine drive |
RLB1330 |
150MPa/1500bar |
50 L/min |
160kw |
225kw |
RLB1824 |
120Mpa/1200bar |
70 L/min |
160kw |
225kw |
RLB2230 |
150Mpa/1500bar |
85 L/min |
200kw |
264kw |
RLB1320 |
100Mpa/1000bar |
50 L/min |
90kw |
120kw |
RLB1814 |
70Mpa/700bar |
70 L/min |
90kw |
120kw |
RLB1510 |
50MPa/500bar |
60 Lmin |
55kw |
64kw |
RLB2210 |
50Mpa/500bar |
85 L/min |
90kw |
120kw |
RLB0610 |
50Mpa/500bar |
22 L/min |
22kw |
33kw |
Performance and Characteristics
The high-pressure water jet can use the water jet method to assist subsidence in the construction of hard soil layers. The high-pressure water jet guide hole is composed of a high-pressure water pump, a high-pressure water pipe, a steel pipe, and a water jet nozzle. Inject high-pressure water into the body to liquefy the surrounding soil to reduce the resistance during the sinking of the pile, and also play a certain role in lubrication, so that the pile can sink smoothly in the dense soil layer or other soil layers (general water injection The sinking is also combined with vibration, hammering, etc. to assist the sinking) In the reinforced concrete sheet pile, a water injection channel must be reserved in the middle, that is, a hole in the middle that is empty and can be used for water injection. Steel sheet piles are generally taken along the siding to secure the jet piping.
Overflow water spray gun
Pressure has 1500bar/2800bar
Overflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
High pressure rubber hose
Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc
Pressure: Max.2800bar;
material: ruber with wire winding inside
Barracuda nozzle / turbo nozzle
4-jet rotating nozzle
better for surface strong dirt cleaning
Flexible lance
Pressure 1500bar/2800bar/3035bar
Size: DN8-10-12mm;
Contact thead: M22*1.5 & M24*1.5
Length can be customized
Overflow foot control valve
Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
industrial Pipe Cleaning nozzle
Size: DN13,24,40, etc;
7-jet rotating nozzle;
Pressure: 1500bar/2800bar
for industrial inner pipe cleaning
Q1：What pressures and flow is suitable to assist pilot hole piling?
A1：Pressure normally suggest 200-300bar; Flow rates suggest 170-600L/min, more higher water flow, more better piling effect.
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3: How do I choose the right nozzle for my application?
A3: If for assist pilot hole piling, need to confirm the type and size of the pilot. 4# steel sheet pilot suggest 170L/min, 6# steel sheet pilot, Cement wave pile， PC pilot, suggest 320L/min. or can customized according to your request.
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: Electric: Suitable for indoor use and quieter operation. Diesel: Preferred for outdoor use and higher power needs. Gasoline: Portable option, ideal for remote locations.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
Q11:Do you offer training or instructional materials on how to use your machines safely and effectively?
A11:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.
