Home > Industrial Equipment & Components > Cleaning Machine > High Pressure Cleaner > New High-Pressure Jet Wash Water Tank With Pump Unit for Car Wash Shops and Optics Industries
New High-Pressure Jet Wash Water Tank With Pump Unit for Car Wash Shops and Optics Industries
US$ 6000.00
≥1 Set
Key Specifications
Get Latest Price
Certification:
CE
machine type:
HIGH PRESSURE CLEANER
condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Waterblast Unit Hydro Demolition Equipment Ultra-high Pressure Hydro Jetting PumpUS$ 11000.00MOQ: 1 Set -
High Pressure Water Jet Cleaning Cleaner Hydro Jet Blaster Diesel Engine Cleaning MachineUS$ 11000.00MOQ: 1 Set
-
Hydro Jetting Machine Diesel Engine High Pressure Water Jetting Machine for Industrial Cleaning Construction IndustryUS$ 11000.00MOQ: 1 Set
-
Ultra High Pressure Waterjetting Machine Hydro Jetting Equipment for Ship CleaningUS$ 11000.00MOQ: 1 Set
-
Water Jetting Machine 1500 Bar Cleaning Equipment Hydroblasting EquipmentUS$ 11000.00MOQ: 1 Set
Certification
CE
machine type
HIGH PRESSURE CLEANER
condition
New
place of origin
shenyang, China
brand name
RELIABLE
feature
Non-Toxic
power source
Electric
use
High pressure water jet cleaning
cleaning process
Cold Water Cleaning
cleaning type
HIGH PRESSURE CLEANER
material
Metal / Coil
Power
90
dimension(l*w*h)
240*150*180cm
warranty
1 Year
weight (kg)
2000
Voltage
380 V
Pump Type
TRIPLEX
Horsepower
90kw
Water Tank Capacity
150gal
Flow Rate
50L/min
Cleaning Path
20 in
Motor Thermal Protection
Manual
Pump Drive
Gear, direct mount
Pressure Washer Duty
Heavy-Duty
Working pressure
500bar to 1500bar
Water flow
50-85L/min
electric motor
power 55-200kw 3 phase
Diesel engine
84-264kw,6-cylinder
Start type
electric start
Delivery date
7 days
machine color
canbe customized
Model |
Rate pressure |
Water flow |
Electric motor drive |
Diesel engine drive |
RLB25030 |
30Mpa/300bar |
250 L/min |
160kw |
225kw |
RLB30030 |
30Mpa/300bar |
300 L/min |
200kw |
264kw |
RLB50150 |
150MPa/1500bar |
50 L/min |
160kw |
225kw |
RLB70120 |
120Mpa/1200bar |
70 L/min |
160kw |
225kw |
RLB85150 |
150Mpa/1500bar |
85 L/min |
200kw |
264kw |
RLB50100 |
100Mpa/1000bar |
50 L/min |
90kw |
120kw |
RLB7070 |
70Mpa/700bar |
70 L/min |
90kw |
120kw |
RLB6050 |
50MPa/500bar |
60 Lmin |
55kw |
64kw |
RLB8550 |
50Mpa/500bar |
85 L/min |
90kw |
120kw |
RLB2250 |
50Mpa/500bar |
22 L/min |
22kw |
33kw |
Performance and Characteristics
The high-pressure plunger pump can use the water jet method to assist subsidence in the construction of hard soil layers. The high-pressure water jet guide hole is composed of a high-pressure water pump, a high-pressure water pipe, a steel pipe, and a water jet nozzle. Inject high-pressure water into the body to liquefy the surrounding soil to reduce the resistance during the sinking of the pile, and also play a certain role in lubrication, so that the pile can sink smoothly in the dense soil layer or other soil layers (general water injection The sinking is also combined with vibration, hammering, etc. to assist the sinking) In the reinforced concrete sheet pile, a water injection channel must be reserved in the middle, that is, a hole in the middle that is empty and can be used for water injection. Steel sheet piles are generally taken along the siding to secure the jet piping.

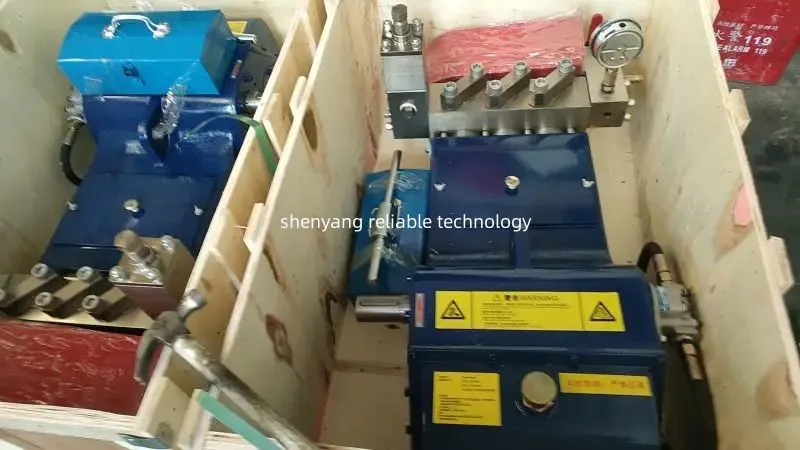

high pressure plunger pump
Pressure range from 500bar to 1500bar; Max. 2800bar; has both electric motor drive and diesel engine drive.
has different model for different working function, such as surface heavy dirt cleaning, rust paint removal, industrial pipe/tank/tube cleaning, heat exchanger pipe condenser pipe cleaning, sewer drain pipe cleaning, pressure testing etc.
Pressure regulating valve.
Pressure regulating valve setting on the pump
Could be adjust the pressure easily.
Pressure gauge
setting on the pump
to show the real time working pressure
Built-in silicone oil, sensitive and accurate readings With anti-vibration function
Overflow water spray gun
Pressure has 1500bar/2800bar
Overflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
High pressure rubber hose
Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc
Pressure: Max.2800bar;
material: ruber with wire winding inside
Barracuda nozzle / turbo nozzle
4-jet rotating nozzle
better for surface strong dirt cleaning
Flexible lance
Pressure 1500bar/2800bar/3035bar
Size: DN8-10-12mm;
Contact thead: M22*1.5 & M24*1.5
Length can be customized
Overflow foot control valve
Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
industrial Pipe Cleaning nozzle
Size: DN13,24,40, etc;
7-jet rotating nozzle;
Pressure: 1500bar/2800bar
for industrial inner pipe cleaning
Q1：What pressures and flow is suitable to assist pilot hole piling?
A1：Pressure normally suggest 200-300bar; Flow rates suggest 170-600L/min, more higher water flow, more better piling effect.
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3: How do I choose the right nozzle for my application?
A3: If for assist pilot hole piling, need to confirm the type and size of the pilot. 4# steel sheet pilot suggest 170L/min, 6# steel sheet pilot, Cement wave pile， PC pilot, suggest 320L/min. or can customized according to your request.
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: Electric: Suitable for indoor use and quieter operation. Diesel: Preferred for outdoor use and higher power needs. Gasoline: Portable option, ideal for remote locations.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
Q11:Do you offer training or instructional materials on how to use your machines safely and effectively?
A11:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.
