High Pressure 500bar 1500bar Water Jet Cleaning Machine New Industrial Heat Exchanger Boiler Tubes Cooling Tower Cleaning System

High Pressure 500bar 1500bar Water Jet Cleaning Machine New Industrial Heat Exchanger Boiler Tubes Cooling Tower Cleaning System thumbnail-1
High Pressure 500bar 1500bar Water Jet Cleaning Machine New Industrial Heat Exchanger Boiler Tubes Cooling Tower Cleaning System thumbnail-2
High Pressure 500bar 1500bar Water Jet Cleaning Machine New Industrial Heat Exchanger Boiler Tubes Cooling Tower Cleaning System thumbnail-3
High Pressure 500bar 1500bar Water Jet Cleaning Machine New Industrial Heat Exchanger Boiler Tubes Cooling Tower Cleaning System thumbnail-4
High Pressure 500bar 1500bar Water Jet Cleaning Machine New Industrial Heat Exchanger Boiler Tubes Cooling Tower Cleaning System thumbnail-5
High Pressure 500bar 1500bar Water Jet Cleaning Machine New Industrial Heat Exchanger Boiler Tubes Cooling Tower Cleaning System photo-1
High Pressure 500bar 1500bar Water Jet Cleaning Machine New Industrial Heat Exchanger Boiler Tubes Cooling Tower Cleaning System photo-2
High Pressure 500bar 1500bar Water Jet Cleaning Machine New Industrial Heat Exchanger Boiler Tubes Cooling Tower Cleaning System photo-3
High Pressure 500bar 1500bar Water Jet Cleaning Machine New Industrial Heat Exchanger Boiler Tubes Cooling Tower Cleaning System photo-4
High Pressure 500bar 1500bar Water Jet Cleaning Machine New Industrial Heat Exchanger Boiler Tubes Cooling Tower Cleaning System photo-5
US$ 12000.00 ≥1 Set
Key Specifications
Get Latest Price
Certification:
CE
machine type:
HIGH PRESSURE CLEANER
condition:
New
Contact Supplier Request Quote Chat Now
Shenyang Reliable Technology Co., Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE
machine type HIGH PRESSURE CLEANER
condition New
place of origin shenyang, China
brand name RELIABLE
feature Non-Toxic
power source Electric
use High pressure water jet cleaning
cleaning process Cold Water Cleaning
cleaning type HIGH PRESSURE CLEANER
material Metal / Coil
Power 90
dimension(l*w*h) 280*150*180cm
warranty 1 Year
weight (kg) 2000
Voltage 380 V
Pump Type TRIPLEX
Fuel Tank Capacity 1.6gal
Horsepower 90KW
Water Tank Capacity 300L
Flow Rate 80Lpm
Motor Service Factor 0.75
Pump Drive direct mount
Pressure Washer Duty Heavy-Duty
Name high pressure water jet machine
Working pressure 70Mpa-150Mpa/22000psi
Water flow 50-85L/min
electric motor power 160-200kw 3 phase
Diesel engine 264kw,6-cylinder
Start type electric start
Delivery date 7 days
machine color canbe customized
Product Description

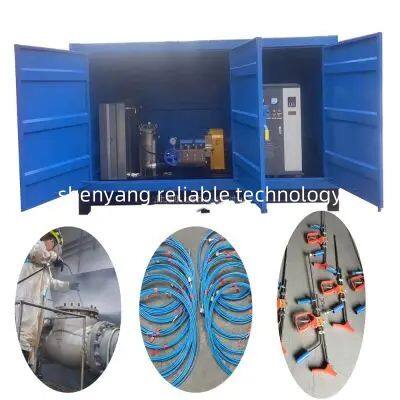

1_693_120108_800_800
The connection method between the equipment host and the actuator
The contact method for different cleaning purposes is slightly different



1. for pipe cleaning : high pressure hose one end connect with pump outlet, another end connect with foot valve, foot valve another outlet connect with flexible lance,end with pipe cleaning nozzle.
2. for surface cleaning: high pressure hose one end connect with pump outlet, another end connect with waater spray gun, nozzle setting on the gun, for surface cleaning.

Standard features :

Name: High pressure water jetting machine

* High pressure plunger pump:

  • Pressure: range from 700ba to 1500bar; (10000psi to 22000psi)

  • Water flow: range from 20L/min to 150L/min

  • Could be driven by electric motor or diesel engine; can be choosed by customer.

  • Pump head material: stainless steel ;

  • The plunger is made of stainless steel nickel-plated alloy with high hardness,

  • The pump body is made of ductile iron, which is hard and not easy to deform.

  • Forced lubrication system: Reduce friction and wear, dissipate heat and cool the power end, extend service life and improve operating efficiency.

  • Forced water cooling system: to make sure long time running without high temp.

  • Setting with pressure regulating valve, safety valve and pressure gauge;

* Diesel engine: 6-cylinder; speed: 1500-1800rpm;  Brand can be customized

                        Electric start: 12v/100Ah storage battery * 2 sets;

* with the radiator tank has a good cooling effect on the diesel engine.

* Water tank: Stainless steel material, volume 200-300L; The high-pressure pump provides high-level water inlet to ensure that no air enters the high-pressure pump, which plays a good protective role for the high-pressure pump

* Booster pump and water inlet filter: to make sure water inlet pressure and Cleanliness,Prevent impurities from entering the high-pressure pump,

Technical parameter

INPUT SPEED r/min

1480

PLUNGER STROKE       120mm

REDUCTION RATIO

4.04

PUMP SPEED           366r/min

ELECTRIC POWER KW

90

110

132

160

PLUNGER DIAMETER

mm

WATER FLOW

RATE PRESSURE Bar



M³/h

L/min





2.4

40

1150

1400

1500



20

3

50

950

1200

1400

1500

22

3.6

60

800

1000

1150

1400

34

4.2

70

700

850

1000

1200

26

4.8

82

560

700

850

1000

28

5.58

93

500

600

700

900

30



* Note: Can be customized with pressure and water flow.

Application :

Cleaning
industrial pipe/heat exchanger/condenser pipe cleaning, tube/tank cleaning, boiler cleaning, evaporation tank cleaning,  concrete surface cleaning,  cement cleaning; aluminum formwork cleaning, ship/hull cleaning,
removing
marine hull rust removal, paint removal, cement removal, scale oxide removal, dephosphorization removal on steel plant, phosphorous removal; road mark removal, rubber removal from airport ground; pile corrosion removal, deburring, etc.
pressure testing
valve pressure testing, pipe cleaning testing, etc.
Pretreatment
highway overlay treatmeat, concrete streatment, marine surface treatment, surface treatment,etc
Notes:

  • High-pressure cleaners are categorized by pressure range (e.g., 100-3000+ bar) and temperature (cold/hot water), tailored to specific tasks.

  • Applications often overlap across industries due to the versatility of high-pressure systems

  • 1_338_119826_800_797.jpg

Packaging & Shipping





FAQ

 Q1:What pressures and flow rates are available in these machines?

A1:Pressure ranges from 3,000 PSI to 40,000 PSI (200 to 2800 bar) or more. Flow rates typically range from 15 to 600 L/min;

Q2:Do you offer training or instructional materials on how to use your machines safely and effectively?
A2:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.

Q3: How do I choose the right nozzle for my application?
A3: Fan Nozzles: For surface cleaning. Rotary Nozzles: For deep cleaning and descaling. Piercing Nozzles: For cutting and precise applications. Pipe cleaning nozzles: For industrial pipe/sewer drain pipe cleaning; Turbo nozzle: for surface strong dirt cleaning, Customized Nozzles: Designed for specific tasks or materials.

Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.

Q5:What are the power options for high-pressure water jetting machines?
A5: Electric: Suitable for indoor use and quieter operation. Diesel: Preferred for outdoor use and higher power needs. Gasoline: Portable option, ideal for remote locations.

Q6:How do I choose suitable model?
A6:You can confirm your working purpose request, If possible, send us pictures.
We will recommend two models for your selection.

Q7:How long is your delivery time?
A7:Normal 3-10 days; Customized order need to confirm with the seller.

Q8:Which is your shipping port?
A8: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.

Product Description
We try to provide accurate and timely information as much as possible. However, we cannot guarantee the accuracy, reliability, timeliness, completeness and error-freeness of the product description or the price and other content marked in this product link. If you purchase the product, you need to configure the appropriate model according to the specific purpose, cleaning accessories and final price, and accept our general terms and conditions of sale. Please read these conditions carefully before ordering.
