Intelligent 3D Water Jet Cleaning System for Oil Tank/Reactor Vessel New High Pressure 500-1500bar Water Jetting System
US$ 19000.00
≥1 Set
Key Specifications
Get Latest Price
Certification:
CE
machine type:
HIGH PRESSURE CLEANER
condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
360° Full Coverage Cleaning Equipment 3D Rotating Water Jet Nozzle High Pressure 500-1500bar Water Jetting System New ConditionUS$ 16000.00MOQ: 1 Set -
High Pressure 500bar Water Jet Cleaner New Casting Sand Cleaning Ship Marine Machine Cold Water Cleaning ProcessUS$ 3500.00 - 5000.00MOQ: 1 Set
-
New 2000bar High Pressure Water Jetting Machine for Concrete Surface Roughening & Cement Removal for Surface PreparationUS$ 12000.00MOQ: 1 Set
-
High Pressure Water Jetting Machine 2000bar Concrete Surface Preparation Hydro Jet Blaster New Condition High Pressure CleanerUS$ 12000.00MOQ: 1 Set
-
Ultra High Pressure Water Jetting Machine 2000bar Hydro Jet Blaster Concrete Surface PreparationUS$ 12000.00MOQ: 1 Set
Certification
CE
machine type
HIGH PRESSURE CLEANER
condition
New
place of origin
Shenyang, China
brand name
RELIABLE
feature
Non-Toxic
power source
Diesel
use
High pressure water jet cleaning
cleaning process
Cold Water Cleaning
cleaning type
HIGH PRESSURE CLEANER
material
Metal / Coil
Power
264
dimension(l*w*h)
380*170*180cm
warranty
1 Year
weight (kg)
3000
Name

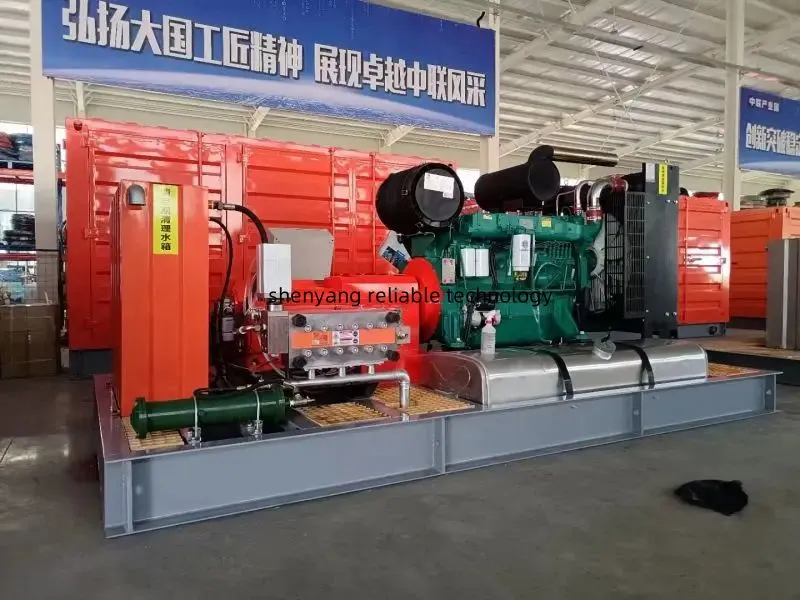

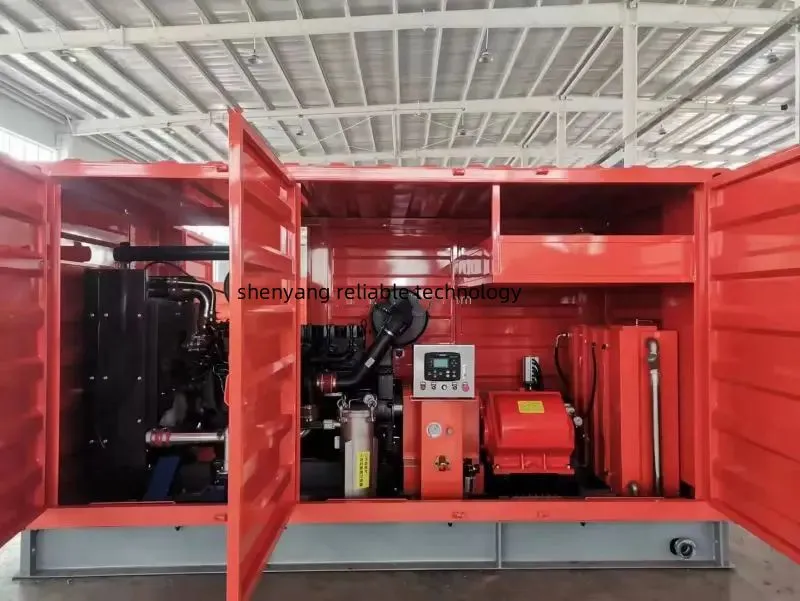

1500bar 264kw diesel cleaning system
Working pressure
150Mpa/22000psi
Water flow
50-85L/min
electric motor
power 160-200kw 3 phase
Diesel engine
264kw,6-cylinder
Start type
electric start
Delivery date
7 days
machine color
canbe customized
Product Overview

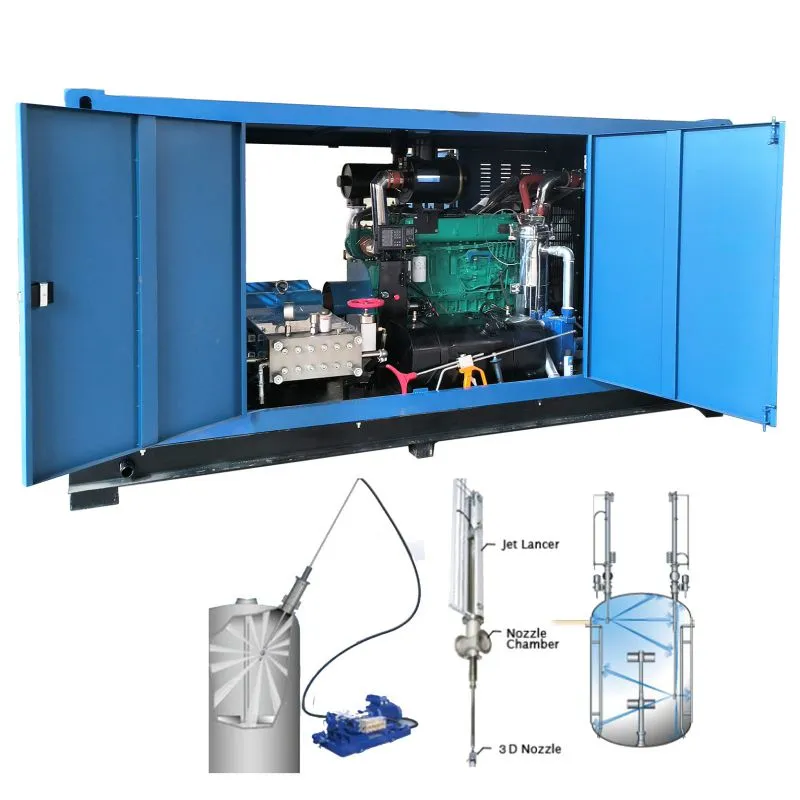

3D rotating nozzle high pressure water jet tank cleaner machine
1. reduced downtimes thanks to faster cleaning
2. reduced downtimes thanks to faster cleaning
3. no evacuation of the container necessary
4. no evacuation of the container necessary
5. process-integrated operation via the process control system
6. process-integrated operation via the process control system
7. cold, hot-cleaning with or without cleaning additives
ld, hot-cleaning with or without cleaning additives
9. more occupational safety without personnel in the container
10. can also be used up to Ex Zone 0 and 20
2. reduced downtimes thanks to faster cleaning
3. no evacuation of the container necessary
4. no evacuation of the container necessary
5. process-integrated operation via the process control system
6. process-integrated operation via the process control system
7. cold, hot-cleaning with or without cleaning additives
ld, hot-cleaning with or without cleaning additives
9. more occupational safety without personnel in the container
10. can also be used up to Ex Zone 0 and 20
Regular high pressure cleaning of reactor containers not only ensures a clean process, it also supports production times and stabilizes sensitive processes. Complex and hard-to-reach geometries can also be cleaned of all accumulated deposits with the high pressure cleaning. Areas of use for the XUZHIYANG cleaning the interior of tanks are extremely varied. The cleaning system used always depends on the type of dirt being removed. The thorough cleaning of boilers, autoclaves, IBC containers, all kinds of tanks or even silos and spray towers is no problem.
PRODUCT SPECIFICATIONS
Rate pressure |
Water flow |
Electric motor drive |
Diesel engine drive |
100Mpa/1000bar |
100 L/min |
200kw |
317kw |
100Mpa/1000bar |
80 L/min |
160kw |
225kw |
150Mpa/1500bar |
85 L/min |
200kw |
264kw |
70Mpa/700bar |
70 L/min |
90kw |
120kw |
50Mpa/500bar |
85 L/min |
90kw |
120kw |
Product Application
Cleaning |
industrial pipe/heat exchanger/condenser pipe cleaning, tube/tank cleaning, boiler cleaning, evaporation tank cleaning, concrete surface cleaning, cement cleaning; aluminum formwork cleaning, ship/hull cleaning, |
removing |
marine hull rust removal, paint removal, cement removal, scale oxide removal, dephosphorization removal on steel plant, phosphorous removal; road mark removal, rubber removal from airport ground; pile corrosion removal, deburring, etc. |
pressure testing |
valve pressure testing, pipe cleaning testing, etc. |
Pretreatment |
highway overlay treatmeat, concrete streatment, marine surface treatment, surface treatment,etc |
FEATURES AT A GLANCE
Model: RLB85150E
Rate pressure: 150Mpa/1500bar/22000psi
water flow: 85 L/min
pump speed: 366rpm
pump plunger diameter: 26mm;
Pneumatic pressure regulator
pressure gauge;
Electric motor drive: 200kw
with water tank/inlet water filter/ booster pump
Model: RLB85150D
Rate pressure: 150Mpa/1500bar/22000psi
water flow: 85 L/min ( 12 gallon /min)
pump speed: 366rpm
pump plunger diameter: 26mm;
Pneumatic pressure regulator
pressure gauge;
Diesel engine drive: 264kw, 6-cylinder
with water tank/inlet water filter/ booster pump
water flow: 85 L/min ( 12 gallon /min)
pump speed: 366rpm
pump plunger diameter: 26mm;
Pneumatic pressure regulator
pressure gauge;
Diesel engine drive: 264kw, 6-cylinder
with water tank/inlet water filter/ booster pump
Successful Project
Tank & reactor cleaning
concrete surface roughening
industrial strong dirt cleaning
large Pipe cleaning
cement removal
concrete cutting
Factory picture show
FAQ
Q1：What pressures and flow rates are available in these machines?
A1：Pressure ranges from 3,000 PSI to 40,000 PSI (200 to 2800 bar) or more. Flow rates typically range from 15 to 600 L/min;
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3: How do I choose the right nozzle for my application?
A3: Fan Nozzles: For surface cleaning. Rotary Nozzles: For deep cleaning and descaling. Piercing Nozzles: For cutting and precise applications. Pipe cleaning nozzles: For industrial pipe/sewer drain pipe cleaning; Turbo nozzle: for surface strong dirt cleaning, Customized Nozzles: Designed for specific tasks or materials.
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: Electric: Suitable for indoor use and quieter operation. Diesel: Preferred for outdoor use and higher power needs. Gasoline: Portable option, ideal for remote locations.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
Q11:Do you offer training or instructional materials on how to use your machines safely and effectively?
A11:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.
